4S 20A 18650 Lithium Battery Protection Board

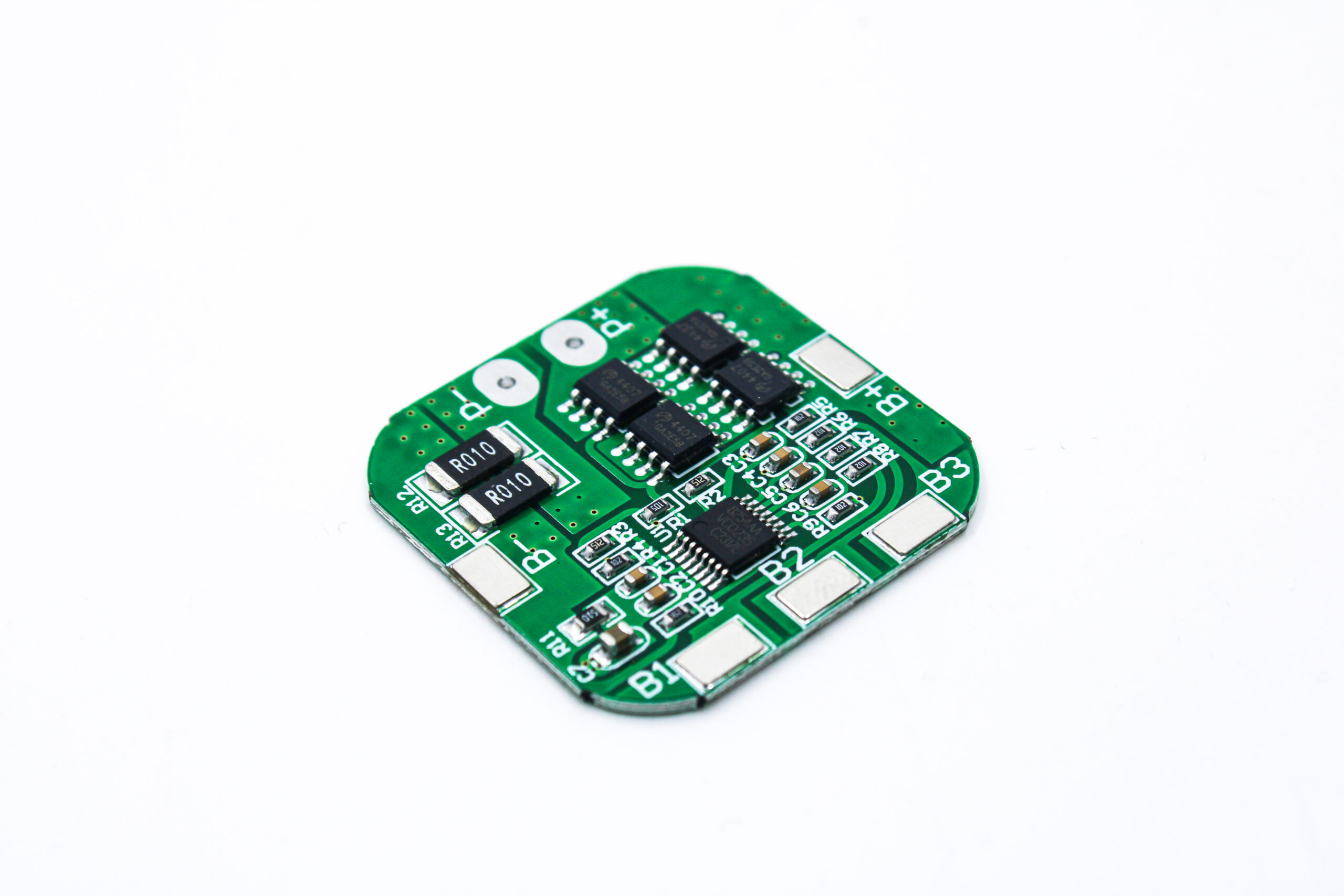

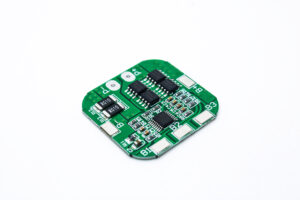

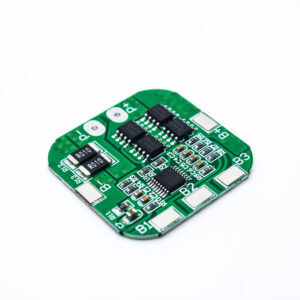

The 4S 14.8V 20A Lithium battery Protection Board comes with over-charge, over-discharge, over-current and short circuit protection, for a variety of various shapes 3.7V lithium-Ion batteries. HXYP-4S-BMD1 is Small size square shape board under which four 18650 cells can be packed suitable for many requirements of high integration, low cost of the occasion, to meet a wide range of performance requirements to ensure that the battery pack is absolutely safe and reliable.
This BMS (Battery Management System) – a battery management system that is designed to monitor the status of batteries, control the battery charge/discharge process, etc. Four 18650 batteries can be connected simultaneously to the HXYP-4S-BM20 module.
The features of this charge controller are protection against short circuit (short circuit) and protection against over-discharge (overcharge). Also, a feature of the module is to turn off the power supply for the batteries when the maximum capacity of at least one battery is reached. The maximum operating current of this BMS controller is 20 A, and the quiescent current reaches up to 10 μA. The battery charge is switched off when the voltage reaches 4.25 – 4.35 V, and the discharge when the voltage drops to 2.3 – 3.0 V.
If the maximum permissible value of the supply voltage is exceeded, the charge controller activates the “protection” mode. In order to restore the module, it is necessary to re-apply voltage to the input of the BMS board or wait a while until the charge controller automatically disables protection.
BMS solder instruction:

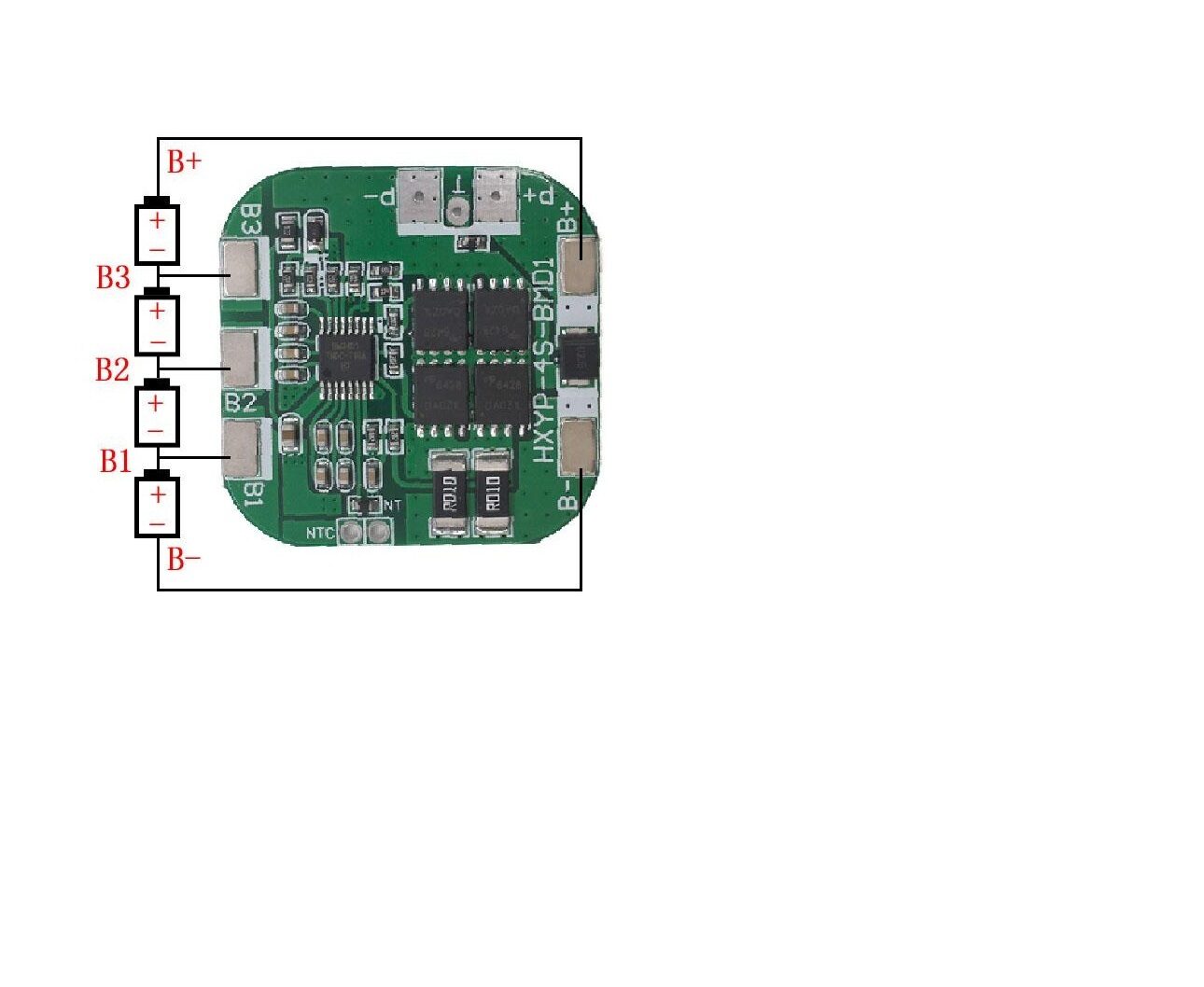

B+ connected battery positive;
B1 the connect point between battery 1 and battery 2;
B2 connect the point between battery2 and battery 3;
B3 Connect the point between battery 3 and battery 4;
B- connect to battery negative end;
P- + connection charge / discharge positive;
P- connection charge / discharge negative;
Features:
- Small size designed for a four-cell battery pack.
- Simple wiring and circuit
- Over-charge Protection
Specifications:

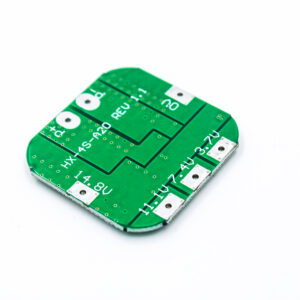

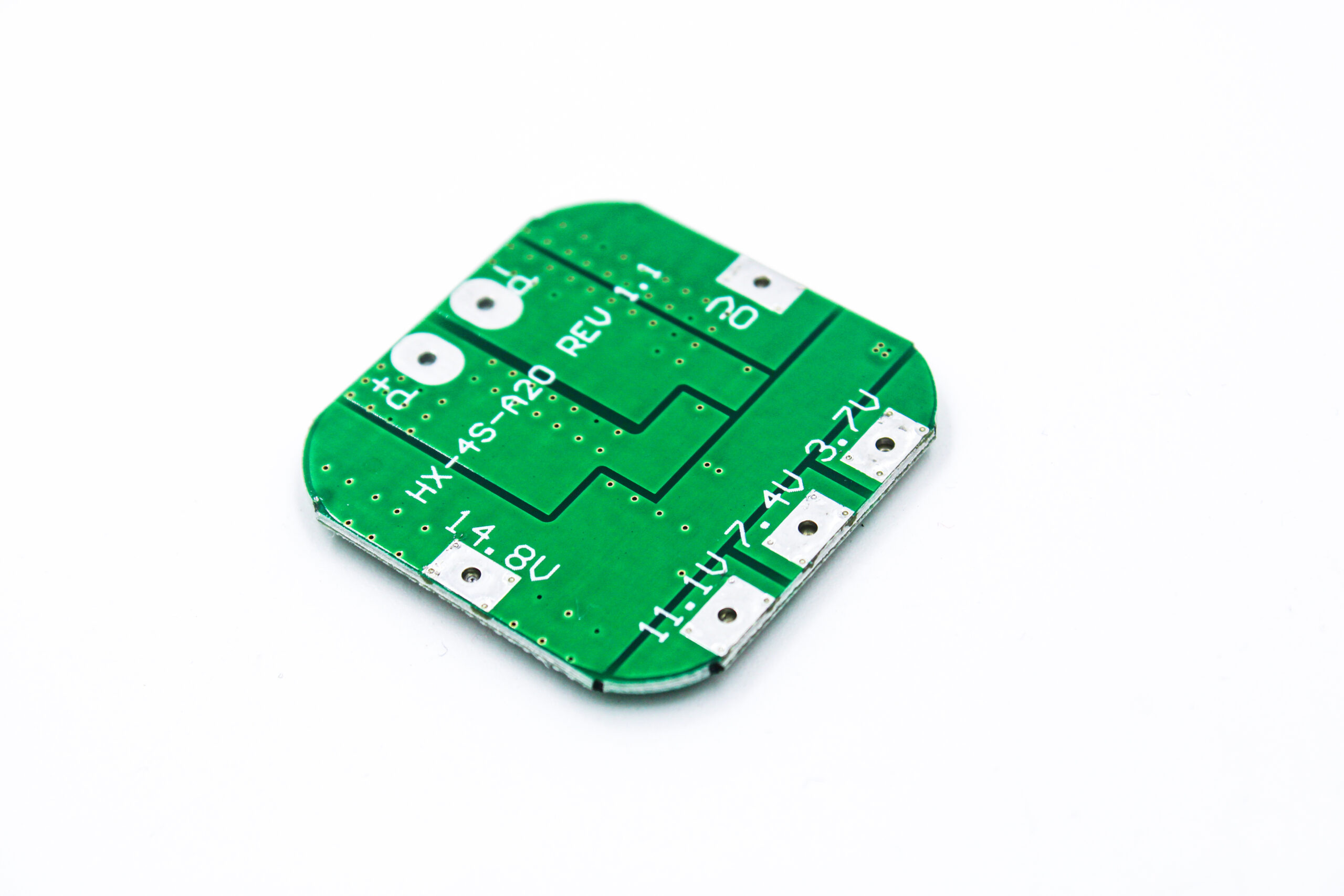

| Model | HXYP-4S-BM20 |
|---|---|
| Voltage range | 4.25~4.35V±0.05V |
| Max working current | 10A |
| Max Peak current | 20A |
| Working Temperature | -40~+50 |
| Storage Temperature | -40~+80 |
| Resistance | 45mΩ |
| Small current | 6uA |
| Life cycle | Around 50000hours |
| Length (mm): | 36 |
| Width (mm): | 36 |
| Weight (g): | 4 |
Package Includes:

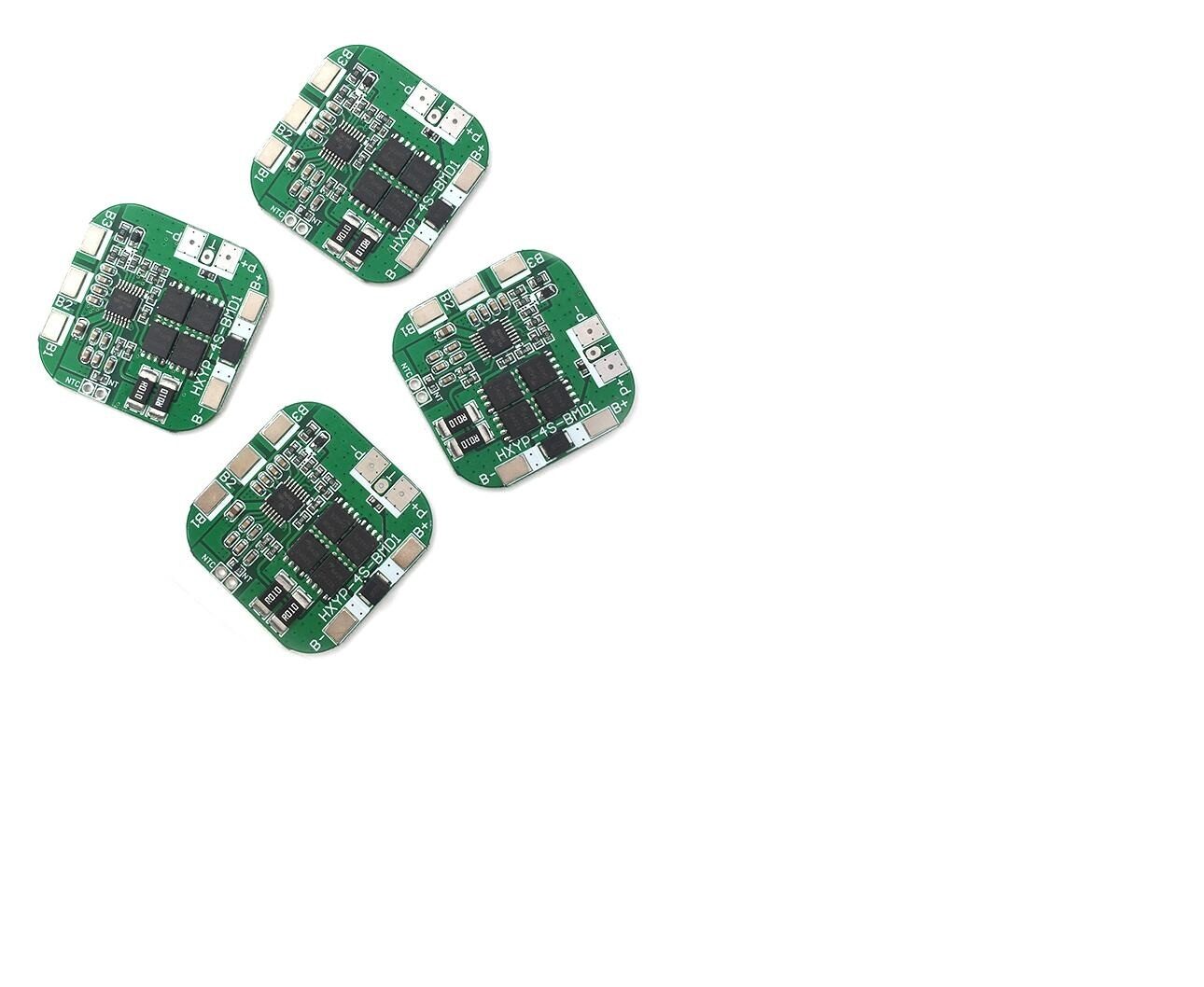

1 x 4S 20A 18650 Lithium Battery Protection Board
Battery Holder vs Connector: Best Approach for Your Projects
Battery Holder vs Connector: Best Approach for Your Projects Every electronics project needs power, and how you connect...
Read More →
How to Build a 18650 Battery Pack with BMS: Step-by-Step
Building your own 18650 battery pack with BMS is one of the most rewarding DIY electronics projects you...
Read More →
Power Bank Build: Custom Capacity 18650 Power Pack

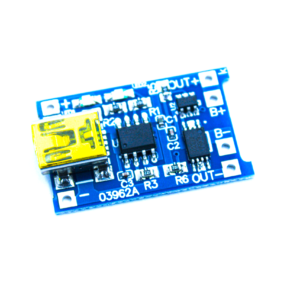

Table of ContentsDesigning Your Power Bank Components List Circuit Assembly Charging Circuit with TP4056 Boost Converter for 5V...
Read More →Technical Specifications
| Current Rating | 20A |
|---|---|
| Cell Configuration | 4S |
| SKU | AI1055 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The 4S 20A 18650 Lithium Battery Protection Board is a versatile battery protection board used across a wide range of applications including lithium battery pack protection, power bank builds, e-bike battery management, solar energy storage, and UPS systems.
Common use cases:
- Building a custom lithium battery pack
- Adding overcharge/overdischarge protection
- Creating a DIY power bank
This product is ideal for battery pack builders and power electronics engineers.
Technical Tip: BMS boards prevent overcharge, overdischarge, overcurrent, and short circuit. Match cell count (S) and max current rating to your battery pack.
