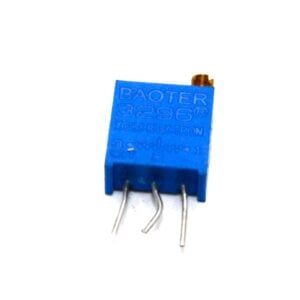

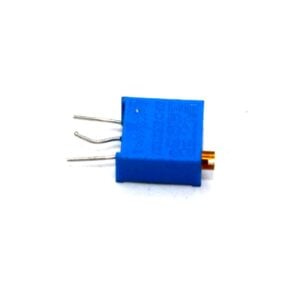

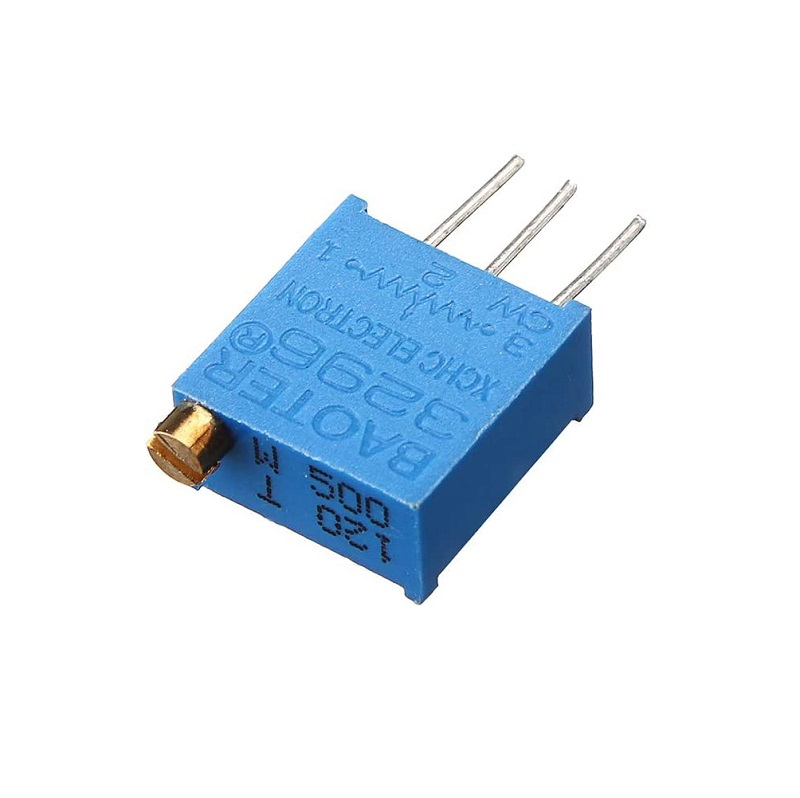

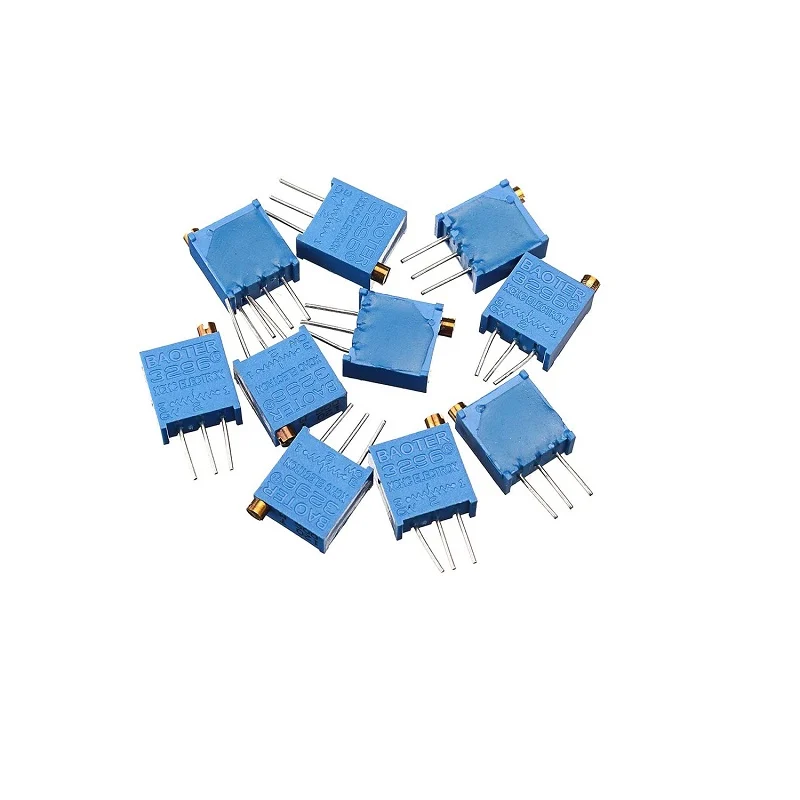

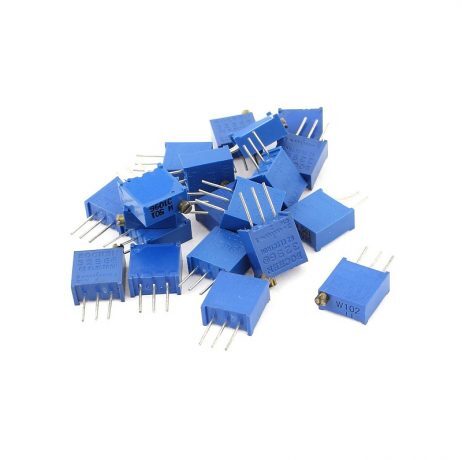

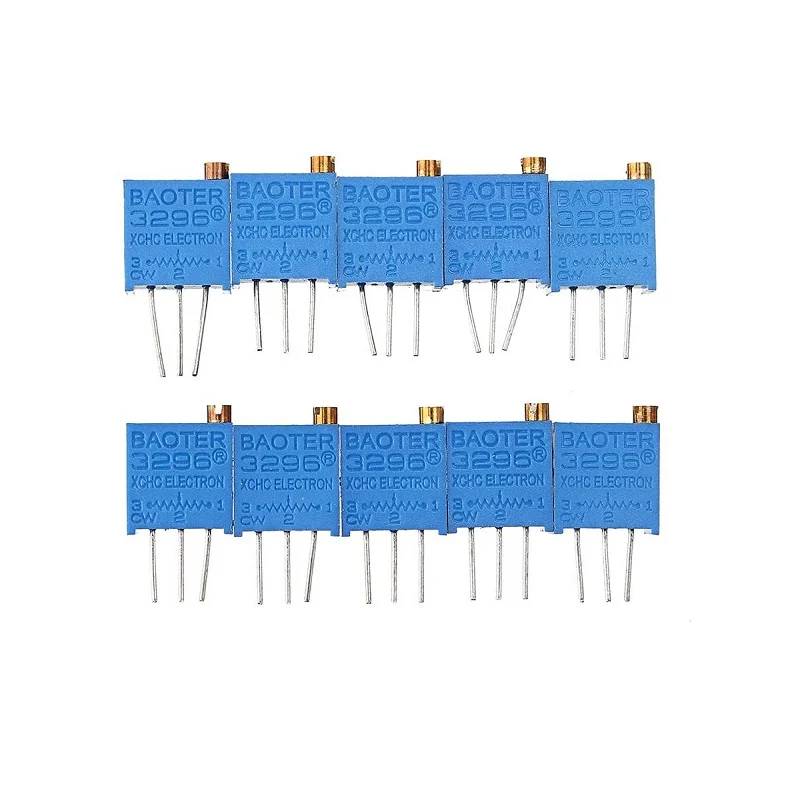

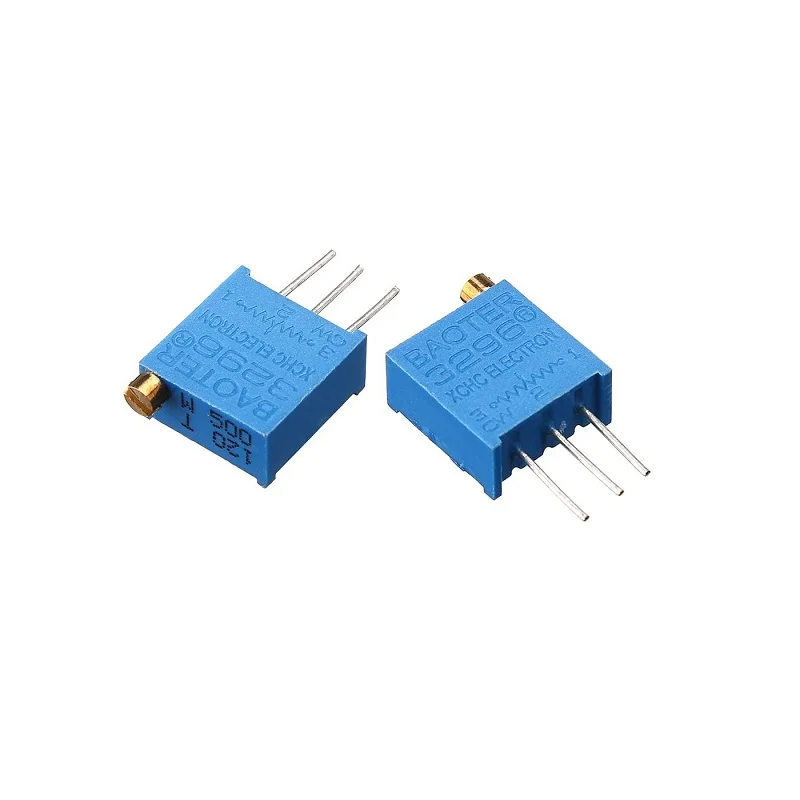

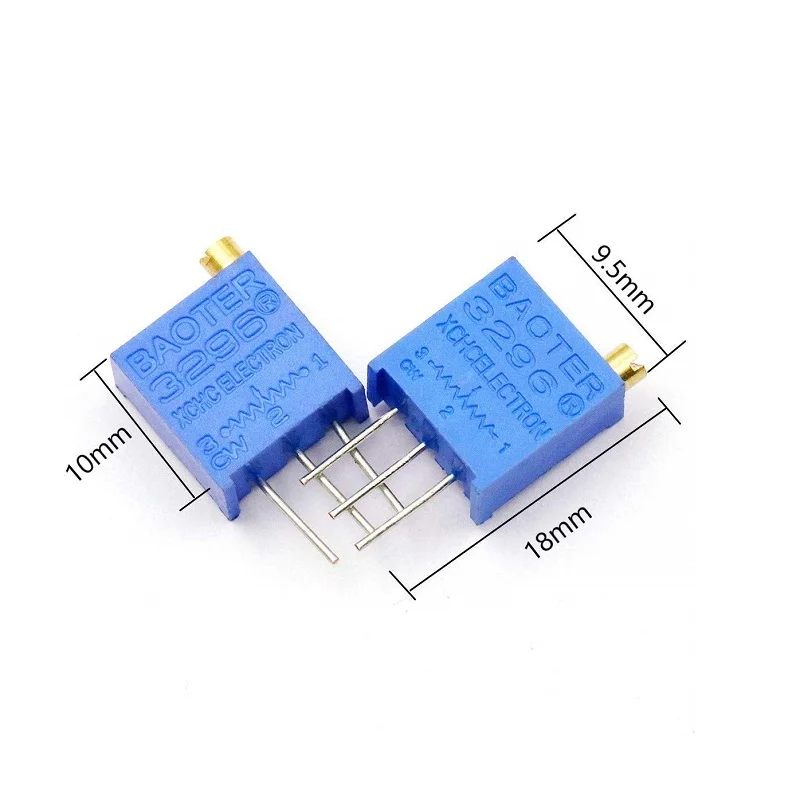

3296W Potentiometers assorted Kit
The 3296W Potentiometers Assorted Kit includes 15 types of potentiometers. A potentiometer is a resistor with three terminals, featuring a sliding or rotating contact for adjusting a voltage divider. When only two terminals are utilized, it functions as a variable resistor or rheostat.
This kit provides versatile options for adjusting electrical resistance and voltage. Potentiometers are commonly employed in various applications such as volume controls in audio equipment. They can also serve as position transducers, as seen in joystick mechanisms.
Features:
- Easy to use
- Best quality product
- Easy to store
Specification:
Product: 3296W Potentiometers assorted Kit- 15 Type
Mounting type: Through-hole (DIP)
Adjustment type: Top Adjustment
Resistance change type: Top Adjustment
Resistor material: Ceramic
Package Includes:

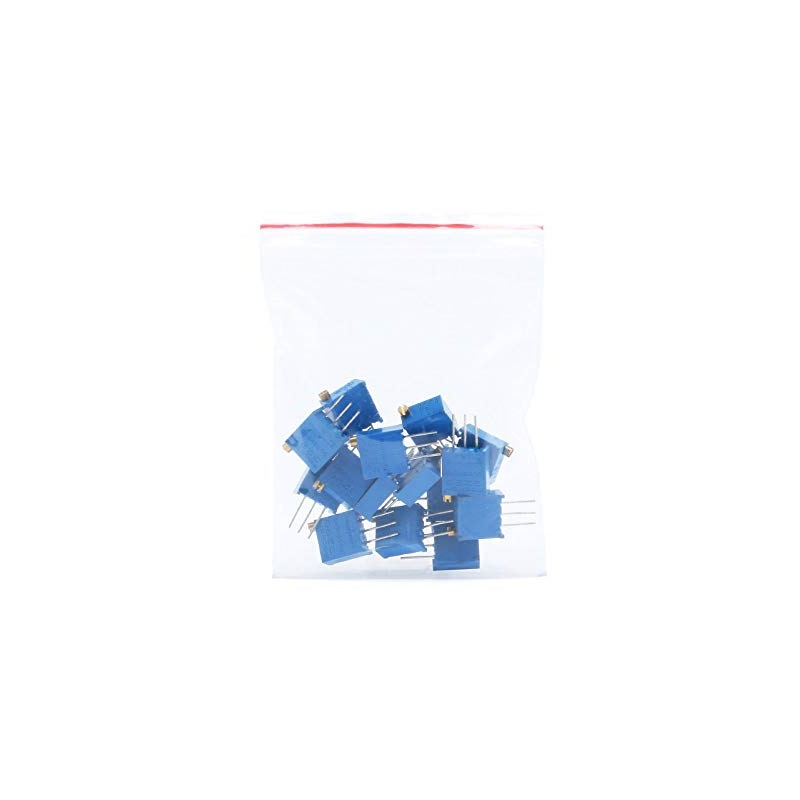

1 x 3296W Potentiometers assorted Kit- 15 Type
3296W Potentiometers assorted Kit- 15 Type Overview
The 3296W Potentiometers assorted Kit- 15 Type is a selection of through-hole, top-adjustment potentiometers made with ceramic resistor elements. Designed for precise voltage division or variable resistance applications, this kit offers a range of values for fine tuning in electronic circuits.
Key Features of 3296W Potentiometers assorted Kit- 15 Type
- Assorted pack of 15 distinct resistance values for versatile circuit design
- Ceramic resistor material ensures stable performance and low drift
- Top adjustment screw for easy tuning after PCB mounting
- Standard 3296W through-hole (DIP) package for reliable soldering
- Compact footprint ideal for prototyping and dense PCBs
- Fast shipping from Zbotic with genuine, authorized components
Applications and Use Cases
- Fine-tuning gain in audio amplifier circuits
- Adjusting reference voltages in power supplies and regulators
- Calibration of sensor signal conditioning stages
- Voltage division for test fixtures and measurement setups
- Position feedback trimming in joysticks and control knobs
How to Use 3296W Potentiometers assorted Kit- 15 Type
Select the desired resistance value from the kit, solder the three DIP pins onto your PCB according to your circuit schematic, and adjust the top-mounted screw with a small flat-head screwdriver to set the exact resistance or voltage division needed.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions

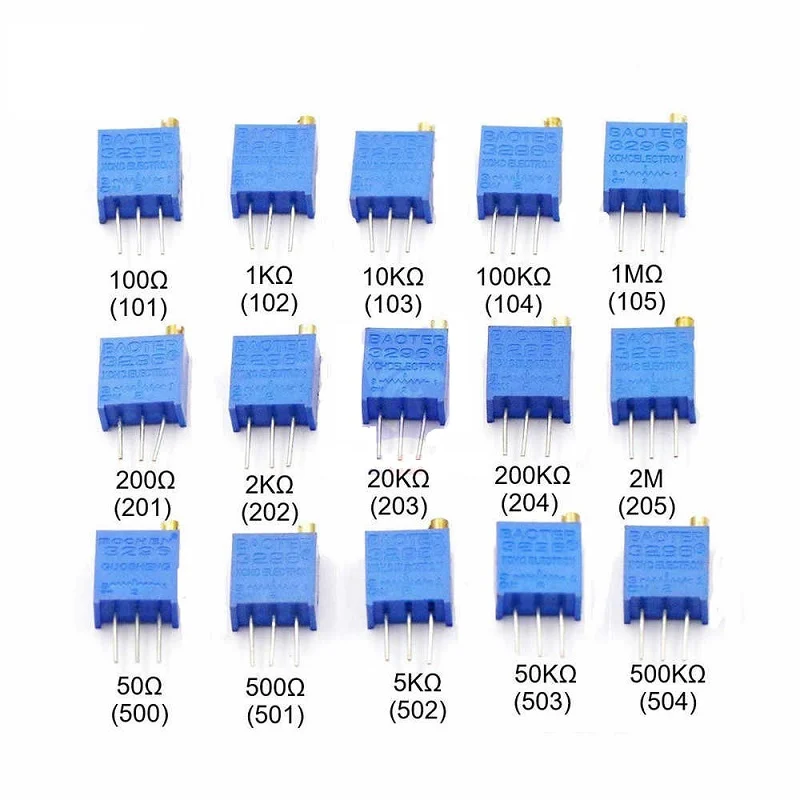

What resistance values are included in this kit?
The kit comprises 15 resistance values spanning from low-ohm presets for precise adjustments up to higher ranges suitable for general voltage-divider applications, covering a broad selection for most circuit needs.
Can I adjust the potentiometers once soldered onto my PCB?
Yes. Each 3296W potentiometer features a top-adjustment screw that can be turned with a small screwdriver even after the device is soldered into your PCB.
Is the ceramic resistor material suitable for temperature stability?
Absolutely. The ceramic substrate used in 3296W potentiometers provides good thermal stability and low resistance drift, ensuring reliable performance across varying operating temperatures.
Technical Specifications
| Power Rating | 3296W |
|---|---|
| SKU | AI3107 |
| Weight | 0.01 kg |
| Availability | In Stock |
Applications & Use Cases
The 3296W Potentiometers assorted Kit- 15 Type is a versatile potentiometer used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
