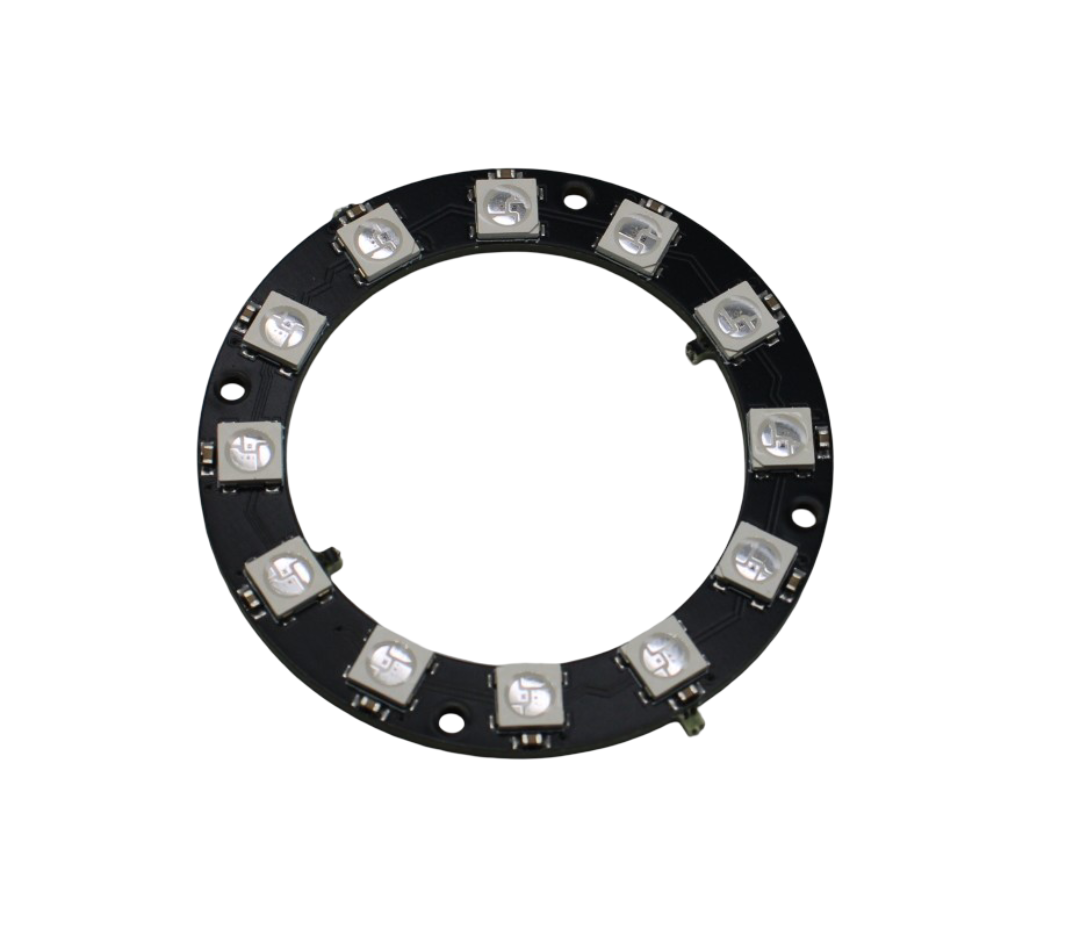

This is the 50mm variant of the CJMCU 12 Bit WS2812 5050 RGB LED Built-in Full-Color Driving Lights Circle Development Board OD:50mm ID:35mm in RGB LED Strips and Drivers. Available at ₹76.70 (₹65.00 + GST) with free shipping across India.
Description:
The CJMCU 24 Bit WS2812 5050 RGB LED Built-in Full Color Driving Lights Circular Development Board has round black shape, let us be clear at a glance! 24 super bright smart NeoPixels LED arranged in a 86mm outside diameter circular PCB.

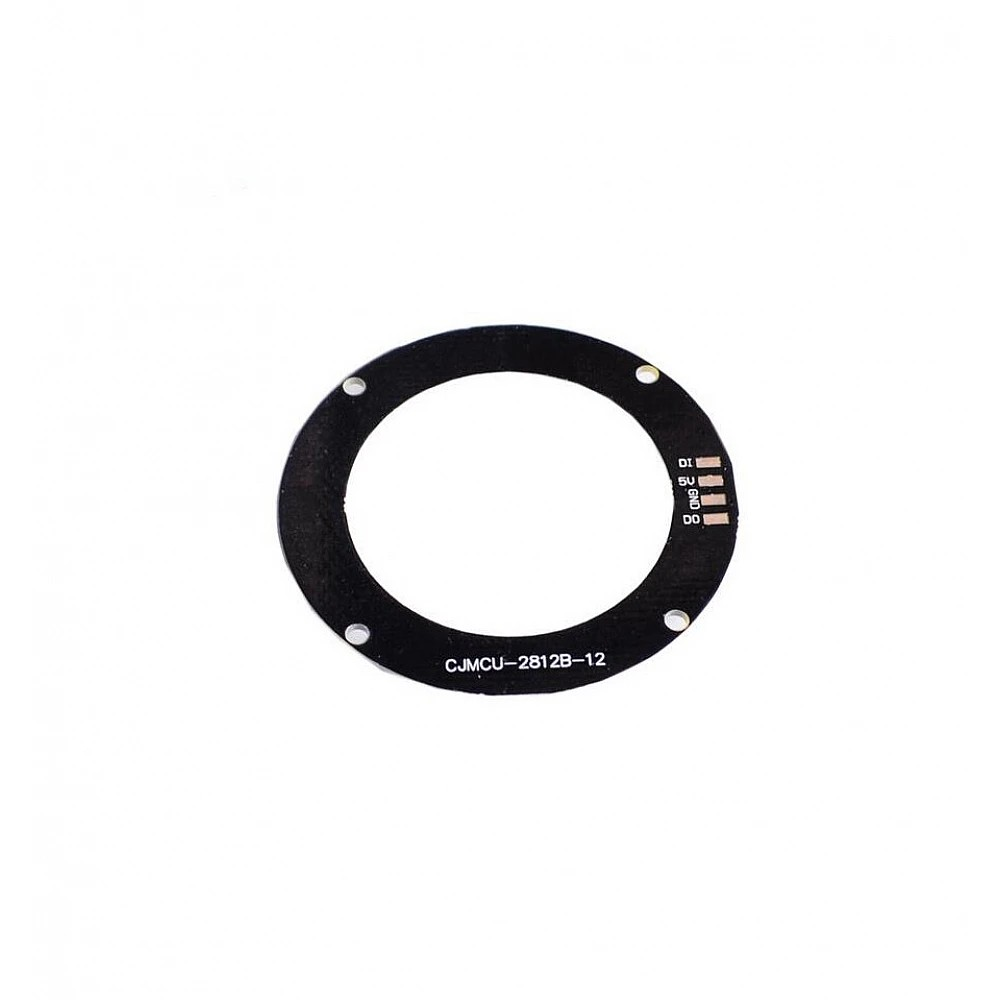

These ring RGB lamps can be simply connected via the output pin cascade one to the other’s input pin (DI-DO). In this way, by using only one single chip you will be able to control as many LED lights as possible, each LED lamp is integrated with a driver chip in it so that our LED becomes intelligent and addressable.
Each has a -18mA constant current drive, so the LED color will be very uniform, even if the voltage change is the same, do not need an external resistor current limiting resistor to make the overall design of the RGB lamp ring to become slim, as you see so simple and easy to use. With 5V power supply to drive the RGB lamp ring.
Features:
- The control circuit and the LED share the only power source.
- The control circuit and RGB chip are integrated into a package of 5050 components, form a complete control of pixel points.
- Built-in signal reshaping circuit, after wave reshaping to the next driver, ensure wave-form distortion not accumulate.
- Built-in electric reset circuit and power lost reset circuit.
- Each pixel of the three primary colors can achieve 256 brightness levels, or 16M colors full-color display, and scan frequency not less than 400Hz/s.
- Cascading port transmission signal by a single line.
- Any two points the distance more than 5m transmission signal without any increase circuit.
- When the refresh rate is 30fps( frames per second), the cascade number is not less than 1024 points.
- Send data at speeds of 800Kbps.
- The color of the light was highly consistent
- Full-color module, Full-color soft lights a lamp strip.
- LED decorative lighting, Indoor/outdoor LED video irregular screen.
Specification:
| TECHNICAL | |
| IC Chip | WS2812B |
| Color | RGB |
| No of Light | 12 |
| Supply Voltage | 5 V |
Package Includes :
- 1 x 12 Bit ws2812 5050 RGB LED Small Ring with Fashion Light
Limit Switch: End Stop for CNC and 3D Printers
A limit switch is a mechanical switch that detects when a moving part reaches a defined position. In...
Read More →
AM Radio Receiver Circuit: Coil, Capacitor and Diode Design Explained
AM Radio Receiver Circuit: Coil, Capacitor and Diode Design Explained The AM radio receiver circuit is arguably the...
Read More →
Bipolar Junction Transistor (BJT): Regions of Operation Guide
The Bipolar Junction Transistor is one of the most fundamental building blocks in electronics. Invented at Bell Labs...
Read More →Technical Specifications
| Size | 50mm |
|---|---|
| SKU | AI4242 |
| Weight | 0.01 kg |
| Availability | In Stock |
Applications & Use Cases
The CJMCU 12 Bit WS2812 5050 RGB LED Built-in Full-Color Driving Lights Circle Development Board OD:50mm ID:35mm is a versatile rgb led strips and drivers used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
