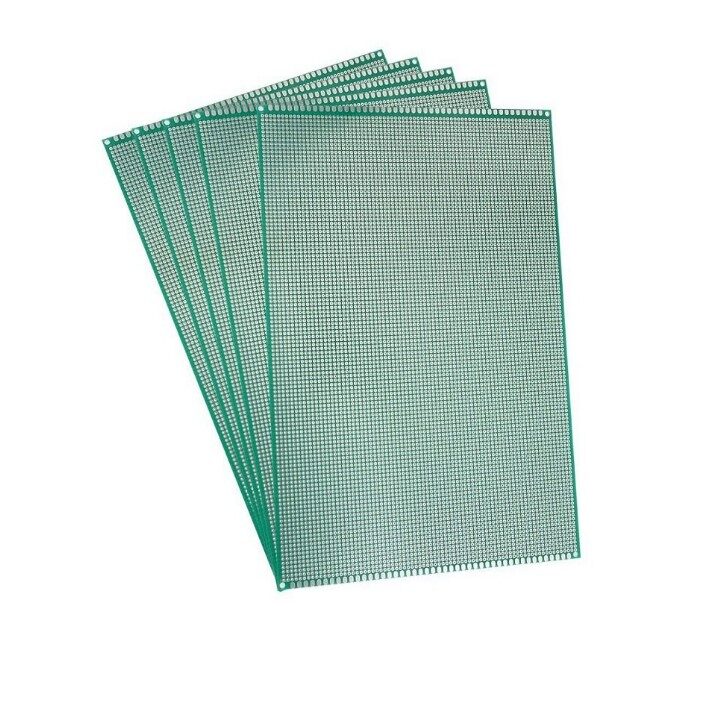

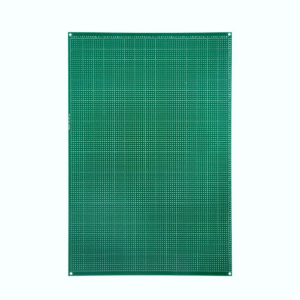

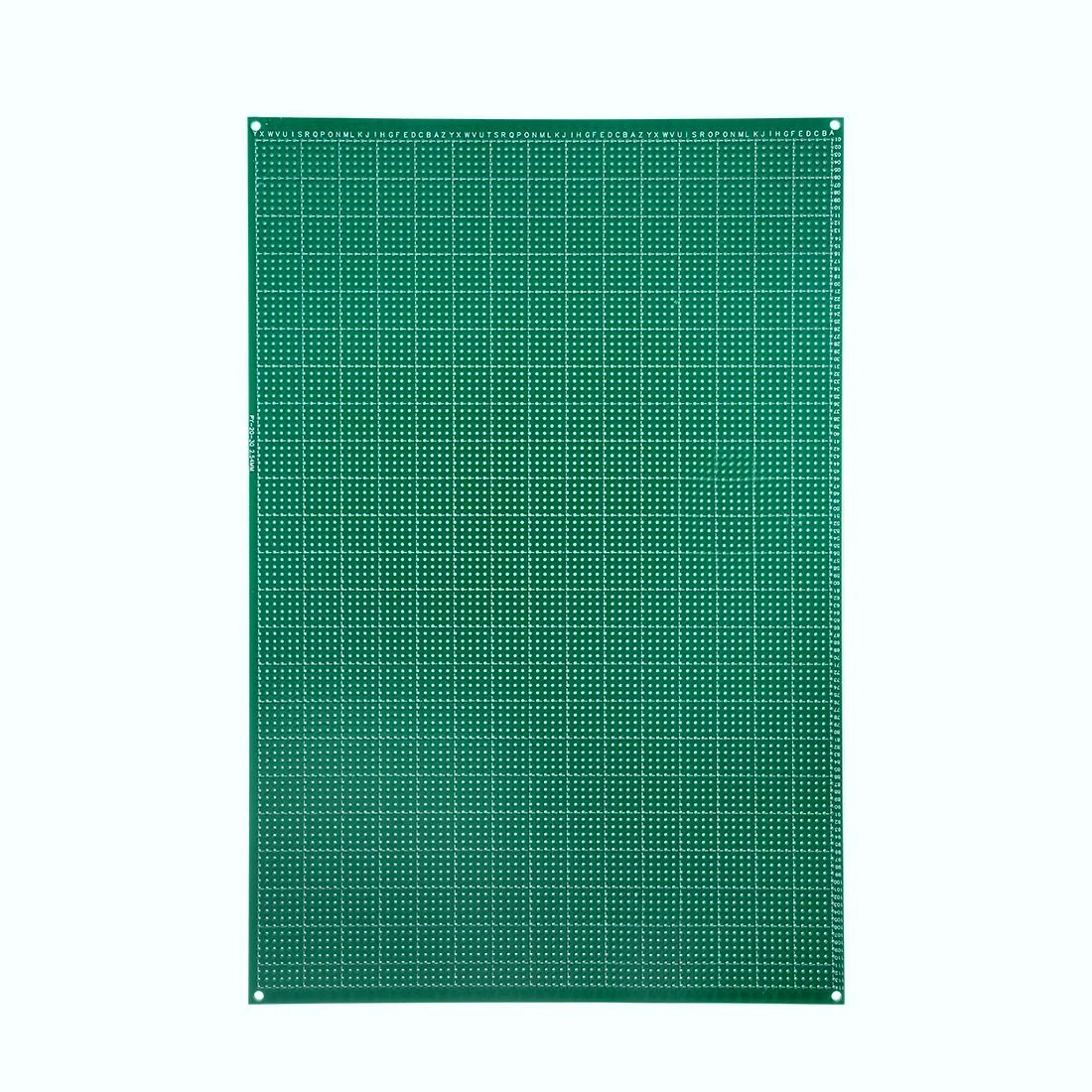

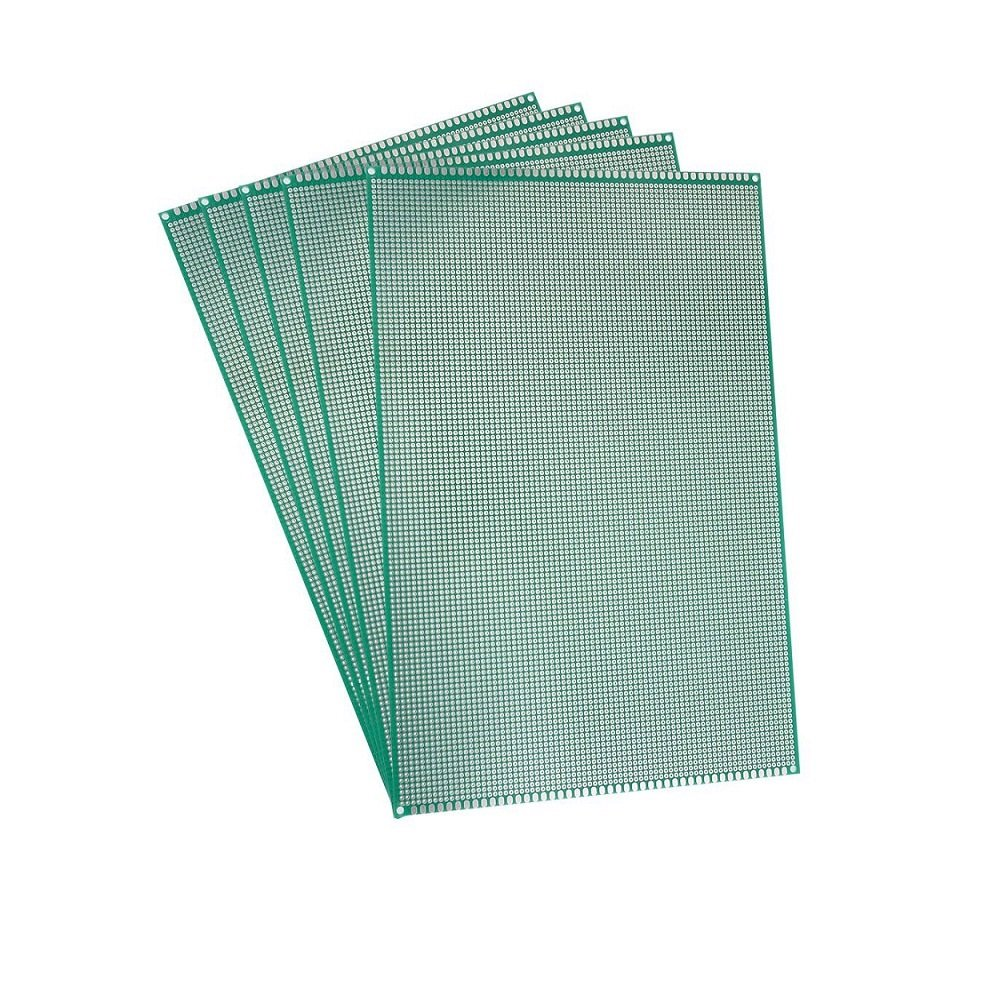

20 x 30 cm Universal Double-Sided PCB Prototype Board
Discover the 20 x 30 cm Universal Double-Sided PCB Prototype Board, an ideal choice for all your electronics prototyping requirements. Crafted from superior FR4 material and featuring a double-sided layout, it provides both sturdiness and dependability for your endeavors. The board comes with standard 0.1″ spaced through-holes, compatible with numerous components. Enhanced by a HASL surface finish and precisely drilled NC CNC holes, it ensures top-notch quality and accuracy. Suitable for hobbyists, students, and professional engineers alike, this PCB prototype board is designed to actualize your circuitry concepts.
Features:
- Dimensions: 20 x 30 cm
- Quantity: 1 piece
- Base Material: FR4
- Copper Thickness: 1-4 OZ
- Board Thickness: 1.6 mm
- PCB Weight: 60 g
- PCB Color: Green
Specifications:
| Board Thickness | 1.6 |
|---|---|
| Min. Hole Size (mm) | 0.3 |
Package Includes :
1 x 20 * 30 cm Universal Double-Sided PCB Prototype Board
20 x 30 cm Universal Double-Sided PCB Prototype Board Overview
The 20 x 30 cm Universal Double-Sided PCB Prototype Board is a versatile FR4-based blank circuit board designed for electronics prototyping. With a double-sided layout and standard 0.1″ spaced through-holes, it accommodates a wide range of components for hobbyist, educational, or professional projects.
Key Features of 20 x 30 cm Universal Double-Sided PCB Prototype Board
- Dimension 20×30 cm with 1.6 mm board thickness for ample wiring space
- High-quality FR4 substrate offering mechanical strength and heat resistance
- 1–4 oz copper thickness on both sides for reliable signal paths
- HASL (Hot Air Solder Leveling) finish for smooth solderability
- Precisely drilled NC CNC holes at 0.1″ (2.54 mm) pitch, compatible with standard DIP and through-hole components
- Fast shipping across India from Zbotic to get your board in hand quickly
Applications and Use Cases
- Prototyping microcontroller circuits with Arduino or ESP modules
- Building custom LED driver boards or power regulation circuits
- Creating sensor interface boards for robotics or automation projects
- Testing amplifier stages, filters, and analog signal paths
- Educational lab exercises for electronics students
- Small-batch production of simple custom PCBs
How to Use 20 x 30 cm Universal Double-Sided PCB Prototype Board
Begin by cleaning the board surface to remove any dust or oils. Plan your circuit by marking component positions, then drill any non-standard holes if needed. Insert through-hole components, apply solder to both copper layers thanks to the HASL finish, and use wire jumpers for interconnections. Trim excess leads and test continuity before powering your prototype.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What is the hole spacing on this prototype board?
The board features a standard 0.1″ (2.54 mm) pitch between holes, making it compatible with most DIP ICs, resistors, capacitors, and pin headers.
Can I solder components on both sides of the board?
Yes, this is a double-sided PCB with copper traces on both faces and plated-through holes, allowing you to solder components on either side and route signals flexibly.
How durable is the FR4 material under repeated soldering?
FR4 offers excellent thermal stability and mechanical strength. The 1.6 mm thickness and HASL finish ensure the board withstands multiple soldering cycles without delamination or pad lifting.
