Product Description

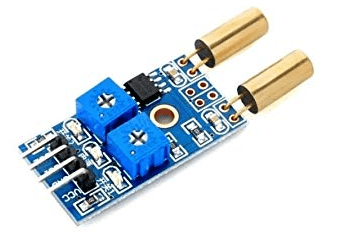

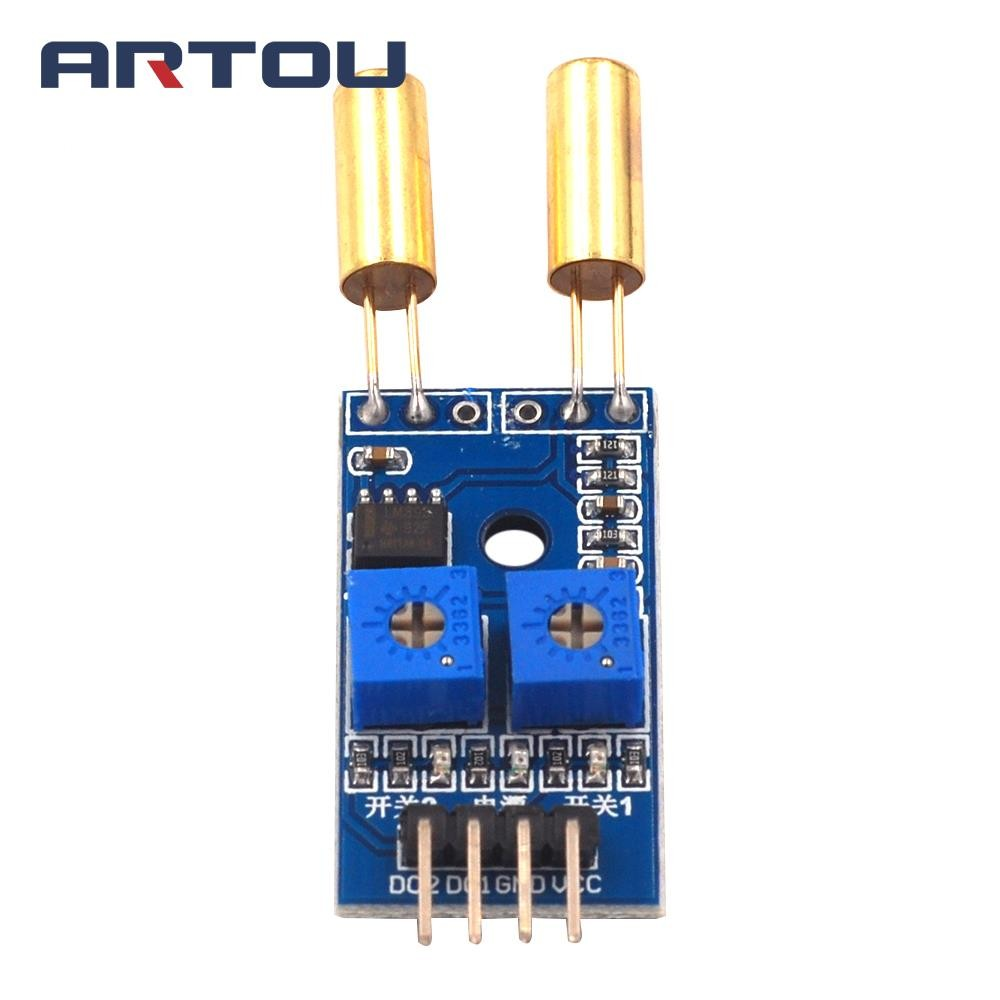

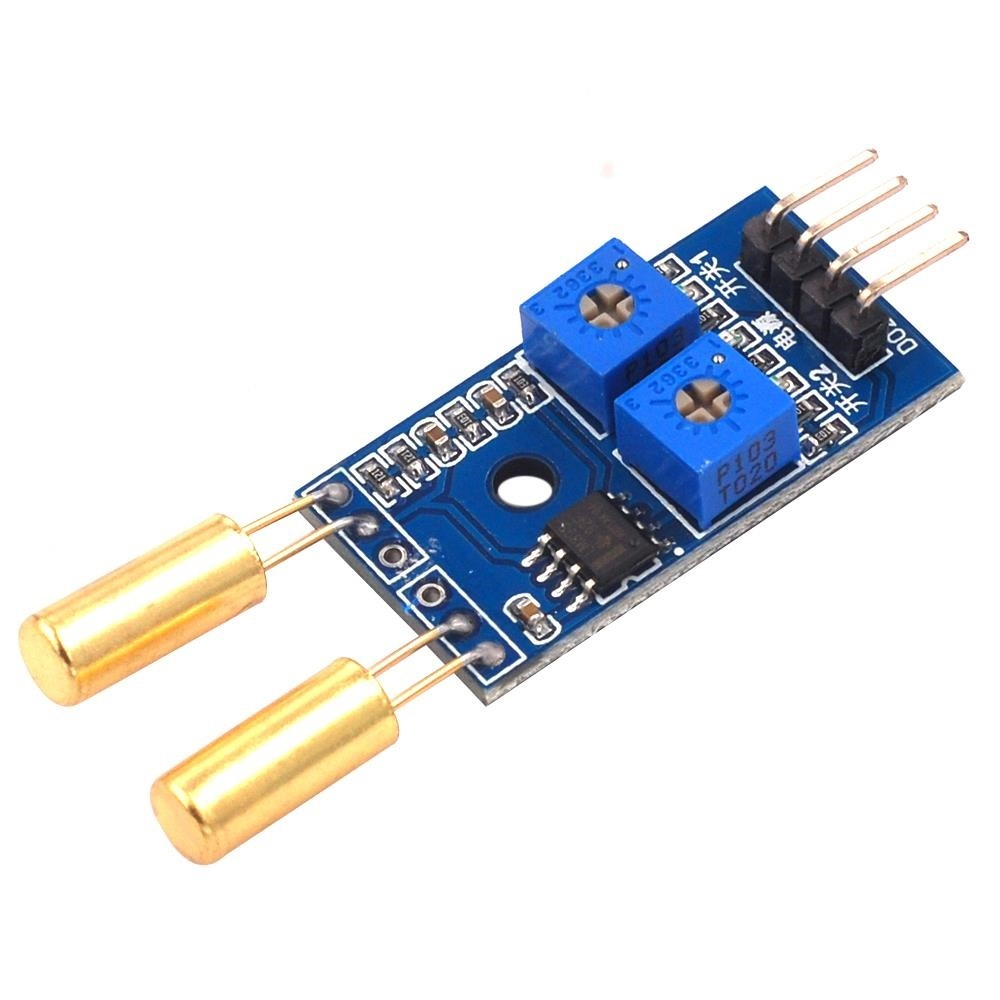

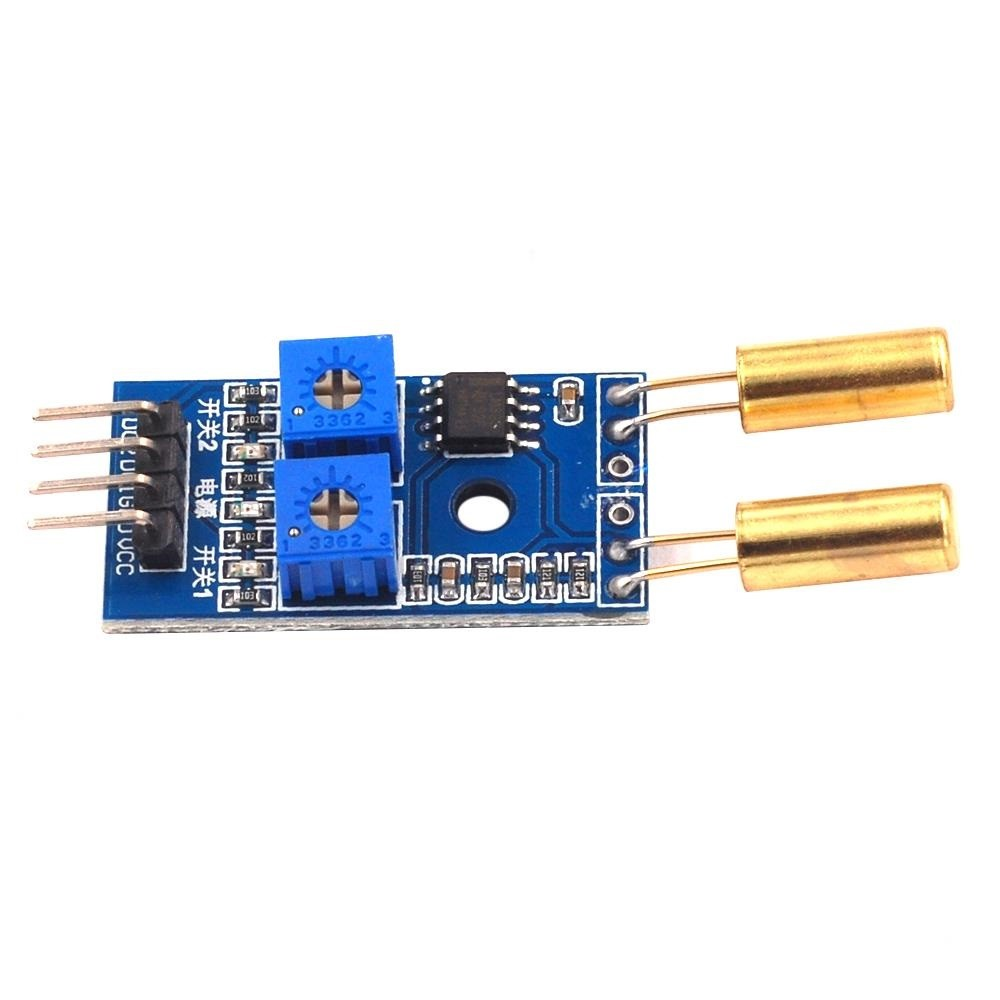

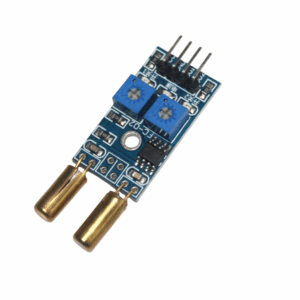

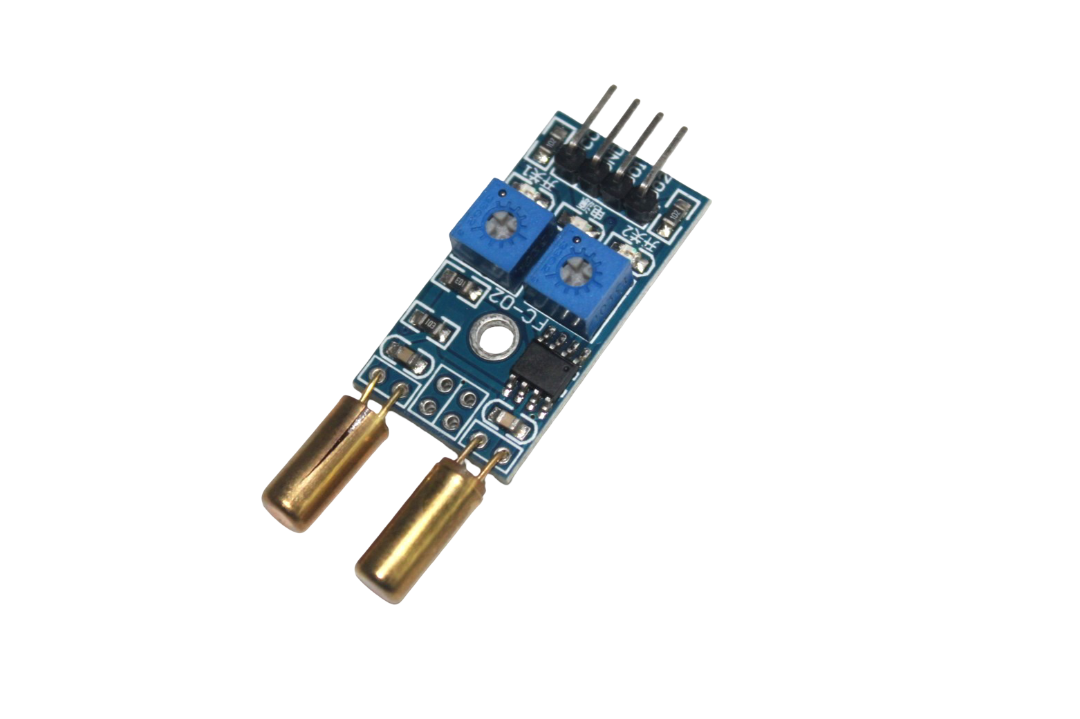

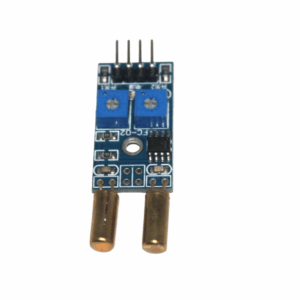

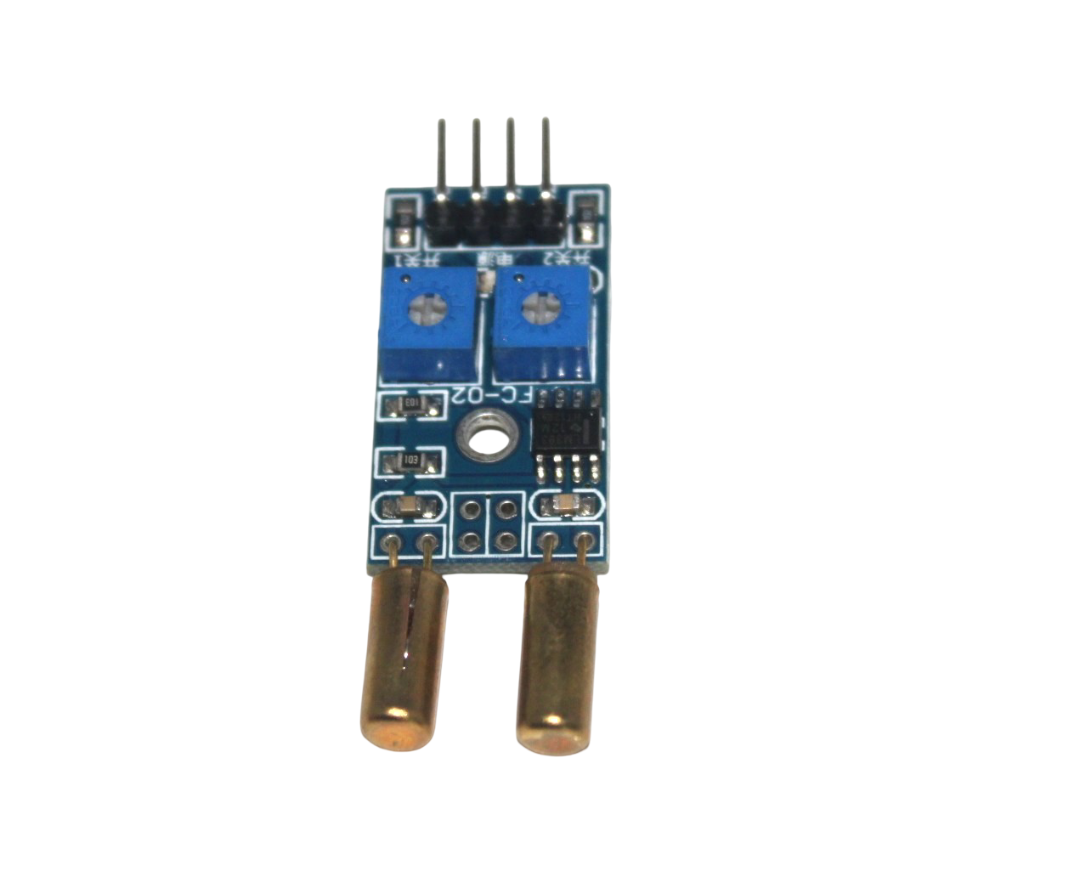

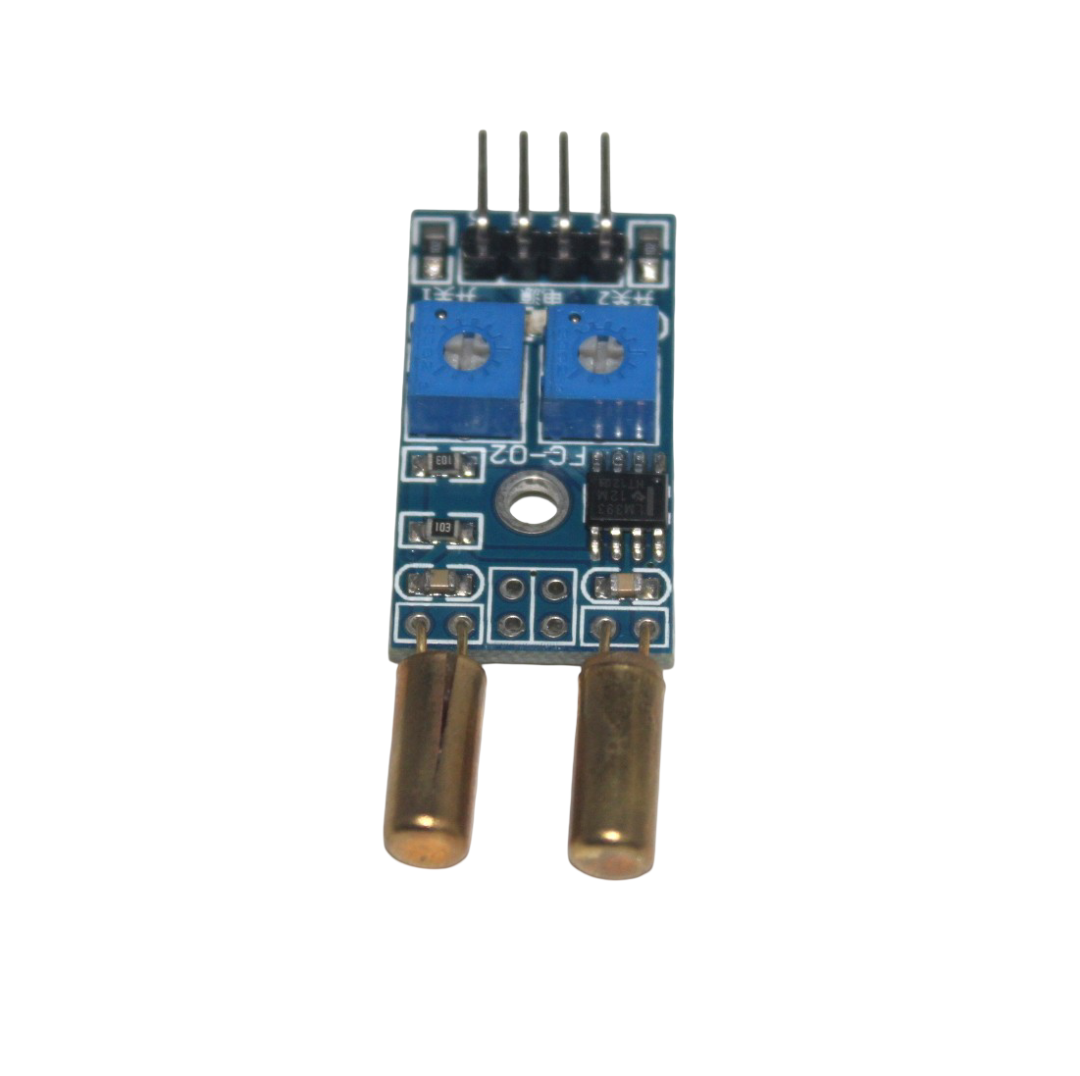

- The tilt sensor module is equipped with the essential components for operation. Once powered, it is ready for use. When attached to an object, it will detect if the object is tilted. Its digital output simplifies usage, as you can determine the object’s tilt by reading the output. It employs either an SW-460D or SW-520D tilt sensor, which are ball rolling types.

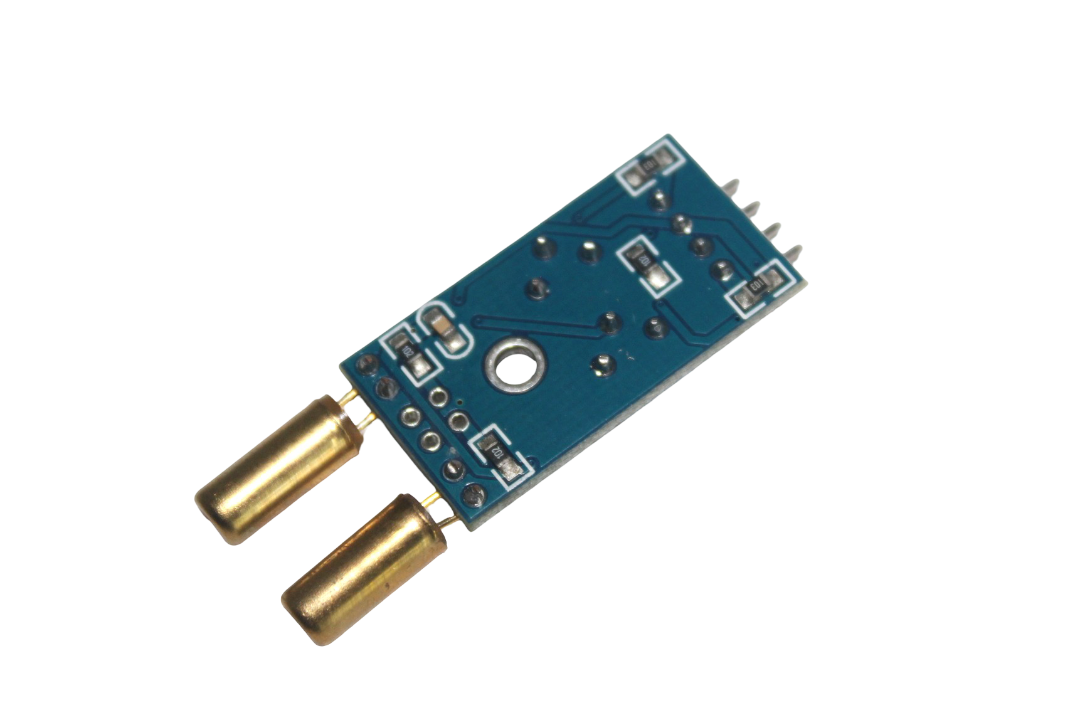

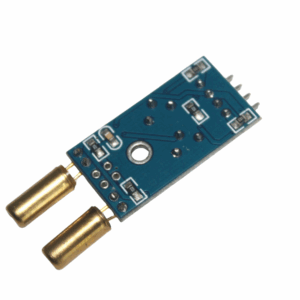

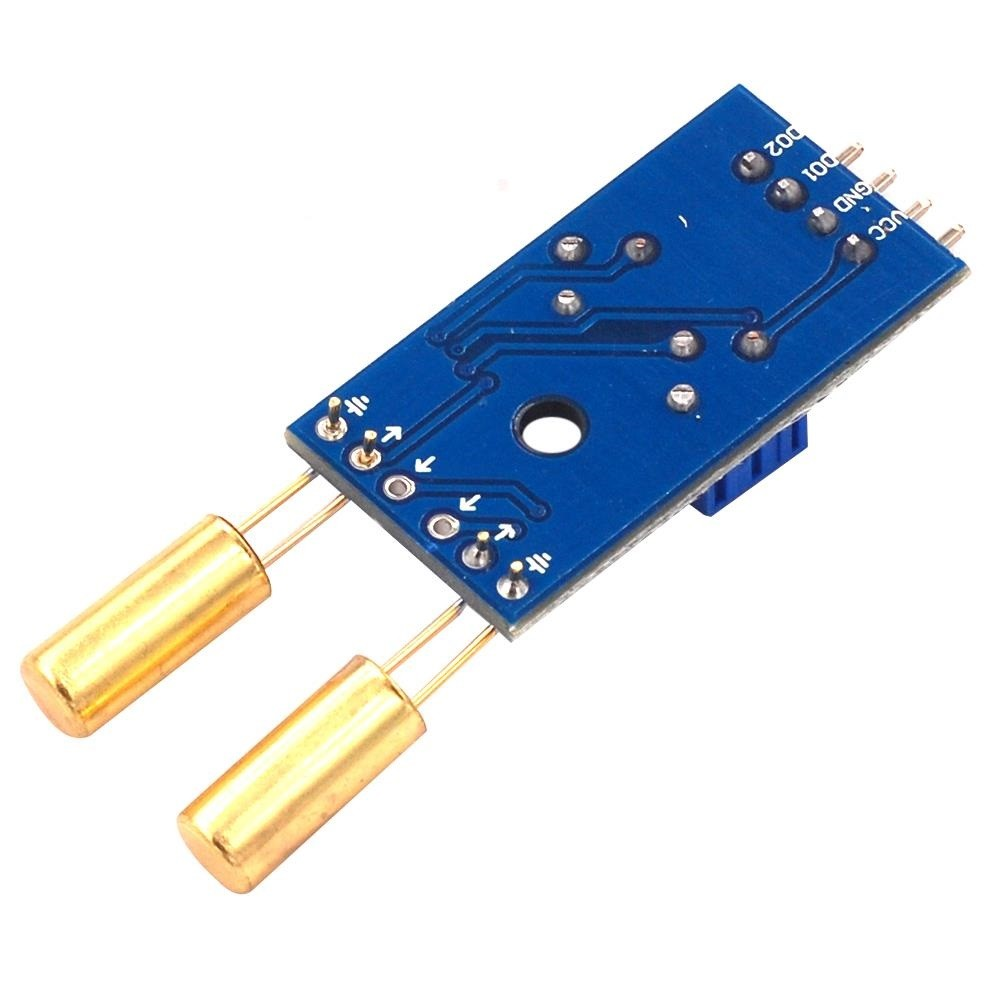

- Featuring an M3 mounting hole, it can be easily attached to any object. The module offers a tilt switch with high sensitivity and is commonly used for tilt detection. It includes a power LED and a status LED for visual indication.
- The module outputs a logic LOW when not tilted up to the threshold angle, and switches to a logic HIGH once tilted beyond this angle. Testing has shown that the tilt angle range is quite large, spanning from 45 to 130 degrees, though it also depends on the angular velocity. Additionally, it can serve as a vibration sensor.
- The output can be connected directly to an MCU, allowing the microcontroller to detect changes in level and, consequently, changes in the angle of the environment. It is compatible with any microcontroller that has a digital input, such as the PIC or Arduino series, enabling tilt detection functionality.
Features
- Operating voltage 3.3V-12V
- The output in the form: Digital switching outputs (0 and 1)
- A fixed bolt hole for easy installation
- Small board PCB size: 3.2cm x 1.7cm
- Wide voltage LM393 comparator
- Maximum output current: 15mA
- Can work on low voltages
- Maximum operating temperature: 0°C to + 80°C
- Easy interface
- Long life.
Specifications:
| Maximum output current | 15mA |
|---|---|
| Operating temperature | 0°C to + 80°C |
| Length(mm) | 50 |
| Width(mm) | 18 |
| Height(mm) | 15 |
| Weight(g) | 6 |
Package Includes
- 1 x 2 Channel Tilt Sensor Module
Reed Switch vs Hall Effect Sensor: Magnetic Detection Compared
Table of ContentsIntroduction: Two Ways to Detect MagnetismHow Reed Switches WorkHow Hall Effect Sensors WorkKey Differences at a...
Read More →
Thermistor vs Thermocouple vs RTD: Industrial Temp Sensors
Choosing between a thermistor, thermocouple, and RTD for industrial and maker temperature measurement involves understanding each technology's strengths,...
Read More →
I2C Sensor Address Conflict: Fix Multiple Sensors on One Bus
You have built a sophisticated Arduino project with multiple sensors — a BMP280 for pressure, a DHT20 for...
Read More →Technical Specifications
| Channels | 2-channel |
|---|---|
| SKU | AI0296 |
| Weight | 0.01 kg |
| Availability | Out of Stock |
Applications & Use Cases
The 2 Channel Tilt Sensor Module is a versatile vibration/tilt sensor and modules used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
