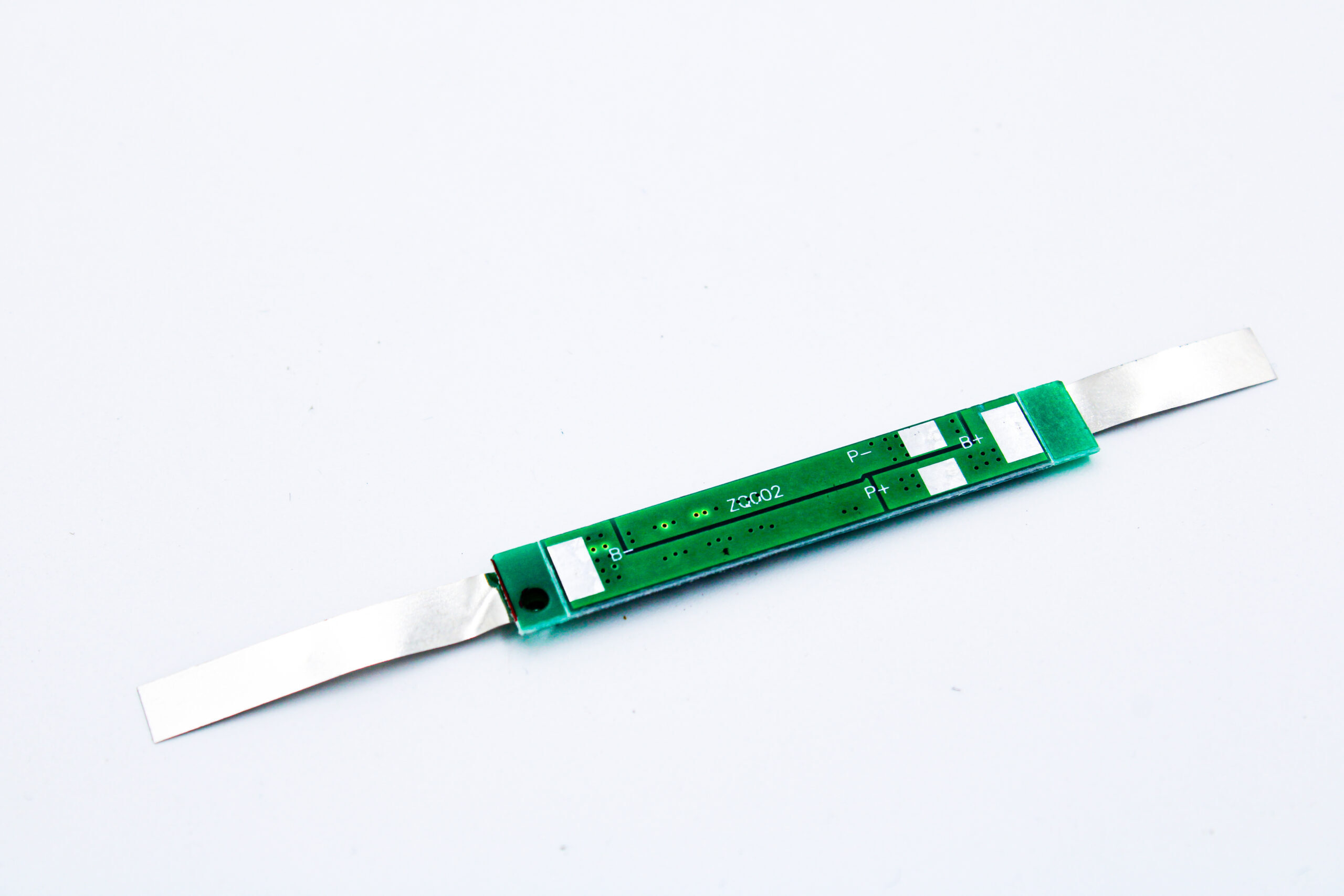

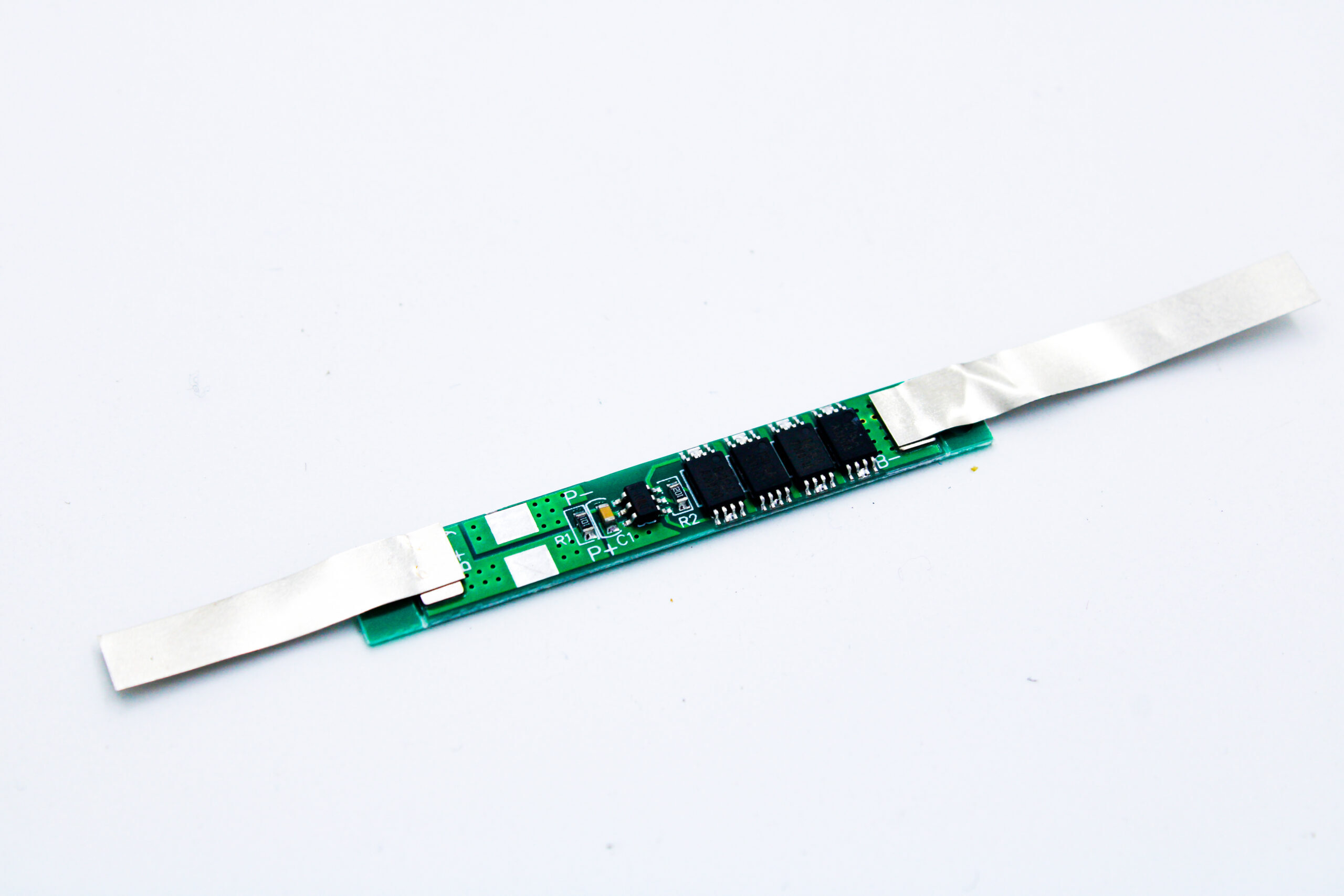

1S 3.7V 6A 4MOS BMS Li-ion 18650 Battery Protection Board

1S 3.7V 6A 4MOS BMS Li-ion 18650 Battery Protection Board

Li-ion batteries are widely used in both indoor and outdoor devices due to their high energy density, compact size, and efficiency. They offer superior charge storage compared to other battery types, but they also come with certain risks. These batteries require constant monitoring during charge and discharge cycles to prevent damage and maintain optimal performance. Discharging below a certain voltage can damage the cell, while overcharging may pose explosion risks.

To address these concerns, battery protection and charging circuits are used. This product, for example, is a Li-ion single-cell charger and protection circuit designed to charge a single 15 Amp cell or 5 to 6 parallel-connected Li-ion cells (2500mAh each). It features MOSFETs to monitor and protect the battery, guarding against overcharging, over-discharging, and short circuits, ensuring safe and efficient operation.

Protection :

1. Overcharge protection.
2. over-discharge protection.
3. short circuit protection.
4. overcurrent protection.

Wiring instructions:

1. B battery is positive.
2. B- battery negative.
3. P outputs the positive input for the battery pack.
4. P- outputs the negative electrode for the battery pack.

Features:

1. The high-precision voltage sensing circuit
2. The charger terminal uses high-voltage devices.
3. Built-in three-stage overcurrent detection circuit (overcurrent1, overcurrent2, load short circuit);
4. MOS transistors can control battery charge and discharge.
5. parallel-connected 5 to 6 li-ion cells

Specification:

Package Includes :

1 x 1S 18650 3.7V lithium battery protection plate 4 MOS.
