This is the 22V variant of the PCB BMS 6 Series 22V 18650 Lithium Battery Protection Board in Battery Protection Board. Available at ₹100.30 (₹85.00 + GST) with free shipping across India.
PRODUCT DESCRIPTION

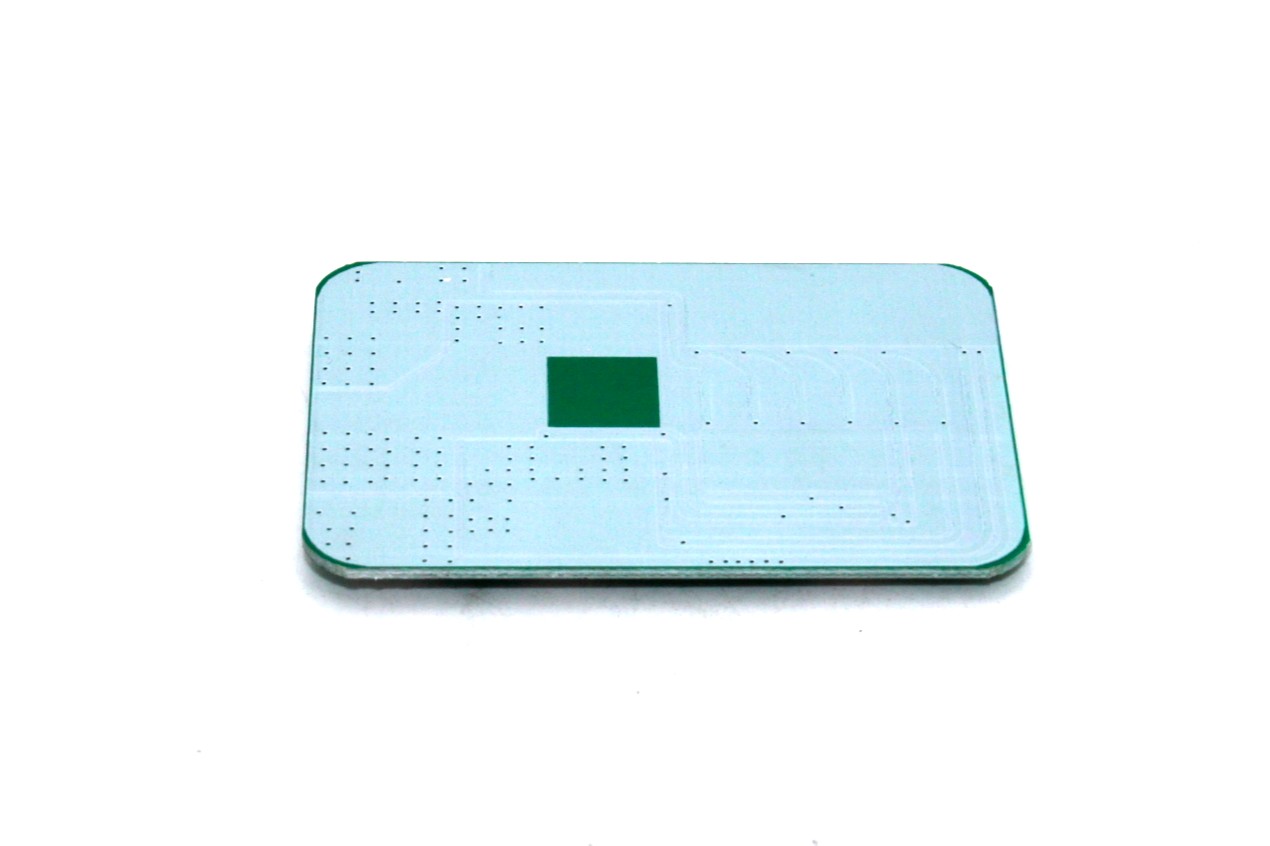

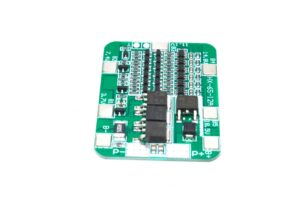

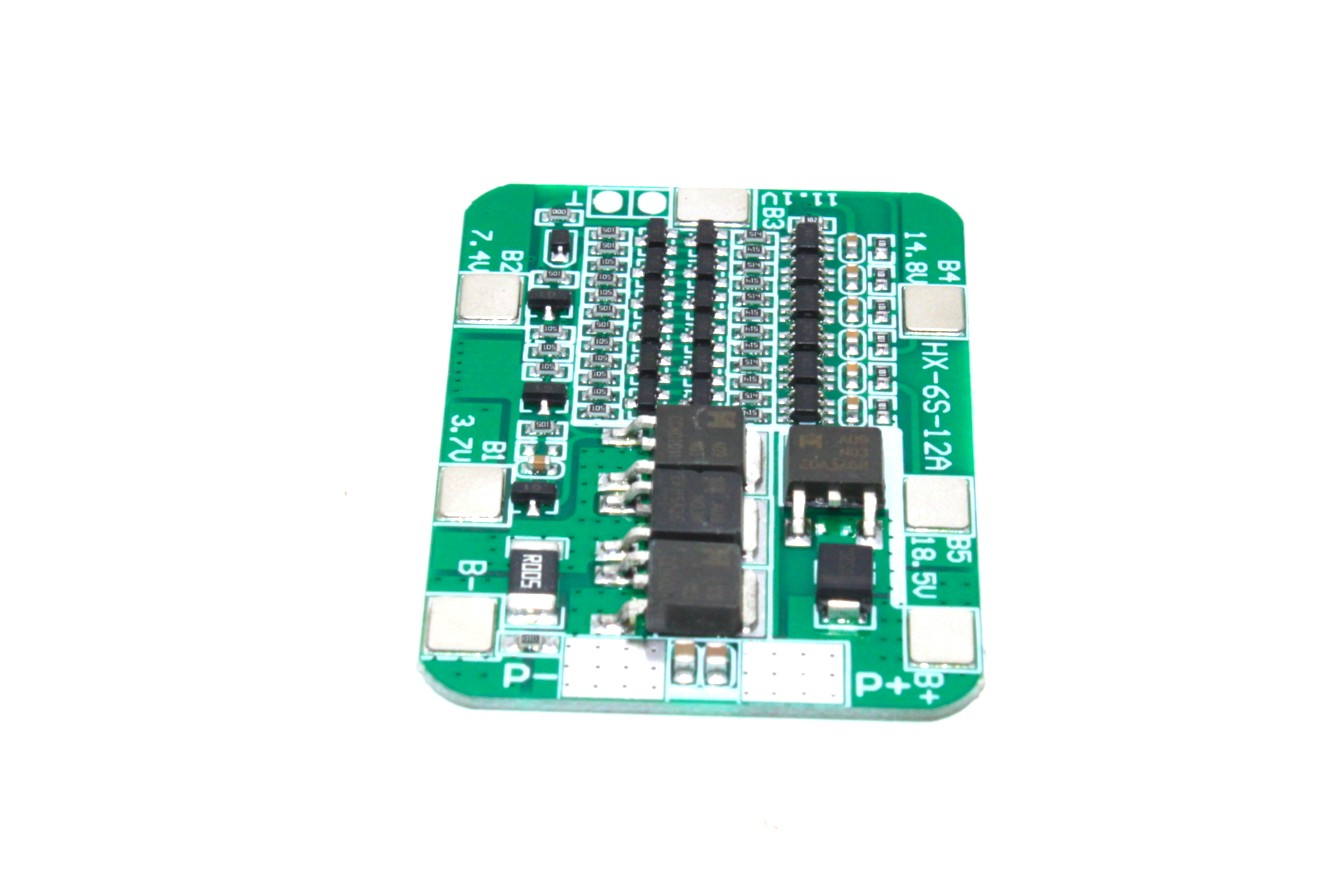

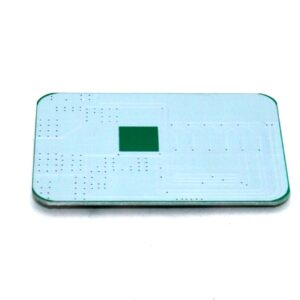

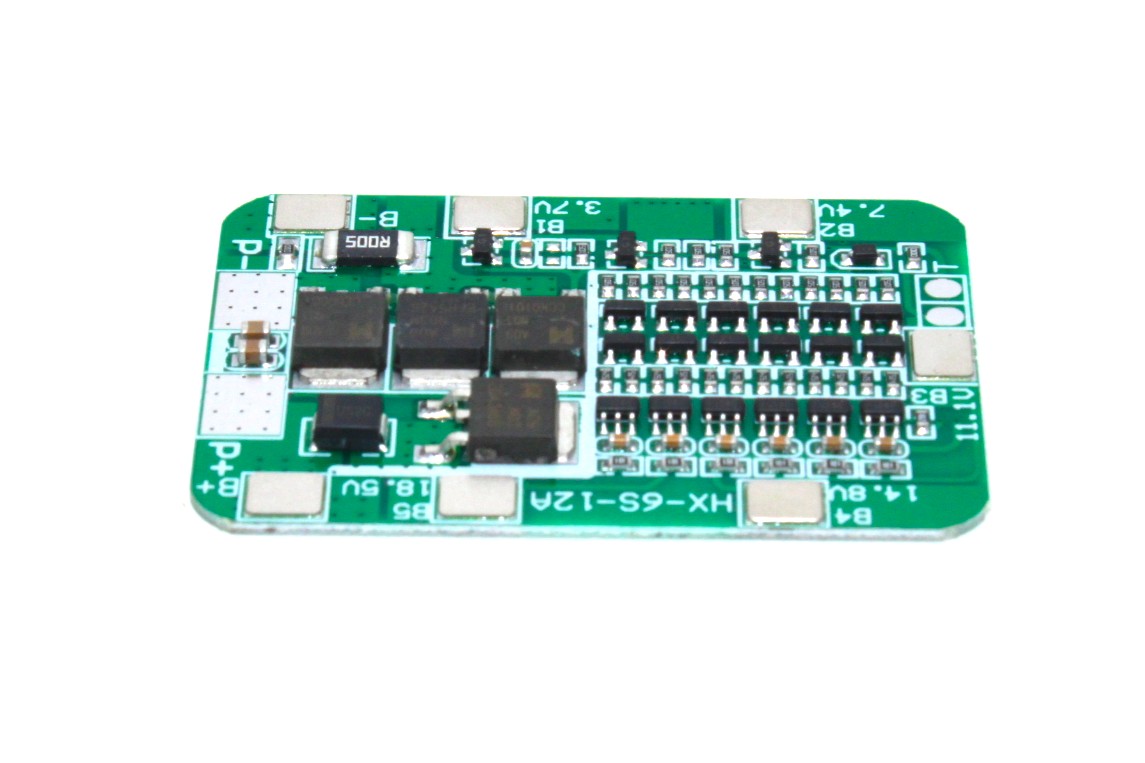

The PCB BMS 6 Series 22V 18650 Lithium Battery Protection Board is a six-cell, 22V circuit specifically designed for solar lighting systems and custom 18650 battery packs. Tailored for 3.7V 18650 lithium batteries, this protection board ensures safe charging by preventing overcharging and over-discharging.
As a dedicated battery management system (BMS), the protection board is essential for safeguarding the battery cells and the integrated circuitry. Lithium batteries, due to their unique properties, require specific protection to ensure safe operation. They are sensitive to overcharging, over-discharging, overcurrent, short circuits, and extreme temperatures during both charging and discharging.
To prevent damage, this BMS is equipped with a protective plate, a sampling resistor, and a current fuse, all designed to enhance safety and extend the lifespan of your lithium batteries.
Specifications and Features:
- Model: 6 string 22V lithium battery protection board.
- Maximum operating current: Within 15A.
- Charging current: Within 15A.
- Balanced charge: None.
- Short circuit protection: Yes.
- Applicable assembly: Nominal 3.7V Batteries / 6 strings.
Package Includes:
1 x PCB BMS 6 Series 22V 18650 Lithium Battery Protection Board.
18650 Battery Cell Comparison: Panasonic vs Samsung vs LG India
If you are building a power bank, an e-bike battery pack, or any DIY energy storage project, choosing...
Read More →
Power Supply Ripple: Measuring and Reducing Noise
Table of ContentsWhat Is Ripple and Why It Matters Measuring Ripple Voltage Capacitor Filtering Techniques LC Filters for...
Read More →
18650 Battery Holder Design: Parallel vs Series Pack Build
18650 Battery Holder Design: Parallel vs Series Pack Build The 18650 cylindrical lithium-ion cell is the workhorse of...
Read More →Technical Specifications
| Operating Voltage | 22V |
|---|---|
| SKU | AI3460 |
| Weight | 0.01 kg |
| Availability | In Stock |
Applications & Use Cases
The PCB BMS 6 Series 22V 18650 Lithium Battery Protection Board is a versatile battery protection board used across a wide range of applications including lithium battery pack protection, power bank builds, e-bike battery management, solar energy storage, and UPS systems.
Common use cases:
- Building a custom lithium battery pack
- Adding overcharge/overdischarge protection
- Creating a DIY power bank
This product is ideal for battery pack builders and power electronics engineers.
Technical Tip: BMS boards prevent overcharge, overdischarge, overcurrent, and short circuit. Match cell count (S) and max current rating to your battery pack.
