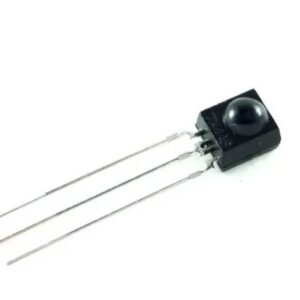

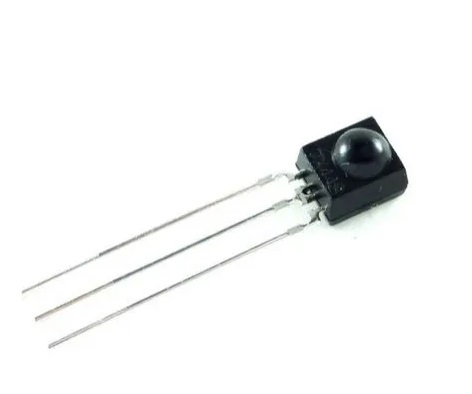

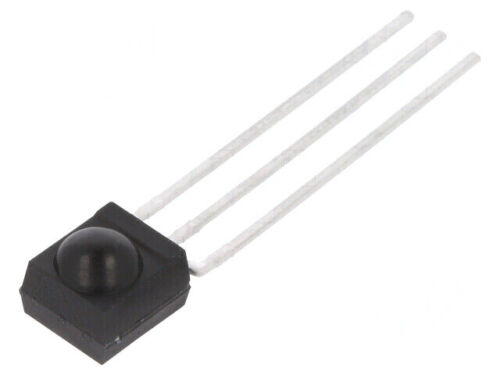

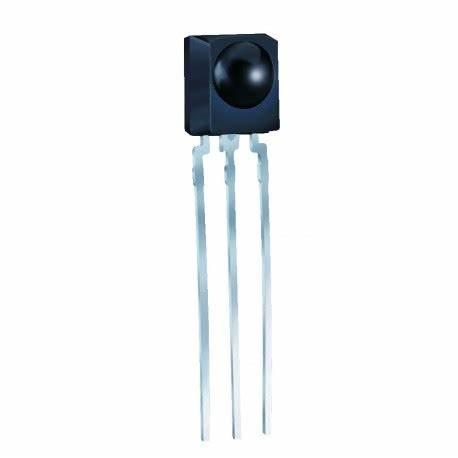

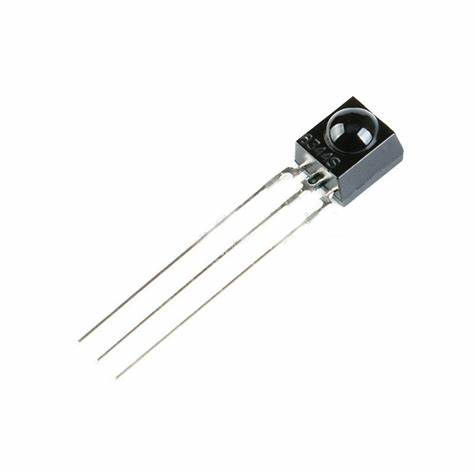

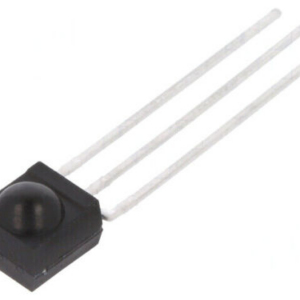

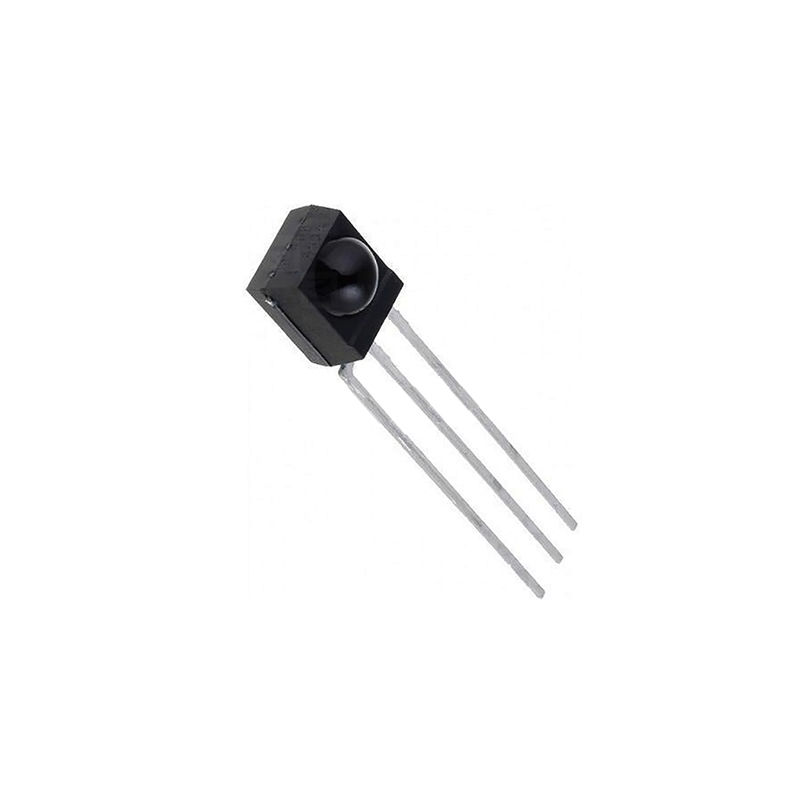

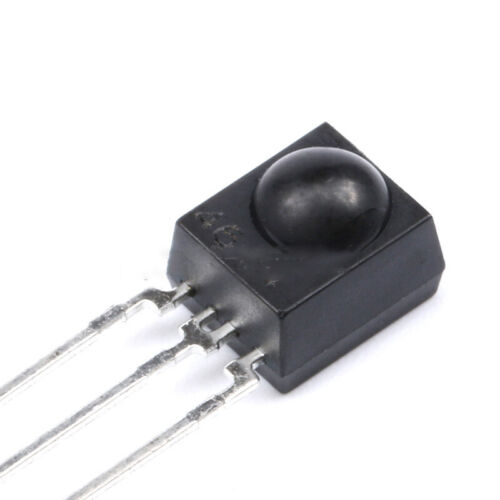

IRM-3638T Integrated IR Receiver
The TSOP38238 IR Receiver Diode is a compact and efficient solution for infrared remote control applications in your next project. With its low power consumption and user-friendly design, it integrates seamlessly with embedded electronics and works well with standard IR remotes.
The TSOP38238 is a miniaturized infrared receiver that combines a PIN diode and preamplifier on a lead frame, while the epoxy package serves as an IR filter. It outputs a demodulated signal that can be directly decoded by a microprocessor. Compatible with all common IR remote control data formats, this receiver is perfect for a wide range of infrared communication systems.
Features and specification:
- Internal filter for PCM frequency
- Improved inner shielding aquatints electrical field disturbance
- TTL and CMOS compatibility
- Low power consumption
- Improved immunity against ambient light
- Suitable burst 1eng•th 10 cycles/burst
- Pb free
- BiCMOS manufacture IC : ESD HBM>4000V : MM>2ñ0V
- The product itself will remain within RoHS compliant
Applications
- Light detecting portion of remote control
- AV instruments such as Audio, TV, VCR, CD, MD,
- Home appliances such as Air-conditioner, Fan , etc.
- The other equipments with wireless remote
- CATV set top boxes
- Multi-media Equipment
Datasheet for IRM-3638T:
Package Include:
1 x IRM-3638T Integrated IR Receiver
MHZ19 CO2 Sensor UART: Budget NDIR Indoor Air Monitor
Indoor CO2 concentration is one of the most overlooked factors in workplace productivity, classroom learning outcomes, and sleep...
Read More →
Turbidity Sensor for Water Quality: Arduino Interfacing Guide
Water quality monitoring is a critical application in agriculture, aquaculture, environmental science, and industrial processes across India. A...
Read More →
LiDAR Sensor Guide: How It Works, Best Modules, and Interfacing with Arduino
A LiDAR sensor (Light Detection And Ranging) uses laser pulses and time-of-flight measurement to determine distance with millimetre-level...
Read More →Technical Specifications
| Model | IRM-3638T |
|---|---|
| Package Quantity | 1 pcs |
| SKU | AI2980 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The IRM-3638T Integrated IR Receiver is a versatile pir / ir and optical sensor used across a wide range of applications including motion detection, security systems, automatic lighting, people counting, and gesture recognition.
Common use cases:
- Building an automatic porch light
- Creating a people counter for a room
- Adding motion detection to a security system
This product is ideal for home automation builders and security system designers.
Technical Tip: PIR sensors detect heat-emitting movement. Adjust sensitivity and delay potentiometers for your environment. False triggers can be reduced with proper shielding.
