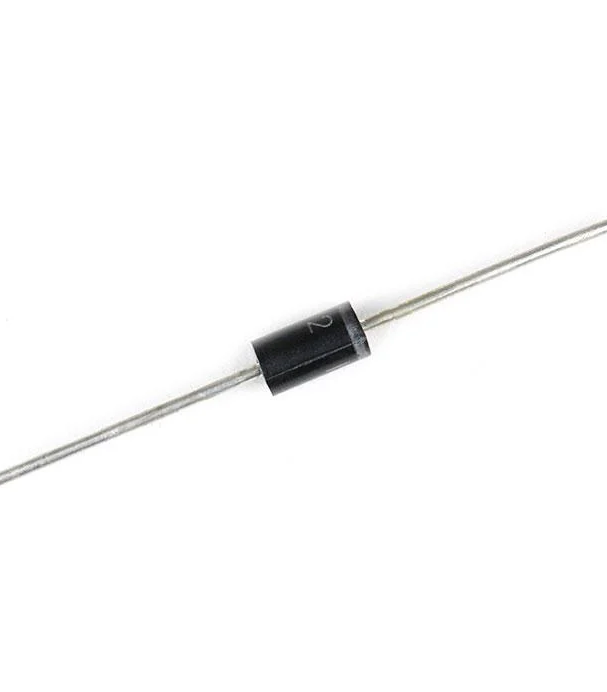

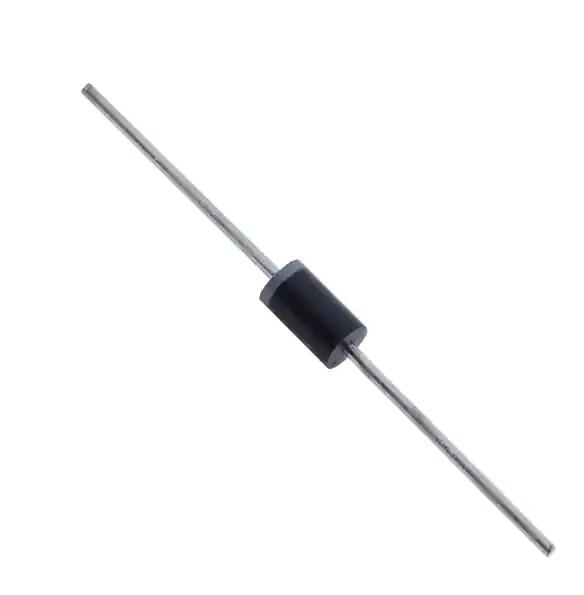

1N5822 Schottky Barrier Diode 3A 40V
The 1N5822 Schottky Diode is a through-hole component designed for efficient power management and rectification. It features a forward current rating of 3A, a maximum forward voltage of 0.525V, and a reverse voltage rating of 40V. The diode comes in a DO-201AD package and is supplied on a reel for easy handling.
This pack of two 1N5822 Schottky Barrier Diodes provides a reliable solution for various electronic applications. With a 3A current rating and a 40V reverse voltage rating, they are well-suited for moderate power circuits. The Schottky barrier design ensures a low forward voltage drop (typically 525mV), enhancing efficiency in power supply, voltage regulation, and rectification. Each diode can also handle a maximum forward surge current of 80A, offering strong protection against transient overloads. Compliant with RoHS standards, these diodes are manufactured with environmentally friendly processes, ensuring both performance and sustainability. Ideal for use in power supplies, voltage regulation, and reverse polarity protection, the 1N5822 diodes provide durable and reliable performance in a compact, cost-effective package.
Features
Guardring for overvoltage protection
Very small conduction losses
Extremely fast switching
Low forward voltage drop
High forward surge capability
High frequency operation
Specifications
| Property | Value |
|---|---|
| Brand | Generic |
| Number of Pins | 2 |
| Current Rating | 3 A |
| Mount | Through Hole |
| Forward Voltage | 525 mV |
| Forward Current | 3 A |
| Voltage Rating (DC) | 40 V |
| Max Forward Surge Current | 80 A |
| RoHS | Compliant |
| Output Current | 3 A |
| Peak Reverse Current | 500 µA |
Package Includes
1 x 1N5822 Schottky Barrier Diode 3A 40V (Pack of 2)
1N5822 Schottky Barrier Diode 3A 40V Overview
The 1N5822 Schottky Barrier Diode is a high-efficiency rectifier rated at 3 A forward current and 40 V reverse voltage, supplied in a DO-201AD through-hole package. It’s ideal for power supply designs, voltage regulation, and general rectification in moderate-power electronic circuits.
Key Features of 1N5822 Schottky Barrier Diode 3A 40V
- 3 A continuous forward current rating for reliable current handling
- Low forward voltage drop of typically 0.525 V to reduce power losses
- 40 V maximum repetitive peak reverse voltage for moderate-voltage applications
- 80 A peak forward surge current capability for handling inrush currents
- DO-201AD through-hole package supplied on a reel for easy PCB mounting
- Pack of two diodes included
- Fast shipping from Zbotic, ready to dispatch within 24 hours
Applications and Use Cases
- Rectification in SMPS (switch-mode power supplies) and adapters
- Freewheeling diode for DC motor drivers and inductive loads
- Voltage clamping and reverse-polarity protection in automotive circuits
- DC-DC converter outputs and battery charging modules
- Solar charge controller blocking diode to prevent backflow
How to Use 1N5822 Schottky Barrier Diode 3A 40V
Identify the cathode band and solder the diode in the correct orientation on your PCB or perf-board, ensuring the cathode goes to the more positive node. Observe proper heat-sinking if operating near maximum current, and verify that your circuit’s reverse voltage does not exceed 40 V.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What package does the 1N5822 diode come in?
The 1N5822 is supplied in a DO-201AD through-hole package, mounted on a reel for easy handling and wave or hand soldering.
What is the typical forward voltage drop of this diode?
Under rated conditions, the forward voltage drop of the 1N5822 is typically 0.525 V, minimizing heat generation and improving efficiency.
Can the 1N5822 handle surge currents?
Yes, the 1N5822 can withstand a non-repetitive peak forward surge current of up to 80 A for short pulses, making it suitable for inrush current conditions.
Technical Specifications
| Operating Voltage | 40V |
|---|---|
| Current Rating | 3A |
| Package Quantity | 2 pcs |
| SKU | AI0432 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
