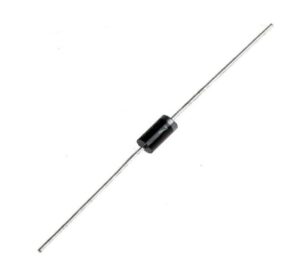

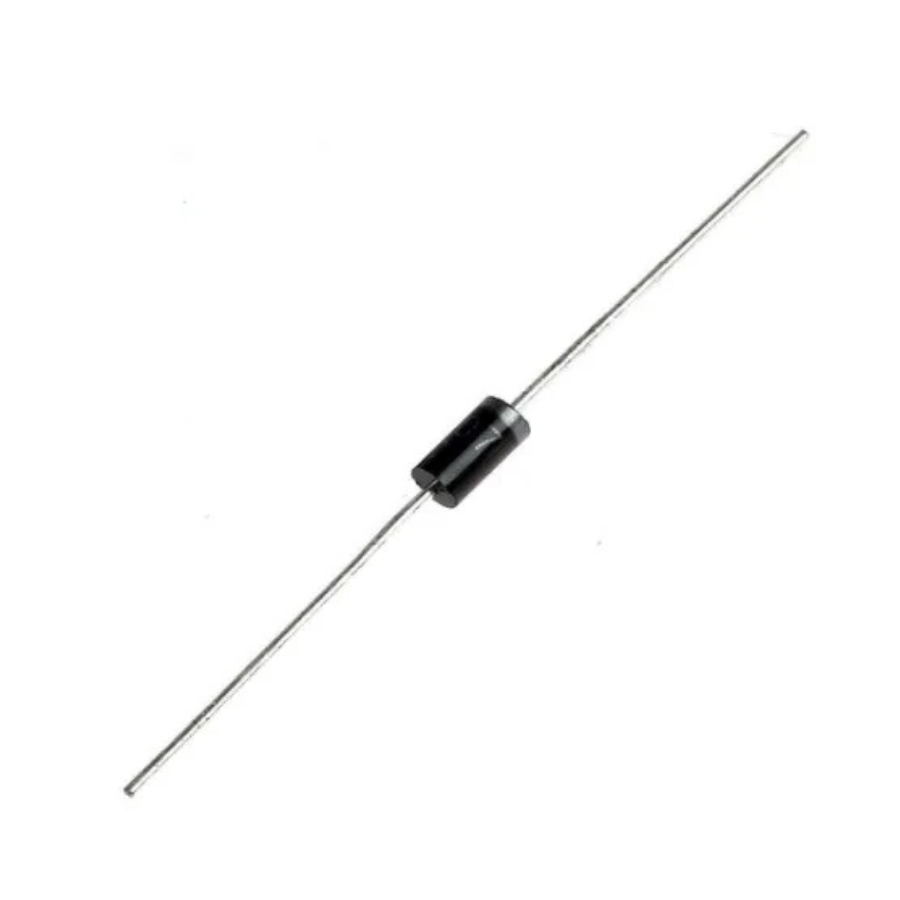

1N4007 Diode
The 1N4007 is a PN junction rectifier diode that permits electrical current to flow in only one direction. This characteristic makes it suitable for converting AC power to DC.
Features
Maximum Recurrent Peak Reverse Voltage 1000V
Maximum RMS Voltage 700V
Maximum DC Blocking Voltage 1000V
Average Forward Current: 1.0A
Peak Forward Surge Current: 30A
Maximum Instantaneous Forward Voltage: 1.0V
Maximum DC Reverse Current At Rated DC Blocking Voltage: 5.0µA @ 25°C
Typical Junction Capacitance: 15pF
Typical Reverse Recovery Time: 2.0us
Mounting Type: Through Hole
Operating Temperature: -55°C ~ 150°C
Applications of Diode
Can be used to prevent reverse polarity problem
Half Wave and Full Wave rectifiers
Used as a protection device
Current flow regulators
Specifications:
| Maximum Repetitive Peak Reverse Voltage (V) | 1000 |
|---|---|
| Maximum RMS Voltage (V) | 700 |
| Maximum Average Forward Rectified Current (A) | 1 |
| Operating Junction Temperature (°C) | – 50 to + 150 |
| Storage condition (℃) | -55 to 150 |
Package Includes

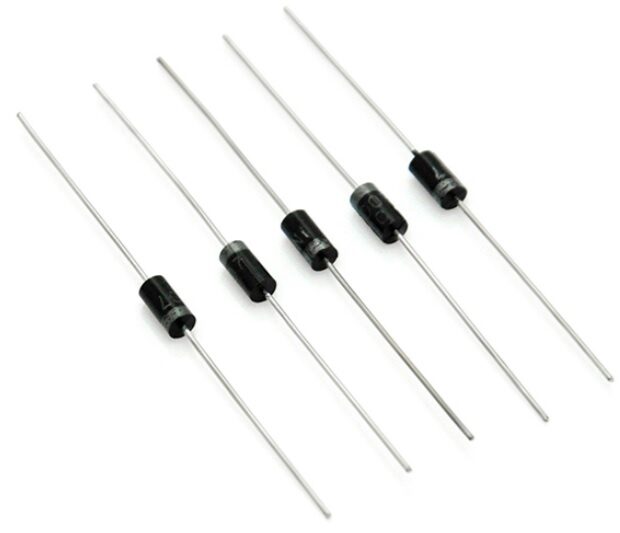

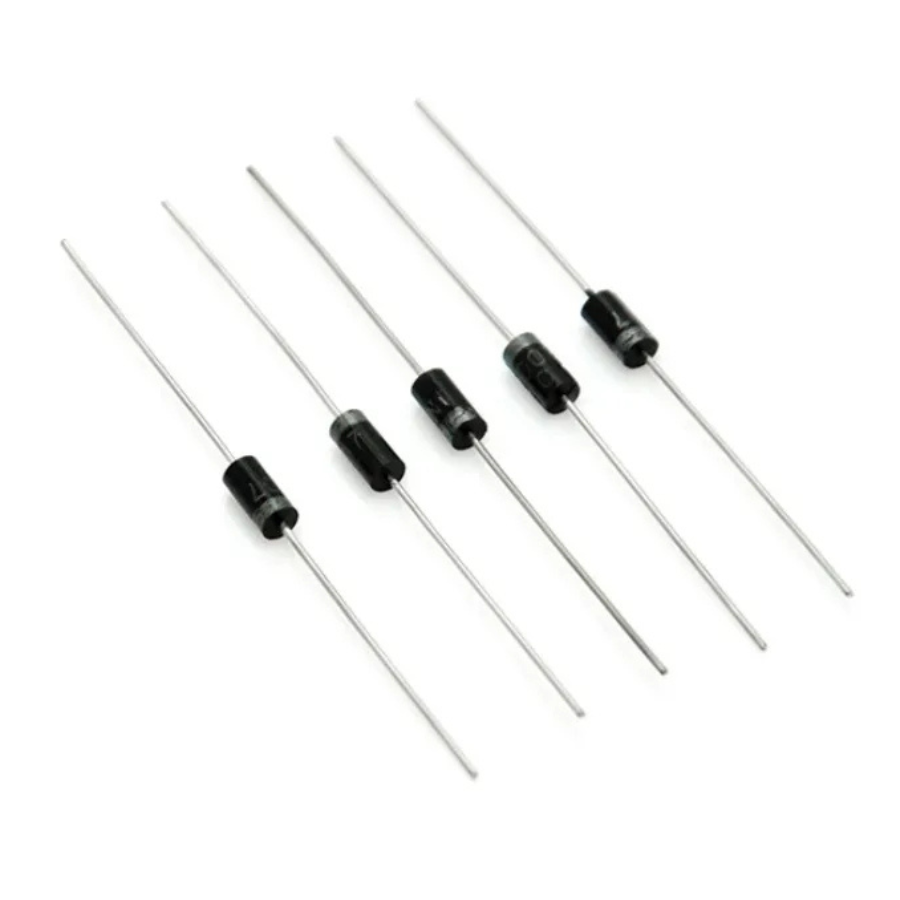

20 x 1N4007 Diode
