1 Channel 12V Relay Module Solid State High Level SSR DC Control 250V 2A with Resistive
Upgrade your control system with the 1-Channel OMRON 12V Solid State Relay, offering reliable switching for high-voltage AC loads. This SSR features a robust design with a 2A output capacity and a resistance-type fuse for added protection, ensuring safe and efficient operation in various applications.
Features:
- Solid State Relay Technology: Utilizes OMRON solid-state relay technology, known for its reliability and durability, providing seamless switching without the need for moving parts.
- Single-Channel Configuration: Control one independent load with precision and efficiency, simplifying your control setup.
- High Load Capacity: Supports a load of up to 2A at 240V AC, making it suitable for a wide range of applications.
- Input Control Signal Voltage: Accepts a control signal voltage range of 0-5V, with a high-level trigger signal between 3-5V and a low-level trigger signal below 2.5V, offering flexibility in control options.
- Resistance-Type Fuse: Equipped with a resistance-type fuse for added protection against overcurrent and short circuits, enhancing the safety and reliability of the relay.
- Trigger Modes: Supports high-level trigger mode, where the relay is energized when the trigger terminal (IN) receives a positive voltage signal relative to the negative power supply.
- Blue KF301 Terminal: Features a blue KF301 terminal for easy connection to control lines, providing convenience during installation and setup.
Enhance your control capabilities with the 1-Channel OMRON 12V Solid State Relay, offering reliable switching performance and versatile applications for your projects. Whether you’re controlling lighting systems, appliances, or other equipment, this SSR provides a dependable solution for your control needs.
Specifications:
| Operating Voltage (VDC) | 12 |
|---|---|
| Supply Current (A) | 2mA |
| Switching Voltage (VAC) | 5060@2A |
| Operating Temperature (°C) | -40 to 85 |
| Opt. Relative Humidity(RH) | 20% ～ 85% |
| Storage condition (℃) | – 65 to 125 |
| Shipping Weight | 0.011 kg |
| Shipping Dimensions | 10 × 6 × 3 cm |
Package Includes:
1 x 1 Channel 12V Relay Module Solid State High-Level SSR DC Control 250V 2A with Resistive
1 Channel 12V Relay Module Solid State High Level SSR DC Overview
The 1 Channel 12V Relay Module Solid State High Level SSR DC Control is built around the OMRON G3MB-052D solid‐state relay, designed to switch AC loads up to 250VAC at 2A. With a high‐level DC trigger input (3–24VDC) and phototriac isolation, it offers silent, reliable switching for resistive applications.
Key Features of 1 Channel 12V Relay Module Solid State High Level SSR DC
- OMRON G3MB‐052D SSR: Proven solid‐state technology for long service life without moving parts.
- High‐Level Trigger: Input voltage 3–24VDC, compatible with 5V, 12V and 24V control logic.
- AC Switching Capacity: Controls resistive loads up to 250VAC at 2A.
- Phototriac Isolation: Ensures full electrical separation between input and output circuits.
- Compact Single‐Channel Design: Easy integration into panels, DIN rails or custom PCBs.
- Fast Shipping from Zbotic: Genuine module dispatched within 24 hours across India.
Applications and Use Cases
- Automated lighting control for home or office environments.
- Switching small heating elements in soldering stations or incubators.
- Industrial signal isolation for PLC or microcontroller outputs.
- Controlling AC fans or pumps under 2A load.
- Laboratory test rigs requiring silent, vibration‐free switching.
How to Use 1 Channel 12V Relay Module Solid State High Level SSR DC

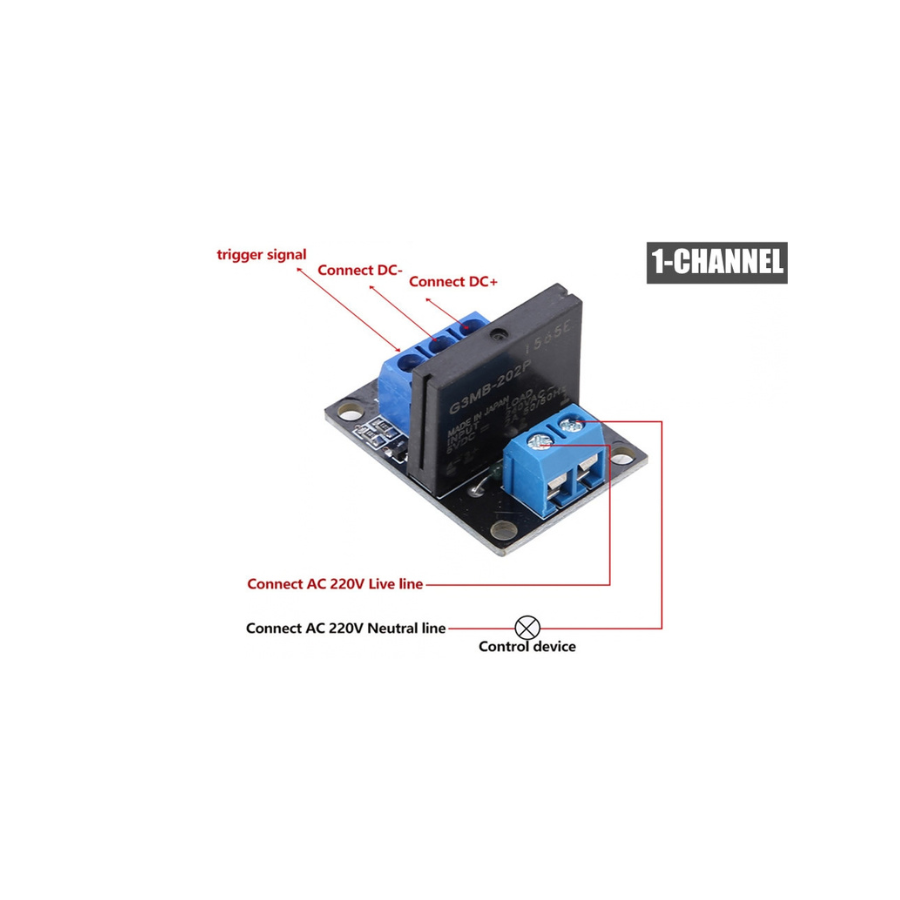

Connect the module’s VCC pin to a 12VDC supply and GND to your system ground. Apply a high‐level input signal (3–24VDC) to the IN pin to activate the relay. Wire your AC load in series between the module’s output terminals and the AC mains, ensuring the resistive load does not exceed 2A at 250VAC. Mount the module on standoffs or a DIN rail for secure installation.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What is the input trigger voltage range?
This SSR accepts a high‐level DC input from 3V up to 24V, drawing approximately 160mA at 12V for reliable activation.
Can it switch inductive loads like motors?
Designed primarily for resistive loads up to 2A at 250VAC. Use with inductive loads requires additional snubber or protection circuitry.
How is input/output isolation achieved?
The module uses a built-in phototriac for complete electrical separation between the control side and the AC switching side, minimizing interference.
