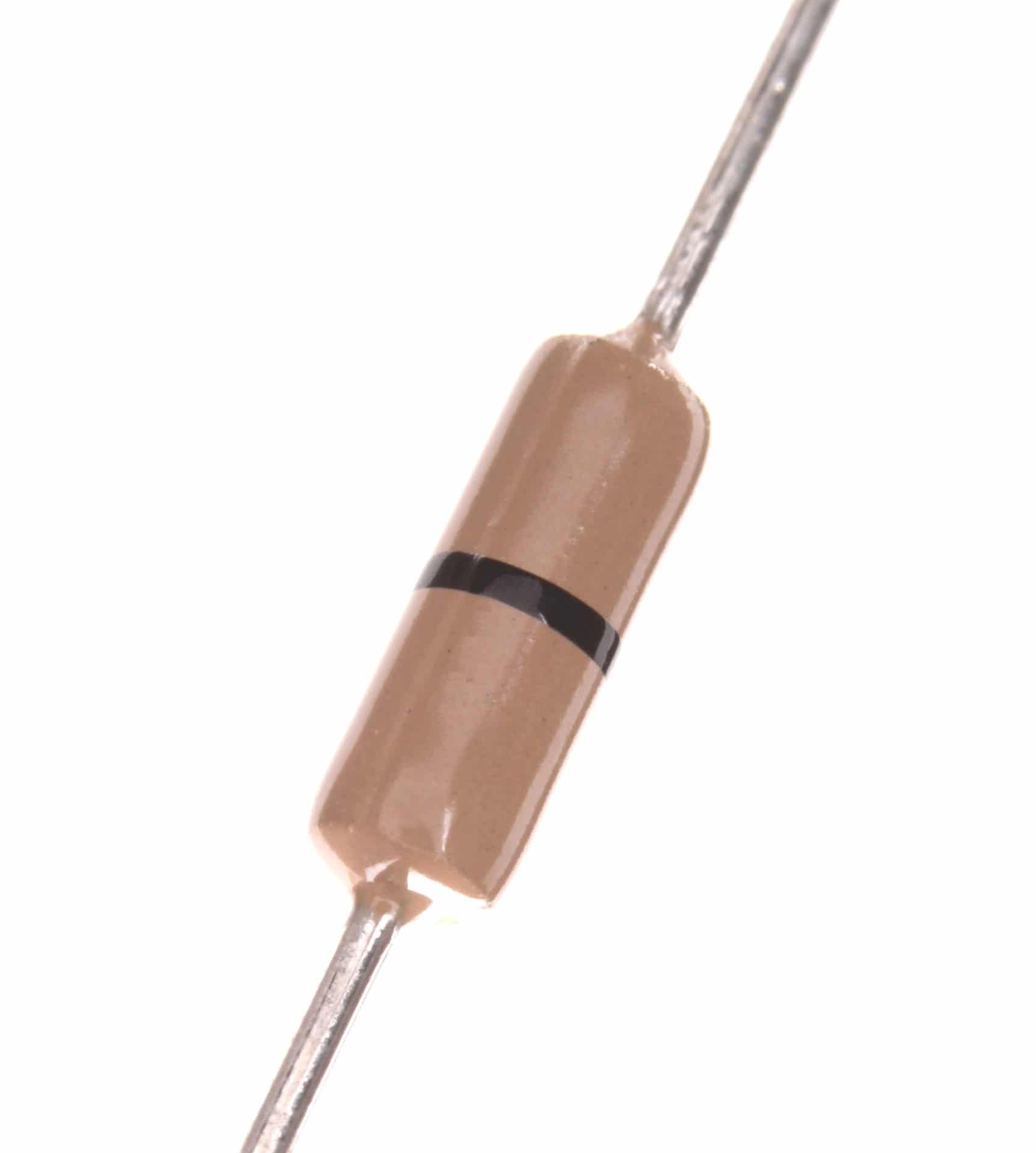

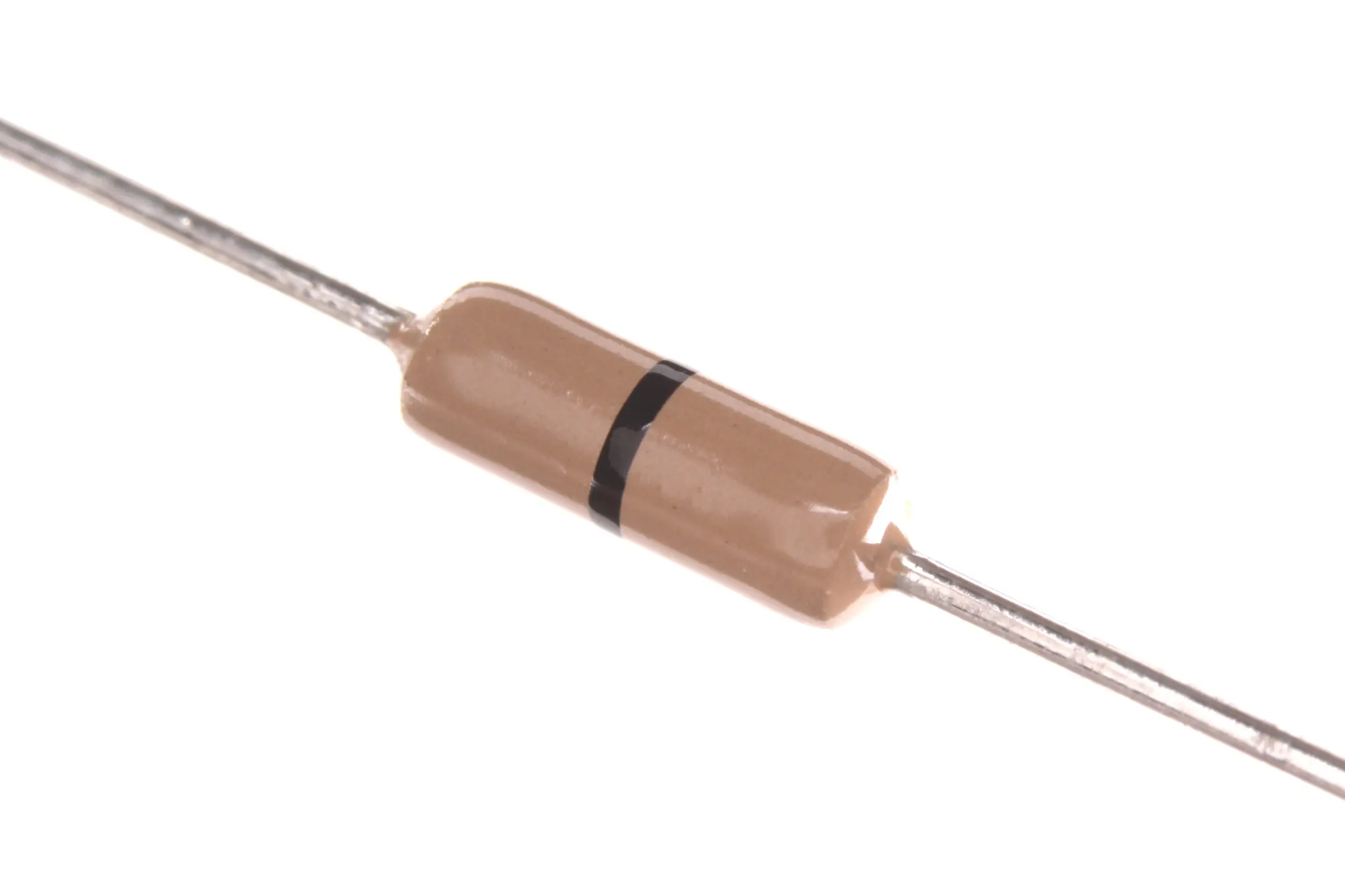

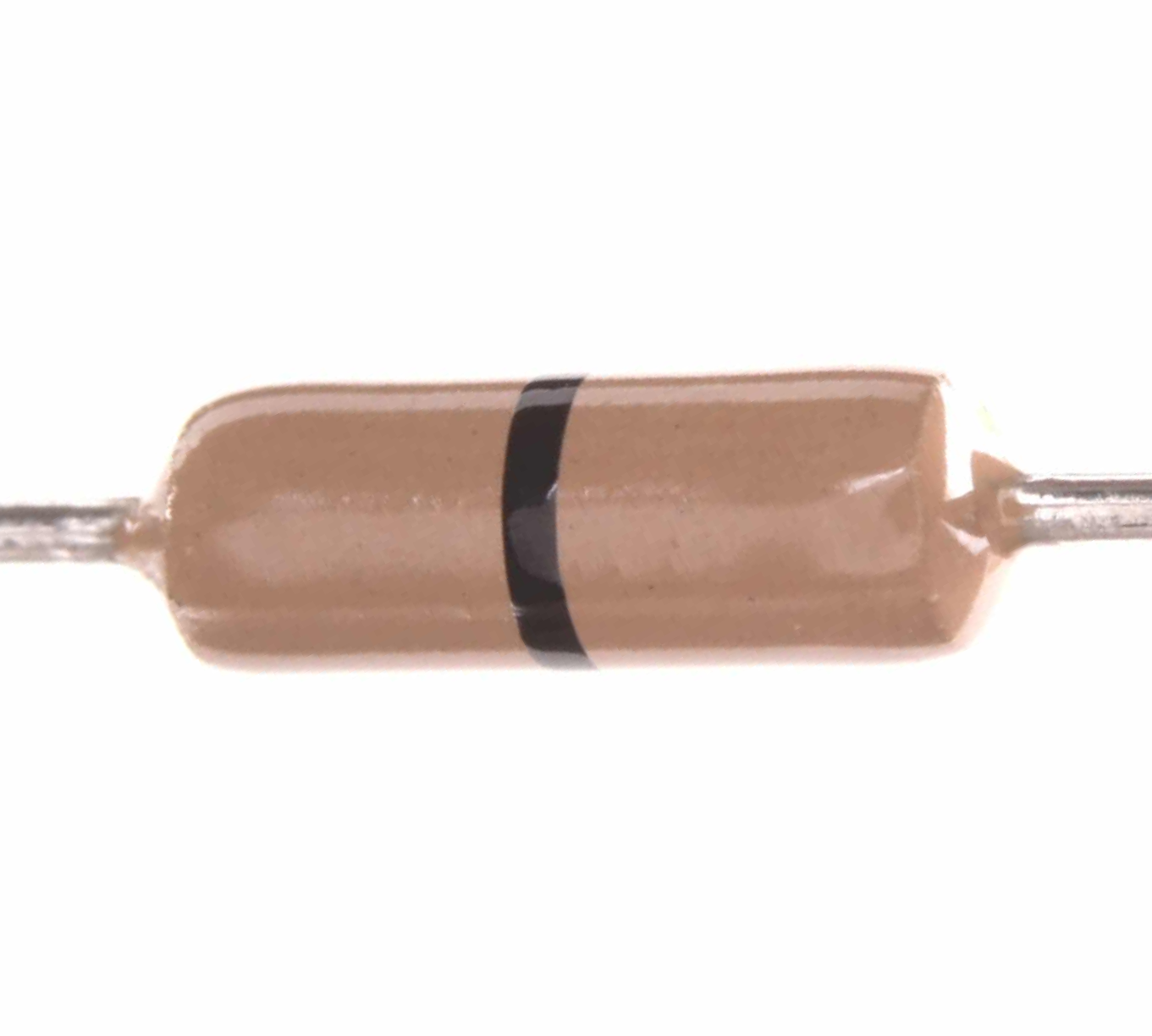

0 Ohm 0.25W Carbon Film Resistor
Carbon film resistors, a type of fixed resistor, use a carbon film to control electric current to specific levels. They are widely used in electronic circuits because of their versatility and broad range of applications..
Features
Carbon Film Resistor
High Quality
Specification:
O Ohm 0.25W High Quality Carbon Film Resistor
±5% Tolerance
Tin Plated Copper Leads
Color Code: Brown, Black, Orange, Golden
Package Includes
100 x 0 Ohm 0.25W Carbon Film Resistor
0 Ohm 0.25W Carbon Film Resistor Overview
The 0 Ohm 0.25W Carbon Film Resistor is a low-value, fixed resistor designed to act as a PCB jumper or shorting link in electronic circuits. With a carbon film body and tin-plated copper leads, it provides easy solderability and reliable performance in board layout and signal routing tasks.
Key Features of 0 Ohm 0.25W Carbon Film Resistor
- Zero resistance (0 Ω) for use as jumper links or configurable trace bridges
- 0.25 W power rating suitable for low-power PCB applications
- ±5% tolerance ensures consistent shorting behavior
- Carbon film construction for stable performance and low noise
- Tin-plated copper leads for reliable solder joints
- Pack of 100 pieces with brown-black-orange-golden color code
- Genuine product, fast shipping from Zbotic
Applications and Use Cases
- Acting as PCB jumper links in through-hole circuit boards
- Configurable option to select signal paths or enable/disable features
- Replacing wire links in prototyping to maintain a clean layout
- Short-ing test points or measurement pads during development
- Providing EMI reduction points by bridging ground planes
How to Use 0 Ohm 0.25W Carbon Film Resistor
Select the appropriate PCB hole spacing and insert the resistor leads through the board. Solder both leads to corresponding pads, ensuring good wettability on the tin-plated copper. Once soldered, trim excess leads flush with the board to complete the jumper connection.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can I use a 0 Ω resistor as a PCB jumper?
Yes. A 0 Ω resistor acts as a solder-friendly jumper link, replacing wire bridges while maintaining consistent board impedance.
How is the color code interpreted?
The brown-black-orange-golden bands indicate a 0 Ω resistance value with ±5% tolerance in the carbon film resistor series.
Does this pack include pre-tinned leads?
Yes. Each resistor features tin-plated copper leads for improved solderability and reliable electrical connection.
Technical Specifications
| Power Rating | 0.25W |
|---|---|
| Package Quantity | 100 pcs |
| SKU | AI0227 |
| Weight | 0.000334 kg |
| Availability | Out of Stock |
Applications & Use Cases
The 0 Ohm 0.25W Carbon Film Resistor (Pack of 100) is a versatile through hole resistor used across a wide range of applications including voltage dividers, current limiting, pull-up/pull-down networks, signal conditioning, and LED current limiting.
Common use cases:
- Limiting current through an LED
- Creating a voltage divider for analog sensing
- Pull-up resistor for I2C communication lines
This product is ideal for electronics students, hobbyists, and engineers.
Technical Tip: Use Ohm's Law (V=IR) to calculate the correct resistor value. Color bands indicate resistance: use an online calculator for quick reference.
