Home Electronic Instruments and Tools Measuring Instruments ZMPT101B 2mA AC Single Phase Voltage Transformer Sensor Relay
CSR8635 Bluetooth 4.0 Stereo Audio Receive Board Speaker Module ₹351.0 ( +GST 18% )
Back to products
18650 Li-ion Lithium Battery Capacity Tester ₹244.0 ( +GST 18% )

ZMPT101B 2mA AC Single Phase Voltage Transformer Sensor Relay

₹60.0 ( +GST 18% )

  • ⚡ Dispatched within 24 hours*
  • 💸 COD Orders above 250rs*
  • ✅15 days warranty*
  • 🛠️ Dedicated Technical Support Team
  • 🚚 Free shipping on orders above Rs 499/- for b2c customers

QUICK OVERVIEW

  • Low price
  • Small size (49.5mm x 19.4mm) and lightweight
  • Easy PCB mounting
  • Good consistency
  • Widely acclaimed

For B2B Enquiry Email Us:- [email protected]

42 in stock

Frequently Bought Together
This item: ZMPT101B 2mA AC Single Phase Voltage Transformer Sensor Relay

42 in stock

₹60.0 ( +GST 18% )
₹60.0 ( +GST 18% )
1 × 390K Ohm 2Watt Metal Film Resistor (Pack of 100)

4 in stock

₹97.0 ( +GST 18% )
1.5 Kohm, 0.25W Carbon Film Resistor(Pack of 100)
1 × 1.5K Ohm 1/4Watt [1.5K Ω 0.25W] Carbon Film Resistors (Pack of 100)

18 in stock

₹39.0 ( +GST 18% )
Compare
Add to wishlist
SKU: AI0684 Categories: Electronic Components, Measuring Instruments, Solid State Relays Tags: Relay, Single Phase Voltage, Transformer Relay, Voltage Transformer, ZMPT101B
Share:
  • Description
  • Additional information
  • Reviews (0)
  • COO Info
Description

Product Description

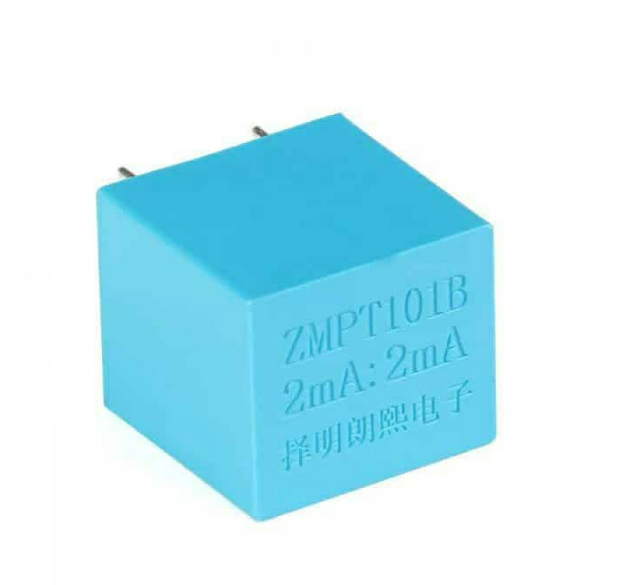

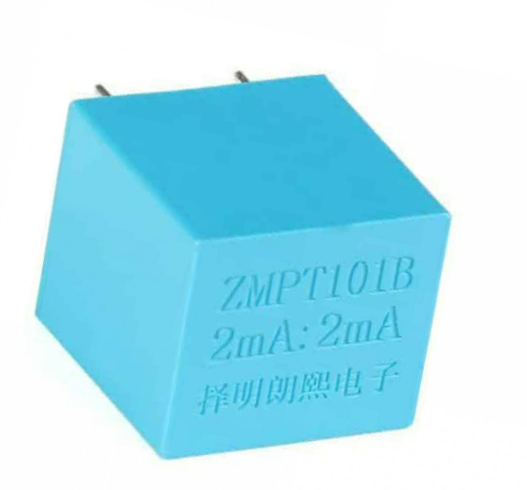

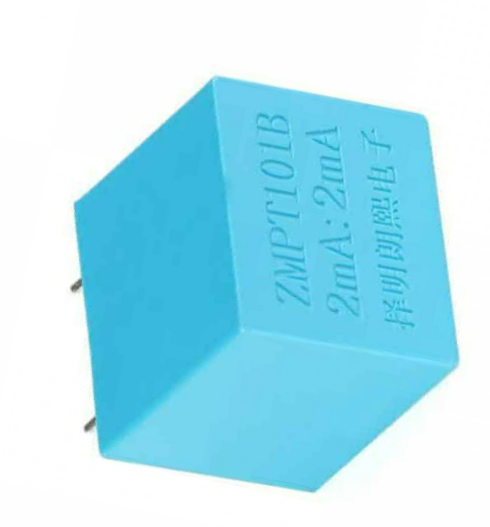

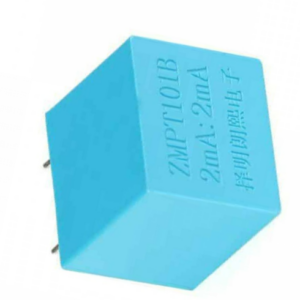

ZMPT101B AC Single Phase Voltage Transformer Sensor Relay is the best for the purpose of the DIY project, where we need to measure the accurate AC voltage with the voltage transformer. This is an ideal choice to measure the AC voltage using Arduino/ESP8266/Raspberry Pi like an open source platform. In many electrical projects, engineer directly deals with measurements with few basic requirements like.

  • High galvanic isolation
  • Wide Range
  • High accuracy
  • Good Consistency

ZMPT101B is a high-precision voltage Transformer. This module makes it easy to monitor AC mains voltage up to 1000 volts. A tiny little thing the size of a bouillon cube. Holds up to 4kV per breakdown voltage, the ratio of turns is 1: 1, but this is a current transformer of 2mA: 2mA. We feed it a current and remove the current. The input current is simply set by the resistor in series R1, and we use a sampling resistor R2 in parallel to get the output voltage.

Features :

  • Low price
  • Small size (49.5mm x 19.4mm) and lightweight
  • Easy PCB mounting
  • Good consistency
  • Widely acclaimed

Specifications:

Rated input current 2mA
Rated output current 2mA
Linear range 0~1000V 0~10mA
Isolation withstand voltage 4000V
Turns Ratio 1000:1000
Measurement accuracy Class 0.2
Linearity 0.1%
Rated Burdon <=200Ohm
Operating Frequency 50-50Hz
DC coil Resistance 110 @ 20 deg Cel


Applications of Small Size Voltage transformer

  • Metering (electrical energy meters)
  • AC Voltage measurement
  • Sensing Overload Current
  • Ground fault detection
  • Household electrical equipment
  • Industrial apparatuses
  • Electrical testing equipment and relay protection

Package Includes:

  • 1 x ZMPT101B AC Single Phase Voltage Transformer Sensor Relay
Additional information
Weight 0.0175 kg
