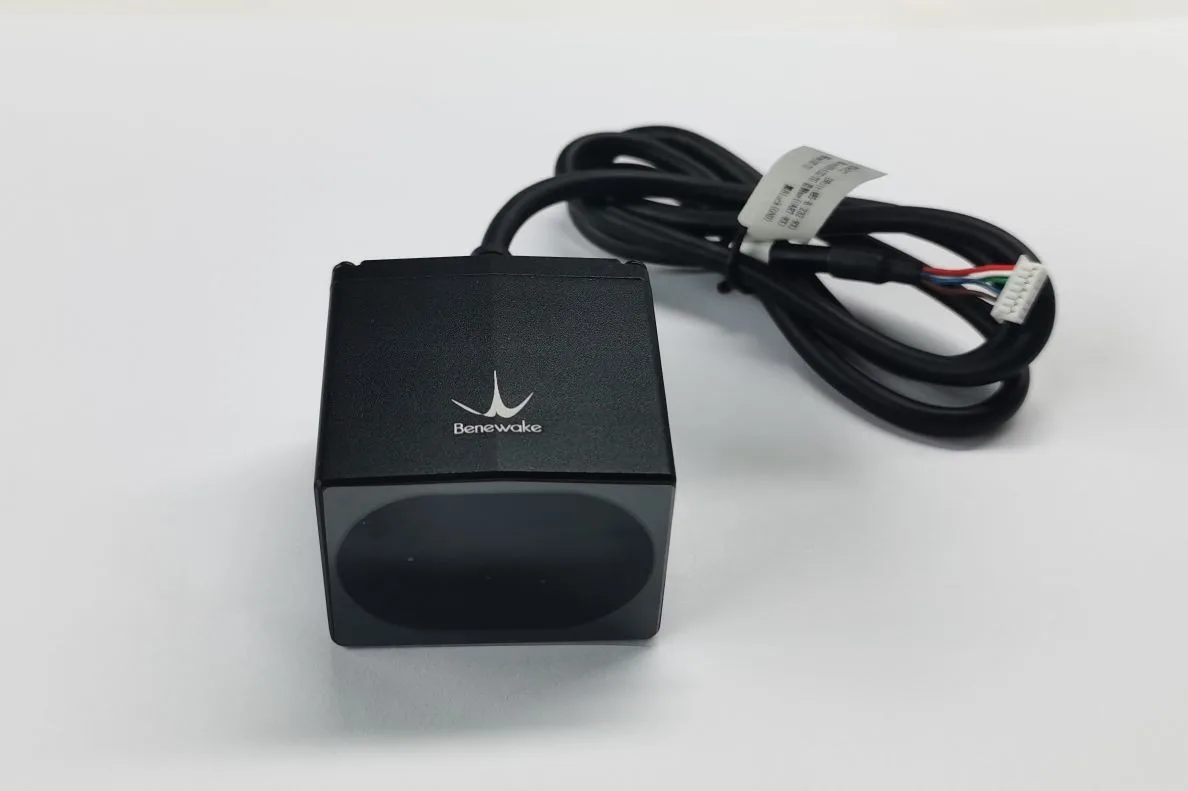

Benewake TF03 100M Long Distance Laser Lidar/Rangefinder for Drones UAV UAS Robots

Looking for Tf03 100m Long? Benewake TF03 100M Long Distance Laser Lidar/Rangefinder for Drones UAV UAS Robots is available at Zbotic with fast shipping across India.

If you want to detect Obstacles with your drones then the Benewake TF03 100MLong Distance Laser Lidar/Rangefinder  is a quite good solution.

Benewake TF03 100M Long Distance Laser Lidar/Rangefinder for Drones as a single-point long distance LiDAR by the industrial level mainly targets the intelligent transportation system, industrial UAV, automotive, and other industrial applications.

To maximize different requirements in different applications and scenarios; TF03 can be compatible with a variety of communication interfaces; featuring IP67 high-intensity bodywork and the measurement frequency as high as 10KHz.

It not only has powerful performance and rich interfaces but also is small in volume so that it could be integrated more easily into applications. Also, TF03 contains a compensation algorithm targeting an outdoor highlight environment so that it could still work normally in a highlight environment.

Besides, it also has a variety of measurement models and parameters for custom configurations to meet the ranging needs of different customers.

As the third generation product of the TF series, TF03 inherits the cost-effective and compact- integration characteristics of the previous two generations. Meanwhile, TF03 upgrades more than ten key parameters and offers multiple expansion functions to meet the various demands in different application areas. The product applies to the terrain-following of drones, the collision avoidance of cars, intelligent transportation, and industrial safety warning.

Working Principle:

TF03 uses the pulse method to range the distance based on TOF (Time-of-Flight). Specifically, TF03 emits a beam of the light pulse which will be reflected by the object and received by TF03 again.TF03 calculates the time of flight in the course of the round trip and thus obtains the relative distance between TF03 and the measured object

Specification-

Features:

1. Wide range, as far as 100m.
2. Multi-interface compatibility, able to be used in many fields.
3. IP67 high-strength bodywork and high reliability.
4. Small in volume and easy to be integrated.
5. High-speed measuring up to 10KHz, high repeated accuracy.
6. Excellent highlight interference, able to be used outdoors.

Application Areas:

1. Vehicle Classification recognition and vehicle counting
2. UAV altitude holding an auxiliary landing
3. Car collision avoidance
4. Civil/industrial material level monitoring
5. Safety warning.

Package Includes:

1 x Benewake TF03 100M Long Distance Laser Lidar/Rangefinder for Drones

BENEWAKE TF03 100M DATASHEET

USER MANUAL

Benewake TF03 100M Long Distance Laser Lidar/Rangefinder Overview

The Benewake TF03 is a single-point laser LiDAR sensor capable of measuring distances up to 100 meters with high repeatability. Designed for integration on drones, UAVs, UAS platforms and robotics, it provides fast, reliable obstacle detection and rangefinding in outdoor and industrial environments.

Key Features of Benewake TF03 100M Long Distance Laser Lidar/Rangefinder

• 100 m maximum detection range for long-distance obstacle sensing
• High-speed sampling up to 10 kHz for real-time distance updates
• IP67-rated aluminum housing ensures dustproof and waterproof performance
• Multi-interface compatibility (UART, RS232, CAN, etc.) for flexible integration
• Compact, lightweight design for easy mounting on UAVs and robots
• Excellent resistance to bright light interference, suitable for outdoor use
• Fast shipping from Zbotic with nationwide delivery in India

Applications and Use Cases

• Obstacle avoidance on industrial and consumer drones
• Altitude hold and terrain following in agricultural UAVs
• Collision prevention systems on autonomous ground robots
• Distance monitoring in intelligent transportation scenarios
• Range measurement for ADAS and automotive testing rigs
• Integration into UAS payloads for surveying and mapping tasks

How to Use Benewake TF03 100M Long Distance Laser Lidar/Rangefinder

Mount the TF03 on your drone or robotic platform using the included bracket, then connect the power supply and data interface (e.g., UART or CAN) to your flight controller or host computer. Configure the communication parameters via the Benewake configuration tool, align the sensor toward the measurement area, and initiate the data stream to receive real‐time distance values.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

What is the operating temperature range of the TF03?

The TF03 operates from -20 °C to +60 °C, making it suitable for most outdoor and industrial environments.

Which communication interfaces does the TF03 support?

This LiDAR supports multiple interfaces including UART, RS232 and CAN bus, allowing easy integration with various controllers and data loggers.

How accurate is the distance measurement?

The TF03 offers millimeter-level repeat accuracy, ensuring consistent distance readings even at high sampling rates up to 10 kHz.
