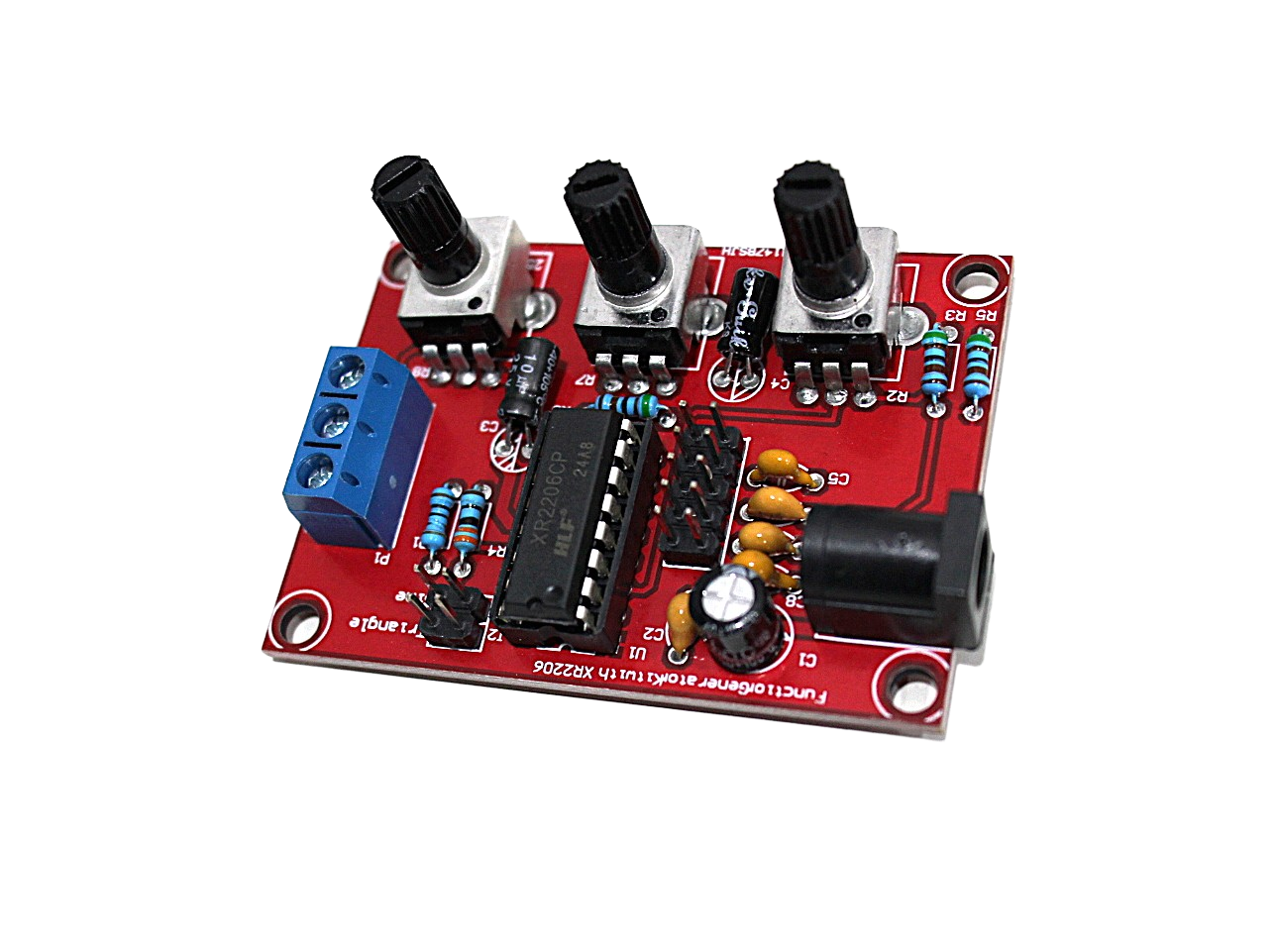

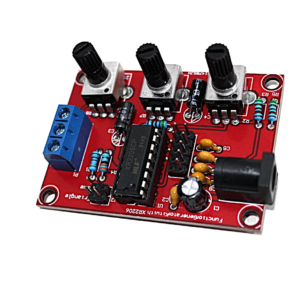

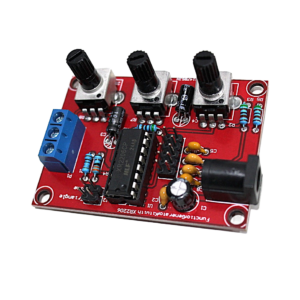

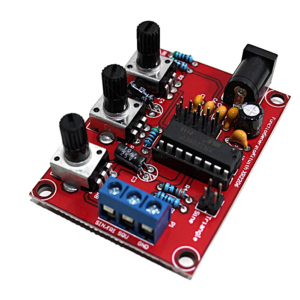

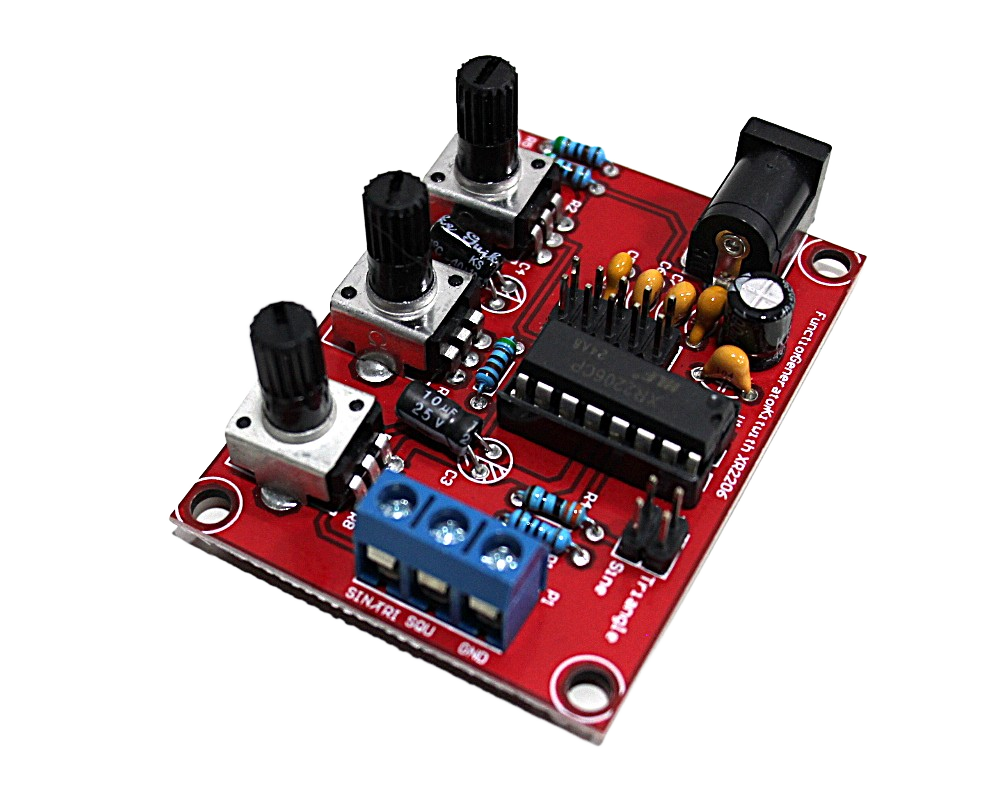

XR2206 High Precision Signal Generator
This function generator works on supply voltage from 9V to 12VDC, it can generate square, sine, and triangle waveform with frequency from 1Hz to 1MHz. The amplitude of the waveforms can be in the range of 0-3VDC.
Features:
- High-Resolution Signal Generator.
- Can Generate Sine/Triangle/Square Waves.
- Adjustable Frequency and Amplitude.
- Frequency Adjustment Supports Coarse and Fine Tuning.
Specifications:
| Model | XR2206 |
|---|---|
| Operating Voltage (VDC): | 9-12 |
| Operating Frequency | 1Hz-1MHz |
| Supported Waveforms | Sine, Square, Triangle |
| Amplitude of Waveform | 0-3VDC |
| Distortion | Less than 1% |
| Flatness | +0.005dB |

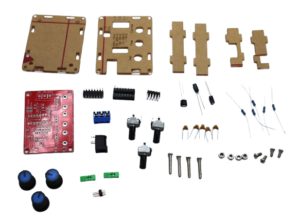

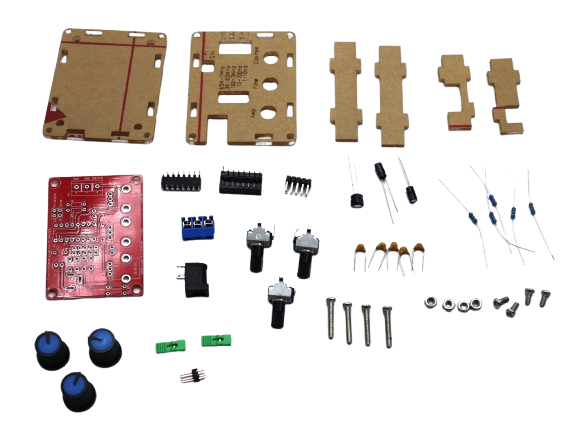

Package Includes:

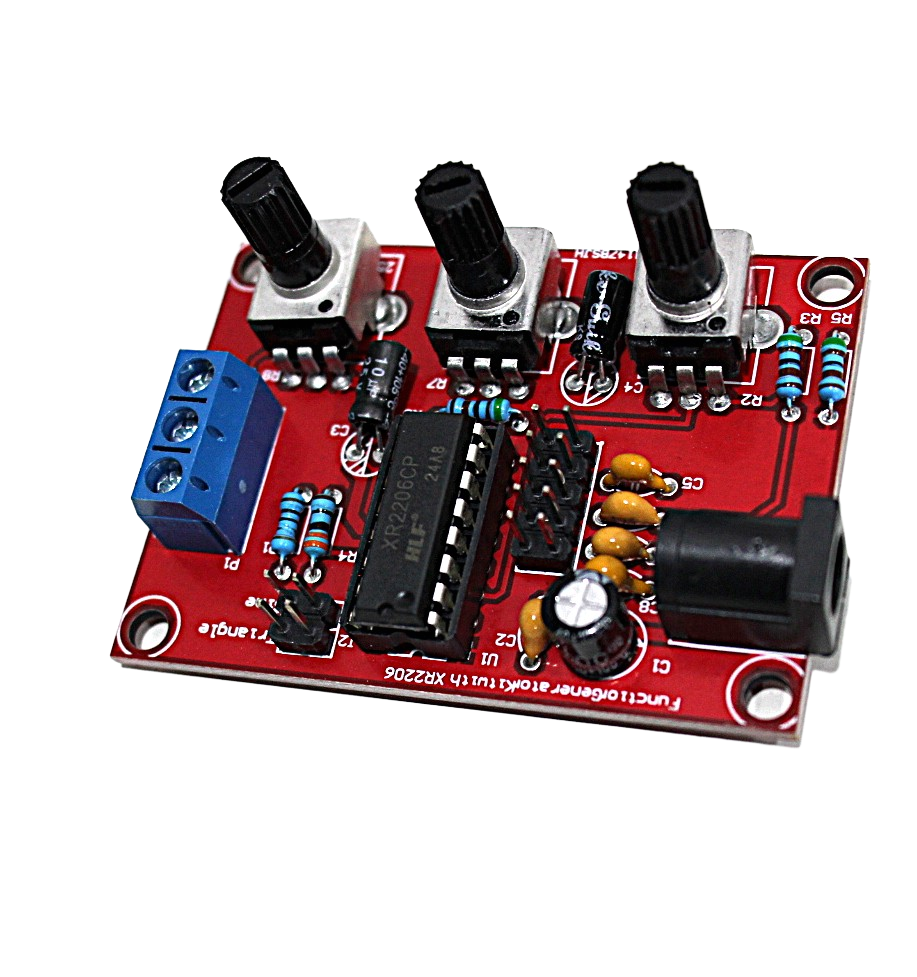

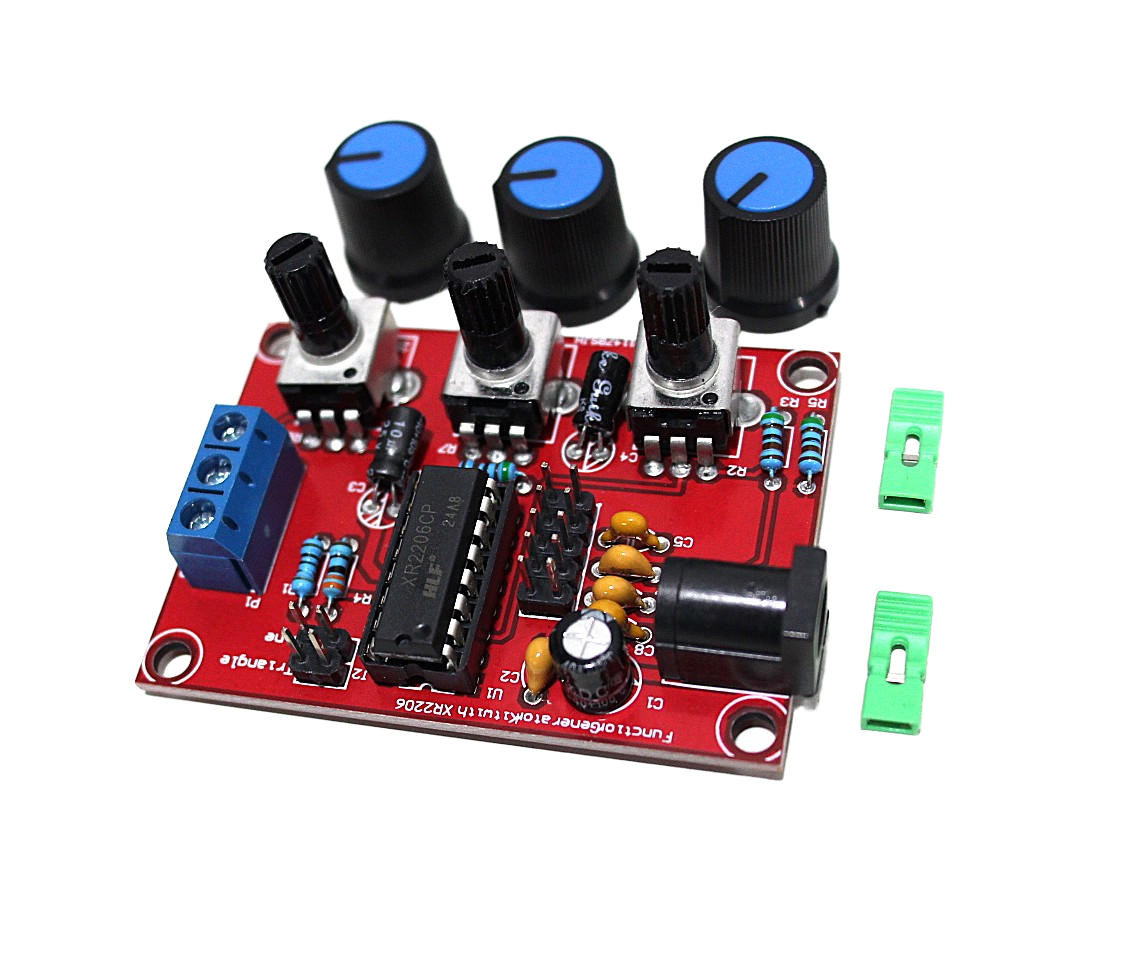

1 x XR2206 High Precision Signal Generator

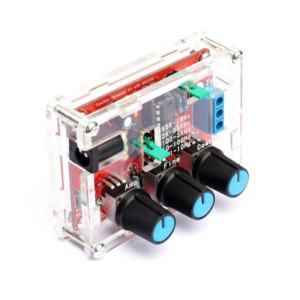

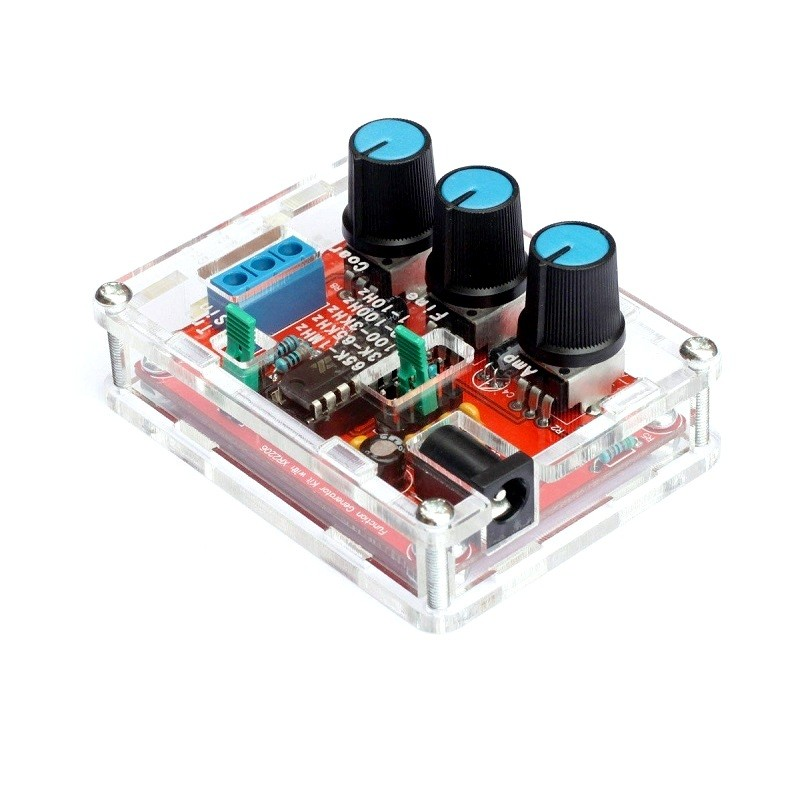

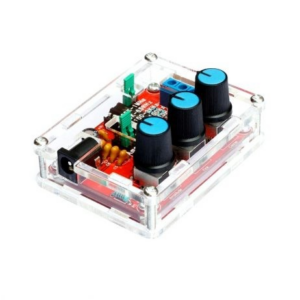

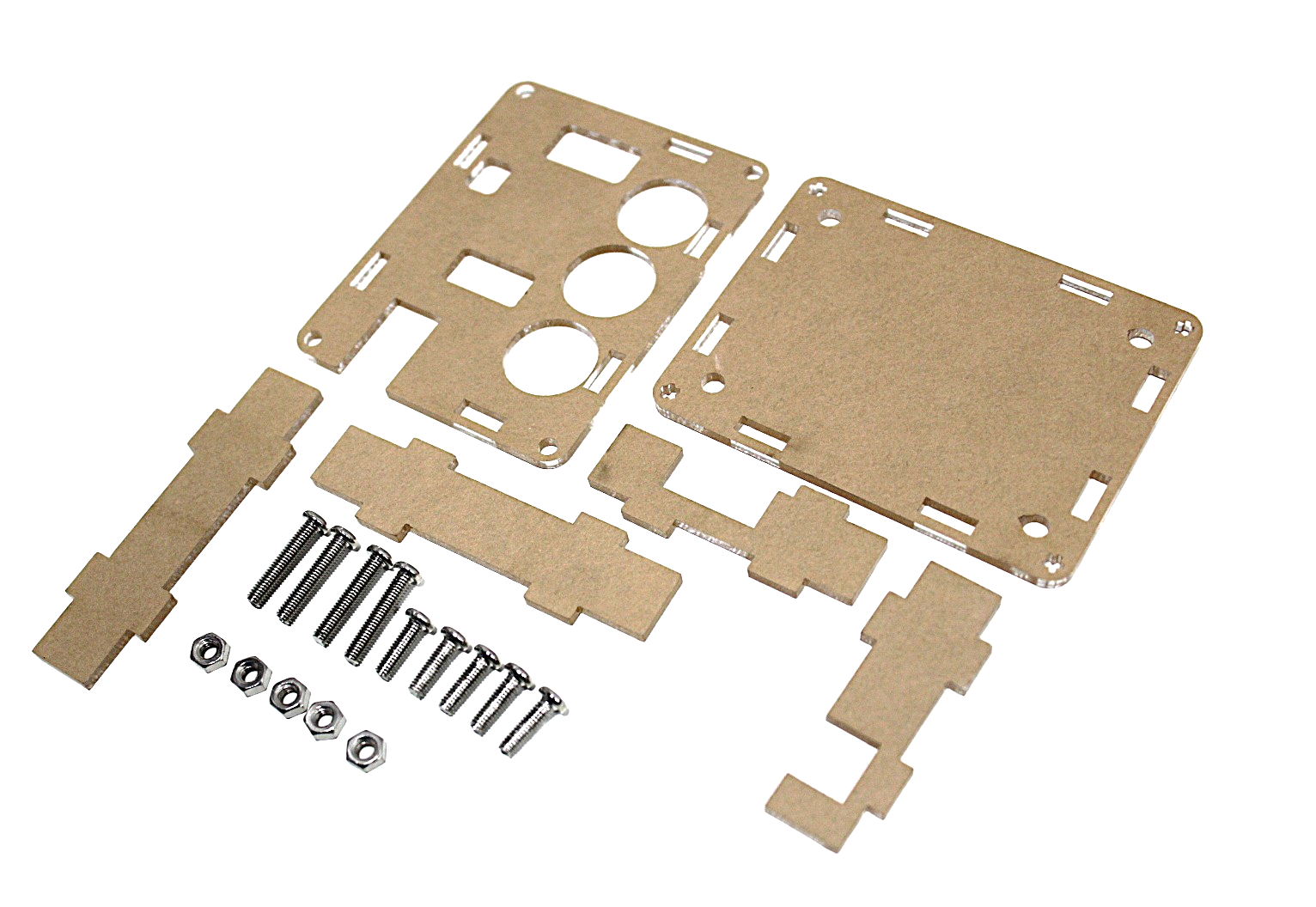

1 x Acrylic Case For Signal Generator
Technical Specifications
| Model | XR2206 |
|---|---|
| SKU | AI5883 |
| Weight | 0.09 kg |
| Availability | Out of Stock |
Applications & Use Cases
The XR2206 High Precision Signal Generator is a versatile signal generator module & oscilloscopes used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
