This is the 32V variant of the XL4005 DC-DC 5-32V Adjustable Step Down 5A Buck Power Supply Module in Buck Converter. Available at ₹86.14 (₹73.00 + GST) with free shipping across India.

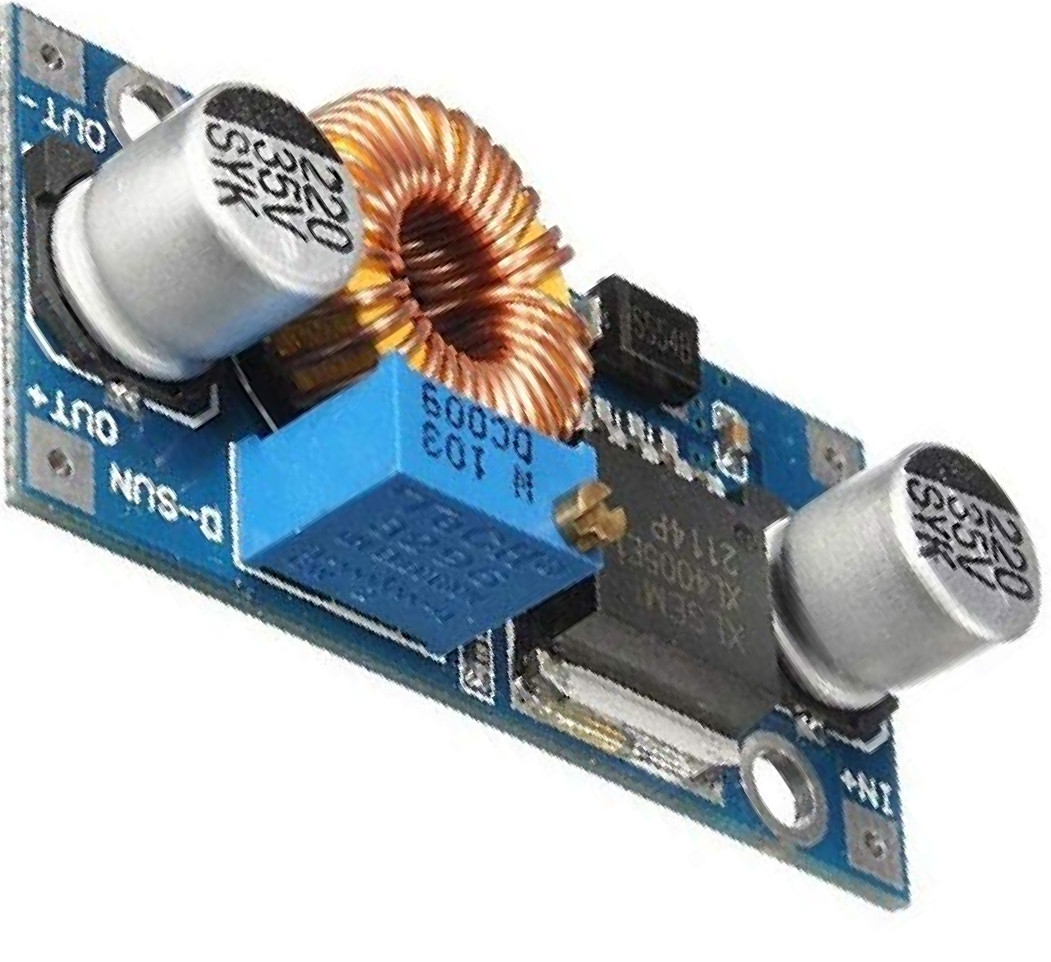

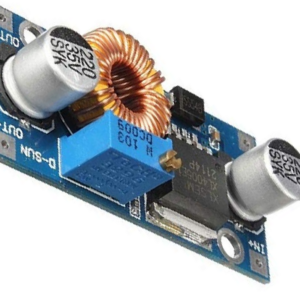

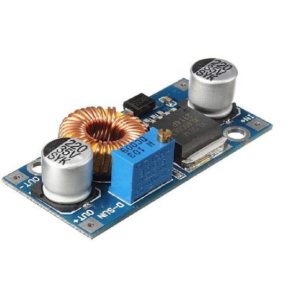

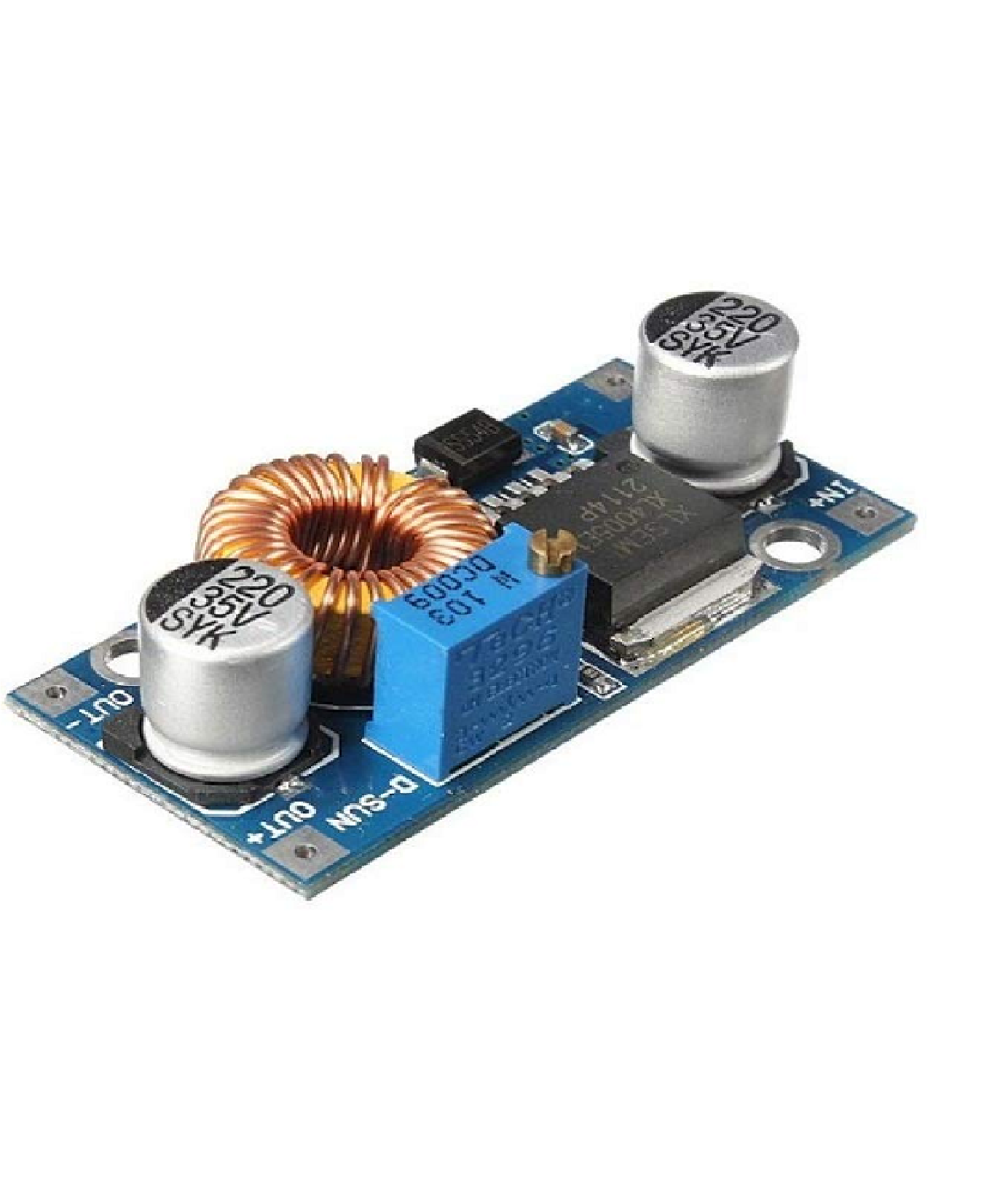

XL4005 DC-DC 5-32V Adjustable Step Down 5A Buck Power Supply Module
This module features the adjustable XL4005 step-down (buck) switching regulator, capable of driving a 5A load with excellent line and load regulation.
This module has a multi-turn trim pot (potentiometer) that you can use to adjust the output voltage. Since the trim pot has 25 turns of adjustment you can easily adjust the output of the module to exactly the voltage you need.
The simplest way to reduce the voltage of a DC supply voltage is to use a linear voltage regulator (LDO), but linear regulators step down voltage by dissipating the excess energy as heat and do not yield any current step up. Buck converters, on the other hand, can be remarkably efficient and provide a step up in current output. Buck converters are one of the best ways to provide a regulated voltage from a battery since they don’t waste near as much energy in the process of dropping the input voltage as a linear regulator would waste.
Features:
- Wide 5V to 32V Input Voltage Range
- Output Adjustable from 0.8V to 30V
- Maximum Duty Cycle 100%
- Minimum Drop Out 0.6V
- Fixed 300KHz Switching Frequency
- 5A Constant Output Current Capability
- Internal Optimize Power MOSFET
- High efficiency
Package Includes:
1 x XL4005 DC-DC 5-32V Adjustable Step-Down 5A Buck Power Supply Module
Technical Specifications
| Model | XL4005 |
|---|---|
| Current Rating | 5A |
| Interface / Protocol | BLE |
| SKU | AI5222 |
| Weight | 0.02 kg |
| Availability | Out of Stock |
Applications & Use Cases
The XL4005 DC-DC 5-32V Adjustable Step Down 5A Buck Power Supply Module is a versatile buck converter used across a wide range of applications including voltage step-down for electronics, battery-powered projects, LED driver circuits, microcontroller power supply, and solar power regulation.
Common use cases:
- Converting 12V car battery to 5V for USB devices
- Powering a Raspberry Pi from a drone battery
- Regulating solar panel output for charging
This product is ideal for electronics hobbyists, IoT developers, and power supply designers.
Technical Tip: Buck converters are more efficient than linear regulators (LM7805). Choose one rated for at least 1.5x your required current. Ensure input voltage is at least 2V above output.
