Description:

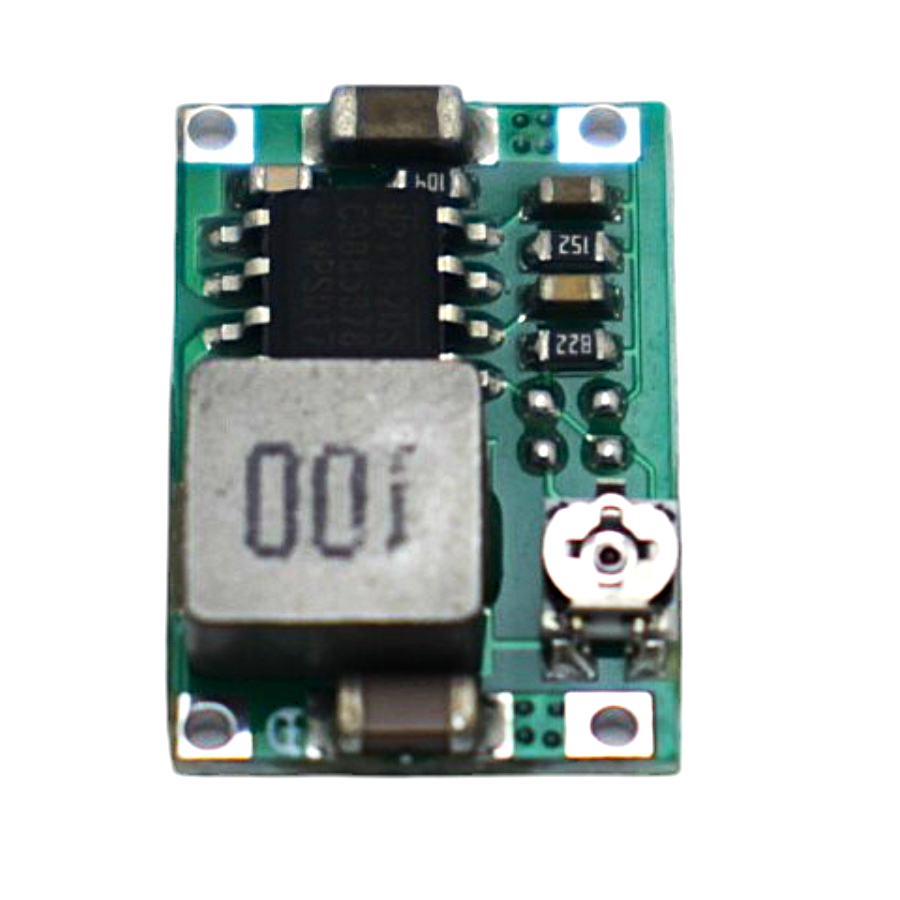

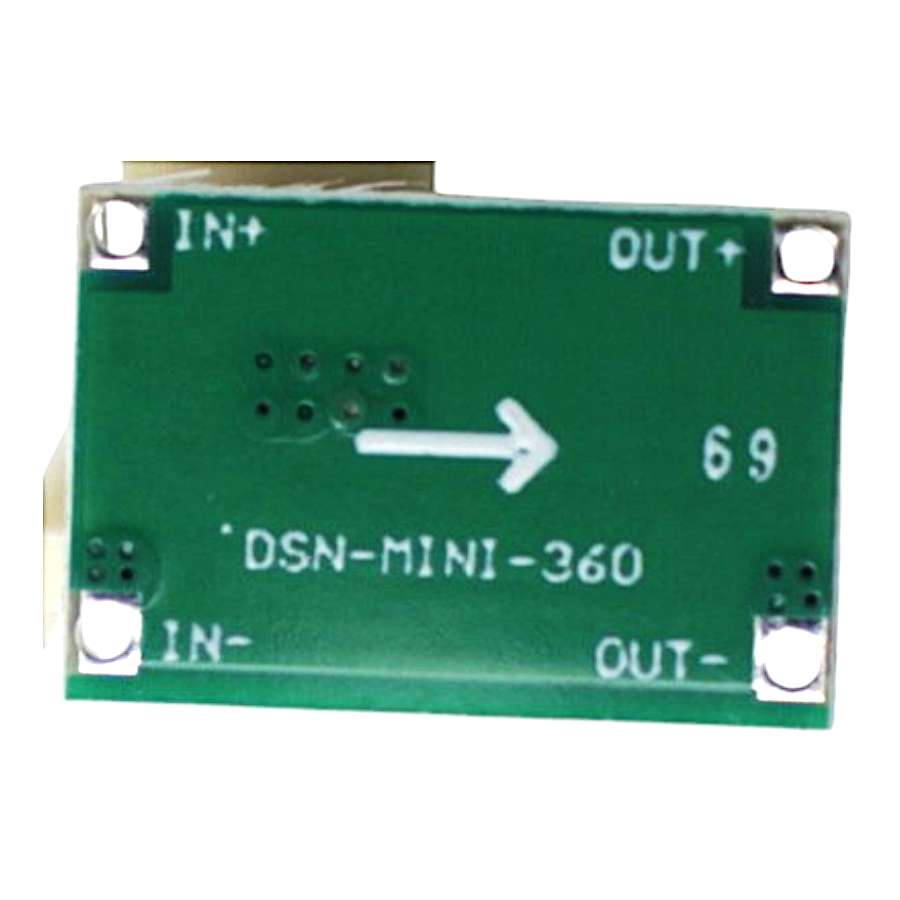

Mini 360 Step Down Buck Converter Power Supply Module

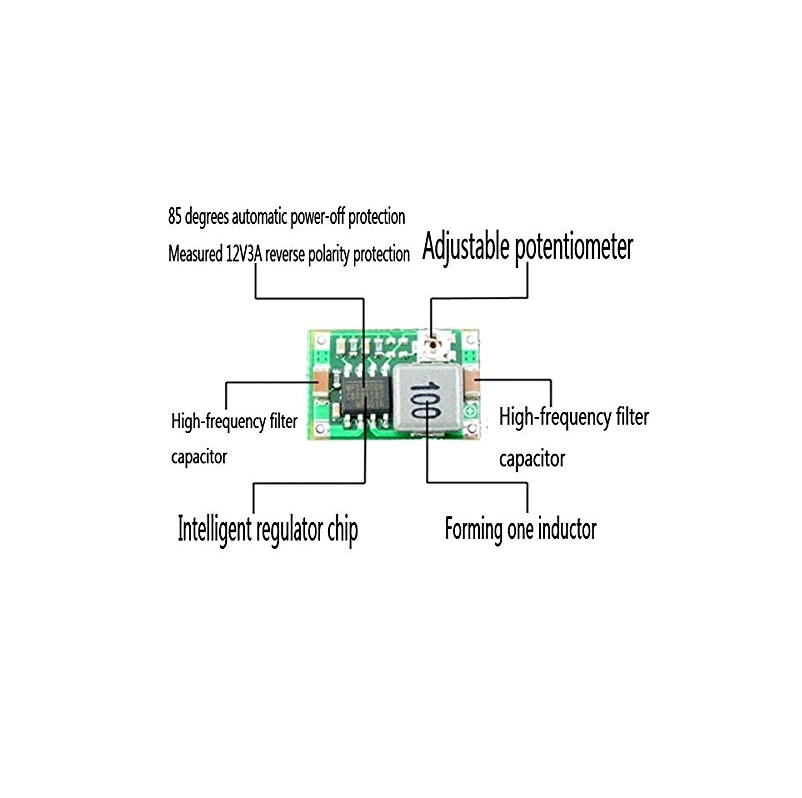

This Mini 360 Step-Down Buck Converter Power Module is a compact and efficient solution for converting higher voltage to a stable lower voltage. It integrates a power inductor and a synchronous rectifier control chip, optimizing both size and performance. Ideal for a wide range of applications, this module is perfect for powering DIY mobile projects, monitor power supplies, camera systems, power buggies, car electronics, and communication devices. Its compact design makes it well-suited for space-constrained and demanding applications, including aviation models and other similar projects.
Features:
- Module: Non-isolated step-down module (BUCK)
- Rectification: Synchronous rectification
- Built-in 160°C thermal shutdown
- Output ripple: 30mV (no-load)
Specifications:
| Input Voltage Range | 4.75 – 23VDC |
|---|---|
| Selectable Output Voltage | 1.0 – 17VDC |
| Rated Current | 1.8A Continuous 3A Surge Current |
| Maximum conversion efficiency | 95% (5Vin, 3.3Vout ~200mA output) |
| Switching Frequency | 340kHz |
| No-load output Ripple | 30mV |
| Load Regulation | 0.5% |
| Voltage Regulation | 2.5% |
| Operational Temperature Range | -40 to +85°C |
| Length (mm): | 17 |
| Width (mm): | 11 |
| Height (mm): | 3.8 |
| Weight (g): | 2 |
Package Includes:
- 1 x Mini 360 Step-Down Buck Converter Power Module
Attachments:
Datasheet
Technical Specifications
| SKU | AI0529 |
|---|---|
| Weight | 0.01 kg |
| Availability | In Stock |
Applications & Use Cases
The Mini 360 Step Down Buck Converter Power Supply Module is a versatile buck converter used across a wide range of applications including voltage step-down for electronics, battery-powered projects, LED driver circuits, microcontroller power supply, and solar power regulation.
Common use cases:
- Converting 12V car battery to 5V for USB devices
- Powering a Raspberry Pi from a drone battery
- Regulating solar panel output for charging
This product is ideal for electronics hobbyists, IoT developers, and power supply designers.
Technical Tip: Buck converters are more efficient than linear regulators (LM7805). Choose one rated for at least 1.5x your required current. Ensure input voltage is at least 2V above output.
