This is the 12V variant of the XK-W1010 DC12V C/F Digital Temperature Controller 10A with 1m Cable in Temperature Meter, Measuring Instruments. Available at ₹649.00 (₹550.00 + GST) with free shipping across India.

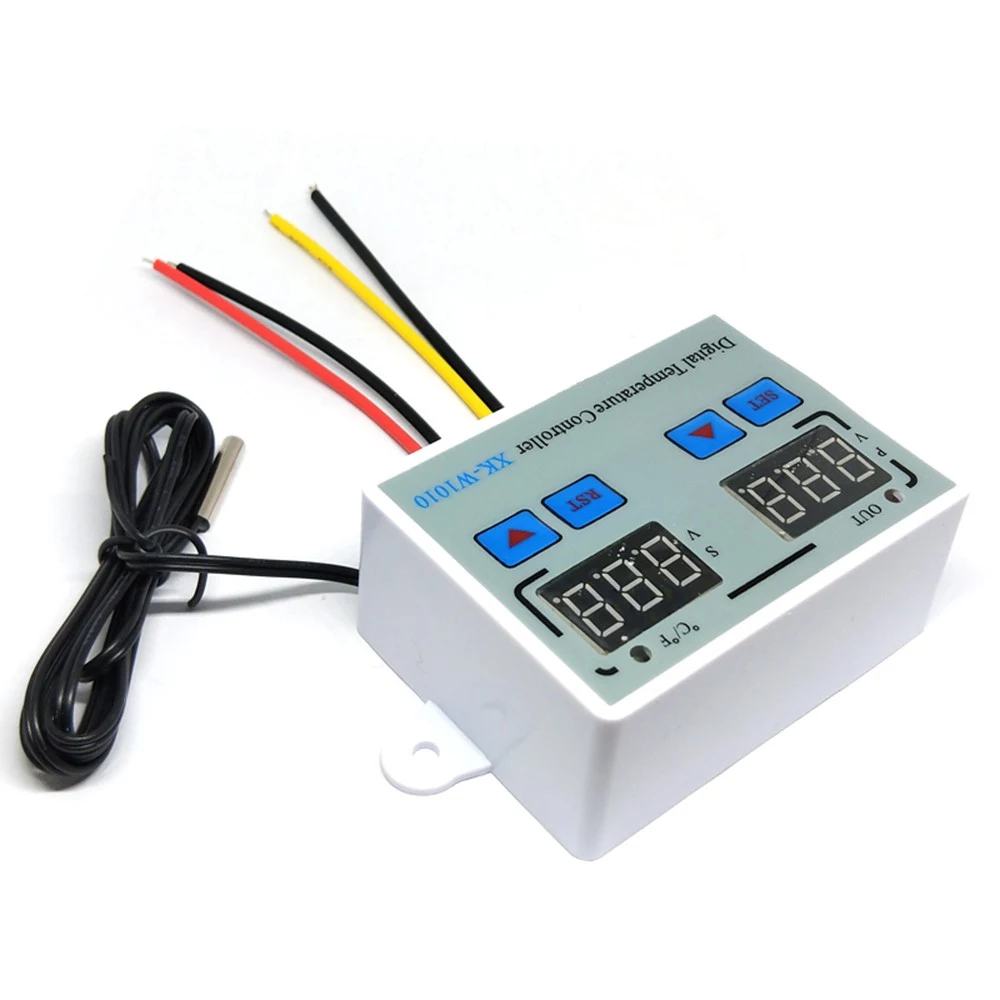

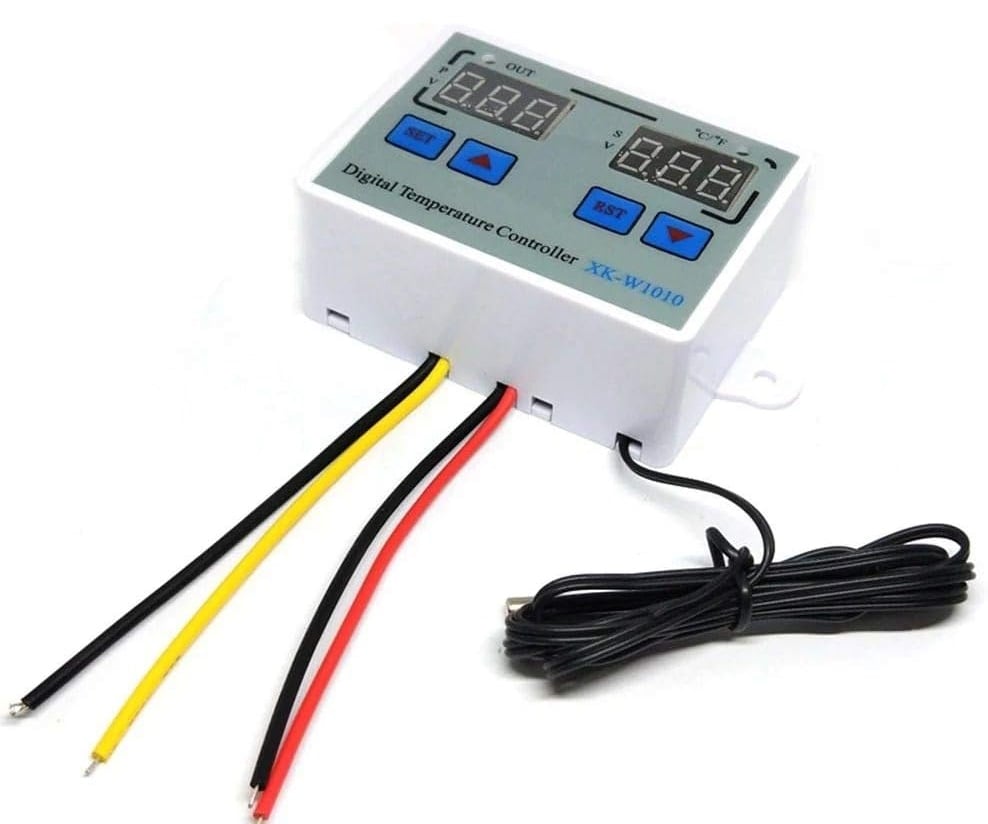

XK-W1010 DC12V C/F Digital Temperature Controller 10A with 1m Cable
Introducing the XK-W1010 DC12V C/F Digital Temperature Controller with a 10A output capacity and a 1-meter cable. This temperature controller offers precise and convenient temperature regulation for various applications, ensuring optimal performance and efficiency.
Instruction: Normal mode :The red digital tube on the left shows the real-time temperature, the blue digital tube on the right shows the set temperature.Setting mode: The red digital tube on the left displays the setting mode, the blue digital tube on the right displays the setting contents.How to set the start or stop temperature:
Press the “SET”button onace and the screen flashed, Press the “up” and “Down” button to set the temperature.Set Mode:Code Function Set Range Default Start or Stop Temperature -55~120C/-67~248F 0C/68FP0 Working mode H H/CP1 Difference set value 0.2-30C 2CP2 High temperature alarm value -55~120C/-67~248F 120C/248FP3 Low temperature alarm value -55~120C/-67~248F -55C/-67FP4 Temperature calibration value -10.0C~10.0C 0P5 Compressor delay time 0-60Min 0P6 Display mode C/F CPackage List:1 * Temperature Controller1 * Waterproof Sensor
Features:
- Versatile Compatibility: Designed to operate on a DC12V power supply, this temperature controller is compatible with a wide range of devices and systems requiring temperature regulation.
- Dual Temperature Unit: Easily switch between Celsius (°C) and Fahrenheit (°F) temperature units, providing flexibility to suit your preference and specific application requirements.
- Digital LCD Display: The built-in digital LCD display provides clear and easy-to-read temperature readings, allowing for quick and accurate monitoring of the current temperature.
- Adjustable Temperature Range: The temperature control range is adjustable, allowing you to set the desired temperature range according to your specific needs.
- High Accuracy: With a control accuracy of ±1°C or ±1°F, this temperature controller ensures precise temperature regulation, minimizing fluctuations and maintaining stability.
- Easy Installation: The temperature controller comes with a 1-meter cable for easy installation and setup, making it suitable for a variety of applications.
- 10KSenor length: 1.0mTemperature measuring range: -55 C ~
- 120 C / -66F~248FResolution: 0.1 C Accuracy: 1 C Power consumption:
Specifications:
| Specification | Description |
|---|---|
| Model | XK-W1010 |
| Input Voltage | DC 12V |
| Output Current | 10A |
| Cable Length | 1 meter |
| Temperature Control Range | Adjustable |
| Temperature Unit | Celsius (°C) and Fahrenheit (°F) |
| Display Type | Digital LCD Display |
| Control Type | On/Off Control |
| Control Accuracy | ±1°C or ±1°F |
| Temperature Resolution | 0.1°C or 0.1°F |
| Operating Temperature | -10°C to 60°C (14°F to 140°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Mounting | Panel mount |
| Dimensions | Varies depending on the model |
| Application | Heating, cooling, temperature regulation, etc. |
PACKAGE INCLUDES
1 X XK-W1010 DC12V C/F Digital Temperature Controller 10A with 1m Cable
XK-W1010 DC12V C/F Digital Temperature Controller 10A with Overview

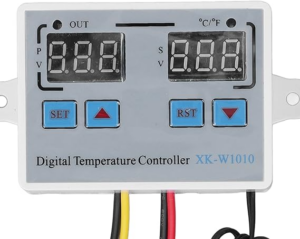

The XK-W1010 DC12V C/F Digital Temperature Controller is a compact rectangular unit designed for precise temperature regulation in 12 V DC systems. Featuring dual digital displays, it shows real-time and set temperatures in Celsius or Fahrenheit and switches loads up to 10 A for heating or cooling applications.
Key Features of XK-W1010 DC12V C/F Digital Temperature Controller 10A with
- 12 V DC input with a 10 A output capacity for direct load switching
- Dual-color displays: red tube for real-time temperature, blue tube for setpoint
- Control accuracy of ±1 °C/°F and temperature resolution of 0.1 °C/°F
- 1 m sensor cable for flexible placement and easy installation
- Button control interface for quick setpoint adjustments
- Genuine product with fast shipping from Zbotic
Applications and Use Cases
- Aquarium and terrarium temperature management
- Homebrewing and fermentation temperature control
- Small incubators for eggs or laboratory samples
- DIY cooling or heating projects in automotive and electronics
- Greenhouse or seedling climate regulation
How to Use XK-W1010 DC12V C/F Digital Temperature Controller 10A with
Mount the controller in your 12 V DC system, connect the sensor cable to the measurement point, and wire the load to the 10 A output terminals. Press “SET” once to enter temperature set mode, then use the “Up” and “Down” buttons to adjust your start/stop thresholds. The red display will flash during setup, and the blue display shows the chosen setpoint. After setting, the unit automatically maintains your target temperature.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can I switch between Celsius and Fahrenheit?
Yes. Enter the Set Mode by pressing “SET” three times until “F” appears, then use the Up/Down buttons to toggle between °C and °F.
What types of devices can I control with the 10 A output?
The 10 A relay output is suitable for DC resistive or inductive loads up to 12 V, such as small heaters, fans, compressors, or Peltier modules.
How do I position the 1 m sensor cable?
The 1 m cable connects the built-in temperature probe to your target environment—secure it near the heat source or cooling element for accurate readings.
Technical Specifications
| Model | XK-W1010 |
|---|---|
| Operating Voltage | 12V |
| Current Rating | 10A |
| Interface / Protocol | BLE |
| SKU | AI3900 |
| Availability | Out of Stock |
Applications & Use Cases
The XK-W1010 DC12V C/F Digital Temperature Controller 10A with 1m Cable is a versatile temperature meter used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
