This is the 6V variant of the XH-M604 6V-60V Battery, Charging Control Board, Intelligent Charger Power, Control Panel Automatic, Charging Power in Battery Charging Boards. Available at ₹68.44 (₹58.00 + GST) with free shipping across India.
XH-M604 6V-60V Battery, Charging Control Board, Intelligent Charger Power, Control Panel Automatic, Charging Power

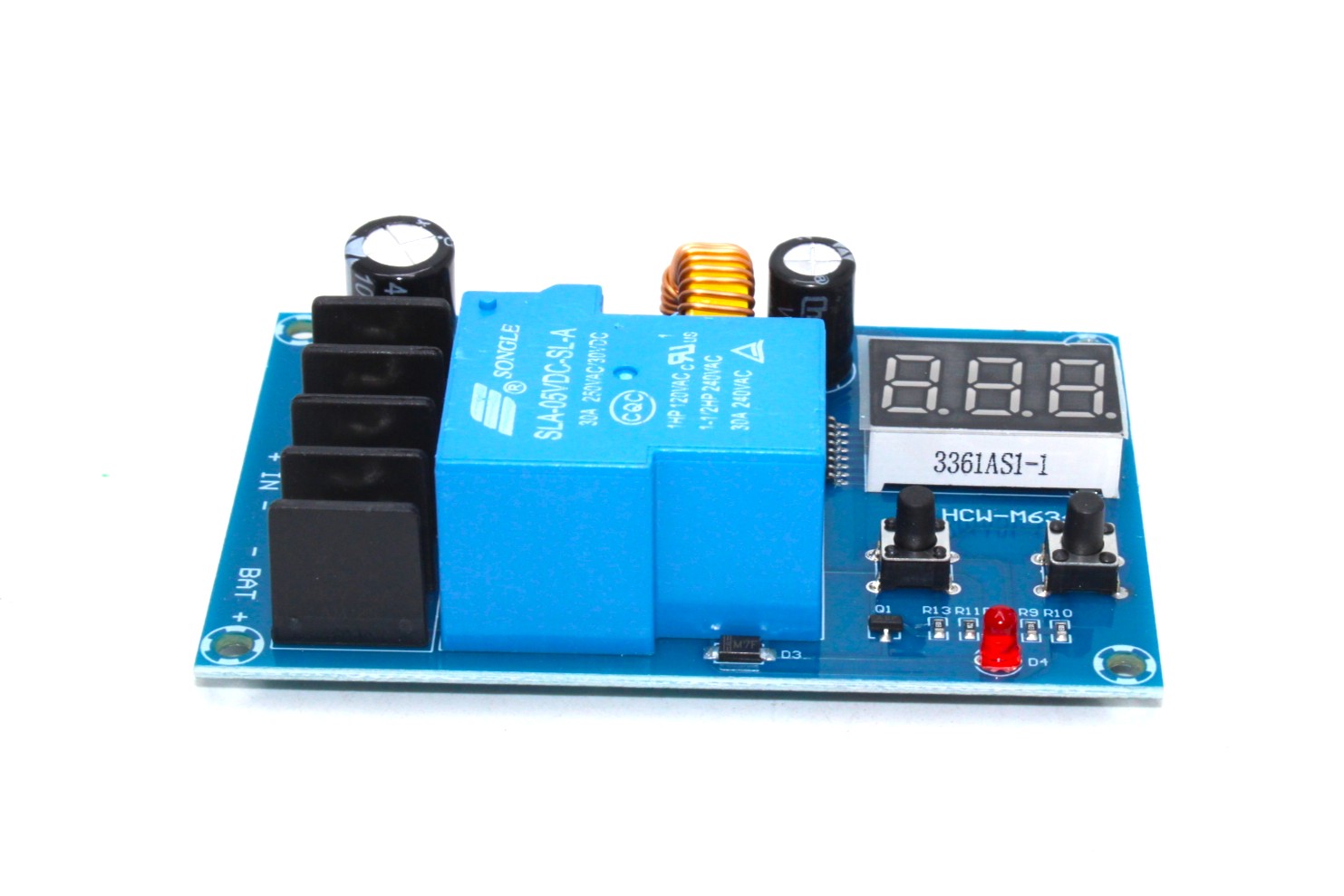

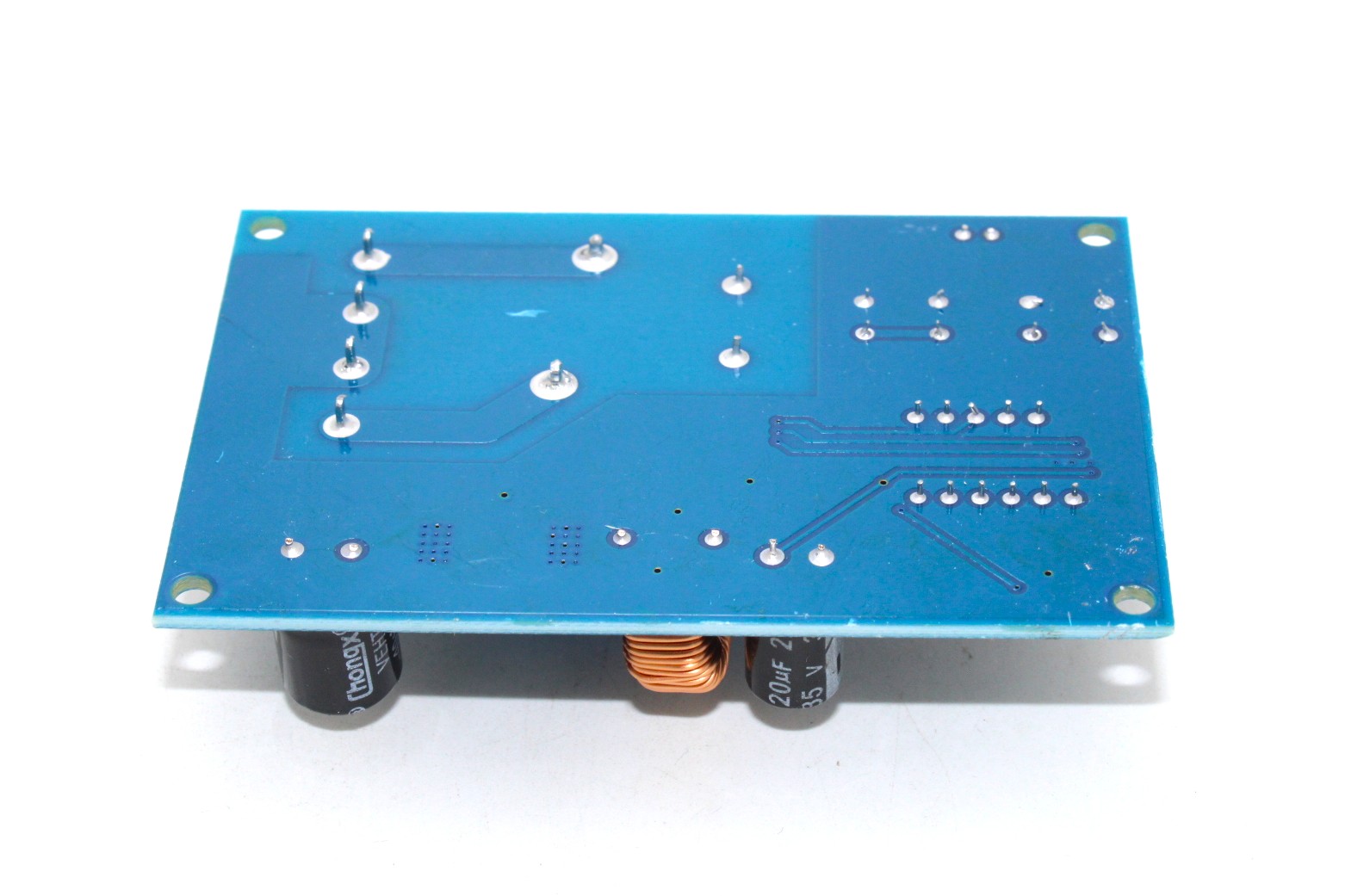

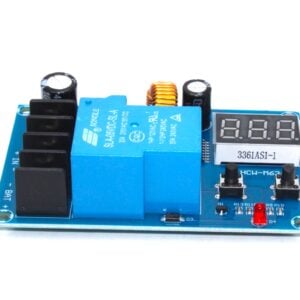

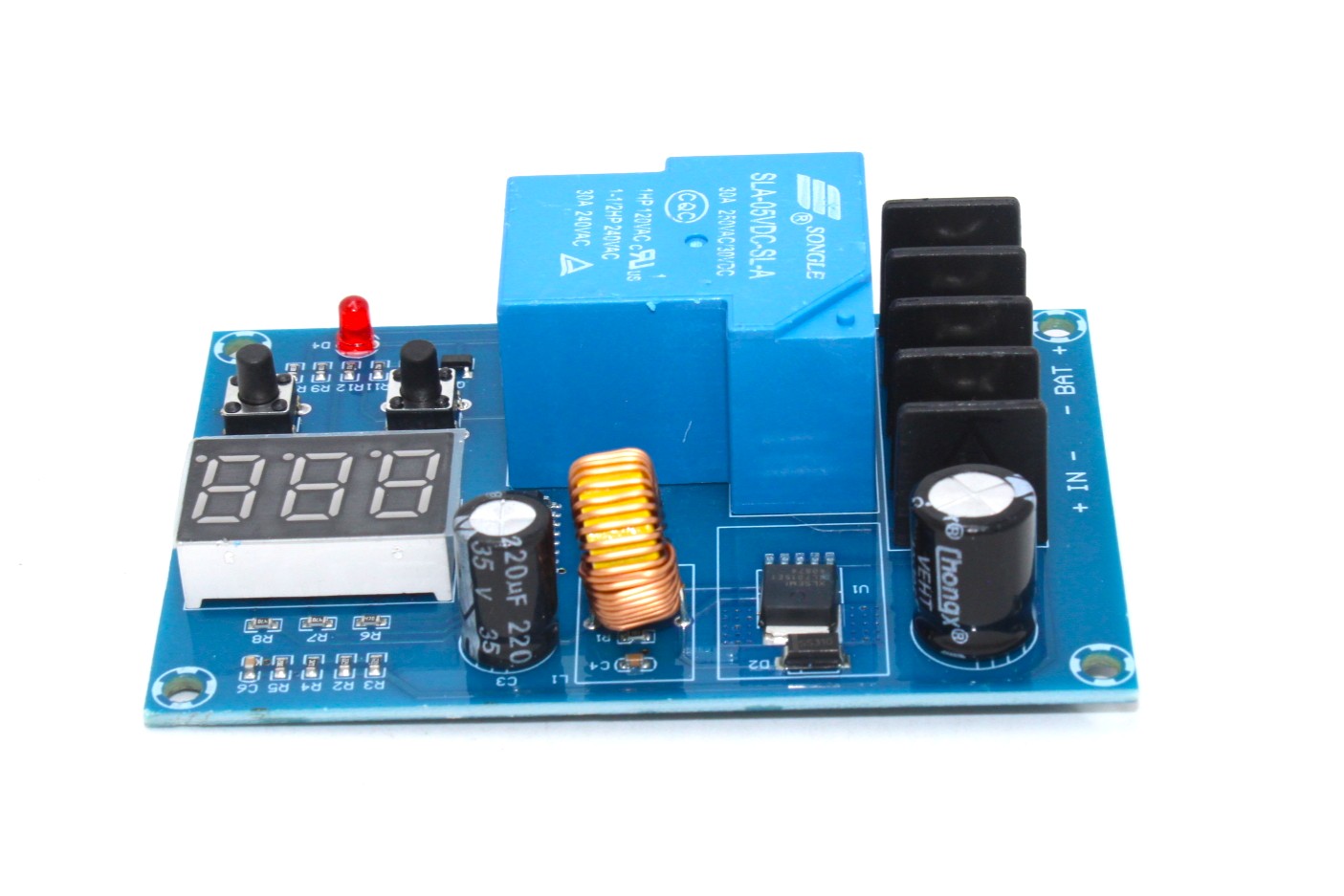

This is XH-M604 6V-60V Battery Charging Control Board, Intelligent Charger Power, Control Panel Automatic, Charging Power
This product is suitable for 6-60V battery charging control, can be set free to start charging voltage and stop charging voltage! In the IN input charger 660V voltage, in the OUT terminal battery, for example, set 12V start 15V stop when the voltage is below 12V when the relay is closed to the charger charging voltage to the battery when the charge voltage is greater than 15V Relay off to stop charging, can be used in household chargers, solar, wind turbines.
Use: In the set voltage value, start button play button raised, about stop button role to down key
1. Set the start voltage:
Normal display voltage state, press to a starting voltage button, to display the start charging voltage. long-press the start button, digital flashes, by start and stop button, set the start charging voltage value.
2. Set Stop voltage:
Normal Voltage normal display mode, press to a Stop voltage button, to display the Stop charging voltage. long-press the Stop button, digital flashes, by start and stop button, set the Stop charging voltage value.
3. Setting Error:
Energized state while holding down the start/stop button, digital display 888, which is the factory setting
Features:
- When the voltage is higher than 15V, the relay opens and stops charging and discharging.
- It is very smart and helps to save electricity, and is safe.
- Automatically power off, save energy and extend battery life.
- Durable, Charging Protection, Easy to Install

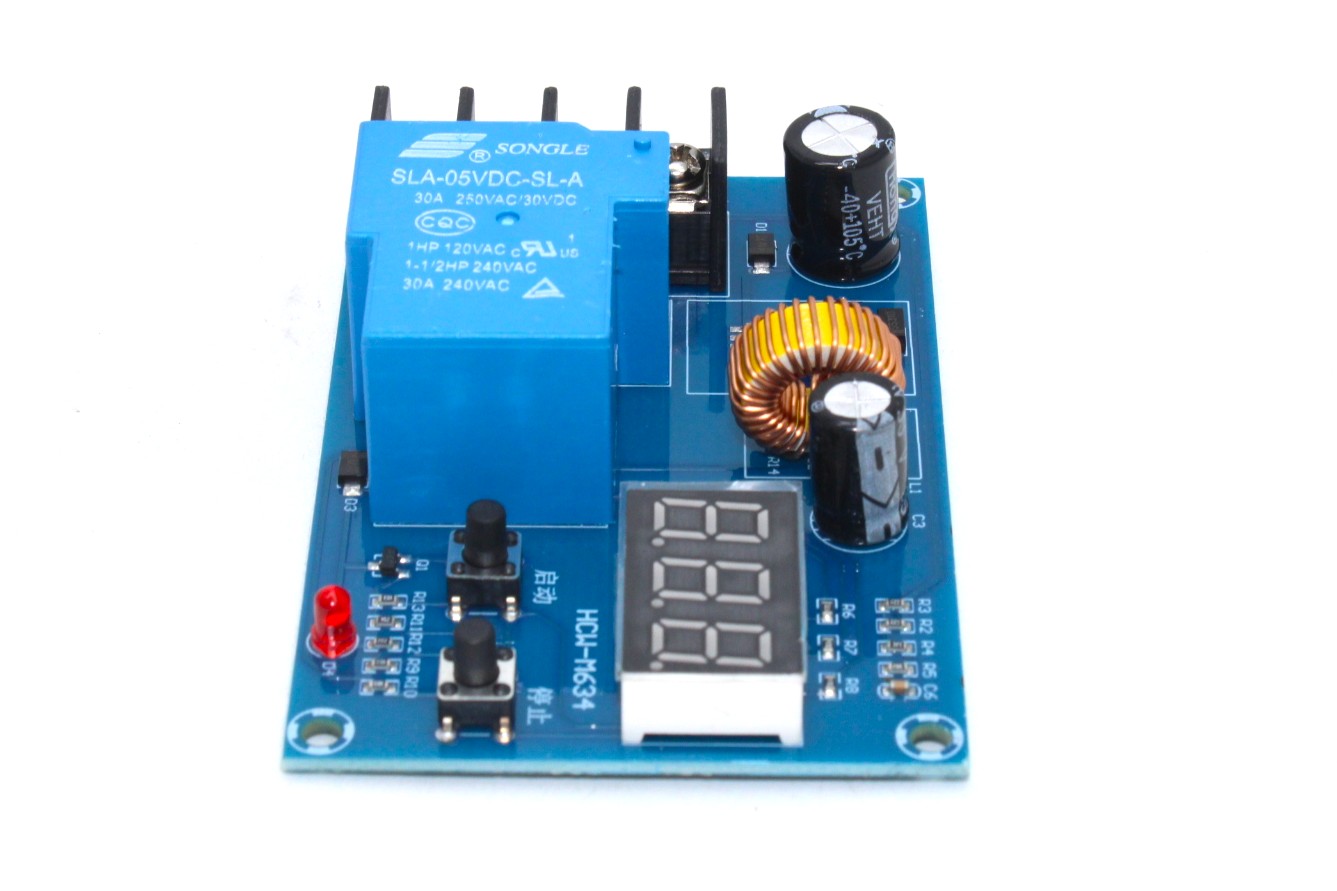

Note : HCW-M634 printed on module doesn’t affect the working of product.
Specification-
| Display Accuracy | 0.1V |
|---|---|
| Control Accuracy | 0.1V |
| Voltage Tolerance | ±0.1V |
| Output Type | direct output |
| Apply For | 6-60V Lithium Lead-acid battery |
Package Includes :
1 x XH-M604 6V-60V Battery Charging Control Board
XH-M604 6V-60V Battery, Charging Control Board, Intelligent Overview
The XH-M604 is a versatile charging control board designed for 6V–60V lead-acid and lithium batteries. It monitors battery voltage with 0.1V accuracy and automatically switches charging on or off via a built-in relay based on user-defined start and stop voltages.
Key Features of XH-M604 6V-60V Battery, Charging Control Board, Intelligent
- Wide input range: DC 6V–60V for various battery systems
- High display accuracy: 0.1V resolution for precise monitoring
- Control precision: 0.1V tolerance ensures reliable start/stop thresholds
- Direct output relay: automatically connects or disconnects charger to battery
- Adjustable charging points: set custom start and stop voltages via onboard buttons
- Fast shipping from Zbotic: ready stock with dispatch within 24 hours
Applications and Use Cases
- Automated charging for 12V, 24V, or 48V lead-acid battery banks
- Solar or wind turbine systems requiring voltage-based charge control
- DIY off-grid power setups needing precise battery management
- Backup UPS systems to prevent overcharging of batteries
- Portable charging stations for outdoor equipment and tools
How to Use XH-M604 6V-60V Battery, Charging Control Board, Intelligent

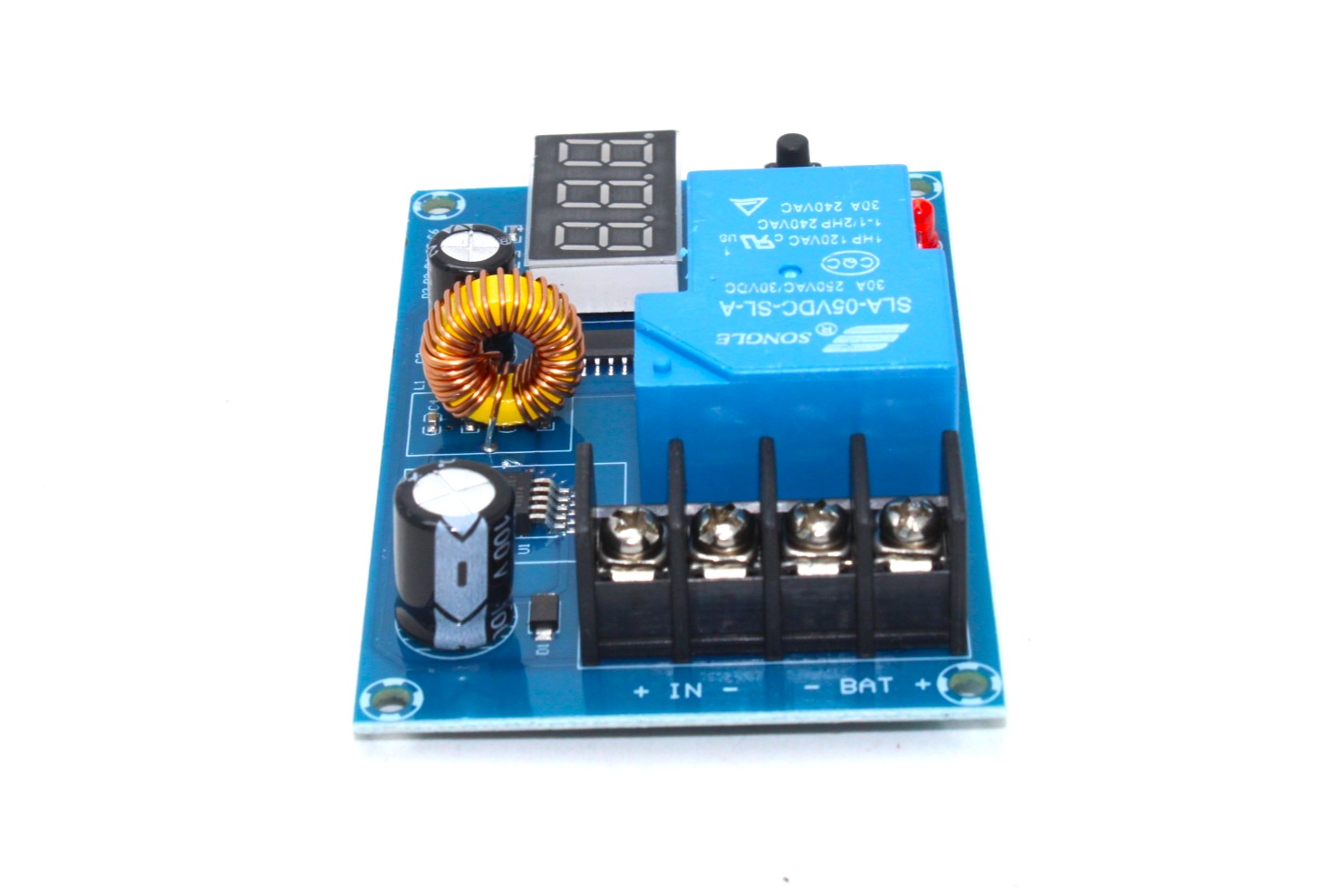

Connect your DC power source (solar panel, adapter, etc.) to the IN terminals and the battery to OUT. Use the onboard buttons to set the “start” voltage at which the relay closes and begins charging, and the “stop” voltage at which it opens to cut off charging. Power on the board, confirm settings on the digital display, and the module will manage charging automatically.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Which battery types does XH-M604 support?
The board is compatible with both lead-acid and lithium batteries within the 6V–60V range. Simply set the appropriate charge thresholds for your battery chemistry.
How do I adjust the start and stop voltages?
Use the two onboard buttons: one to increase and one to decrease the voltage value. Press and hold each button to scroll, then confirm your “start” and “stop” settings. The display shows changes in 0.1V increments.
Can I integrate this board with solar or wind charger inputs?
Yes. Connect your solar panel or wind turbine regulator output to the IN terminals. Set the start voltage just above the battery’s resting voltage and the stop voltage at the full charge level to automate renewable energy charging.
