Description:

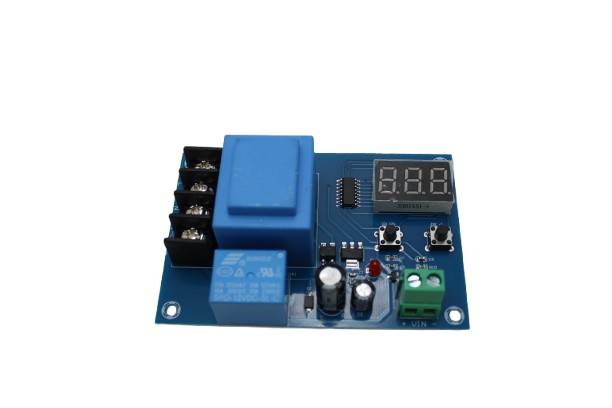

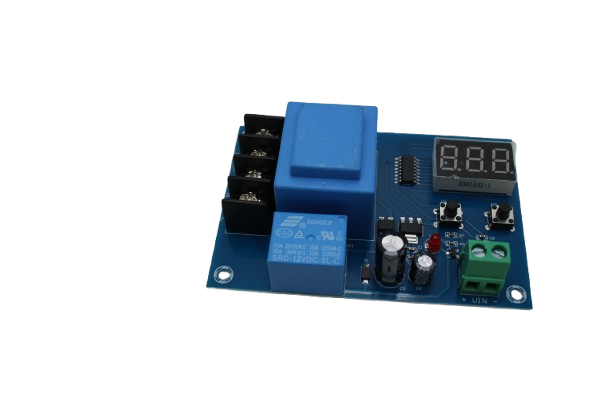

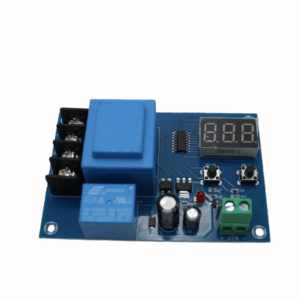

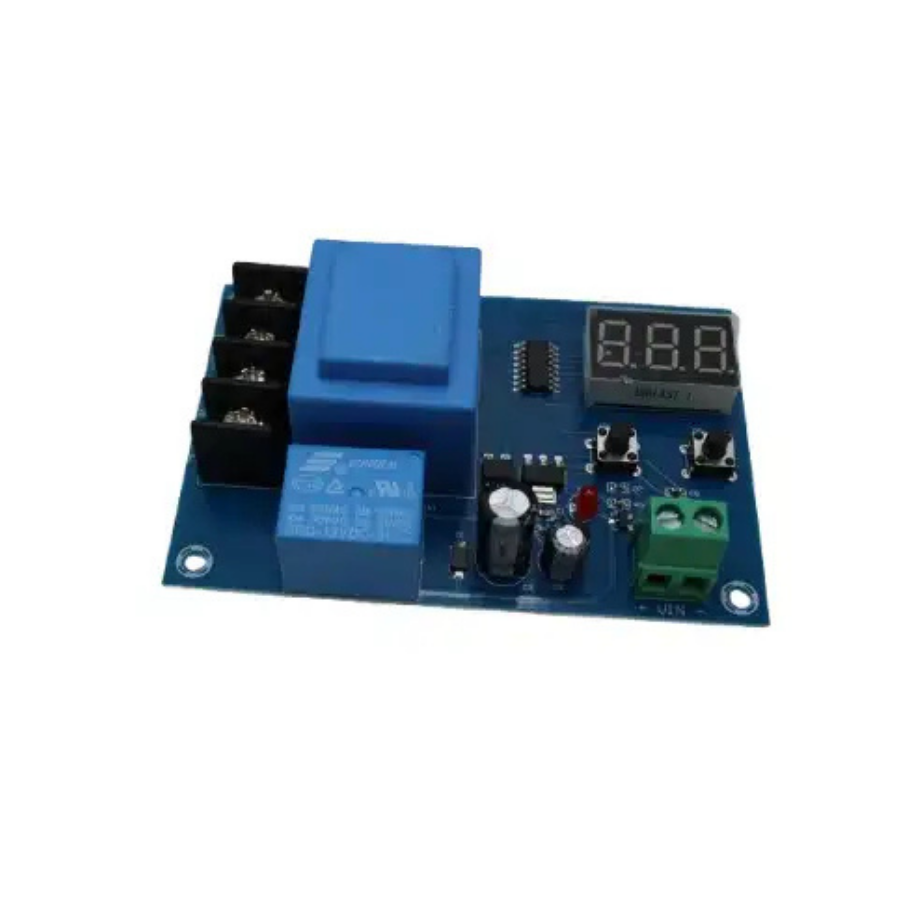

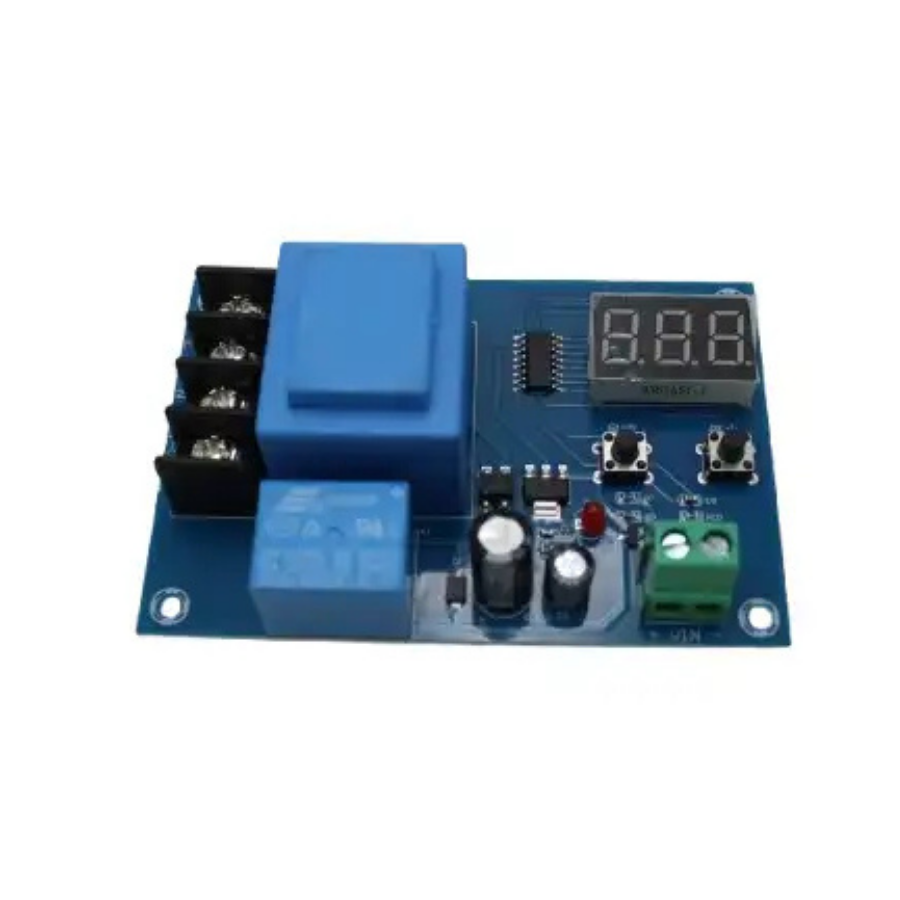

This module controls the charging of batteries using digital technology. It has an input terminal that receives 220V AC power and an output terminal that switches on and off through a relay on the board. The module features a high-quality plastic transformer and a bright three-digit display with seven segments. The module can measure the battery voltage through the Vin terminal and cut off the 220V power to the battery charger when the battery reaches full charge.

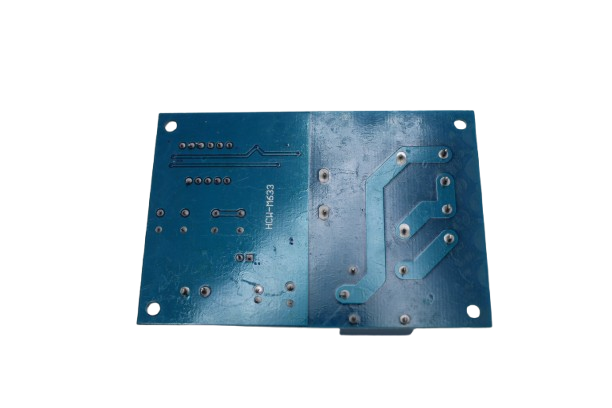

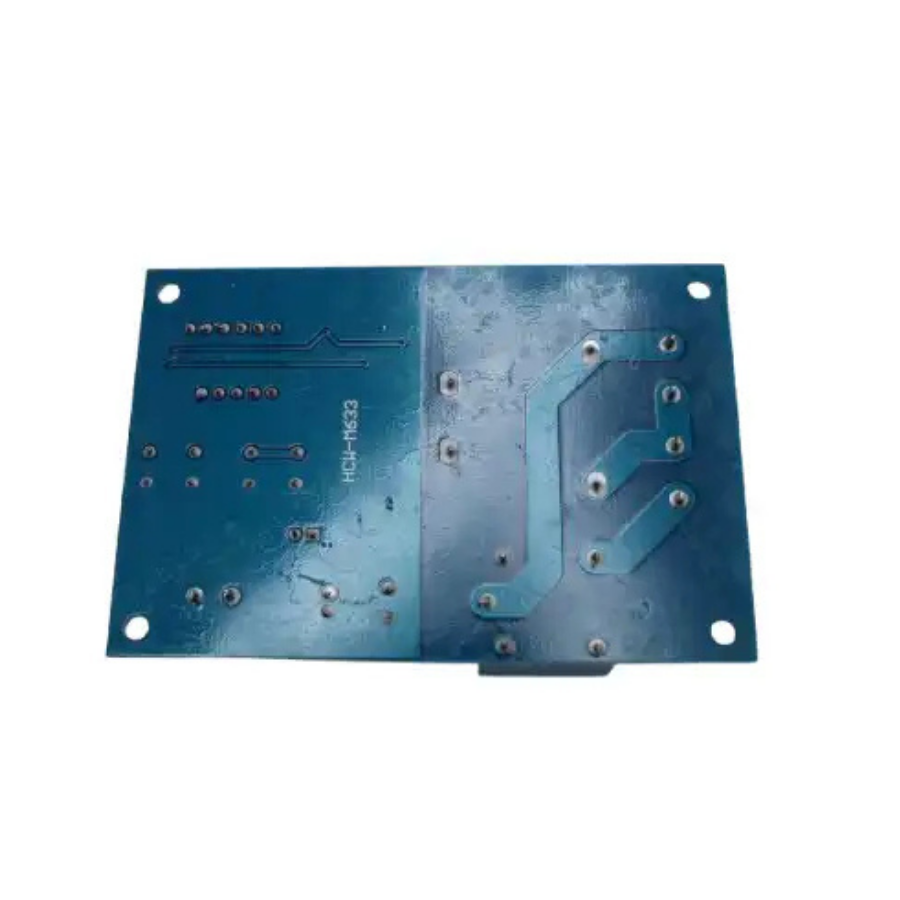

Note: This product is available in two different variants (XH-M602 and HCW-M633) with the same working. We will ship it randomly.
Features:
- High-quality screw terminals are suitable for various wiring requirements.
- A plastic transformer that provides corrosion, moisture, rust resistance, and high safety factor.
- The good quality seven-segment display with an accuracy of 0.1
- The module can monitor real-time battery voltage.
- According to the set value to start and stop, the board can disconnect input to the battery charger, effectively protecting the battery from damage due to loss of power or overcharge.
Specifications:
| Model | XH-M602 / HCW-M633 |
|---|---|
| Input Voltage (V) | 220 VAC |
| Display Accuracy | 0.1V |
| Control Accuracy | 0.1V |
| Output Type | Output Switch |
| Length (mm): | 86 |
| Width (mm): | 58 |
| Height (mm): | 24 |
Package Includes:
- 1 x XH-M602 / HCW-M633 Digital Battery Charging Control Module
