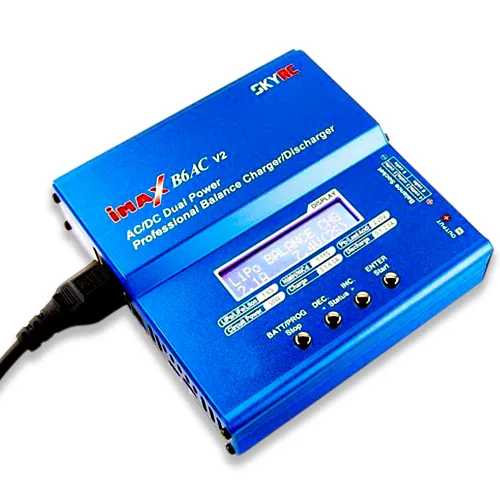

The new SkyC IMAX B6 AC V2 Professional Balance Charger / Discharger is a versatile device that can handle different types of batteries used in Robotics. It eliminates the need for multiple chargers and messy workstations. It is an improved version of the previous IMAX B6AC model, with some unique features.
The charger can charge and discharge various batteries, such as lipo, lion, etc., and monitor the voltage of each cell. It does not require an external balancer or discharger. It can also be connected to a PC or a smartphone via WiFi module (both iOS and Android) to control the charging process and update the firmware. The updates are available on the Skyrc website.
The B6AC V2 allows the user to adjust the terminal voltage, making it suitable for heavy-duty batteries. It also has a built-in Lithium battery meter and internal resistance meter. Moreover, it has safety features such as automatic charging current limit, capacity limit, and processing time limit. The B6AC V2 is one of the safest and most convenient chargers on the market today.
Please note: These items are genuine and carry the holographic sticker of authenticity.
Features :
- PC connectivity
- Microprocessor controlled.
- Delta-peak sensitivity
- Individual cell balancing
- Li-ion, LiPo, and LiFe capable
- Ni-Cd and NiMH capable
- Large range of charge currents and automatic charge current limit
- Store function allows safe storage current.
- Time limit function
- Input voltage monitoring (Protects car batteries at the field)
- Data storage (5 pack memory)
- Battery break in and cycling.
- Terminal voltage adjustment for heavy-duty batteries
- It can be controlled using smartphones and PCs.
- Balance charging and discharging options
- It’s easy to upgrade
specification-
| Input Voltage (V AC) | 110 ~ 240 |
|---|---|
| DC Input Voltage Range (V) | 12 |
| Output Power(Watt) | 50W. |
| Charge Current Range (A) | 0.1 ~ 5 |
| Maximum Discharge Power (W) | 5 |
| Dischage Current Range (A) | 0.1 ~ 1.0 |
| Drain Current for Balancing Li-Po’s (mA/Cell) | 300 |
| Li-ion/Po cell count | 1 ~ 6 |
| NiCd/NiMH cell count | 1 ~ 15 Cells |
| Pb battery voltage | 2 ~ 20 |
| Dimensions (mm) LxWxH | 135 x 144 x 36 |
| Weight (gm) | 646 |
| Shipping Weight | 0.7 kg |
| Shipping Dimensions | 15 × 13 × 4 cm |

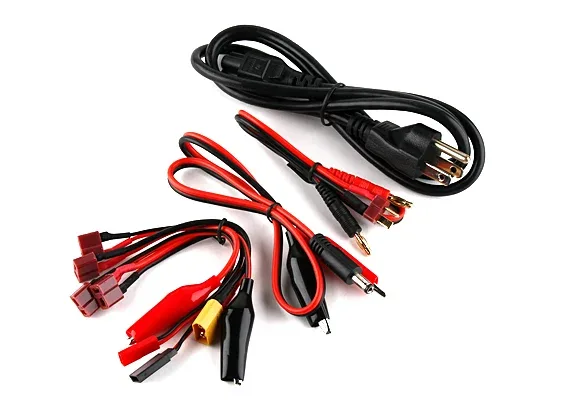

Package Includes:
1 x SkyRC IMAX B6AC V2 Professional Balance Charger.
1 x AC 100-240V 50/60 Hz 16A power Cord with Eu Plug.
1 x DC Jack plug to crocodile clips.
1 x male T connector charge lead to 4mm banana plugs
1 x XT60 charge lead
1 x JST charge lead
1 x Crocodile clip charge lead
1 x Futaba style charge lead.
1 x English manual.
