Looking for Wemos Ttgo Xi Board? Wemos TTGO Xi 8F328P-U Board For Arduino Nano V3.0 Promini is available at Zbotic with fast shipping across India.

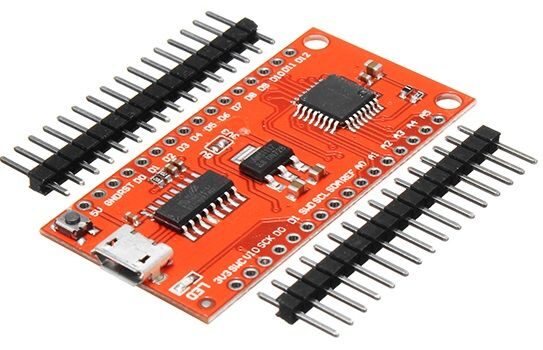

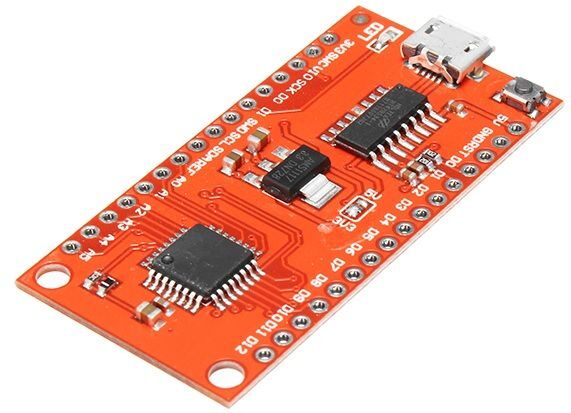

Wemos TTGO Xi 8F328P-U Board For Arduino Nano V3.0 Promini
TTGO XI is a development board. Comes with USB chip, you can directly connect to the computer burning program. You can use Arduino.cc’s IDE to develop (you need your own installation support). The development environment is recommended, and the LGT support package can be installed directly in the development board manager.
Features
- It comes with USB and is more convenient to use.
- The 8F328D can be powered by 3V3 and 5V, operating at 16M frequencies with excellent levels of compatibility.
- Built-in high precision RC, without external crystal oscillator, can be stable operation.
- Less peripheral parts, simple circuit design.
- 12 bit ADC (analog to digital conversion)
- Bring DAC
- Own GUID (unique ID) can be used for chip program encryption
- Comes with an internal 1.024V/2.048V/4.096V + 1% calibration reference voltage source.
Specification:
| Input Supply voltage (V) | 3.3 ~ 5 |
|---|---|
| Operating frequency (MHz) | 16 |
| FLASH Memory (Kbytes) | 32 |
| SRAM Memory (Kbytes) | 2 |
| PWM | 8 |
| ADC / DAC | 12-bit |
| Length (mm): | 52 |
| Width (mm): | 26 |
| Height (mm): | 4 |
| Weight (g): | 6 |
Package Includes
- 1 x Wemos TTGO Xi 8F328P-U Board
- 2 x Berg Pins
Wemos TTGO Xi 8F328P-U Board For Arduino Nano V3.0 Promini Overview
The Wemos TTGO Xi 8F328P-U Board is a compact Arduino Nano V3.0 Pro Mini–compatible development board featuring an onboard USB interface for direct programming. It uses the LGT8F328P-U MCU, running at 16 MHz and supporting both 3.3 V and 5 V power rails, making it ideal for a variety of embedded projects.
Key Features of Wemos TTGO Xi 8F328P-U Board For Arduino Nano V3.0 Promini
- Onboard USB-to-serial chip for plug-and-play programming without additional adapters
- LGT8F328P-U MCU supports 16 MHz operation with excellent Arduino Nano V3.0 compatibility
- Dual-voltage input: works seamlessly with 3.3 V or 5 V power sources
- Integrated high-precision RC oscillator eliminates the need for an external crystal
- Minimal peripheral parts and simple circuit layout for reliable stability
- Genuine product with fast shipping from Zbotic across India
Applications and Use Cases
- Prototyping microcontroller-based electronics and automation projects
- Building data-logging or environmental monitoring stations
- Educational workshops and Arduino programming tutorials
- Control modules for robotics and motor driver interfaces
- Custom wearable electronics and sensor integration
- Embedded firmware development and bootloader experiments
How to Use Wemos TTGO Xi 8F328P-U Board For Arduino Nano V3.0 Promini
Connect the board to your PC using a micro USB cable, install the USB driver if prompted, then open the Arduino IDE and add the LGT8F328P support package via the Board Manager. Select “Wemos TTGO Xi 8F328P-U (16 MHz, 3.3/5 V)” as your target board, choose the proper COM port, write or load your sketch, and click Upload. Power the board at 3.3 V or 5 V according to your peripherals.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Does the TTGO Xi board need an external crystal?
No. It features a built-in high-precision RC oscillator, so there’s no need for an external crystal, simplifying your circuit design.
Can I run the board at both 3.3 V and 5 V?
Yes. The LGT8F328P-U MCU supports dual-voltage input, allowing you to power it safely at either 3.3 V or 5 V depending on your application.
Is this board fully compatible with Arduino Nano V3.0 sketches?
Absolutely. The Wemos TTGO Xi 8F328P-U emulates the Arduino Nano V3.0 Pro Mini form factor and pinout, ensuring seamless compatibility with existing Nano libraries and sketches.
