Weighing Load Cell Sensor 5kg for Electronic Kitchen Scale YZC-133 With Wires

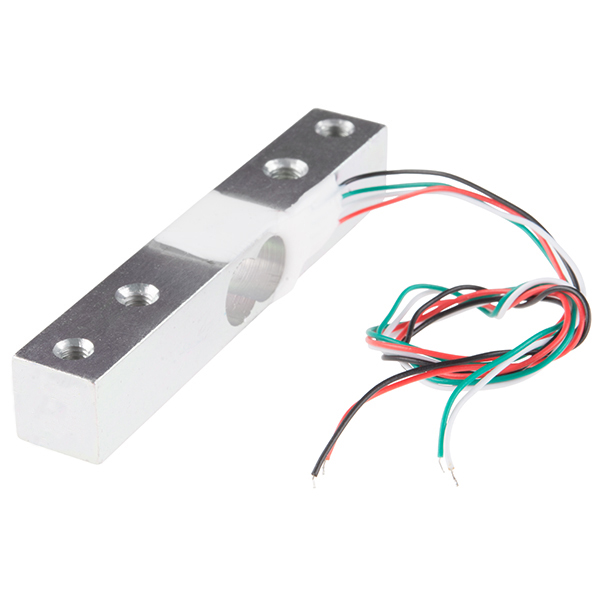

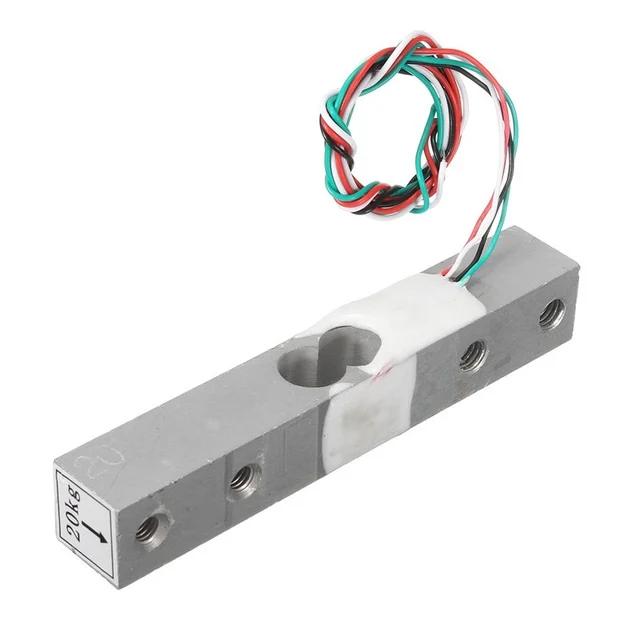

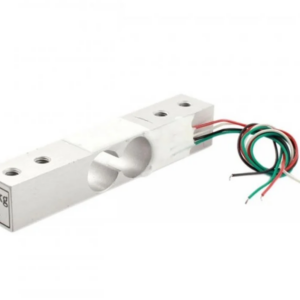

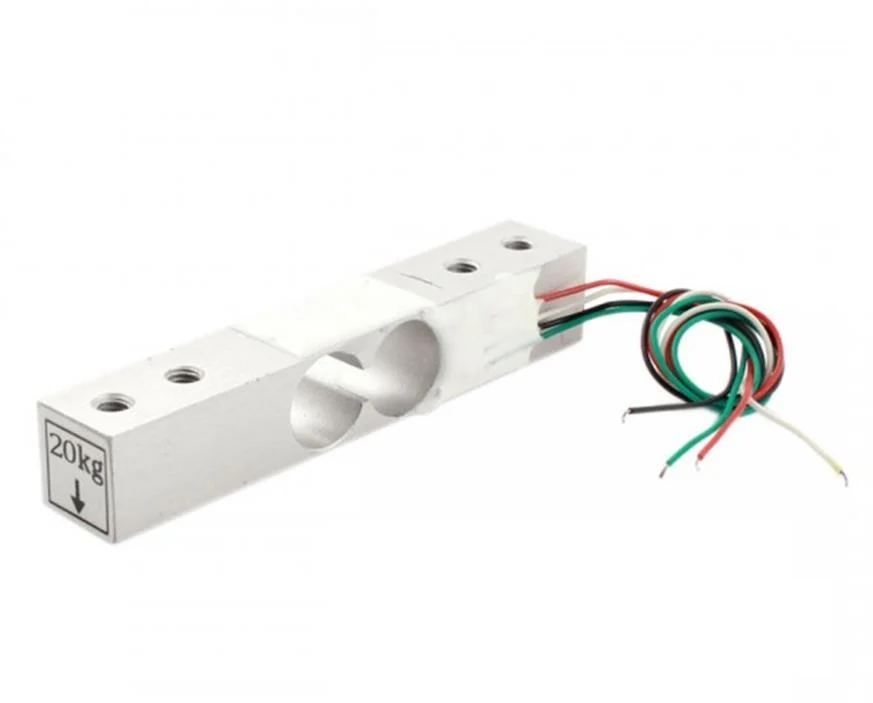

This straight bar load cell, also known as a strain gauge, is designed to convert up to 10 kg of pressure or force into an electrical signal. It works by measuring changes in electrical resistance that occur in response to the strain applied, such as weight or pressure.
Ideal for applications requiring precise weight measurement, this load cell allows users to determine the weight of an object, monitor weight fluctuations over time, or detect the presence of an object by measuring the strain or load applied to a surface. Constructed from high-strength aluminum alloy, it has a capacity to measure forces up to 1 kg.
The load cell is equipped with four lead wires for easy connection to an HX711 A/D Pressure Sensor. With a drive voltage range of 5-10V, it generates an output voltage that correlates to the changes in force applied, making it a reliable and accurate tool for force and weight measurement applications.

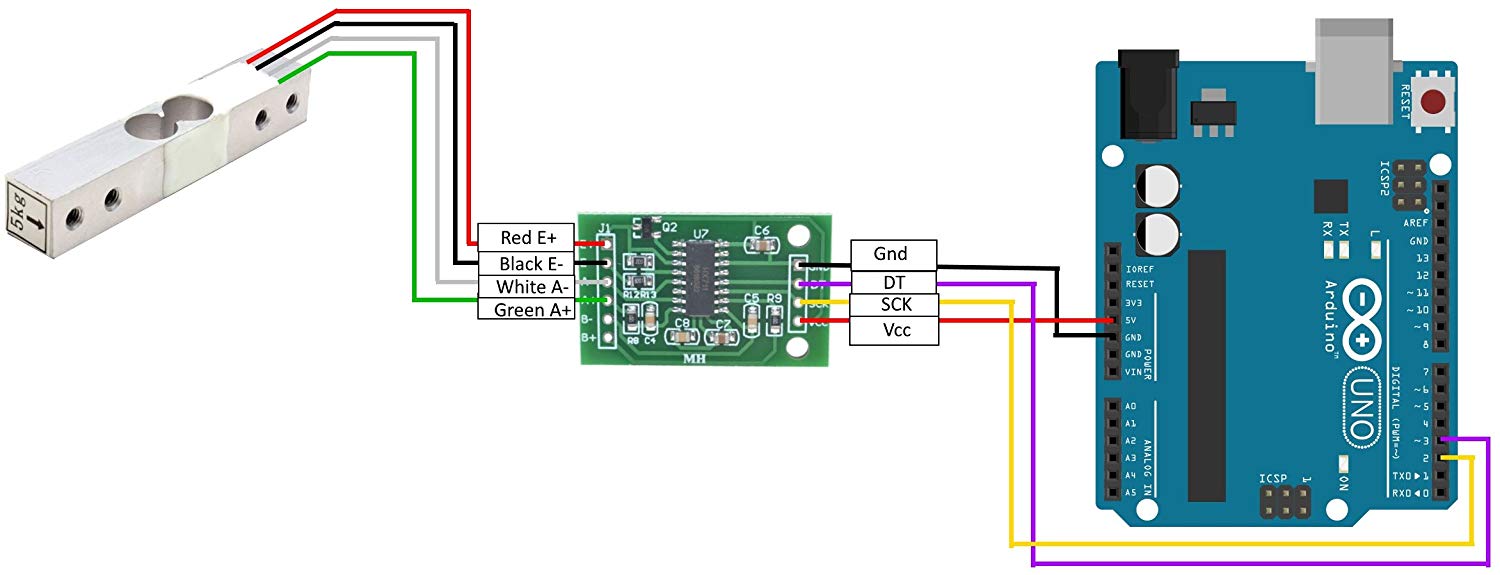

Interfacing Diagram:
Specification:
| Specification | Value |
|---|---|
| Model | YZC-133 |
| Maximum Capacity | 5kg |
| Type | Weighing Load Cell Sensor |
| Application | Electronic Kitchen Scale |
| Wiring | Equipped with wires for easy connection |
| Material | High-quality materials for durability and accuracy |
| Compatibility | Suitable for various electronic kitchen scale applications |
| Accuracy | High precision for accurate weight measurement |
| Operating Voltage | Typically compatible with standard operating voltages for load cells |
| Output | Provides electrical output proportional to the applied weight |
| Dimensions | Specific dimensions vary based on the model and manufacturer |
PACKAGE INCLUDES
1 X Weighing Load Cell Sensor 5Kg for Electronic Kitchen Scale YZC-133 With Wires
Weighing Load Cell Sensor 5kg for Electronic Kitchen Scale Overview
The Weighing Load Cell Sensor 5kg for Electronic Kitchen Scale YZC-133 is a straight bar strain gauge designed to measure up to 5 kg of weight or force. It converts mechanical strain into a small electrical signal, making it ideal for precise kitchen weighing applications.
Key Features of Weighing Load Cell Sensor 5kg for Electronic Kitchen Scale
- 5 kg maximum load capacity for small-scale weighing tasks
- Straight bar design with bonded strain gauges for accurate measurement
- Pre-attached wires for easy integration with amplifiers or ADC modules
- Compact footprint fits standard kitchen scale platforms
- High repeatability and linearity within rated capacity
- Genuine product with fast shipping from Zbotic across India
Applications and Use Cases
- Replacement sensor for electronic kitchen scales using the YZC-133 mechanism
- DIY food portion control systems and recipe automation
- Small laboratory balances for sample weighing
- Embedded weight detection in smart countertop appliances
- Home-built vending or dispensing machines requiring sub-5 kg accuracy
- Educational electronics projects demonstrating strain gauge principles
How to Use Weighing Load Cell Sensor 5kg for Electronic Kitchen Scale
Mount the straight bar sensor beneath your scale platform, securing it at both ends so weight applies centrally. Connect its four wires to a compatible load cell amplifier (for example, an HX711 module), matching excitation and signal lines. Power the amplifier, calibrate with known weights, and read weight values on your microcontroller or display.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What is the load cell’s weight capacity?
This load cell is rated for a maximum of 5 kg. Exceeding this limit may cause permanent strain and affect accuracy.
How do I connect the wires?
The sensor comes with four pre-attached wires for excitation and signal output. Connect them to the corresponding Excitation+/- and Signal+/- terminals on a compatible load cell amplifier module.
How can I calibrate the load cell?
After wiring to an amplifier and microcontroller, place known reference weights on the cell, record the raw readings, and adjust the calibration factor in your code until displayed values match the actual weights.
