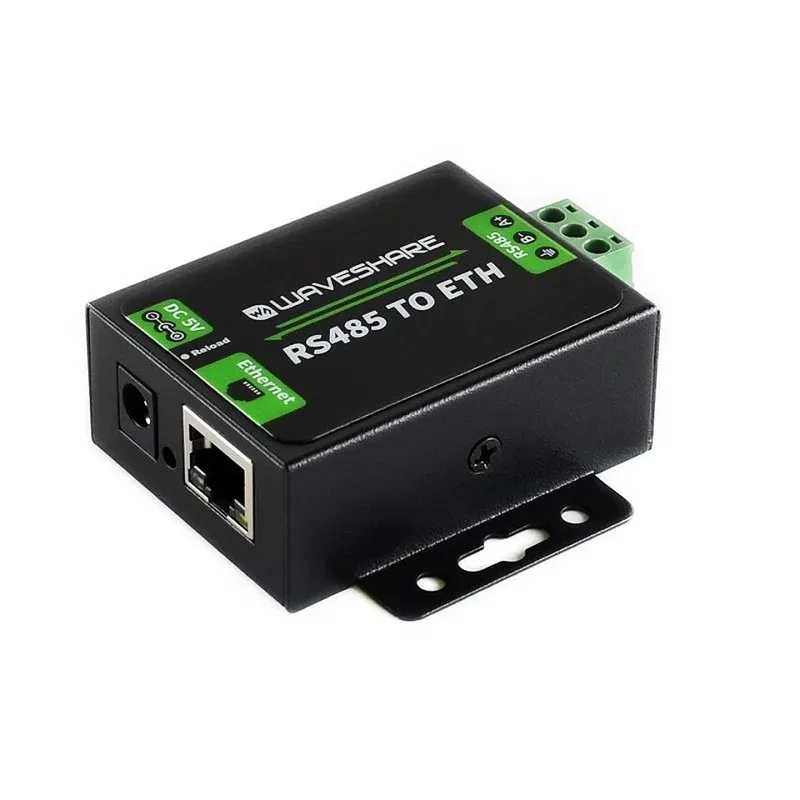

Waveshare RS485 to Ethernet Converter (Adapter with US Plug)
Waveshare RS485 to Ethernet Converter (Adapter with US Plug)
Waveshare RS485 to Ethernet Converter (Adapter with US Plug)
Waveshare RS485 to Ethernet Converter (Adapter with US Plug)
Waveshare RS485 to Ethernet Converter (Adapter with US Plug)
Click to enlarge
Home Electronic Modules Interface Modules Waveshare RS485 to Ethernet Converter (Adapter with US Plug)
Waveshare 1.3 Inch OLED Display (B)
Waveshare 1.3 Inch OLED Display (B) ₹579.0 ( +GST 18% )
Back to products
Waveshare 2-CH UART To Ethernet Converter, Serial Port Transparent Transmission Module
Waveshare 2-CH UART To Ethernet Converter, Serial Port Transparent Transmission Module ₹1,005.0 ( +GST 18% )

Waveshare RS485 to Ethernet Converter (Adapter with US Plug)

₹1,779.0 ( +GST 18% )

  • ⚡ Dispatched within 24 hours*
  • 💸 COD Orders above 250rs*
  • ✅15 days warranty*
  • 🛠️ Dedicated Technical Support Team
  • 🚚 Free shipping on orders above Rs 499/- for b2c customers
  • Communication rate: 10/100Mbps
  • Baudrate: 600bps~230.4Kbps
  • Power supply: 5.0~7.0V(Adapter with EU plug)
  • Operating current: 150mA (@5V)
  • Power consumption: <1W

For B2B Enquiry Email Us:- [email protected]

5 in stock

Frequently Bought Together
Waveshare RS485 to Ethernet Converter (Adapter with US Plug)
This item: Waveshare RS485 to Ethernet Converter (Adapter with US Plug)

5 in stock

₹1,779.0 ( +GST 18% )
₹1,779.0 ( +GST 18% )
TXS0108E High Speed Full Duplex 8 Channel Logic Level Converter
1 × TXS0108E High Speed Full Duplex 8 Channel Logic Level Converter

247 in stock

₹92.0 ( +GST 18% )
TPA3118 PBTL Mono Digital Amplifier Board 1X60W 12V 24V Power Amplifier Module
1 × TPA3118 PBTL Mono Digital Amplifier Board 1X60W 12V 24V Power Amplifier Module

151 in stock

₹209.0 ( +GST 18% )
Compare
Add to wishlist
SKU: AI1557 Categories: Electronic Modules, Interface Modules, No COD Tags: Ethernet, RS485 to Ethernet, Waveshare
Waveshare
Share:
  • Description
  • Specification
  • Additional information
  • Brand
  • Reviews (0)
  • COO
  • Attachments
Description

The RS485 TO ETH module provides an easy way to communicate between RS485 and RJ45 port Ethernet. It can be configured via a webpage, AT commands, serial protocol, and network protocol provides configuration protocol that can be integrated into your own software.

It supports customized heartbeat packets and customized registration packets which makes sure the connection is truthful, as well as actively retrieving sensor data and auto passing the registered packet as identifier after the connection is established so that different devices can be distinguished.

The RS485 to Ethernet Converter comes with several working modes such as TCP Server, TCP Client, UDP Server, UDP Client, HTTPD Client (supports GET and POST). etc.


Features:

  1. M0 series 32-bit ARM processor, fast speed, high efficiency
  2. 10/100M Auto-MDI/MDIX Ethernet interface, regardless of cross-over or straight-through cable
  3. Configurable RS485 baud rate (600bps~230.4Kbps), supports five parity check options: None, Odd, Even, Mark, Space
  4. Available working modes: TCP Server, TCP Client, UDP Server, UDP Client, HTTPD Client (supports GET and POST)
  5. Supports DNS domain name resolution, configurable DNS server
  6. Supports DHCP, auto-obtained IP, or static IP
  7. Firmware is upgradable via the network
  8. Restore to factory settings via software and/or hardware
  9. Comes with a default MAC address, which is customizable
  10. Provided software: module configuration software, TCP/UDP testing tool, VCOM virtual serial port software
  11. Example code: host computer (socket ), VB, C++, Delphi, Android, iOS, etc.

Package Includes:

1 x RS485 to Ethernet Converter

1 x 5V Power Adapter with US Input Plug

Specification
Recommended Power Supply 5.0 ~ 7.0V
Operating Current 150mA (@5V)
Power Consumption (Watt) <1W
Ethernet Connector: 4-pin RJ45
Communication rate: 10/100Mbps
Interface protection: 1.5KV electromagnetic isolation
RS485 Connector: screw terminal (A+, B-, GND)
Baudrate: 600bps~230.4Kbps
Length (mm) 69.6
Width (mm) 63.5
Height (mm) 25
Weight (gm) 212
Shipment Weight 0.225 kg
Shipment Dimensions 7 × 7 × 3 cm
Additional information
Weight 0.225 kg
Brand

Brand

Waveshare

waveshare
Waveshare is a Chinese company that specializes in designing and manufacturing electronic products and accessories for the global market. Founded in 2004, Waveshare has become a well-known brand in the electronics industry, with a range of products such as displays, development boards, sensors, and modules. The company is committed to providing high-quality products that are affordable and accessible to all, with a focus on innovation and customer satisfaction. Waveshare's products are widely used in the electronics industry, including education, research, and development sectors. The company has a strong distribution network and is present in over 60 countries worldwide, with a focus on providing excellent customer service and technical support. Waveshare has won several awards for its products, including the CES Innovation Award and the Red Dot Design Award. Waveshare continues to expand its product line to meet the changing needs of its customers and the evolving electronics industry.
Reviews (0)

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

COO

Country Of Origin – China

Attachments

USER MANUALDownload Button

HOW TO CONNECT RS485 TO ETHERNET CONVERTOR

Download Button

Related products

Add to cart
Compare
Quick view
Add to wishlist

6-30V 1-Channel Power Relay Module with Adjustable Timing Cycle

Rated 4.50 out of 5
₹198.0 ( +GST 18% )
TXS0108E High Speed Full Duplex 8 Channel Logic Level Converter
TXS0108E High Speed Full Duplex 8 Channel Logic Level Converter
Add to cart
Compare
Quick view
Add to wishlist

TXS0108E High Speed Full Duplex 8 Channel Logic Level Converter

Rated 5.00 out of 5
₹92.0 ( +GST 18% )
Sold out
Read more
Compare
Quick view
Add to wishlist

Laser Non-Modulator Tub Sensor Receiving Module Laser Output High Level

Rated 5.00 out of 5
₹90.0 ( +GST 18% )
Add to cart
Compare
Quick view
Add to wishlist

USB Logic Analyze 24M 8CH, MCU ARM FPGA DSP Debug Tool

Rated 5.00 out of 5
₹549.0 ( +GST 18% )
Sold out
ISD1820 Recording Module Voice Board with Mic
Read more
Compare
Quick view
Add to wishlist

ISD1820 Recording Module Voice Board with Mic

Rated 5.00 out of 5
₹122.0 ( +GST 18% )
Add to cart
Compare
Quick view
Add to wishlist

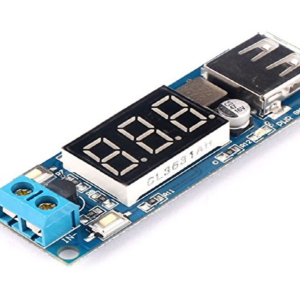

DC – DC 6-24V to 5V USB Output Step Down Power Charger with Adjustable Buck Converter

Rated 5.00 out of 5
₹76.0 ( +GST 18% )
Sold out
Read more
Compare
Quick view
Add to wishlist

VNH2SP30 Monster Motor Driver Shield 14A (Peak 30A)

₹799.0 ( +GST 18% )
Sold out
Read more
Compare
Quick view
Add to wishlist

5V 7A DC Mini Power Relay

₹29.0 ( +GST 18% )

kisspng-computer-icons-scalable-vector-graphics-adobe-illu-thumb-svg-png-icon-free-download-148447-onlin-5c0598a80bc5f2.4617737315438706320482

High Quality

Buy high reliable products for your critical project.

kisspng-telephone-call-computer-icons-portable-network-gra-phone-call-svg-png-icon-free-download-518851-5b80a222402649.4360944515351567702628

Awesome Support

Our Support lines are open from 10 am to 6 pm, to support all your queries.

kisspng-delivery-computer-icons-encapsulated-postscript-5b1ed86cdf6f28.3572173215287481409152

Fast Delivery

99% of orders are shipped within 24Hours.

kisspng-computer-icons-padlock-icon-design-5b163a323d99c6.2970240315281833462523

Secure Payments

We follow highest security standards to make your transaction safe.

ZBOTIC
Goyal Industrial Complex
Above Jayaka Tea, J-514
Gawali Matha Chowk, Telco Road
Bhosari, Pune-411026, India


Phone: +91-7410737370
Email: [email protected]
Recent Posts
  • Industrial Robotics
    Industrial Robotics
    February 11, 2023 No Comments
  • zbotic Robotics Projects
    Robotics Projects
    February 11, 2023 No Comments
My Account
  • My Account
  • Cart
  • Checkout
  • Wishlist
  • Payment Option
Information
  • FAQ
  • Blogs
  • Career
  • About Us
  • Contact Us
Policies
  • Privacy Policy
  • Terms and Conditions
  • GST Inputs Tax Credit
  • Shipping & Return Policy
  • E-Waste Collection Points
  • Our Sitemap
© 2020 CREATED BY Zbotic. PREMIUM ELECTRONIC COMPONENTS SOLUTIONS.
payments
  • Menu
  • Categories
  • Shop By Brands
  • Development BoardsDevelopment Boards
  • Electronic ComponentsElectronic Components
  • Electronic ModulesElectronic Modules
  • SensorsSensors
  • IoT and WirelessIoT and Wireless
  • Display ModulesDisplay Modules
  • 3D Printer Parts3D Printer Parts
  • Motors and DriversMotors and Drivers
  • Wires and CablesWires and Cables
  • BatteriesBatteries
  • Drone PartsDrone Parts
  • Shop
  • Track order
  • Sale
  • B2B
  • About Us
  • Blogs
  • Contact Us
  • Services
  • Wishlist
  • Compare
  • Login / Register
Shopping cart
close

Sign in

close
Or

Lost your password?
Or login with
Google
OR
Don't have an account? Signup

No account yet?

Create an Account
Shop
0 Wishlist
0 items Cart
My account
×

Back
