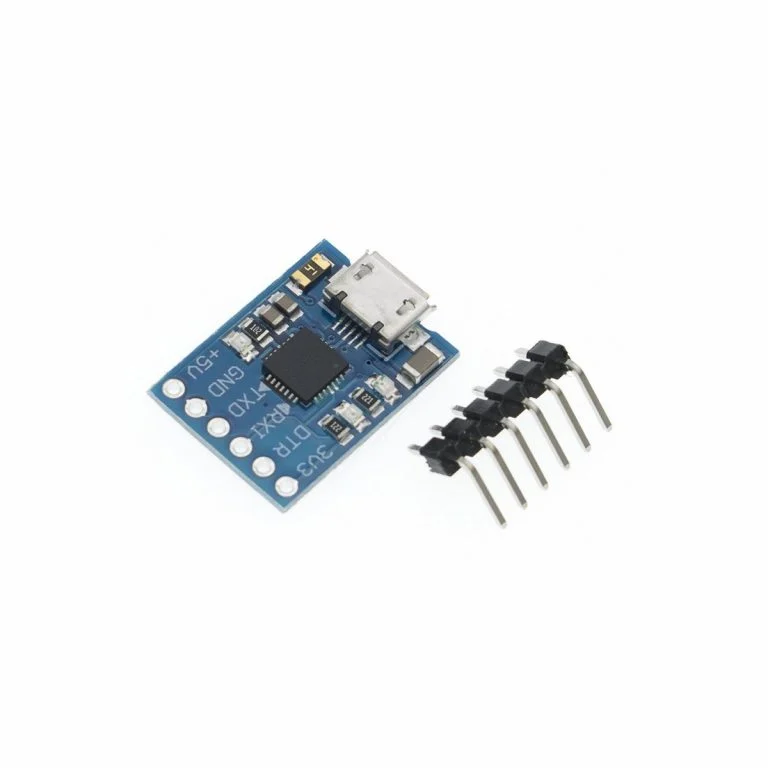

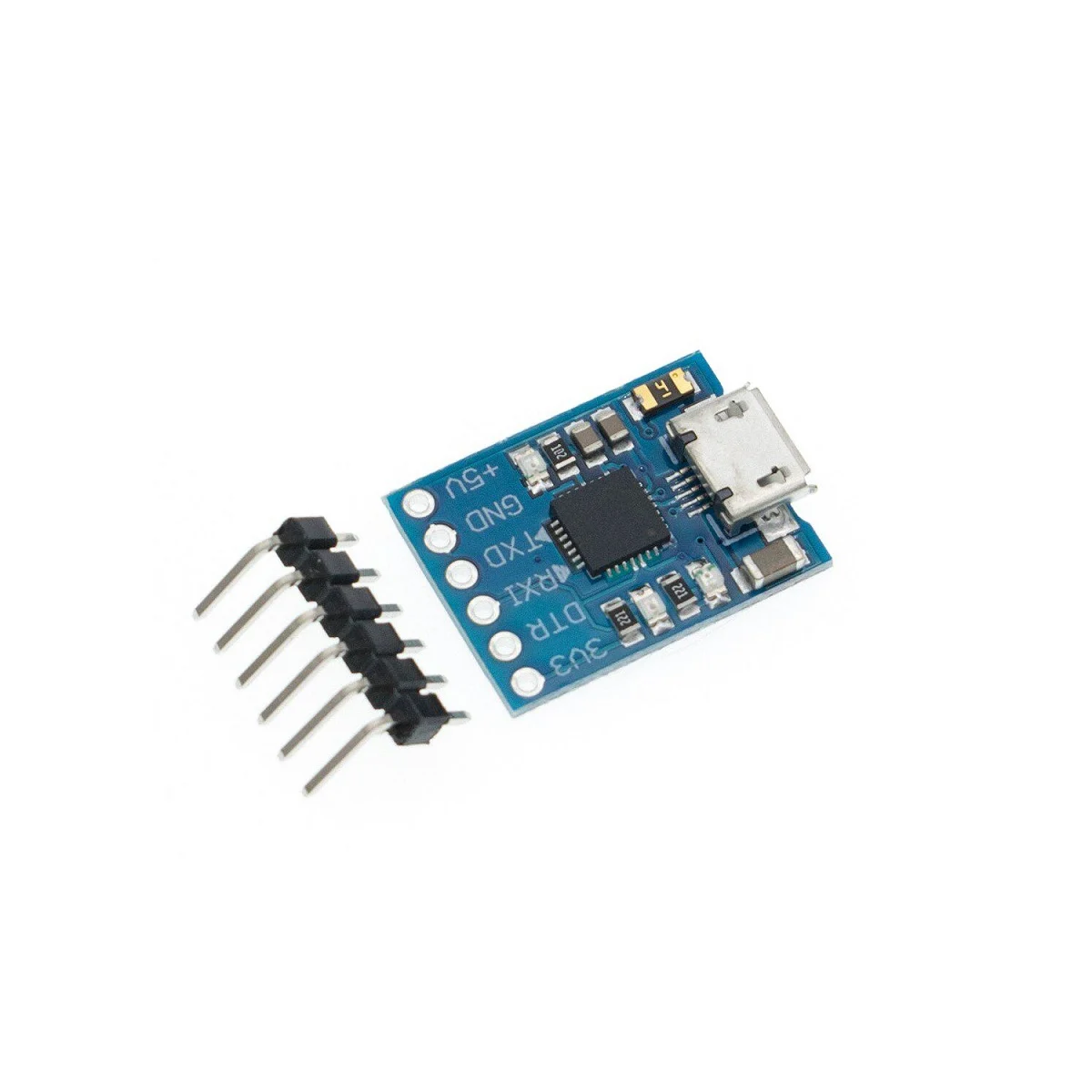

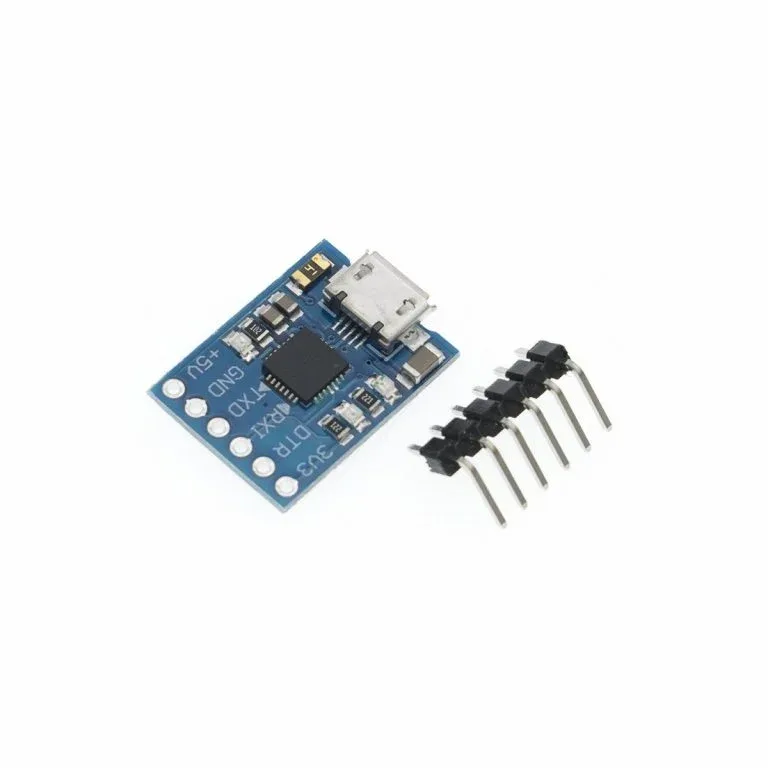

CP2102 Micro USB to UART TTL Module 6Pin Serial Converter UART STC Replace FT232
The CP2102 chip, which creates a COM port when the driver is installed. The chip connects to the computer’s USB interface with a standard MICRO MINI-USB cable. It has two power outputs: 3.3V and 5V. It also has a resettable fuse that protects the device and the computer’s USB port from short circuits during downloading. It has three status indicators: a receive indicator that shows the driver is installed correctly, and a send and receive indicator that flashes when communicating with the running LED indicator. It supports communication formats with 5, 6, 7, or 8 data bits; 1.5 or 2 stop bits; and odd, even, mark, space, or none parity. It supports baud rates from 300bps to 1Mbps. It works with operating systems such as Windows 8.1 / 7 / Vista / XP / 98, Mac OS-X / OS-9, and Linux. It has a USB seat with a MICRO MINI-USB interface. The chip components are soldered by a professional company, ensuring high quality and appearance. It has a DTR trigger signal output that can directly download data to Arduino pro mini ATMEGA328P and other Arduino boards. The module size is very small: 16mm * 20mm.
Features
- Embedded USB transceiver, no external circuit device.
- Containing clock circuit, no external circuit device; contains power-on reset circuit,
- The on-chip voltage regulator within the 3.3V output.
- Meet the USB2.0 specification requirements; SUSPEND pins support USB suspend state.
- Asynchronous serial data bus compatible with all handshakes and modulation controller interface signals.
- The support data format is 8 data bits, 1 stop bit and the parity bit.
- Connotation 512 byte receive buffer and 512 bytes transmit buffer, Supports hardware or X-ON / X-OFF Handshake
Specification
- 5P – A type USB USB specification 2.0 compliant with full-speed 12Mbps.
- Standard USB type A male and TTL 5pin connector.
- 5pins for 3.3V,TXD,RXD,GND & 5V All handshaking and modem interface signals
- Baud rates: 300 bps to 1.5 Mbps.
- Byte receives buffer; 640 byte transmit buffer.
- Hardware or X-On/X-Off handshaking supported.
- Event character support Line break transmission.
- USB suspend states supported via SUSPEND pins.
- Temperature Range: -40degto +85deg Supports Windows 98SE, 2003, XP, Vista, Window7, Mac OSX , Linux 2.6.x and 2.4.36 main
- Colour: Red Size: About45*14*8m
Specifications:
Connector | TTL 5pin |
---|---|
Standard USB type | type A male |
Baud rates | 300 bps to 1.5 Mbps |
Size (mm): | About 45*14*8m |
Package Includes
- 1 x CP2102 Micro USB to UART TTL
