If you want to detect different types of gases, you will need sensors. If you need any data on the sensitive material then, the Waveshare MQ-135 Gas Sensor is a quite good solution.

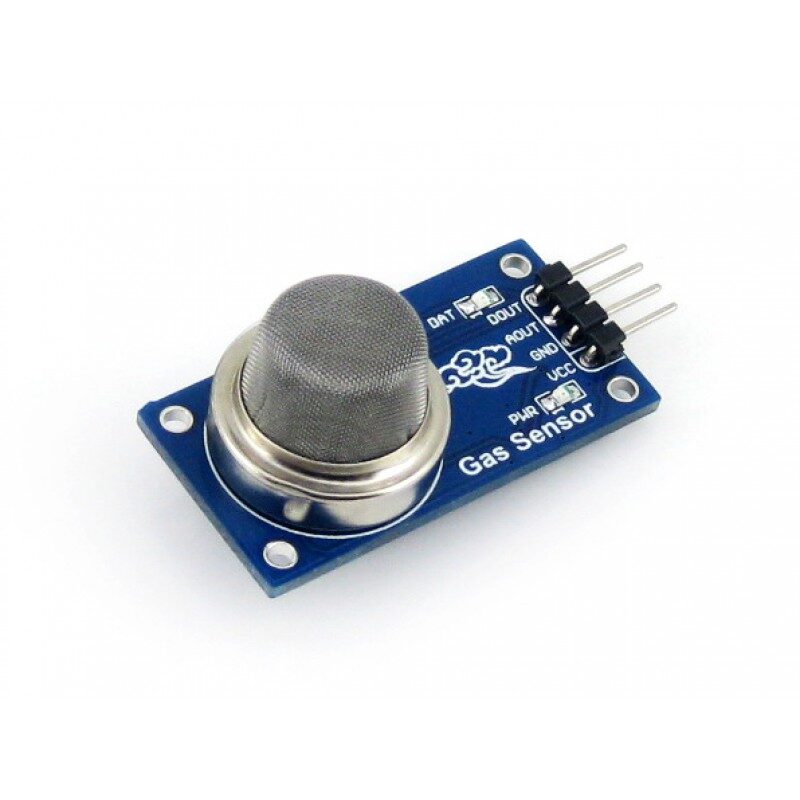

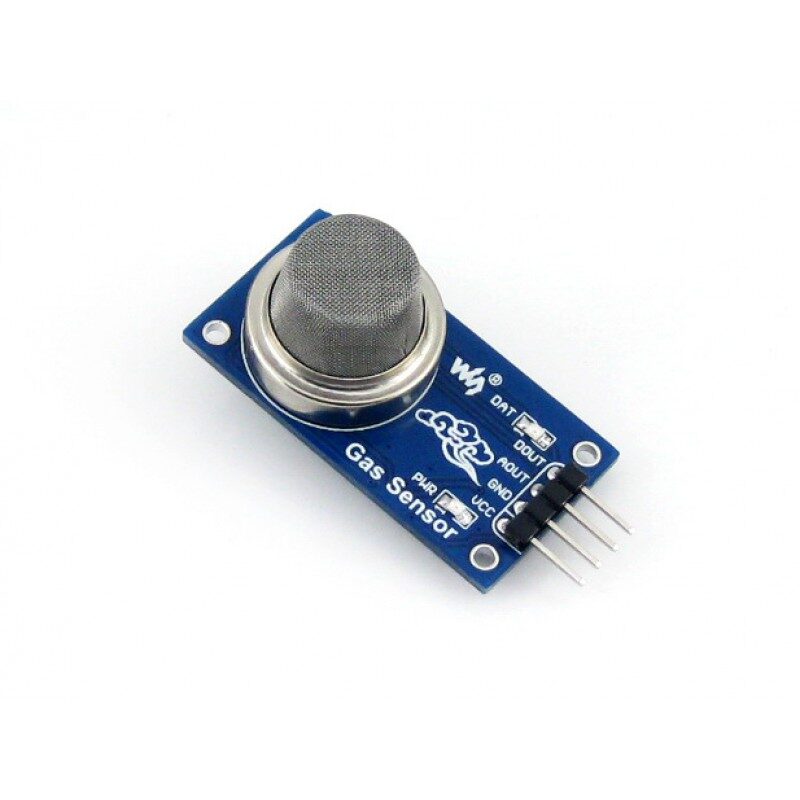

The MQ-135 sensor is a gas sensor module that incorporates MQ-135, designed for air quality monitoring. It can be used to measure benzene, alcohol, smoke, then generate digital signals for triggering air treatment devices. The MQ-135 is used in Air quality Monitor in consumer and industry applications, this sensor is suitable for detecting benzene, alcohol, smoke. Avoid the noise of LPG, natural gas, coal gas. The sensitivity can be adjusted by the potentiometer.MQ-135 gas sensor applies SnO2 which has lower conductivity in the clear air as a gas-sensing material. In an atmosphere where there may be polluting gas, the conductivity of the gas sensor raises along with the concentration of the polluting gas increases
The sensitive materials of the MQ-135 gas sensor are benzene, alcohol, and smoke. When the target combustible gas exists, The sensor’s conductivity is higher along with the gas concentration rising. Please use a simple electro circuit, Convert the change of conductivity to the corresponding output signal of gas concentration.
Connections
VCC ↔ 2.5V ~ 5.0V
GND ↔ power supply ground
AOUT ↔ MCU.IO (analog output)
DOUT ↔ MCU.IO (digital output)
Application :
Air quality monitor
For more Gas Sensors Click below
GAS sensor
Features:
- Sensitive for benzene, alcohol, smoke
- Output voltage boosts along with the concentration of the measured gases increases
- Fast response and recovery
- Adjustable sensitivity
- Signal output indicator
Package Includes:
1 x Waveshare MQ-135 Gas Sensor
Capacitive Soil Sensor vs Resistive: Which Is More Accurate?
Table of ContentsIntroductionHow Resistive Soil Sensors WorkHow Capacitive Soil Sensors WorkAccuracy ComparisonDurability and LifespanWiring Both Sensors to ArduinoArduino...
Read More →
VL53L0X Laser Distance Sensor: Precision Ranging Guide
Table of Contents What Is the VL53L0X? How Time-of-Flight Laser Ranging Works Specifications and Module Pinout Wiring the...
Read More →
Reed Switch vs Hall Effect Sensor: Magnetic Detection Compared
Table of ContentsIntroduction: Two Ways to Detect MagnetismHow Reed Switches WorkHow Hall Effect Sensors WorkKey Differences at a...
Read More →Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Model | MQ-135 |
| SKU | AI2055 |
| Weight | 0.01 kg |
| Availability | In Stock |
Applications & Use Cases
The Waveshare MQ-135 Gas Sensor is a versatile gas and dust sensor used across a wide range of applications including air quality monitoring, gas leak detection, industrial safety, HVAC systems, and environmental monitoring.
Common use cases:
- Building a gas leak alarm for LPG/methane
- Monitoring indoor air quality (CO2, VOC)
- Dust monitoring in a workshop
This product is ideal for environmental engineers, safety professionals, and IoT developers.
Technical Tip: MQ-series sensors need a warm-up period (24-48 hours for first use). Calibrate in clean air for accurate readings.
