Description:

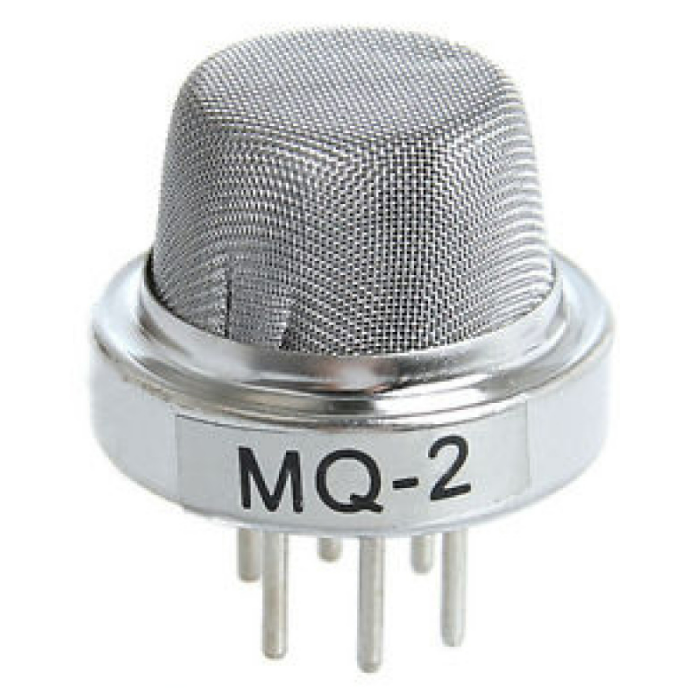

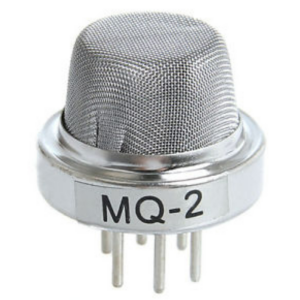

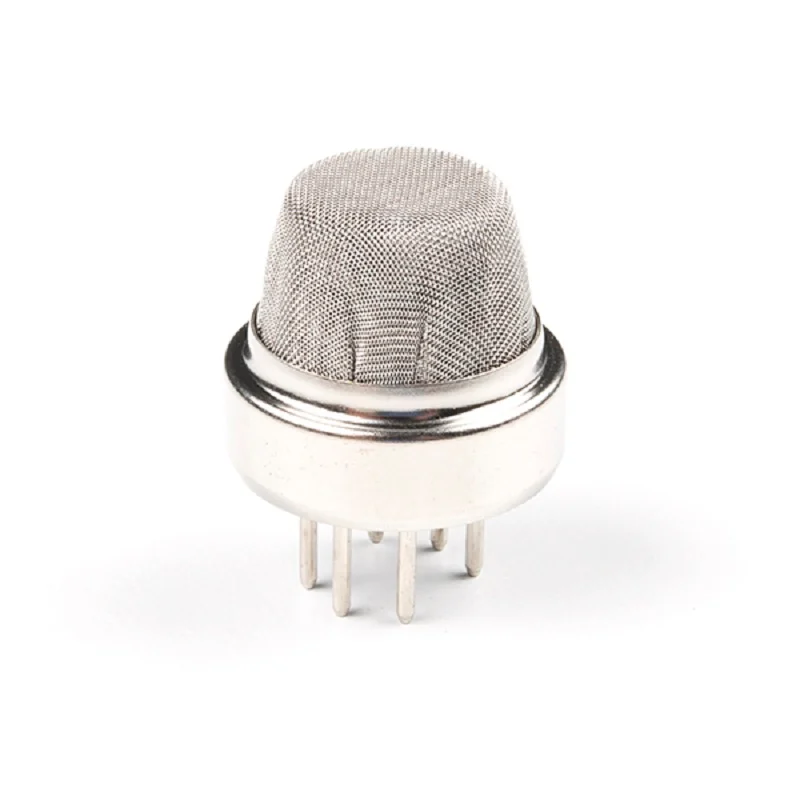

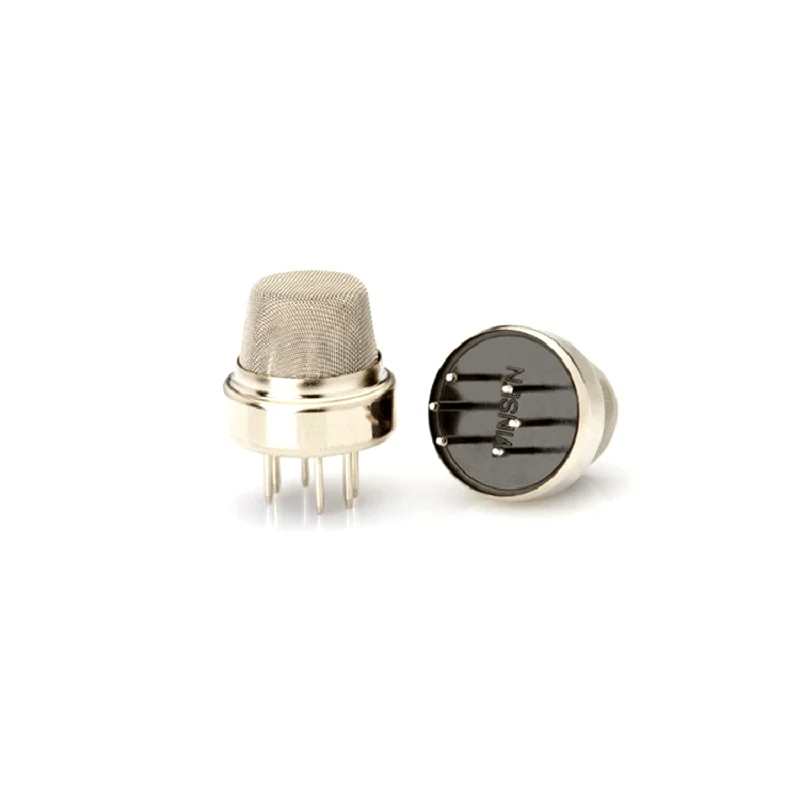

MQ-2 Flammable Gas and Smoke Sensor
The MQ2 Flammable Gas and Smoke Sensor can detect gas leaks (in homes and industries) of various kinds, such as LPG, i-butane, methane, alcohol, hydrogen, and smoke. It has a fast response time that allows for quick measurements. The sensitivity of the sensor can be adjusted by the potentiometer.
The MQ2 gas sensor can measure gas concentrations from 200 to 10000ppm. It is very sensitive to propane, hydrogen, methane, and LPG.
The MQ series of gas sensors have a small heater and an electro-chemical sensor inside. They can detect a range of gases at room temperature indoors.
The MQ2 gas sensor uses SnO2 as the sensitive material, which has lower conductivity in clean air. When the target gas is present, the conductivity of the sensor increases with the gas concentration. The MQ2 sensor can be used to detect different combustible gases, especially methane. It is low-cost and suitable for various applications. This sensor can be used to make a wireless gas leak detector for home security systems.
Features:
- High sensitivity to Propane, smoke, Hydrogen, LPG, CO, alcohol, Smoke.
- Fast response time <10s
- High sensitivity
- Stable and long life
Connections:
Connecting five volts across the heating (H) pins keeps the sensor hot enough to function correctly. Connecting five volts at either the A or B pins causes the sensor to emit an analog voltage on the other pins. A resistive load between the output pins and ground sets the sensitivity of the detector.
Applications:
- Gas leak detection system
- Fire/safety detection system
- Gas leak alarm
- Gas detector
- Industrial combustible gas detector
Specification:
| Model Type | MQ-2 |
|---|---|
| Sensor Type | Semiconductor |
| Standard Encapsulation | Bakelite, Metal cap |
| Target Gas | Flammable gas, smoke gas sensor |
| Detecting Range | 300～10000ppm(flammable gas) |
| Loop Voltage (Vc) | ≤24V DC |
| Heater Voltage (VH) | 5.0V±0.1V AC or DC |
| Tem. Humidity: | 20+/-2C, 55%+/-5%RH |
| Output Voltage | 2.5V~4.0V(in 2000ppmC3H8) |
| Load Resistance | Adjustable |
| Heater Resistance | 29Ω±3Ω（room tem.） |
| Sensitivity | Ro(in air)/Rs(2000ppm C3H8)>5 |
| Length (mm): | 24 |
| Diameter (mm): | 19 |
Package Includes:
- 1 x MQ-2 Flammable Gas and Smoke Sensor
Turbidity Sensor for Water Quality: Arduino Interfacing Guide
Water quality monitoring is a critical application in agriculture, aquaculture, environmental science, and industrial processes across India. A...
Read More →
MLX90614 IR Thermometer: Contactless Temperature Measurement with Arduino
The MLX90614 is a factory-calibrated infrared thermometer sensor that enables truly contactless temperature measurement with Arduino — no...
Read More →
Flex Sensor Glove: Gesture Recognition Project Build with Arduino
A flex sensor glove that can recognise hand gestures is one of the most impressive and practical wearable...
Read More →Technical Specifications
| Model | MQ-2 |
|---|---|
| Interface / Protocol | BLE |
| SKU | AI0741 |
| Weight | 0.00455 kg |
| Availability | Out of Stock |
Applications & Use Cases
The MQ-2 Flammable Gas and Smoke Sensor is a versatile gas and dust sensor used across a wide range of applications including air quality monitoring, gas leak detection, industrial safety, HVAC systems, and environmental monitoring.
Common use cases:
- Building a gas leak alarm for LPG/methane
- Monitoring indoor air quality (CO2, VOC)
- Dust monitoring in a workshop
This product is ideal for environmental engineers, safety professionals, and IoT developers.
Technical Tip: MQ-series sensors need a warm-up period (24-48 hours for first use). Calibrate in clean air for accurate readings.
