This is the 5mm variant of the Waveshare Flexible RGB full-color LED matrix panel, 2.5mm Pitch, 96×48 pixels, adjustable brightness and bendable PCB in LED Dot Matrix Display. Available at ₹2,948.82 (₹2,499.00 + GST) with free shipping across India.
Description:
RGB Full-Color LED Matrix Panel, 2.5mm Pitch, 96×48=4608 DOTS Pixels, Adjustable Brightness.

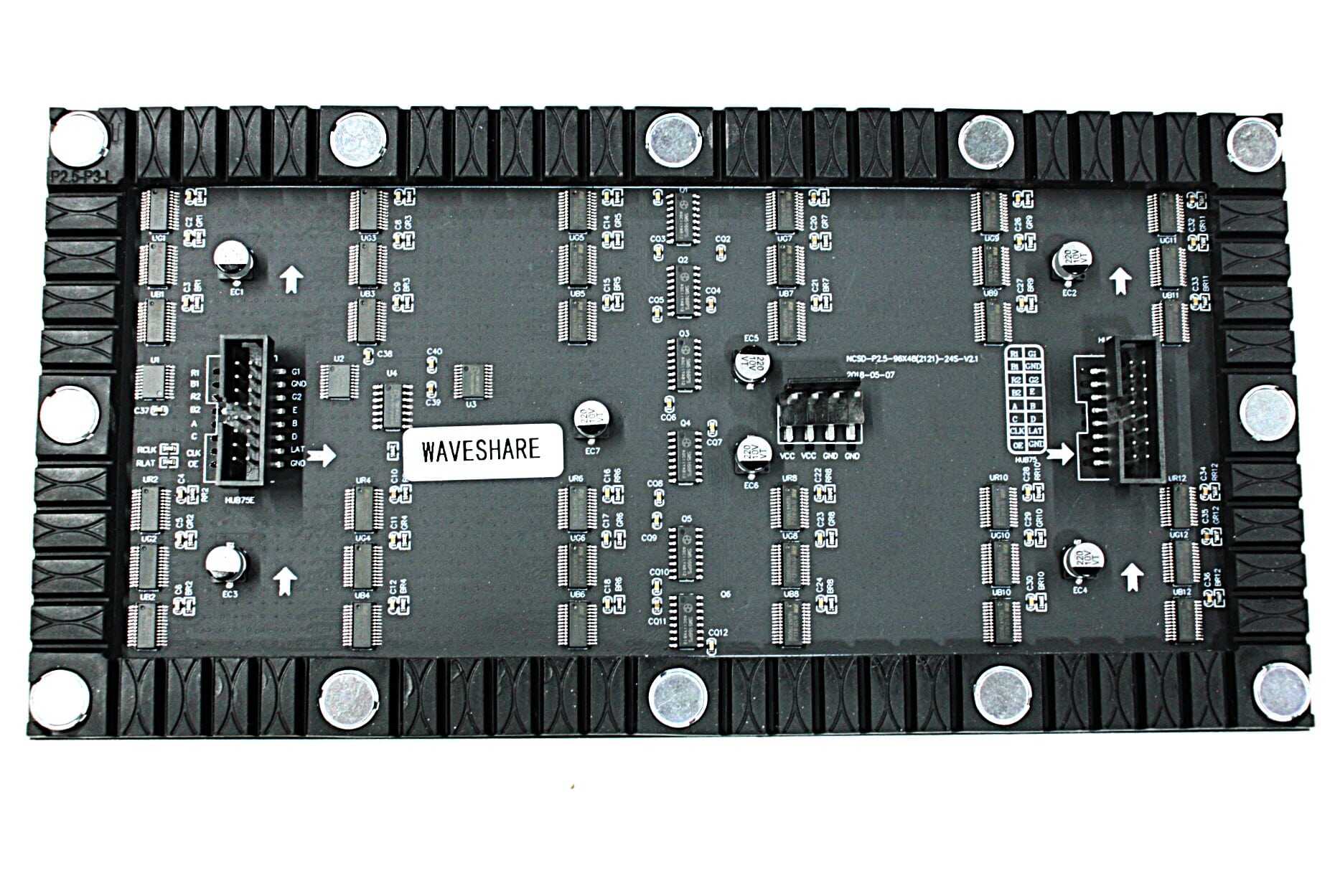

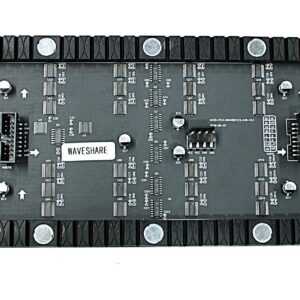

The Waveshare Flexible RGB full-color LED matrix panel is a display panel composed of 96×48 individually addressable RGB LEDs arranged in a 2.5mm pitch on a flexible PCB (printed circuit board). The flexibility of the PCB allows the panel to be bent to fit a variety of curved surfaces, making it ideal for use in creative LED lighting designs or signage.
The LED panel features adjustable brightness, which can be controlled via software or through an external controller. This allows for precise control over the brightness of the display to match different ambient lighting conditions or to create dynamic lighting effects.
Features:
- 4608 individual RGB LEDs, full-color display, adjustable brightness
- Flexible PCB material can be gently bent and suitable for some application scenarios such as cylinders, spheres and other curved surface
- 96×48 pixels, 2.5mm pitch, allows displaying text, colorful image, or animation
- 240×120mm dimensions, moderate size, suitable for DIY desktop display or wall mount display
- Onboard two HUB75 header, one for controller data input, one for output, chain support
- Provides open source development resources (examples for Raspberry Pi / Raspberry Pi Pico / ESP32 / Arduino)
Useful link:
For Software setup, please follow this tutorial.
Specification:
| Model: | LED Matrix Panel |
|---|---|
| Pitch (mm): | 2.5 |
| Pixels | 96×48=4608 DOTS |
| View angle | ≥140° |
| Control Type | synchronization |
| Driving | 1/24 scan |
| Headers | HUB75 |
| Power Supply (V) | 5V / 4A (VH4 header input) |
| Power Rating (W): | ≤20W |
Package Includes:

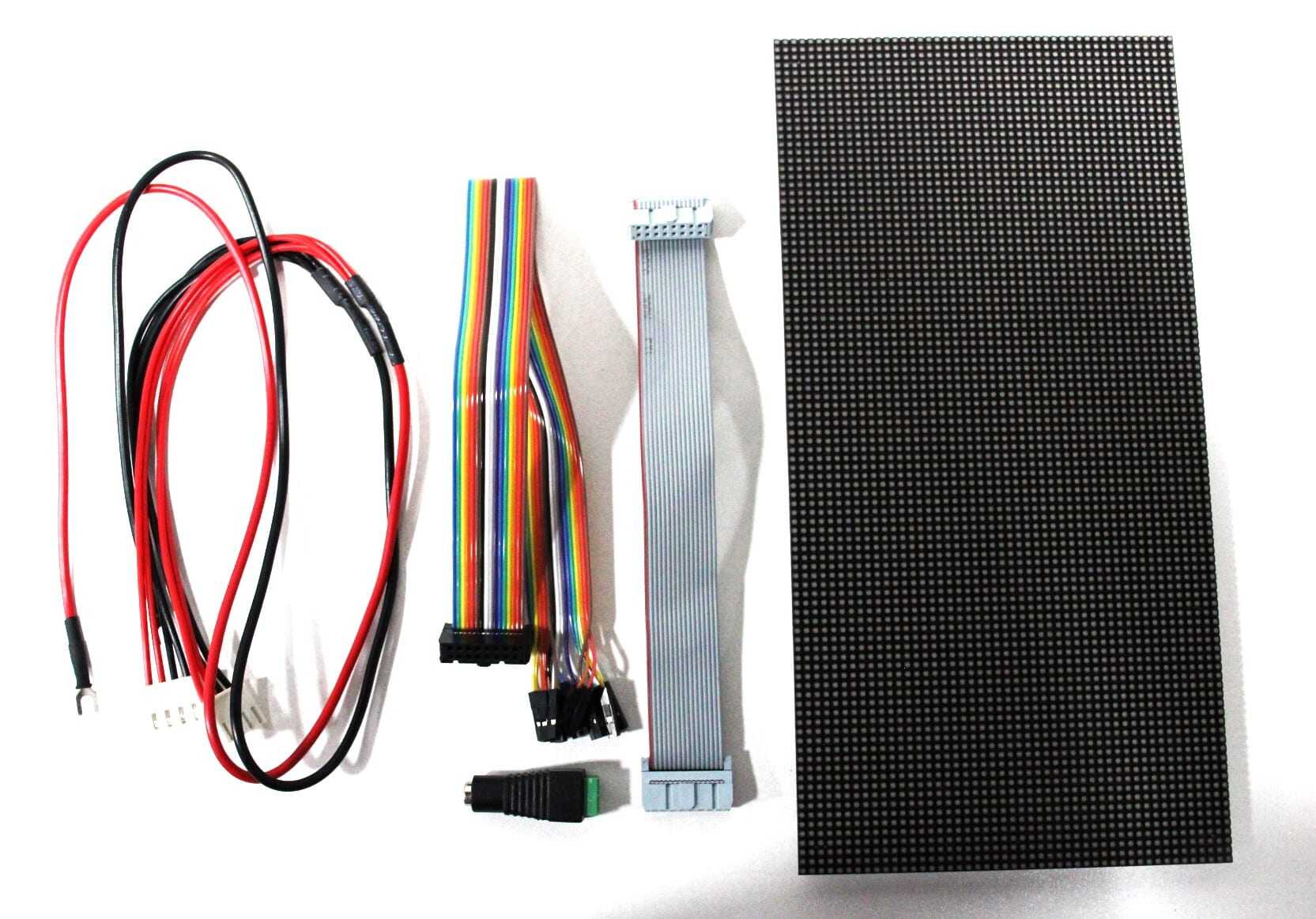

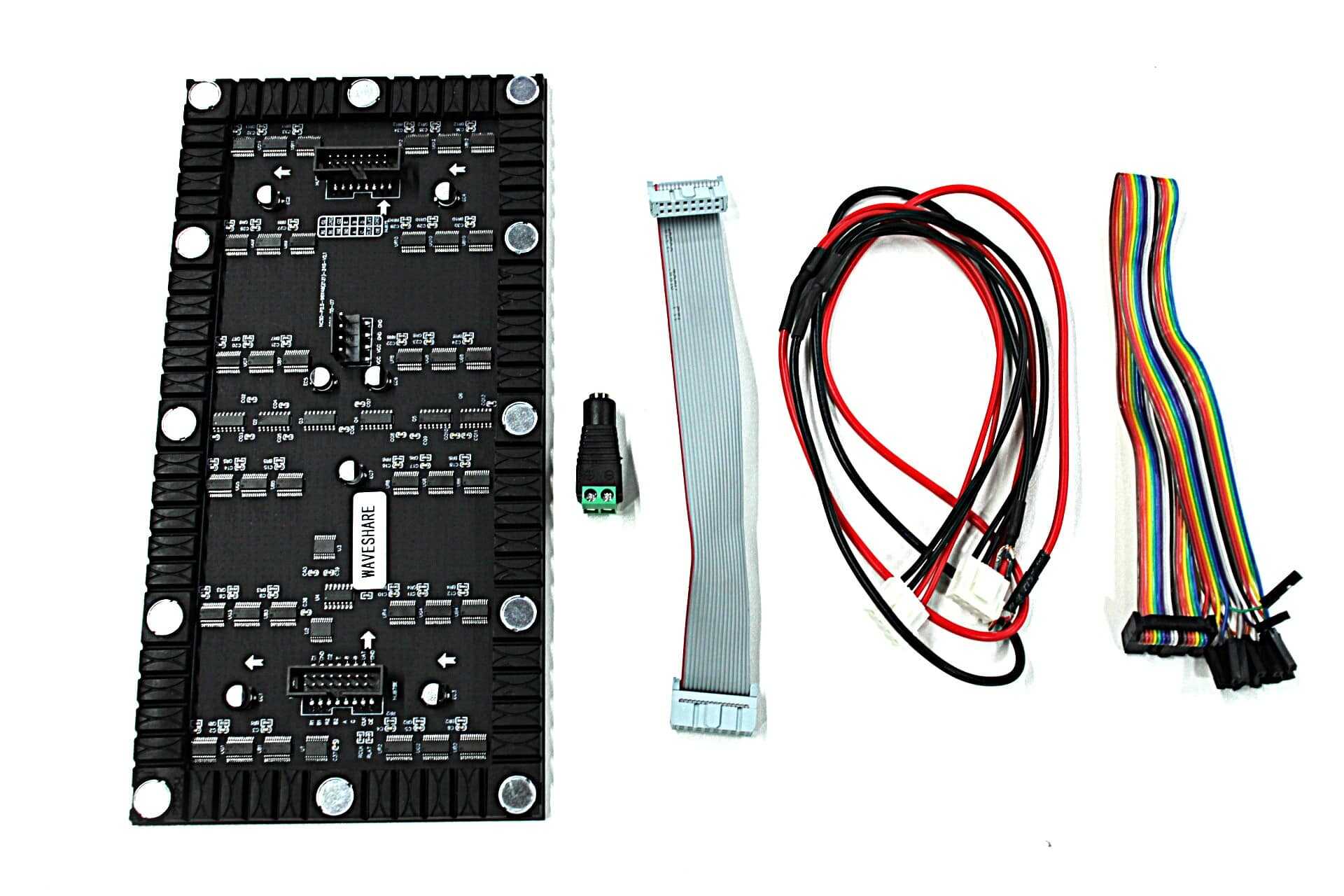

1 x Waveshare Flexible RGB full-color LED matrix panel, 2.5mm Pitch, 96×48 pixels, adjustable brightness and bendable PCB
Capacitor Marking Codes: How to Read SMD and Through-Hole Capacitors
Capacitor Marking Codes: How to Read SMD and Through-Hole Capacitors If you've ever stared at a tiny capacitor...
Read More →
Kiln Controller: High-Temperature Pottery Automation
Table of Contents What Is a Kiln Controller? Temperature Requirements for Ceramics Components for High-Temperature Control K-Type Thermocouple...
Read More →
Multiplexer and Demultiplexer: 74HC4051 Circuit Tutorial
If you've ever run out of GPIO pins on your Arduino or microcontroller, the multiplexer demultiplexer tutorial you...
Read More →Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Size | 2.5mm |
| Interface / Protocol | BLE |
| Package Quantity | 48 pcs |
| SKU | AI7576 |
| Weight | 0.51 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Waveshare Flexible RGB full-color LED matrix panel, 2.5mm Pitch, 96×48 pixels, adjustable brightness and bendable PCB is a versatile led dot matrix display used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
