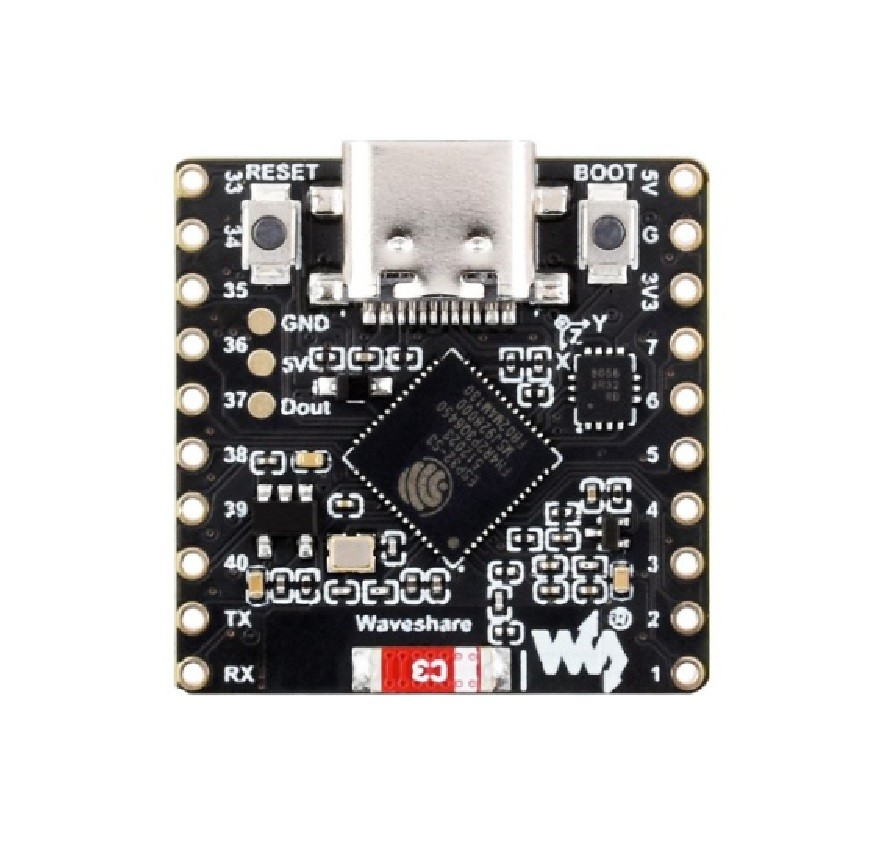

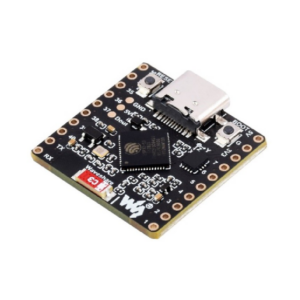

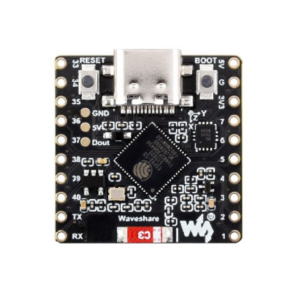

ESP32-S3-Matrix is a compact microcontroller development board with multiple digital interfaces, such as 20x GPIO pin headers, and onboard 8*8 RGB LED matrix, which can be used for displaying cool RGB LED effects or simple images.
In terms of hardware, it adopts ESP32-S3 as the main chip, integrates high-performance Xtensa® 32-bit LX7 dual-core processor, low-power co-processor, WiFi, Bluetooth, RF module, and other peripheral interfaces, enabling it to be compatible with other devices, and is easy to use.
In addition, it supports development on Arduino IDE, and you can easily get started with it and apply it to your projects.
Features and Specifications:
- Adopts ESP32-S3FH4R2 chip with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz
- Integrated 512KB SRAM, 384KB ROM, 2MB PSRAM, 4MB Flash memory
- Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance.
- Type-C connector, easier to use
- Onboard QMI8658C attitude sensor

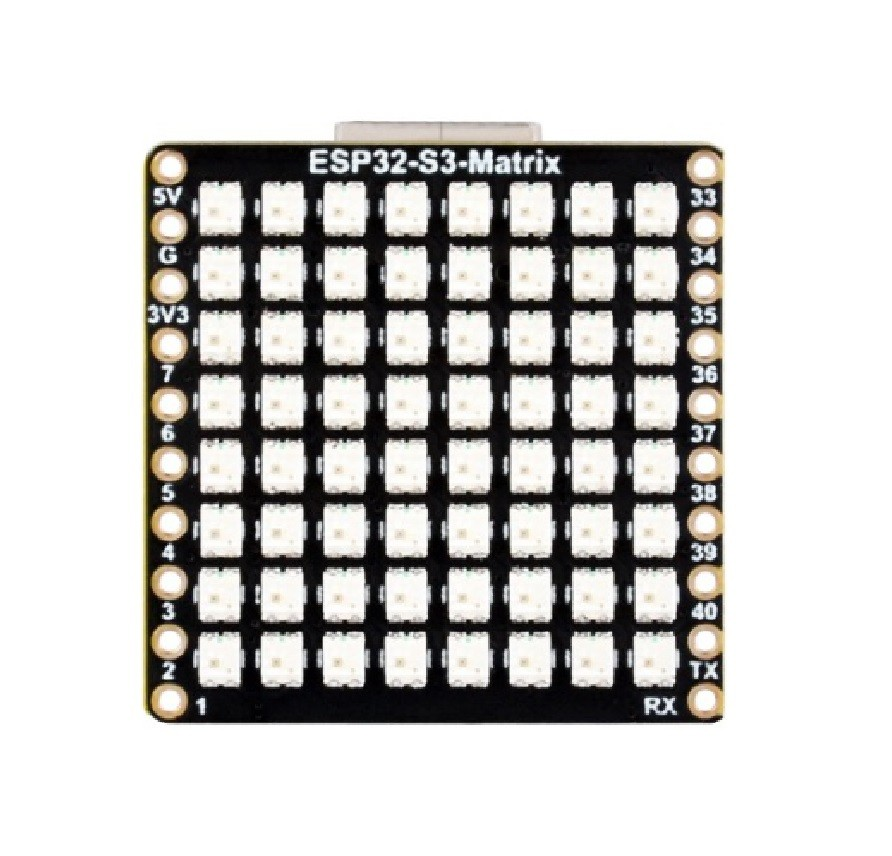

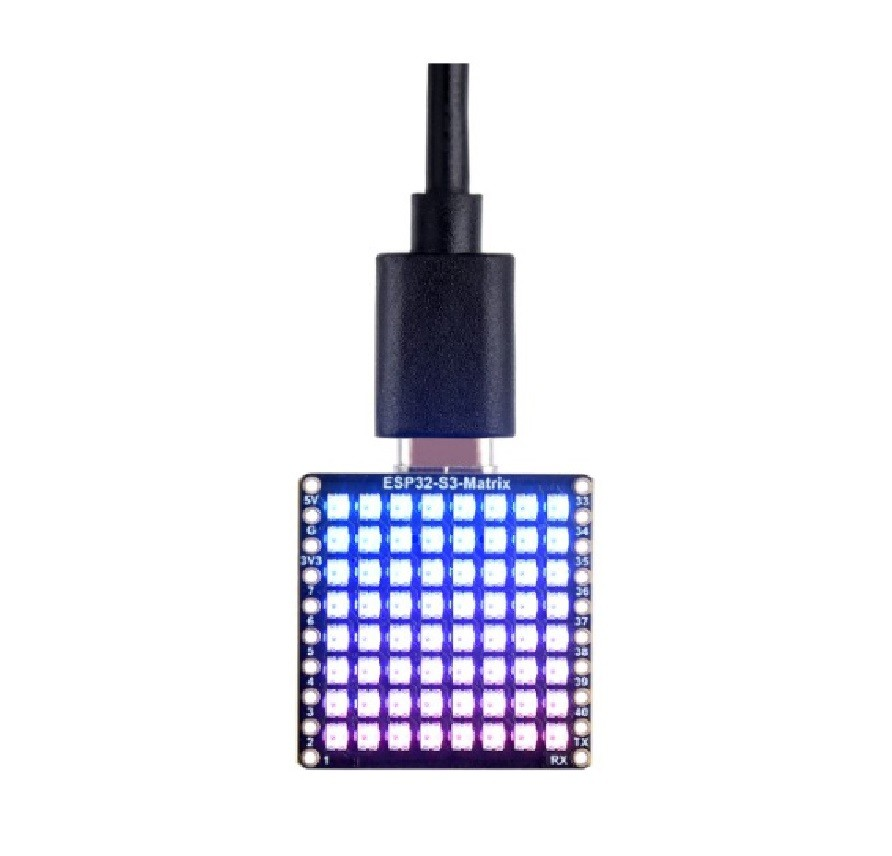

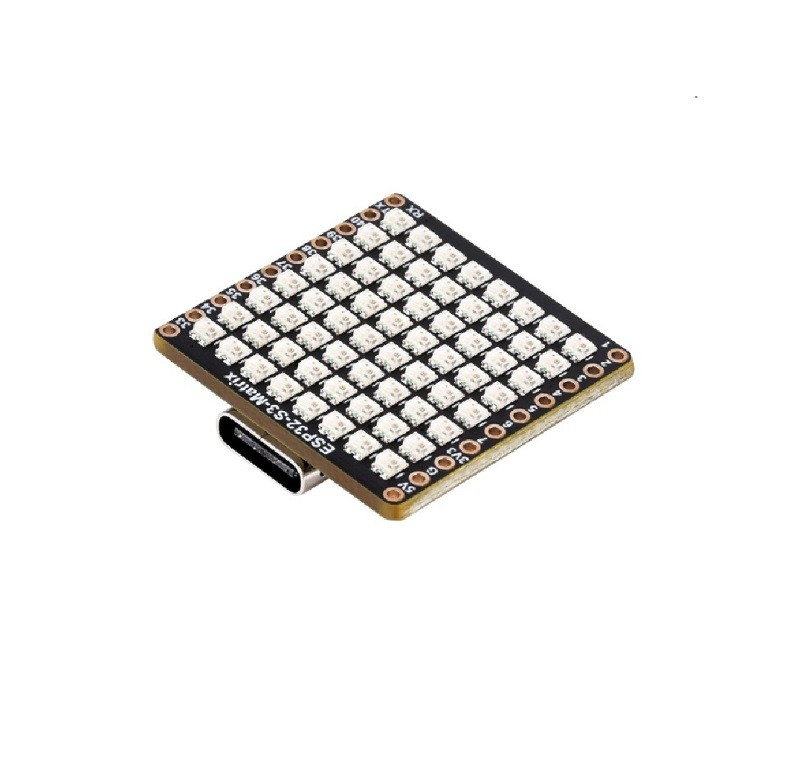

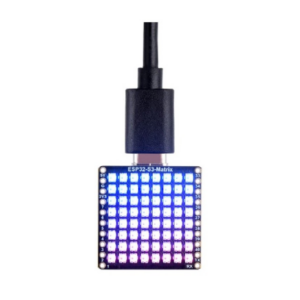

- Onboard 8 × 8 RGB LED matrix for colorful lighting display
- Adapting Dout pin for extending RGB matrix
- 17 × multi-function GPIO pins
- Rich peripheral interfaces for achieving various functions flexibly
- Supports multiple low-power operating states, adjustable balance between communication distance, data rate and power consumption to meet the power requirements of various application scenarios
Package Includes:
1 x ESP32-S3-Matrix
TinyML: Run AI Models on Microcontrollers
Table of Contents What is TinyML TinyML Frameworks and Tools Training Models for Microcontrollers Deploying TensorFlow Lite on...
Read More →
ESP32 Modbus TCP: Connect Industrial PLCs to IoT Cloud
The ESP32 Modbus TCP industrial integration is one of the most powerful use cases for this versatile microcontroller....
Read More →
IoT Air Quality Network: City-Wide Pollution Monitoring
Table of Contents Air Pollution Crisis in Indian Cities Air Quality Sensors Explained Building an AQI Monitor Node...
Read More →Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Model | ESP32-S3 |
| Interface / Protocol | Wi-Fi, Bluetooth |
| Package Quantity | 8 pcs |
| Color | Blue |
| SKU | AI6678 |
| Weight | 0.014560 kg |
| Availability | In Stock |
Applications & Use Cases
The Waveshare ESP32-S3 Development Board, Onboard 8×8 RGB LED Matrix and QMI8658C Attitude Sensor, Supports Wi-Fi and Bluetooth LE, ESP32 Development Board is a versatile iot development boards used across a wide range of applications including rapid IoT prototyping, connected sensor platforms, edge computing, wearable devices, and home automation.
Common use cases:
- Prototyping a smart environmental monitor
- Building a BLE-connected fitness tracker
- Creating an edge AI inference device
This product is ideal for IoT engineers, embedded developers, and electronics students.
Technical Tip: Development boards with built-in displays and sensors accelerate prototyping. Check GPIO count and peripheral support for your project needs.
