This is the 3inch variant of the Waveshare ESP32-S3 4.3inch Display Development Board, 800×480, Without Touch Function, 32-bit LX7 Dual-core Processor in IoT Development Boards. Available at ₹3,058.56 (₹2,592.00 + GST) with free shipping across India.

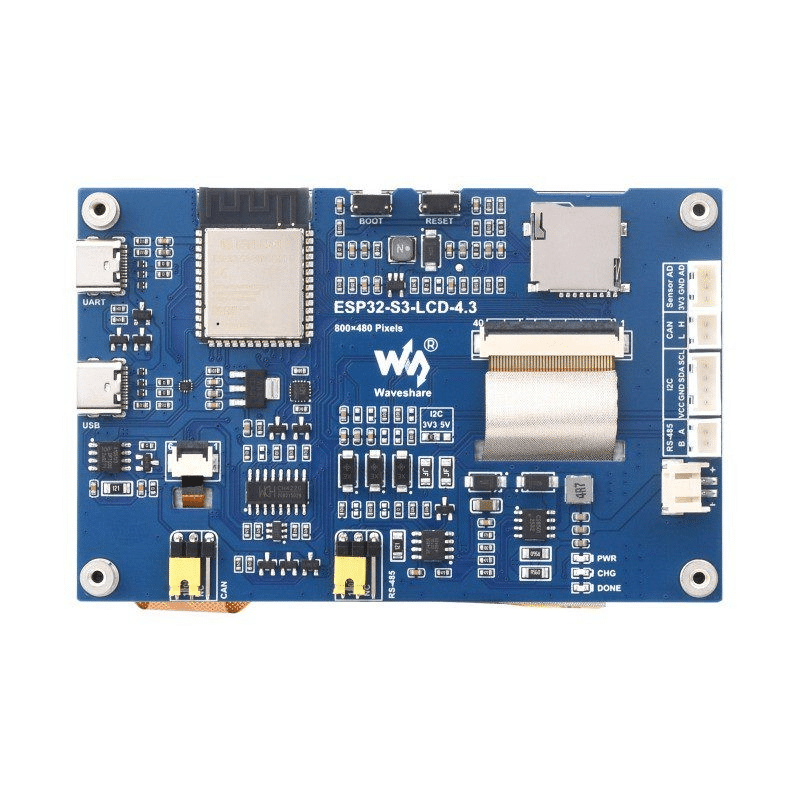

Waveshare ESP32-S3 4.3inch Display Development Board, 800×480, Without Touch Function, 32-bit LX7 Dual-core Processor
This product is a microcontroller development board with 2.4GHz WiFi and BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 4.3inch LCD screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications.
Features:
-
Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
-
Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
-
Built-in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and 8MB Flash
-

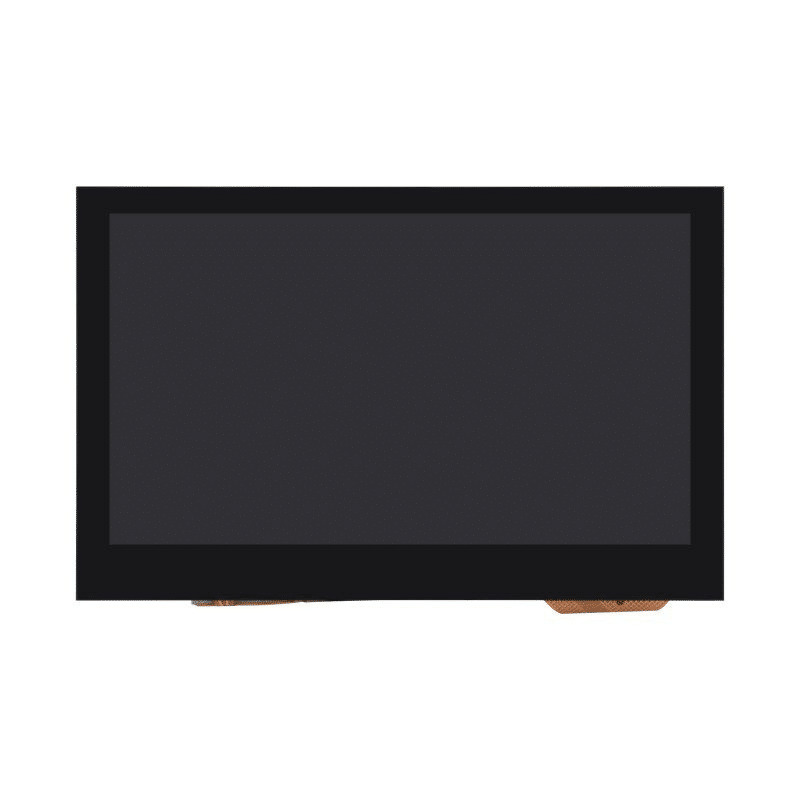

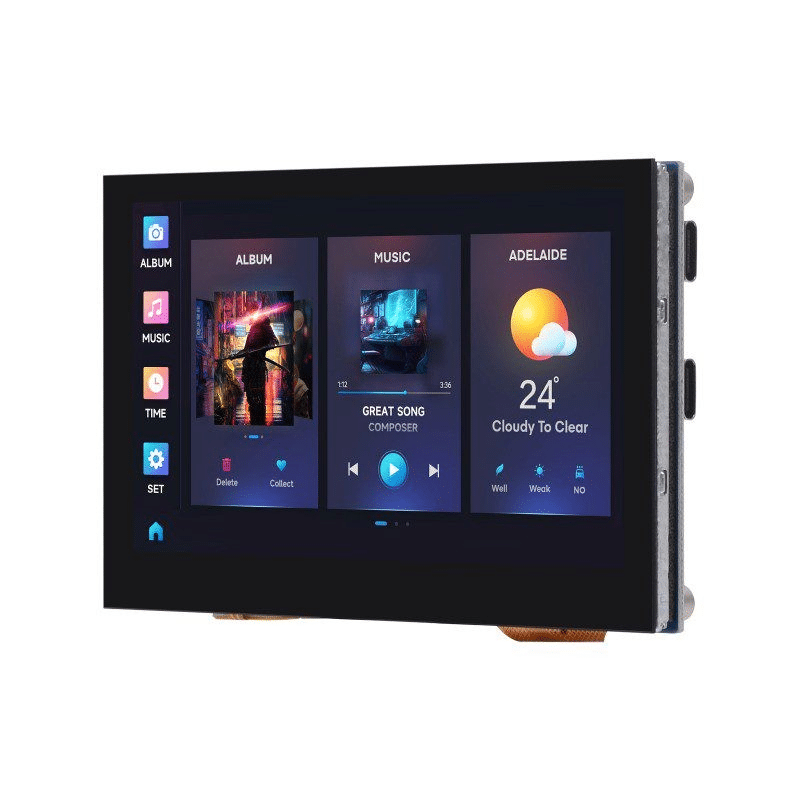

Onboard 4.3inch LCD display, 800×480 resolution, 65K color
-
Onboard CAN, RS485, I2C interface and TF card slot, integrates full-speed USB port
-
Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
Specification:
| Item Type: | Development Board |
|---|---|
| Model: | Display Development Board |
| Model No.: | ESP32 S3 |
| RAM Capacity: | 8MB PSRAM |
| Processor Type: | Xtensa 32-bit LX7 dual-core processor |
| Power Supply | 5V |
| Resolution: | 800×480 |
| Display Interfaces | RGB |
| Display Panel | IPS |
| Viewing Angle: | 160° |
| Display Size (Inch): | 4.3 |
Package Includes:
-
1 x ESP32-S3-LCD-4.3
-
2 x HY2.0 2P to 2PIN male cable 10cm
-
1 x HY2.0 3P to 3PIN male cable 10cm
-
1 x HY2.0 4P to 4PIN male cable 10cm
-
1 x Standoff pack
Telegram Bot with ESP32: Remote Control via Messaging App
Building a Telegram bot with ESP32 for remote control via a messaging app is one of the most...
Read More →
ESP32-P4 High-Performance MCU: New Features and Projects
Espressif's ESP32-P4 high-performance projects ecosystem opens doors that were previously reserved for dedicated application processors or expensive SoCs....
Read More →
IoT Time-Series Forecasting: Predict Sensor Readings
Table of Contents Time-Series Data in IoT Forecasting Methods Overview ARIMA for Sensor Data Prophet for IoT Predictions...
Read More →Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Model | ESP32-S3 |
| Display Size | 4.3" |
| Package Quantity | 7 pcs |
| SKU | AI7723 |
| Weight | 0.12 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Waveshare ESP32-S3 4.3inch Display Development Board, 800×480, Without Touch Function, 32-bit LX7 Dual-core Processor is a versatile iot development boards used across a wide range of applications including rapid IoT prototyping, connected sensor platforms, edge computing, wearable devices, and home automation.
Common use cases:
- Prototyping a smart environmental monitor
- Building a BLE-connected fitness tracker
- Creating an edge AI inference device
This product is ideal for IoT engineers, embedded developers, and electronics students.
Technical Tip: Development boards with built-in displays and sensors accelerate prototyping. Check GPIO count and peripheral support for your project needs.
