This is the 7inch variant of the Waveshare ESP32-S3 7inch Display Development Board, ESP32 With Display, 800×480, Without Touch Function, 32-bit LX7 Dual-core Processor, Up to 240MHz Frequency, Supports WiFi & Bluetooth in IoT Development Boards. Available at ₹4,688.14 (₹3,973.00 + GST) with free shipping across India.
Description:

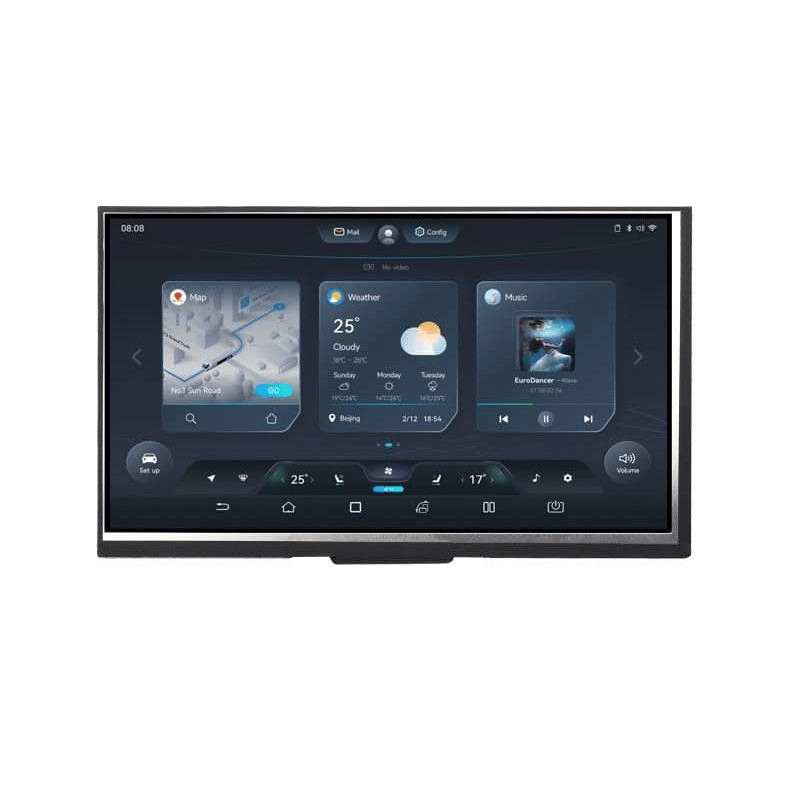

Waveshare ESP32-S3 7inch Display Development Board is a microcontroller development board with 2.4GHz WiFi and BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 7inch LCD screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications
Features:
- Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
- Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
- Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and 16MB Flash

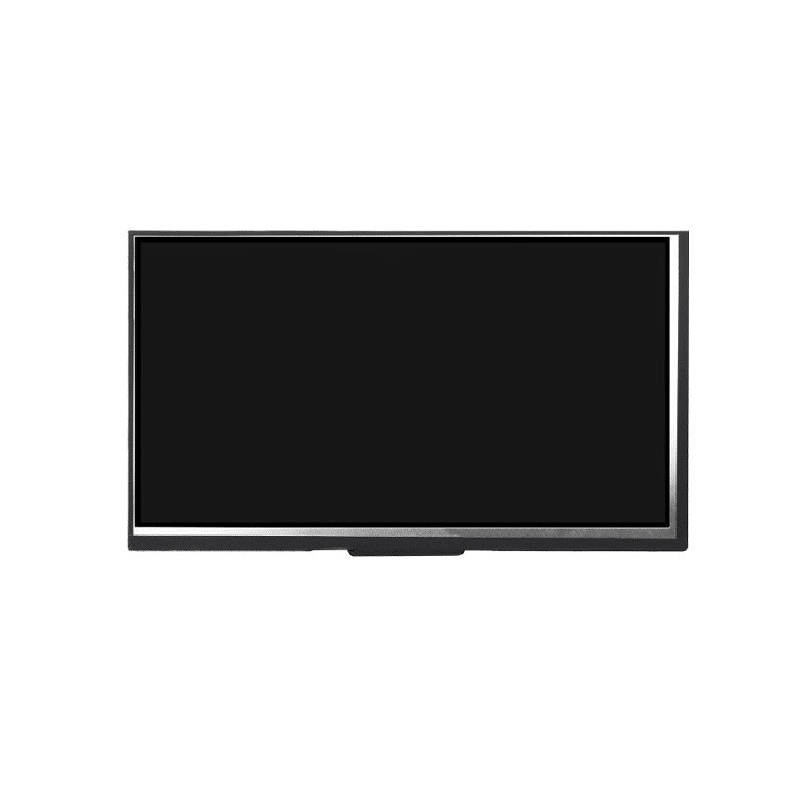

- Onboard 7inch LCD display, 800×480 resolution, 65K color
- Supports 5-point capacitive touch control via I2C interface, with interrupt support (for touch version only)
- Onboard CAN, RS485, I2C interface and TF card slot, integrates full-speed USB port
- Supports flexible clock, module power supply independent setting, and other control to realize low power consumption in different scenarios
Specification:
| Item Type: | Development Board |
|---|---|
| Model: | Display Development Board |
| Model No.: | ESP32 S3 |
| RAM Capacity: | 8MB PSRAM |
| Processor Type: | Xtensa 32-bit LX7 dual-core processor |
| Power Supply | TypeC 5V |
| Resolution: | 800×480 |
| Display Interfaces | RGB |
| Display Panel | IPS |
| Display Size (Inch): | 7 |
Package Includes:

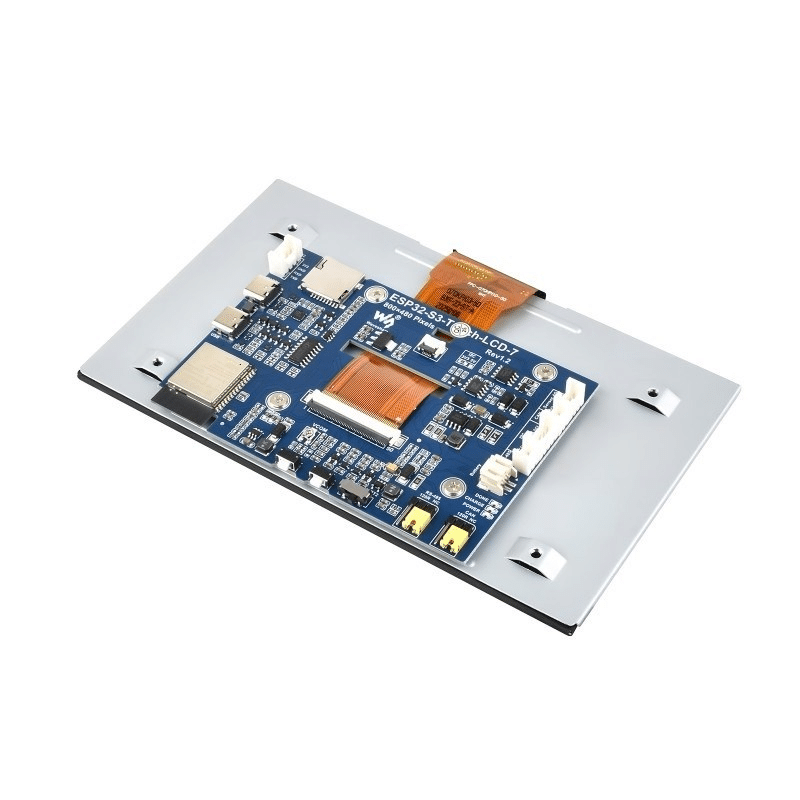

1 x ESP32-S3-LCD-7

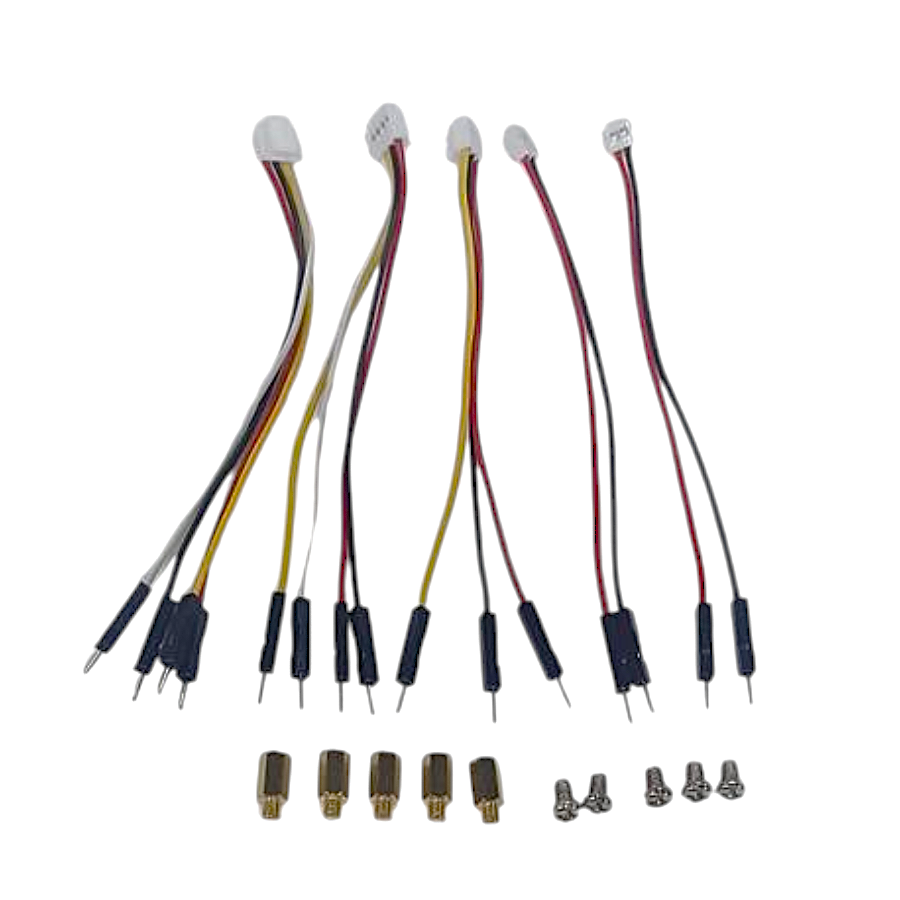

2 x HY2.0 2P to 2PIN male cable 10cm
1 x HY2.0 3P to 3PIN male cable 10cm
2 x HY2.0 4P to 4PIN male cable 10cm
1 x Screws pack
NodeMCU ESP32 Pinout: GPIO, PWM, ADC Reference Guide
Understanding the ESP32 NodeMCU pinout GPIO PWM ADC reference is the first and most important step before building...
Read More →
ESP32 JSON Parsing: ArduinoJson Library for API Responses
If your ESP32 project needs to talk to a REST API, parse a weather service response, or read...
Read More →
IoT Smart Energy Monitor: Measure Home Power with ESP32
An IoT smart energy monitor with ESP32 is one of the most impactful home automation projects you can...
Read More →Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Model | ESP32-S3 |
| Display Size | 7" |
| Interface / Protocol | WiFi, Bluetooth |
| Frequency | 240MHz |
| Package Quantity | 7 pcs |
| Color | Blue |
| SKU | AI7615 |
| Weight | 0.34 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Waveshare ESP32-S3 7inch Display Development Board, ESP32 With Display, 800×480, Without Touch Function, 32-bit LX7 Dual-core Processor, Up to 240MHz Frequency, Supports WiFi & Bluetooth is a versatile iot development boards used across a wide range of applications including rapid IoT prototyping, connected sensor platforms, edge computing, wearable devices, and home automation.
Common use cases:
- Prototyping a smart environmental monitor
- Building a BLE-connected fitness tracker
- Creating an edge AI inference device
This product is ideal for IoT engineers, embedded developers, and electronics students.
Technical Tip: Development boards with built-in displays and sensors accelerate prototyping. Check GPIO count and peripheral support for your project needs.
