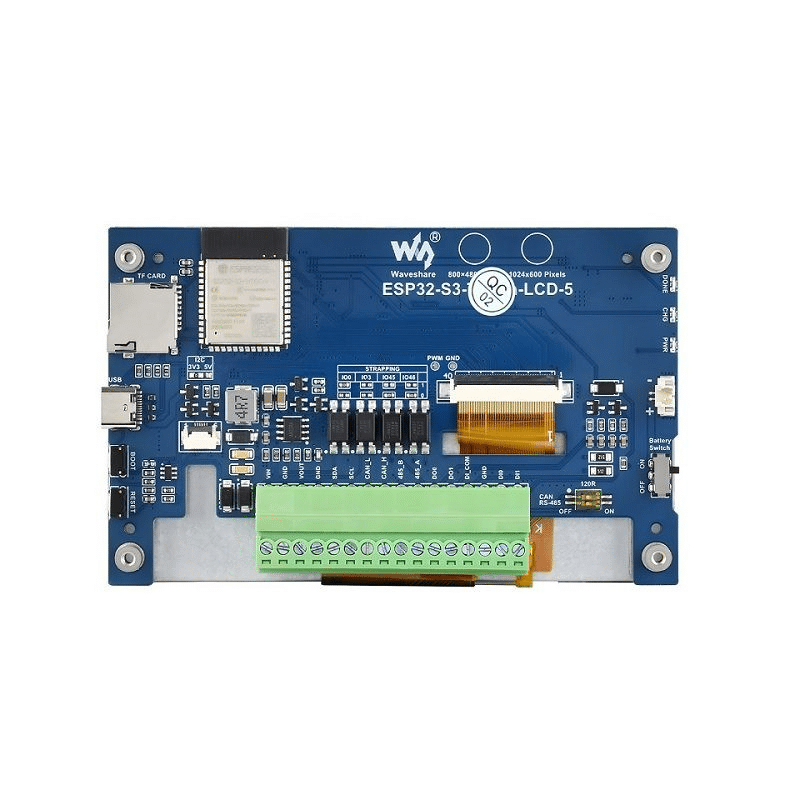

This is the 5inch variant of the Waveshare ESP32-S3 5inch Display Development Board, 32-Bit LX7 Dual-Core Processor, Up To 240MHz Frequency, With Onboard Antenna, ESP32 With 800×480 Display without touch in IoT Development Boards. Available at ₹4,260.98 (₹3,611.00 + GST) with free shipping across India.
Waveshare ESP32-S3 5inch Display Development Board, 32-Bit LX7 Dual-Core Processor, Up To 240MHz Frequency, With Onboard Antenna, ESP32 With 800×480 Display without touch
This product is a microcontroller development board with 2.4GHz WiFi and BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 5inch LCD screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications.
Features:
- Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
- Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
- Built in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM

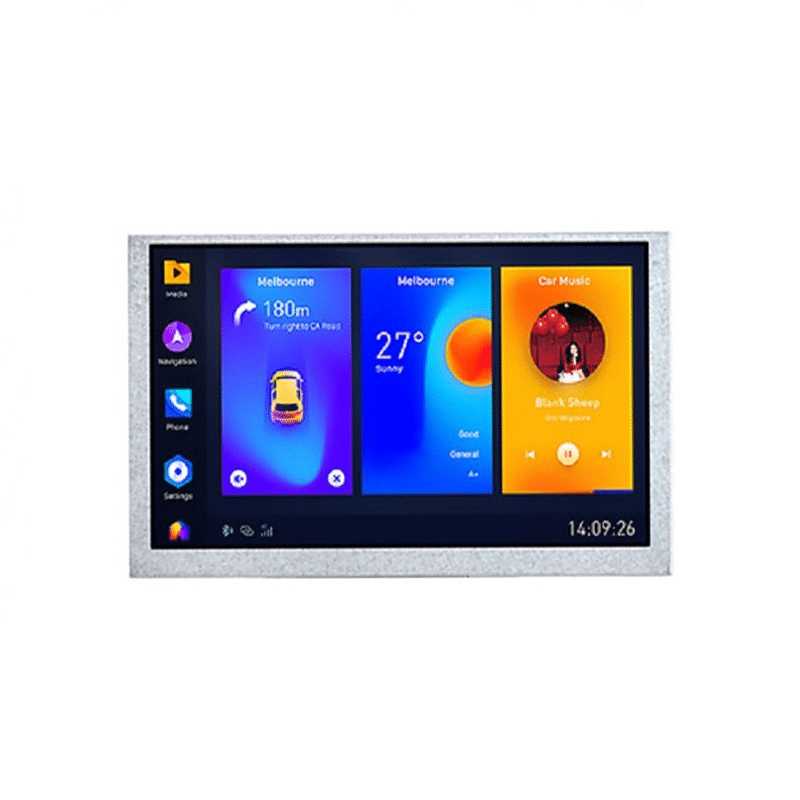

- Onboard 5inch LCD display, options for 800×480 resolution, 65K color
- Onboard voltage regulator, supports 7~36V wide range power supply
- Onboard RTC chip and rechargeable battery to ensure time data is not lost when power loss
- Onboard CAN, RS485, I2C interface, TF card slot, MX1.25 2P battery header, and digital isolated IO interfaces, etc.
- Supports passive and active digital input, with bi-directional optocoupler isolation
- Supports digital output with optocoupler isolation, provides higher driving capability with up to 450mA sinking current
- Onboard LED indicators for indicating the power and battery recharging status
- Supports flexible clock, module power supply independent setting and other controls to realize low power consumption in different scenarios
Specification:
| Item Type: | Development Board |
|---|---|
| Model: | Display Development Board |
| Model No.: | ESP32 S3 |
| RAM Capacity: | 8MB PSRAM |
| Processor Type: | Xtensa 32-bit LX7 dual-core processor |
| Power Supply | 7-36 |
| Resolution: | 800×480 |
| Display Interfaces | RGB |
| Display Panel | IPS |
Package Includes:
1 x ESP32-S3 5inch Display Development Board
ESP32 Interrupt Handling: GPIO Interrupt Tutorial and Code
ESP32 interrupt handling GPIO tutorial code is one of the most searched topics among Indian hobbyists and IoT...
Read More →
Home Assistant Integration: ESP32 Sensor with ESPHome
Integrating a Home Assistant ESP32 sensor using ESPHome is the most beginner-friendly way to build a fully functional,...
Read More →
ESP-NOW Tutorial: Wireless Communication Between ESP32 Boards
ESP-NOW is one of the most underrated features of Espressif's ESP32 and ESP8266 microcontrollers — a lightweight, connection-free...
Read More →Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Model | ESP32-S3 |
| Display Size | 5" |
| Frequency | 240MHz |
| Package Quantity | 7 pcs |
| SKU | AI7770 |
| Weight | 0.19 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Waveshare ESP32-S3 5inch Display Development Board, 32-Bit LX7 Dual-Core Processor, Up To 240MHz Frequency, With Onboard Antenna, ESP32 With 800×480 Display without touch is a versatile iot development boards used across a wide range of applications including rapid IoT prototyping, connected sensor platforms, edge computing, wearable devices, and home automation.
Common use cases:
- Prototyping a smart environmental monitor
- Building a BLE-connected fitness tracker
- Creating an edge AI inference device
This product is ideal for IoT engineers, embedded developers, and electronics students.
Technical Tip: Development boards with built-in displays and sensors accelerate prototyping. Check GPIO count and peripheral support for your project needs.
