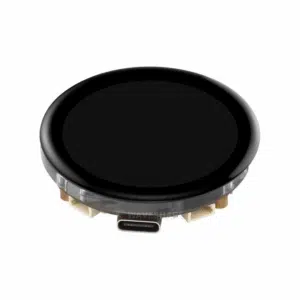

This is the 43inch variant of the Waveshare ESP32-S3 1.43inch AMOLED Display Development Board, 466×466, QSPI Interface Round Display, Optional For CNC Metal Case, ESP32 With Display in IoT Development Boards. Available at ₹2,862.68 (₹2,426.00 + GST) with free shipping across India.

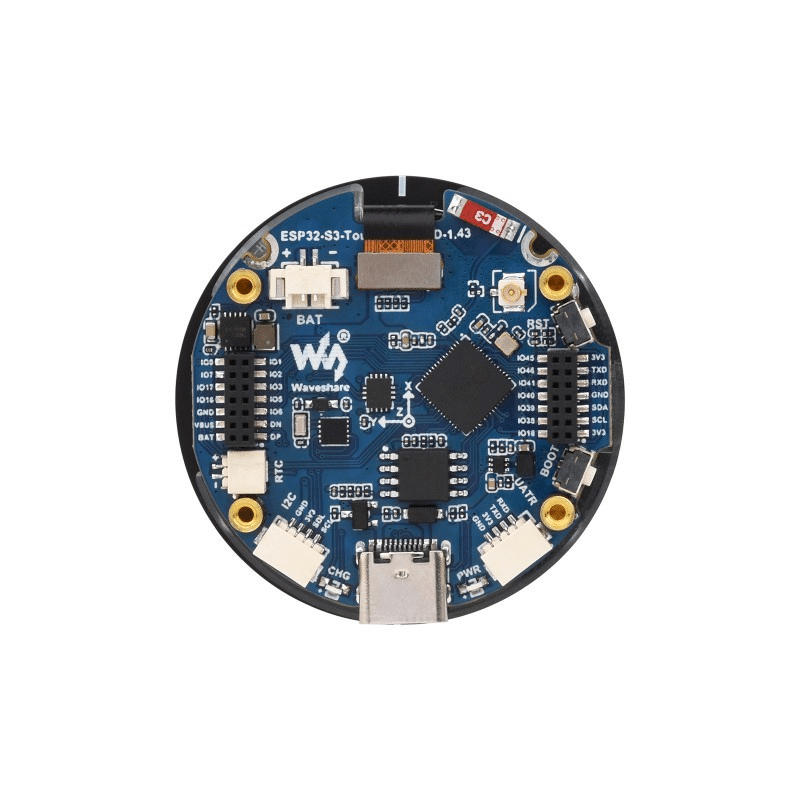

The 1.43inch AMOLED Display Development Board features the ESP32-S3R8 chip with 2.4GHz Wi-Fi and Bluetooth BLE 5 support, integrating high-capacity Flash and PSRAM. The onboard 1.43inch AMOLED display runs GUI programs smoothly, such as LVGL, and provides rich peripheral resources including an RTC chip, QMI8658 6-axis IMU, TF card slot, Lithium battery header, and reserved USB, UART, I2C, and GPIO pin headers. This board is ideal for the rapid development of HMI and other ESP32-S3 applications, offering strong compatibility and expandability.
Features:
- High-Performance Processor: Xtensa 32-bit LX7 dual-core, up to 240MHz main frequency
- Wireless Connectivity: 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), onboard antenna, switchable to external antenna via resoldering
- Memory: 512KB SRAM, 384KB ROM, 16MB Flash, 8MB PSRAM

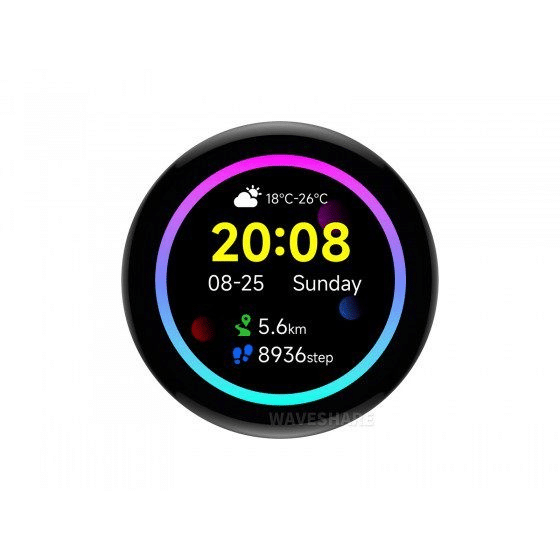

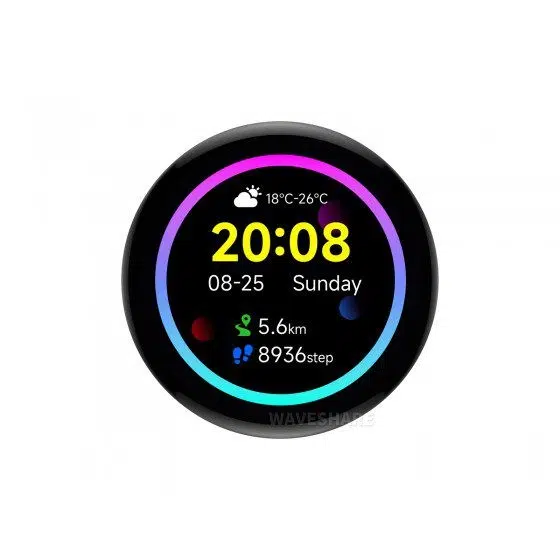

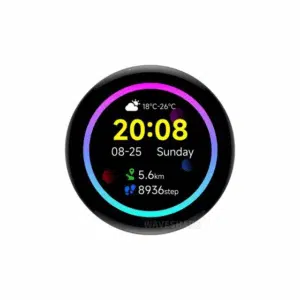

- Display: 1.43inch AMOLED, QSPI interface, 466 × 466 resolution, 16.7M colors
- Touch Function: Capacitive touch via I2C interface, interrupt supported
- Motion Detection: Onboard QMI8658 6-axis IMU (3-axis accelerometer + 3-axis gyroscope) for gesture detection and step counting
- RTC Support: PCF85063 RTC chip with SH1.0 battery header (supports charging)
- Buttons: Onboard RST and programmable BOOT buttons for custom function development
- Battery Management: 3.7V MX1.25 Lithium battery recharge/discharge header
- Storage: TF card slot for external storage of files or media
- Connectivity: USB Type-C port for power, programming, and debugging; UART and I2C SH1.0 4PIN connector; 2 × 14PIN 1.27mm pitch headers for GPIO
- Optional Case: CNC metal case with clear and colorful back label, compact and portable
Specifications:
| Item Type | Development Board |
|---|---|
| Model | AMOLED Display Development Board |
| Model No. | ESP32 S3 |
| Display Size (Inch) | 1.43 |
| Display Panel | AMOLED |
| Resolution | 466×466 |
| Display Color | 16.7M |
| Brightness (cd/m²) | 350 |
| Driver IC | SH8601/C05300 |
| Communication Interface | QSPI |
Package Includes:
- 1× ESP32-S3-Touch-AMOLED-1.43
- 2× SH1.0 4PIN cable ~100mm
Home Automation with ESP32 and Alexa: Full Setup Guide for Indian Homes
Table of ContentsIntroductionHow ESP32 + Alexa WorksHardware & Software RequirementsWiring DiagramMethod 1: Using SinricPro (Easiest)Method 2: Using FauxmoESP...
Read More →
ESP32-S3 AI Camera: TinyML Object Detection On-Device
The ESP32-S3 AI camera with TinyML object detection running entirely on-device represents one of the most exciting developments...
Read More →
ESP32 I2C Multiple Sensors: Scan and Read Address Guide
One of the most powerful features of the I2C protocol is the ability to connect multiple sensors to...
Read More →Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Model | ESP32-S3 |
| Display Size | 1.43" |
| Interface / Protocol | SPI |
| Resolution | 466x466 |
| Package Quantity | 466 pcs |
| SKU | AI7543 |
| Weight | 0.04 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Waveshare ESP32-S3 1.43inch AMOLED Display Development Board, 466×466, QSPI Interface Round Display, Optional For CNC Metal Case, ESP32 With Display is a versatile iot development boards used across a wide range of applications including rapid IoT prototyping, connected sensor platforms, edge computing, wearable devices, and home automation.
Common use cases:
- Prototyping a smart environmental monitor
- Building a BLE-connected fitness tracker
- Creating an edge AI inference device
This product is ideal for IoT engineers, embedded developers, and electronics students.
Technical Tip: Development boards with built-in displays and sensors accelerate prototyping. Check GPIO count and peripheral support for your project needs.
