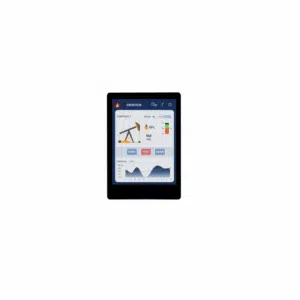

This is the 8inch variant of the Waveshare ESP32-S3 2.8inch Capacitive Touch Display Development Board, 240×320, IPS, 5-point Touch, 32-bit LX7 Dual-core Processor, Supports WiFi and Bluetooth, ESP32 With Display in IoT Development Boards. Available at ₹2,726.98 (₹2,311.00 + GST) with free shipping across India.

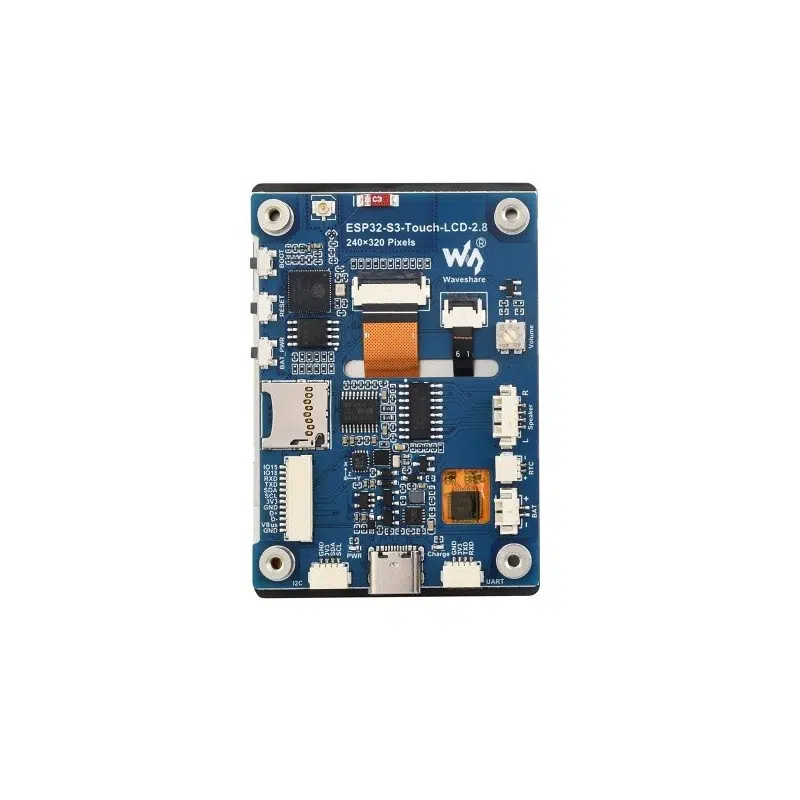

ESP32-S3-Touch-LCD-2.8 is a microcontroller development board featuring 2.4GHz WiFi and Bluetooth BLE 5 support, integrating high-capacity Flash and PSRAM.

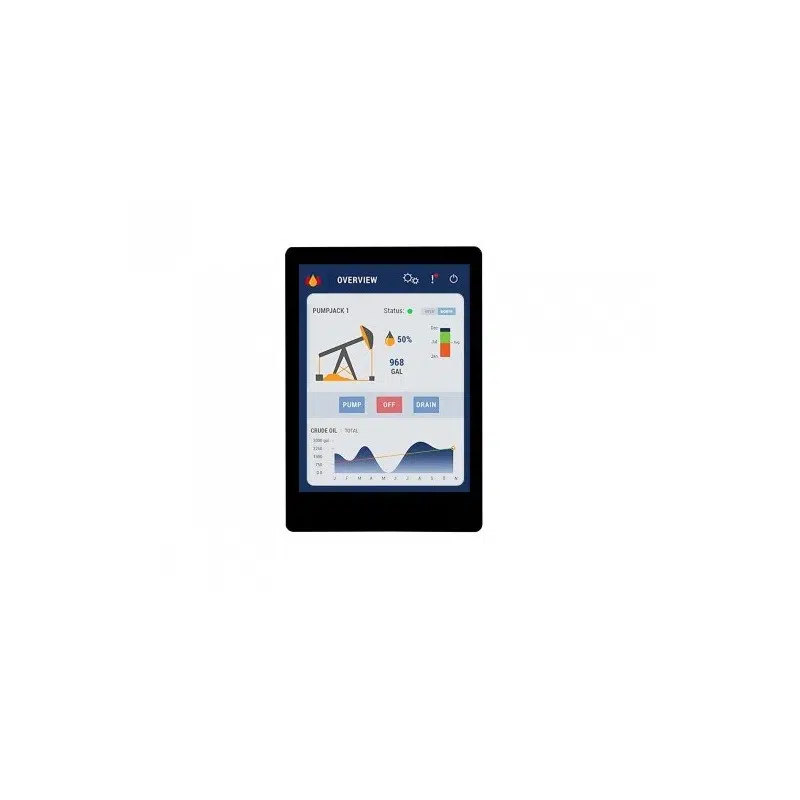

The onboard 2.8-inch capacitive touch screen can smoothly run GUI programs such as LVGL.
Combined with various peripheral interfaces, it is suitable for the quick development of HMI and other ESP32-S3 applications.
Features:
- Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
- Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE) with onboard antenna
- Built-in 512KB SRAM and 384KB ROM, with 16MB Flash and 8MB PSRAM
- Onboard 2.8-inch capacitive touch display, 240×320 resolution, 262K color
- Supports capacitive touch control via I2C interface, 5-point touch with interrupt support
- Adapting UART, I2C and some IO interfaces, integrates full-speed USB port
- Onboard speaker, QMI8658 6-axis sensor, RTC sensor, TF card slot, and battery recharge management module
- Supports accurate control, including flexible clock and multiple power modes for low-power consumption across different scenarios
Specifications:
| Interface | USB Type-C |
|---|---|
| Controller | ESP32-S3 |
| Input Voltage (V) | 5V |
| GPIO | Multiple General-Purpose Input/Output pins |
| Processor | 32-bit LX7 dual-core |
| Flash Memory | 16 MB |
| WiFi (Y/N) | IEEE 802.11 b/g/n |
| Resolution | 240×320 pixels |
| Model Name | ESP32-S3 |
| SRAM | 512 KB |
Package Includes:
- 1x SH1.0 4-pin cable ~100mm
- 1x SH1.0 12-pin cable ~100mm
- 1x SH1.0 4-pin cable ~100mm (2 pcs)
- 1x 2030 speaker
OPC UA with Raspberry Pi: Industrial IoT Standard
Table of Contents What is OPC UA OPC UA Architecture Setting Up OPC UA on Raspberry Pi Connecting...
Read More →
ESP32 Alexa Integration: Voice Control Your DIY Devices
Imagine saying "Alexa, turn on the fan" and watching your homemade relay board click on — all powered...
Read More →
Best ESP8266 NodeMCU Shields and Add-On Modules in India (2024 Buying Guide)
Table of ContentsIntroductionWhy Use Shields and Add-On Modules?1. Power & Battery Shields2. Sensor Modules3. Relay & Output Modules4....
Read More →Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Model | ESP32-S3 |
| Display Size | 2.8" |
| Interface / Protocol | WiFi, Bluetooth |
| Package Quantity | 7 pcs |
| Color | Blue |
| SKU | AI7537 |
| Weight | 0.06 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Waveshare ESP32-S3 2.8inch Capacitive Touch Display Development Board, 240×320, IPS, 5-point Touch, 32-bit LX7 Dual-core Processor, Supports WiFi and Bluetooth, ESP32 With Display is a versatile iot development boards used across a wide range of applications including rapid IoT prototyping, connected sensor platforms, edge computing, wearable devices, and home automation.
Common use cases:
- Prototyping a smart environmental monitor
- Building a BLE-connected fitness tracker
- Creating an edge AI inference device
This product is ideal for IoT engineers, embedded developers, and electronics students.
Technical Tip: Development boards with built-in displays and sensors accelerate prototyping. Check GPIO count and peripheral support for your project needs.
