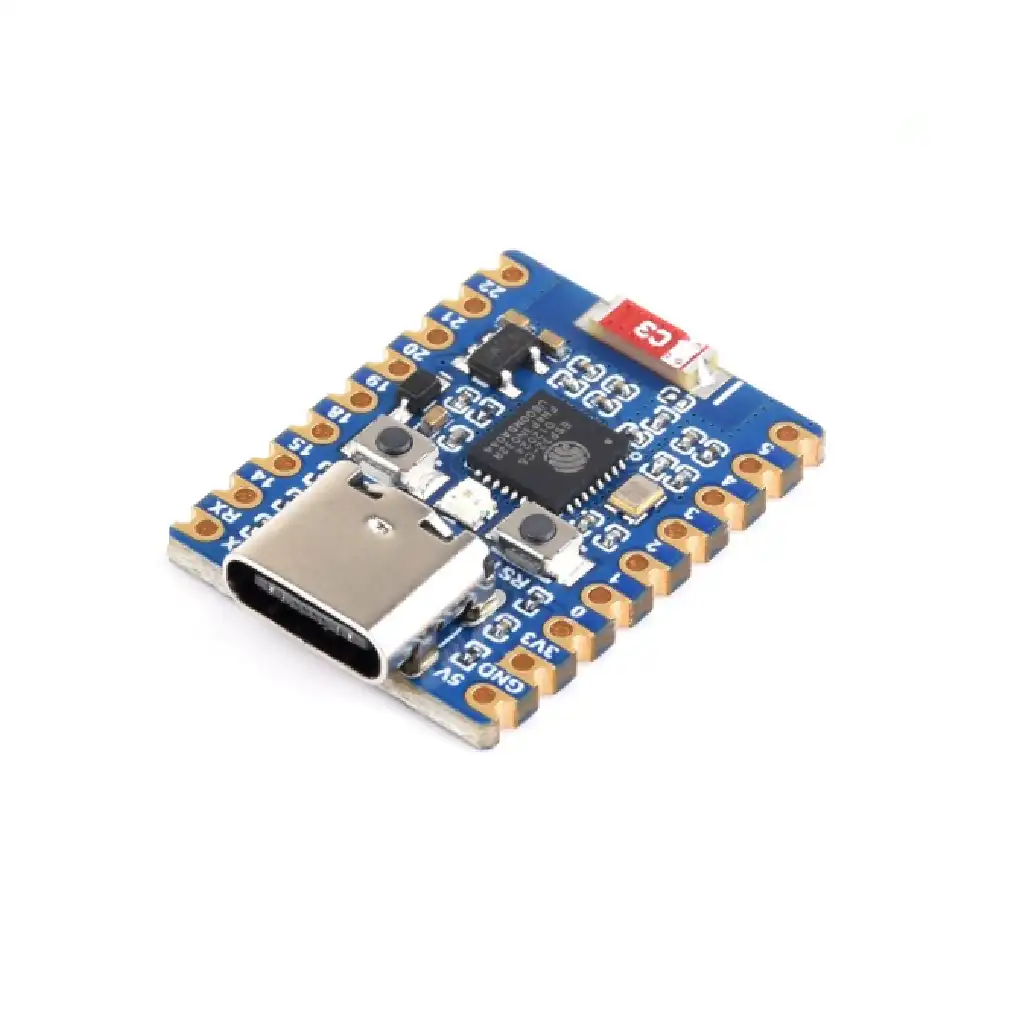

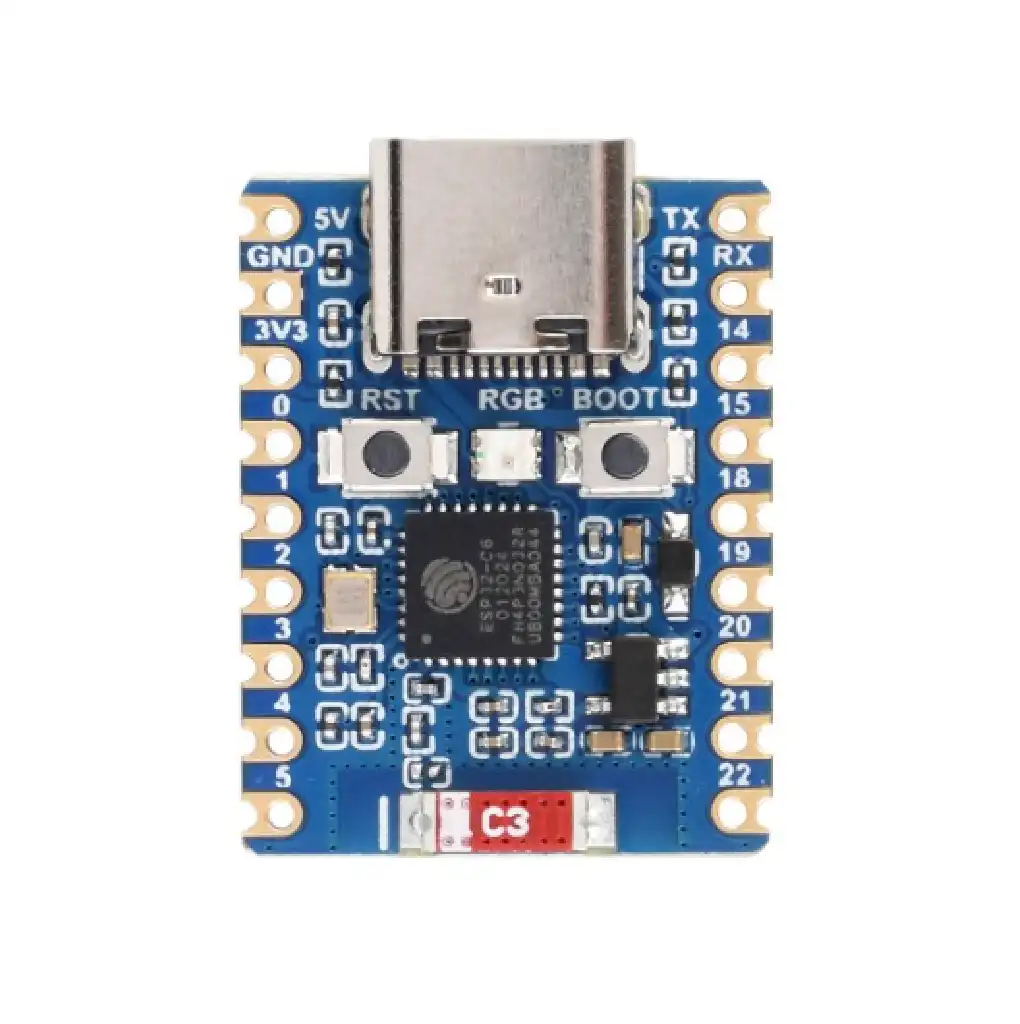

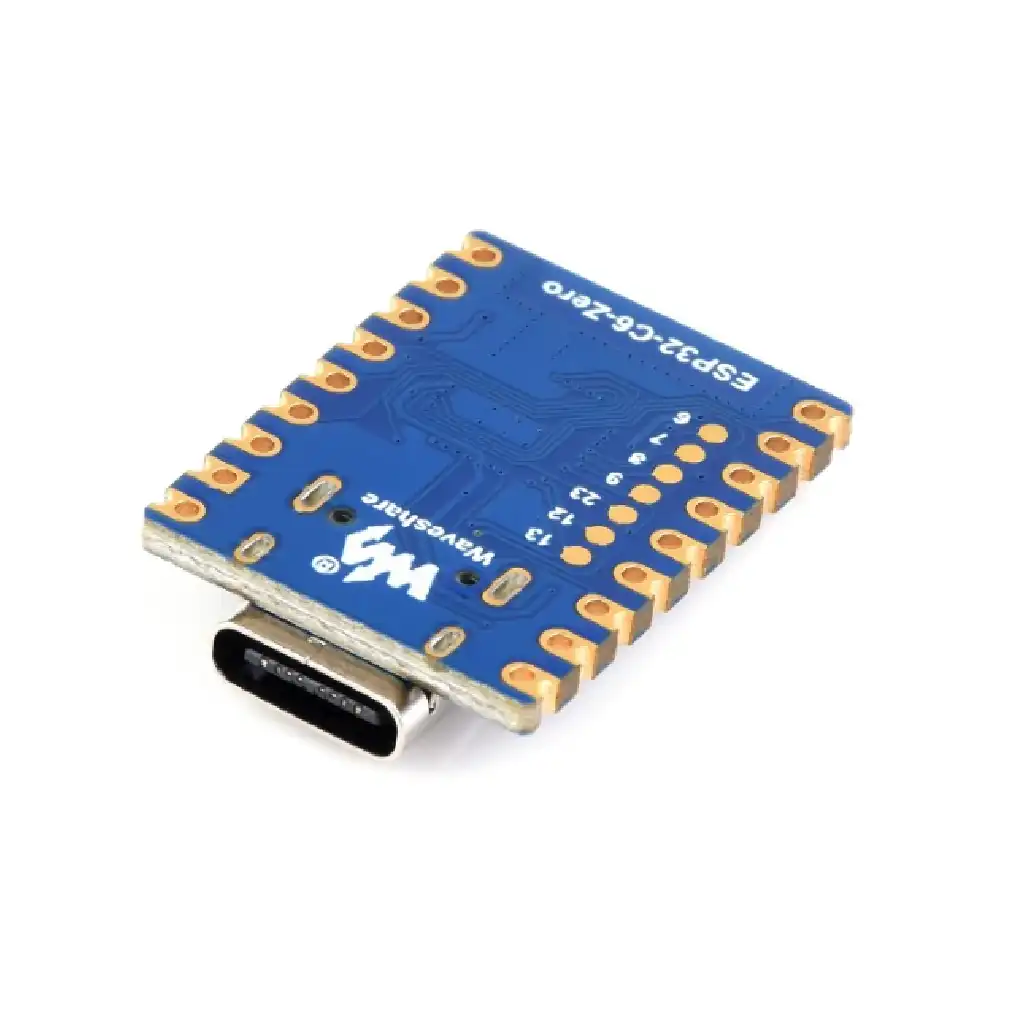

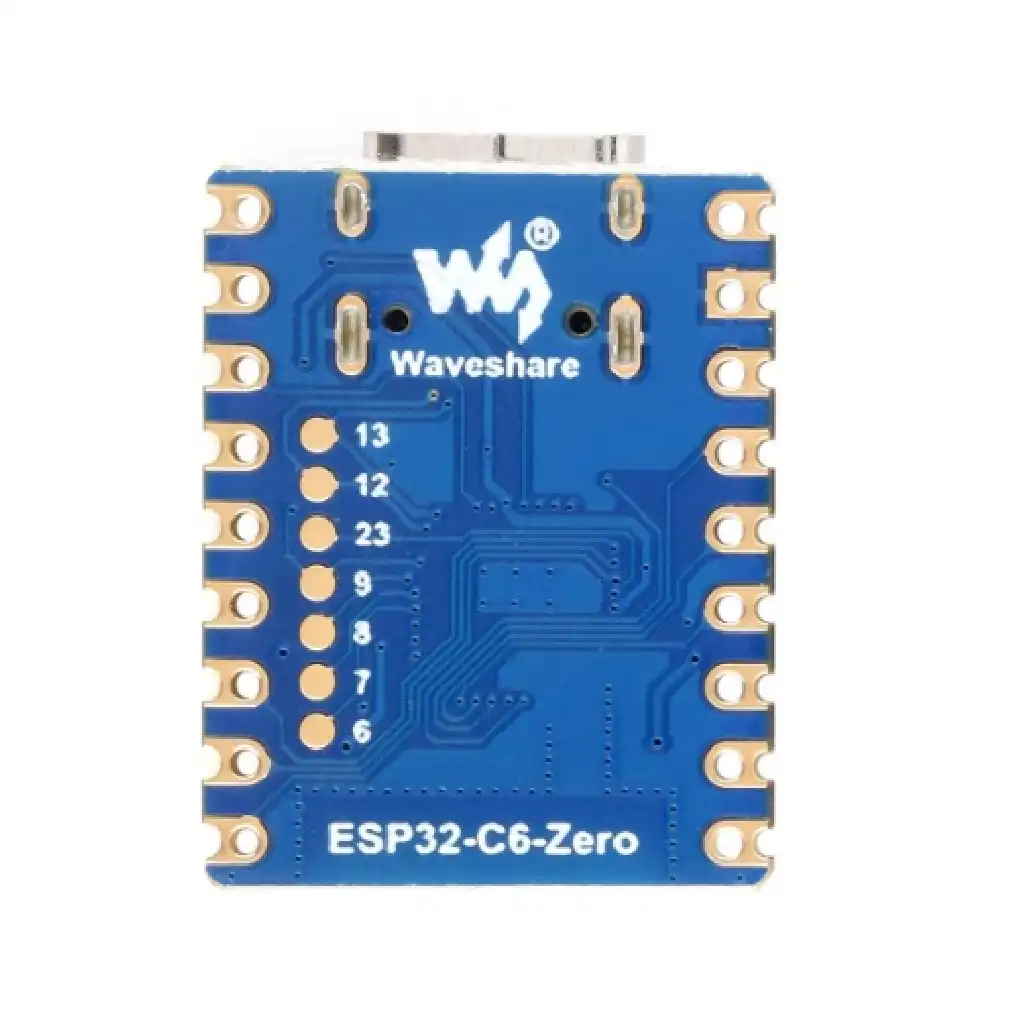

ESP32-C6 Mini Development Board, Based on ESP32-C6FH4, Dual Processors, 160MHz Running Frequency, 2.4GHz WiFi 6 & Bluetooth 5, ESP32 Development Board. The ESP32-C6-Zero is a low-cost, high-performance microcontroller development board with a compact size and rich peripheral interfaces.
Adopts ESP32-C6-MINI-1 as the main chip, with RISC-V 32-bit single-core processor, support up to 160 MHz, and built-in 320KB ROM 512KB HP SRAM, 16KB LP SRAM, and 4 MB flash. Onboard standard Raspberry Pi Pico pin headers, it can be compatible with multiple peripheral devices and is easier to use in different application scenarios.
You can choose ESP-IDF and Arduino in software so that you can easily and quickly get started and apply it to the product.
Features:
- Equipped with a high-performance 32-bit RISC-V processor with clock speed up to 160 MHz, and a low-power 32-bit RISC-V processor with clock speed up to 20MHz
- Built in 320KB ROM, 512KB of HP SRAM, 16KB LP SRAM and 4MB Flash memory
- Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance
- Castellated module and onboard ceramic antenna, allows soldering directly to carrier boards
- Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
- Onboard USB Type-C port, 22 × GPIO pins allows flexibly configuring pin functions
Specifications:
- Processor: 32-bit RISC-V
- ROM: 320KB
- SRAM: 512KB
- Flash memory: 4MB
- USB: Type-C
Package Includes:
1 x Waveshare ESP32-C6 Mini Development Board, Based on ESP32-C6FH4, Dual Processors, 160MHz Running Frequency, 2.4GHz WiFi 6 & Bluetooth 5, ESP32 Development Board
IoT Soil Monitor for Farms: ESP32 + LoRa + Dashboard
Modern Indian agriculture is rapidly embracing technology, and an IoT soil monitor farm ESP32 LoRa system represents one...
Read More →
ESP32 LTE 4G Module: SIM7600 for Remote IoT Connectivity
When your IoT deployment site has no Wi-Fi and no Ethernet, the ESP32 SIM7600 4G LTE IoT combination...
Read More →
Firebase Realtime Database with ESP32: IoT Data Storage
One of the most powerful combinations in modern IoT development is using Firebase Realtime Database with ESP32 for...
Read More →Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Model | ESP32-C6 |
| Interface / Protocol | WiFi, Bluetooth, 4G |
| Frequency | 160MHz |
| Color | Blue |
| SKU | AI6648 |
| Weight | 0.03 kg |
| Availability | In Stock |
Applications & Use Cases
The Waveshare ESP32-C6 Mini Development Board, Based on ESP32-C6FH4, Dual Processors, 160MHz Running Frequency, 2.4GHz WiFi 6 & Bluetooth 5, ESP32 Development Board is a versatile iot development boards used across a wide range of applications including rapid IoT prototyping, connected sensor platforms, edge computing, wearable devices, and home automation.
Common use cases:
- Prototyping a smart environmental monitor
- Building a BLE-connected fitness tracker
- Creating an edge AI inference device
This product is ideal for IoT engineers, embedded developers, and electronics students.
Technical Tip: Development boards with built-in displays and sensors accelerate prototyping. Check GPIO count and peripheral support for your project needs.
