This is the 69inch variant of the Waveshare ESP32-C6 1.69inch 240×280 Pixels LCD Development Board in IoT Development Boards. Available at ₹2,122.82 (₹1,799.00 + GST) with free shipping across India.

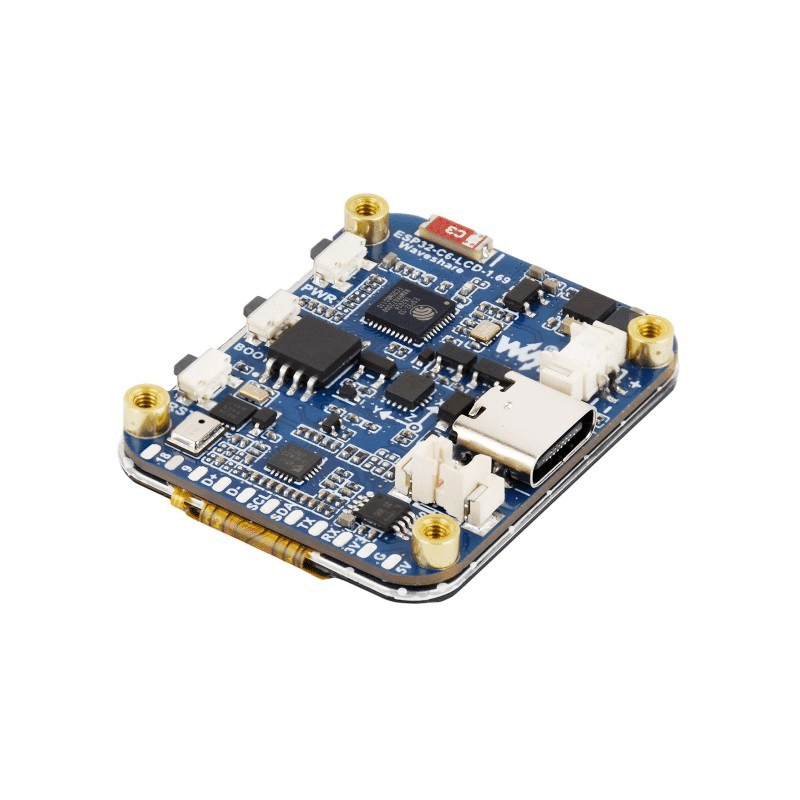

The Waveshare ESP32-C6 1.69-Inch LCD Development Board is a compact, low-cost solution ideal for AIoT and interactive embedded applications. The Development Board features a vibrant 240×280 resolution IPS LCD, and it’s driven by a powerful 32-bit RISC-V processor with support for Wi-Fi 6, BLE 5, Zigbee 3.0, and Thread. Designed for smooth integration, it includes a 16MB NOR flash, 6-axis IMU, RTC, USB Type-C, and audio codec with mic/speaker support.
The board’s SPI-based display driver (ST7789V2) ensures efficient IO usage. Perfect for smart devices, HMI panels, and edge AI applications where performance, wireless connectivity, and compact form factor matter.
Features:
-

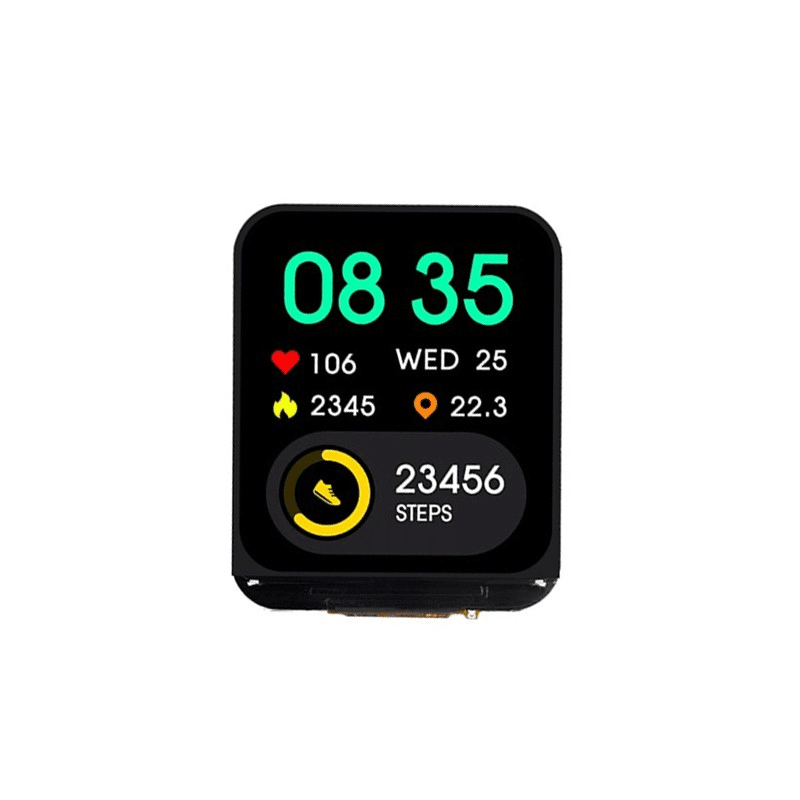

1.69” IPS LCD with 240×280 resolution, 262K colors
-
High-performance 160 MHz RISC-V processor
-
Wi-Fi 6, BLE 5, Zigbee 3.0, and Thread supported
-
ST7789V2 display driver via SPI interface
-
16MB NOR Flash with 512KB SRAM & 320KB ROM
-
Onboard 6-axis IMU (QMI8658) and RTC (PCF85063)
-
Audio codec (ES8311), mic, and speaker amplifier
-
Type-C USB port and Li-ion battery charging support
Specification:
| Item Type: | Development Board |
|---|---|
| Model: | LCD Development Board |
| Display Size (Inch): | 1.69 |
| Display Resolution: | 240×280 |
| Display Panel | IPS |
| Color: | 262k |
| Brightness (cd/m²) | 435 |
| Communication Interface | SPI |
| Length (mm): | 37.12 |
| Width (mm): | 30 |
Package Includes:
-
1 x ESP32-C6-LCD-1.69
-

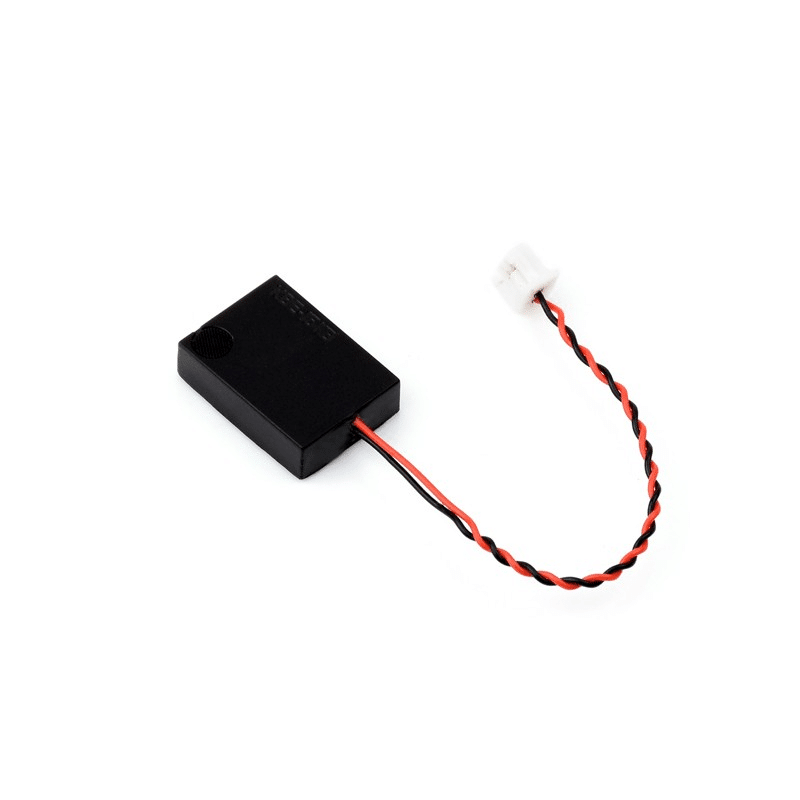

1 x 6Ω 1W speaker
MQTT vs HTTP vs CoAP: IoT Protocol Comparison
Table of Contents Understanding IoT Protocols MQTT: The IoT Standard HTTP and REST APIs for IoT CoAP: Lightweight...
Read More →
WEMOS D1 Mini: Compact ESP8266 Board Project Guide
The WEMOS D1 Mini ESP8266 compact board project scene in India has exploded over the last few years,...
Read More →
ESP32-S3 AI Camera: TinyML Object Detection On-Device
The ESP32-S3 AI camera with TinyML object detection running entirely on-device represents one of the most exciting developments...
Read More →Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Model | ESP32-C6 |
| Display Size | 1.69" |
| Resolution | 240x280 |
| Package Quantity | 280 pcs |
| SKU | AI7687 |
| Weight | 0.020800 kg |
| Availability | In Stock |
Applications & Use Cases
The Waveshare ESP32-C6 1.69inch 240×280 Pixels LCD Development Board is a versatile iot development boards used across a wide range of applications including rapid IoT prototyping, connected sensor platforms, edge computing, wearable devices, and home automation.
Common use cases:
- Prototyping a smart environmental monitor
- Building a BLE-connected fitness tracker
- Creating an edge AI inference device
This product is ideal for IoT engineers, embedded developers, and electronics students.
Technical Tip: Development boards with built-in displays and sensors accelerate prototyping. Check GPIO count and peripheral support for your project needs.
