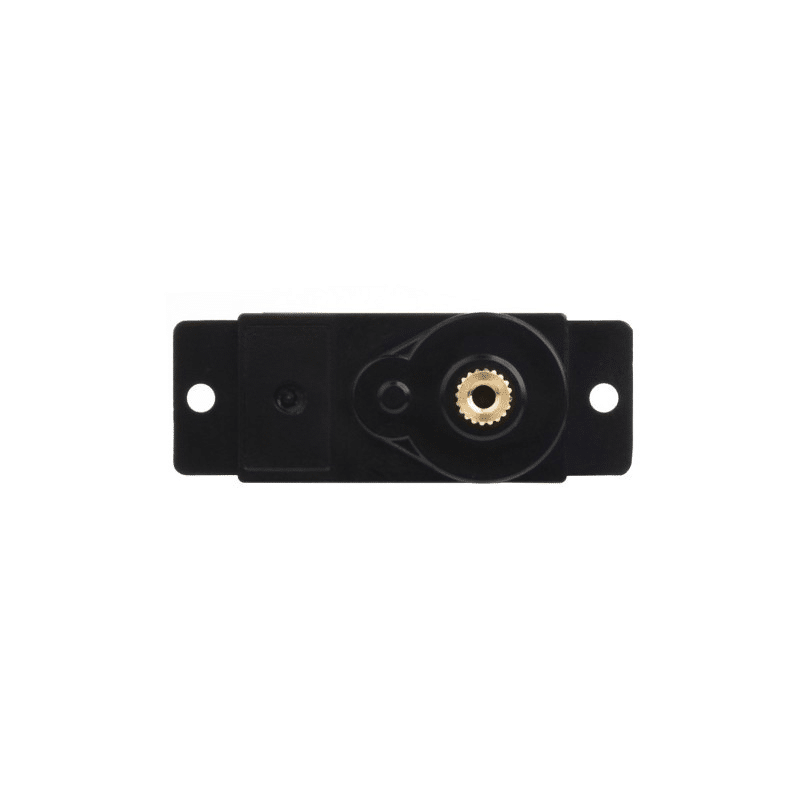

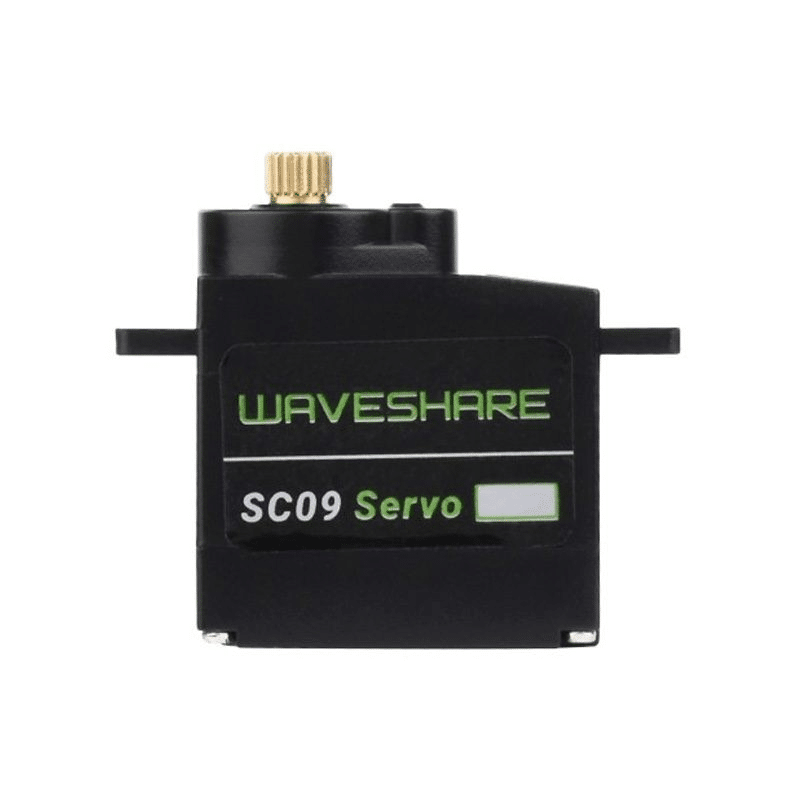

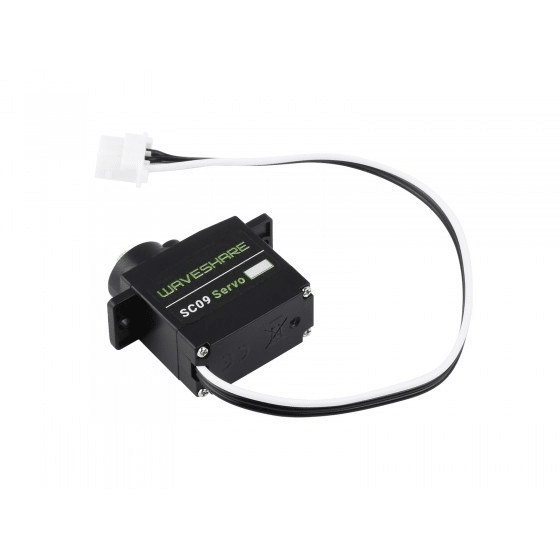

SC09 Servo is a mini and compact dual-shaft serial bus servo, capable of controlling within a 300° range and programmable to switch into continuous rotation motor/stepper motor mode. It features a built-in interface that supports series control of up to 253 bus servos, with each servo able to provide its current angle, load, voltage, mode, and more.
Ideal for robotic arms, hexapod robots, humanoid robots, wheeled robots, and other projects requiring accurate angle and load feedback.
Feature:
- Can be used in series to control up to 253 servos simultaneously (with adequate power supply) and obtain feedback from each servo
- Wide voltage input 4.8–8.4V
- Locked-rotor torque up to 2.3kg.cm@6V
- High precision, angle control accuracy up to 300°/1024
- Programmable operating mode: servo mode angle control / motor mode with continuous rotation
Specifications:
| item type | Waveshare Servo Motor |
|---|---|
| torque rating (kg-cm) | 2.3 |
| operating voltage (vdc) | 4.8-8.4V |
| current at no load | 150mA@6V |
| motor type | Iron core motor |
| gear type | high-precision metal gear |
| cable length (cm) | 15CM |

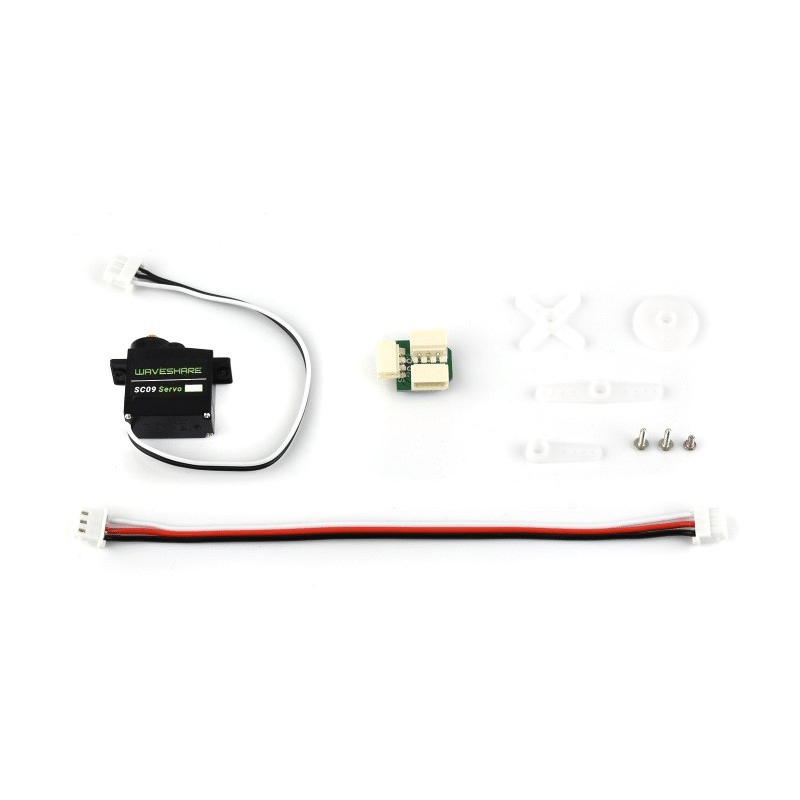

Package Includes:
- 1 x Waveshare 2.3kg Dual-axis Serial Bus Servo, Two-way Feedback, Servo/Motor Mode Switchable, Compact Size, 300° Rotation Angle
Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Interface / Protocol | BLE |
| SKU | AI7516 |
| Weight | 0.07 kg |
| Availability | Out of Stock |
