This is the 1inch variant of the Waveshare 10.1inch Capacitive Touch Display, Optical Bonding Toughened Glass Panel, 1280×800, IPS, HDMI Interface in TFT LCD Displays. Available at ₹7,799.80 (₹6,610.00 + GST) with free shipping across India.

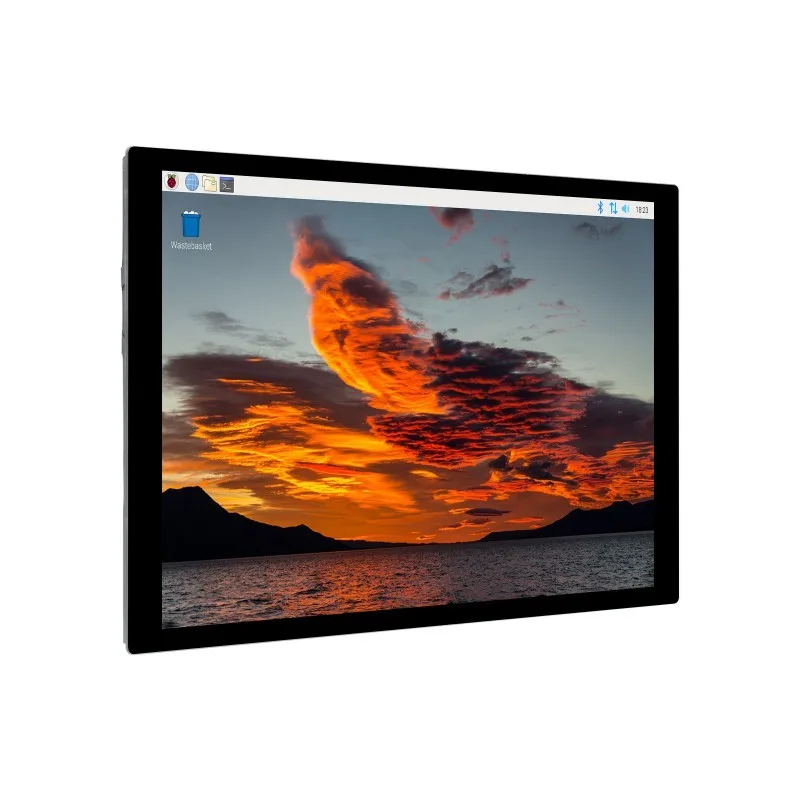

- 10.1inch Capacitive Touch Display, Optical Bonding Toughened Glass Panel, 1280×800, IPS, HDMI Interface. The Waveshare 10.1inch Capacitive Touch Display is a high-quality display panel with a capacitive touch interface, making it ideal for use in a variety of applications, including industrial automation, digital signage, and gaming.
- The display features a 1280×800 pixel resolution with an IPS (in-plane switching) panel, which provides excellent color accuracy, wide viewing angles, and high contrast ratio. The display also uses optical bonding technology to bond the touch panel and the toughened glass panel together, which eliminates the air gap between the panels and reduces the reflection, resulting in improved image clarity and better touch sensitivity.
Features:
- 10.1-inch IPS screen with a hardware resolution of 1280 x 800.
- 10-point capacitive touch, with tempered glass panel, hardness up to 6H.
- Using optical bonding touch technology, the display effect is better.
- Supports Raspberry Pi OS / Ubuntu / Kali and Retropie when used with Raspberry Pi.
- Supports Windows 11 / 10 / 8.1 / 8 / 7 when used as a computer monitor.
- Support multi-language OSD menu (can be used for power control, adjusting brightness/contrast, etc.)
- Support HDMI audio output, onboard 3.5mm headphone jack, and 4PIN speaker jack.
Specifications:
- Model: 10.1DP-CAPLCD /
- Size: 10.1 Inch
- Viewing angle: 178 Deg
- Resolution: 1280 x 800 Pixels
- Touch panel dimensions: 239.00 (H) × 147.00 (V) × 2 (D) mm
- Display panel dimensions: 228.6 (H) × 143.0 (V) × 2.60 (D) mm
- Display area: 135.36 (H) × 216.58 (V) mm
- Pixel pitch: 0.1175 (H) × 0.1088 (V) mm
- Color gamut: 58% NTSC
- Maximum brightness: 350 cd/m²
- Contrast: 800:1 /
- Backlight: adjustment: OSD menu adjustment
- Refresh rate: 60 Hz
- DSI port Standard HDMI port /
- Power port: 5V Type-C /
- Input Current: 750-800 mA
- Power consumption: 4
Package Includes:
- 1 x Waveshare 10.1inch Capacitive Touch Display, Optical Bonding Toughened Glass Panel, 1280×800, IPS, HDMI Interface
Arduino Uno vs Nano vs Mega: Which Board Should You Buy?
Choosing between the Arduino Uno vs Nano vs Mega is one of the first decisions every maker faces....
Read More →
Arduino Mega 2560 Pinout: All 70 Pins Explained
Understanding the Arduino Mega 2560 pinout is essential for anyone building complex electronics projects. With 70 input/output pins,...
Read More →
Arduino Electronic Voting Machine for College Projects
Table of ContentsIntroductionComponents and Hardware SetupWiring Diagram and ConnectionsComplete Code with ExplanationCustomization and ImprovementsTroubleshooting Common IssuesAdvanced Features and...
Read More →Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Display Size | 10.1" |
| Interface / Protocol | HDMI |
| Resolution | 1280x800 |
| Package Quantity | 800 pcs |
| SKU | AI5967 |
| Weight | 0.67 kg |
| Availability | In Stock |
Applications & Use Cases
The Waveshare 10.1inch Capacitive Touch Display, Optical Bonding Toughened Glass Panel, 1280×800, IPS, HDMI Interface is a versatile tft lcd displays used across a wide range of applications including embedded HMI interfaces, Raspberry Pi touchscreen projects, Arduino display projects, industrial control panels, and information kiosks.
Common use cases:
- Adding a touch display to a Raspberry Pi project
- Building a portable game console
- Creating a dashboard for sensor data
This product is ideal for embedded developers, IoT makers, and industrial engineers.
Technical Tip: Check interface type (SPI, I2C, HDMI, RGB) and driver IC compatibility with your development board. IPS panels offer better viewing angles than TN.
