Product description

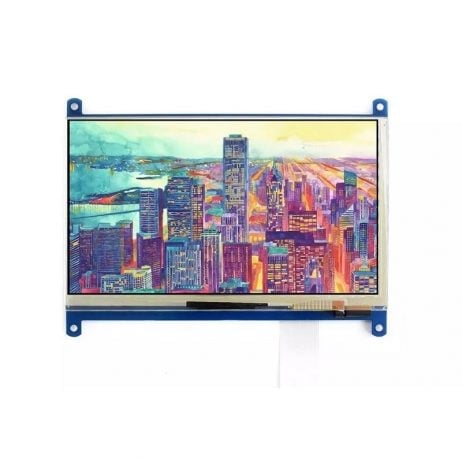

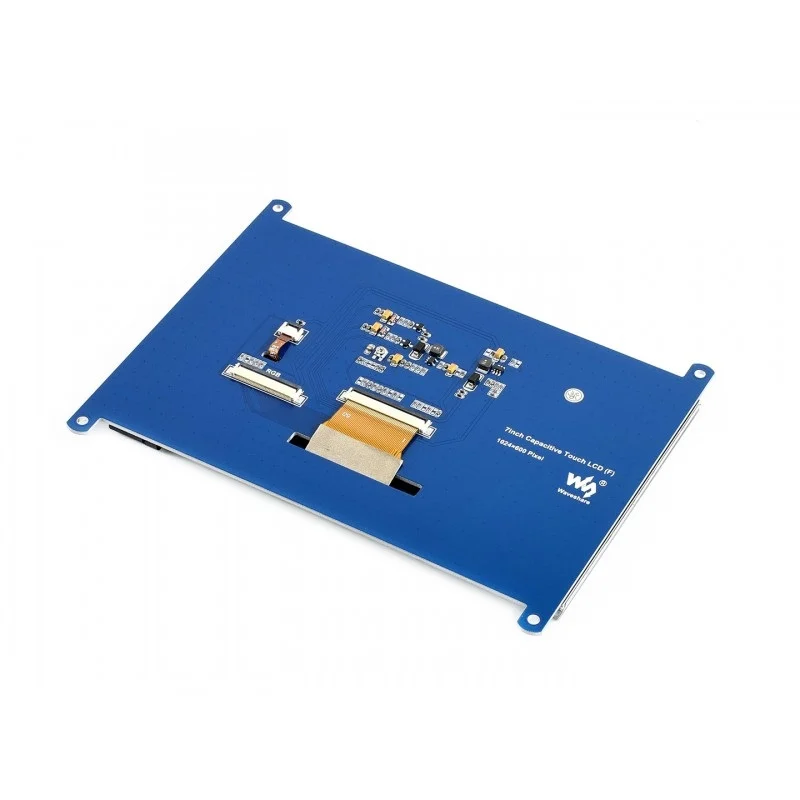

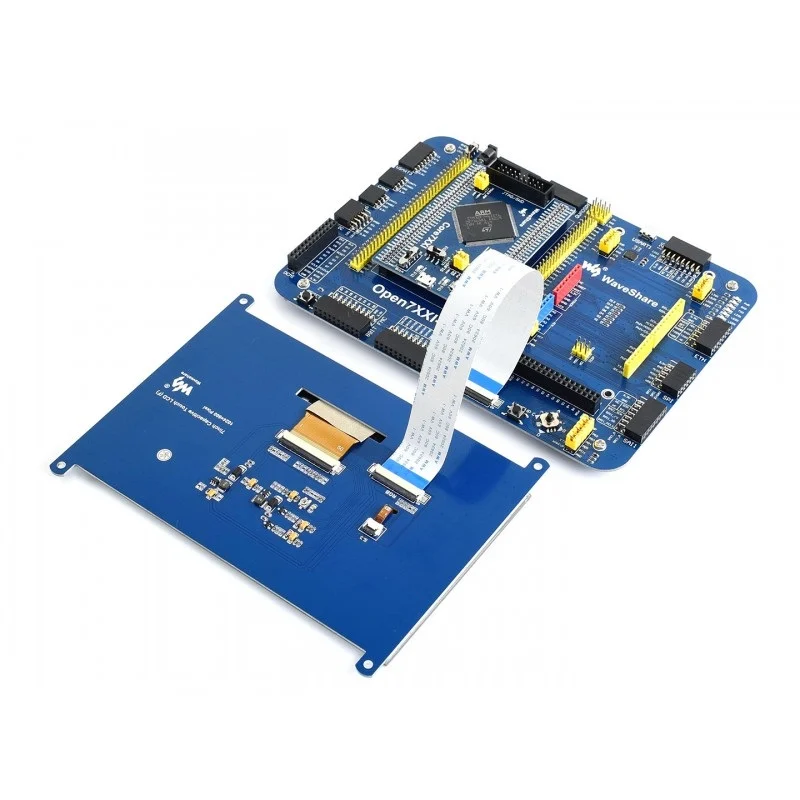

Waveshare 7 Inch Capacitive Touch LCD Display (F) is a color-active matrix LCD module and stand-alone touch controller incorporating amorphous silicon TFT (Thin Film Transistor). It is composed of a color TFT-LCD panel, driver ICs, FPC, and a backlight unit. The 7.0′′ display area contains 1024 (RGB) x 600 pixels.This Waveshare 7 Inch Capacitive Touch LCD Display is compatible with Open746I.
Features:
- High Resolution:1024(RGB) x 600 Dots
- Adopting a high aperture ratio
- 24 chip LED backlight
- Dot-Inversion
Specification
| Model Type: | LCD Display |
|---|---|
| Touch Type | Capacitive |
| Display Size (Inch): | 7 |
| Display Resolution: | 1024 × 600 |
| Backlight mode | LED |
| Input Voltage (V): | 3.0 ~ 3.6V |
| Interface Type | RGB |
| Panel Type | TFT |
| Touch Controller | GT911 |
| Touch Panel | Capacitive (5 multi-touch) |
| Dot Pitch | 0.0502 (W) × 0.1432 (H) |
| Length (mm): | 125 |
| Width (mm): | 165 |
| Shipping Weight | 0.197 kg |
Package Includes:
1 x 7inch Capacitive Touch LCD (F)
1 x 40-pin FFC (opposite sides contact)
ATtiny85 Digispark Projects: Tiny USB Gadgets for Beginners
The Digispark ATtiny85 is arguably the coolest little microcontroller board you can buy for under ₹150. About the...
Read More →
Arduino Batch Programming: Flash Multiple Boards Quickly
Table of ContentsIntroductionComponents and Hardware SetupWiring Diagram and ConnectionsComplete Code with ExplanationCustomization and ImprovementsTroubleshooting Common IssuesAdvanced Features and...
Read More →
Arduino CAN Bus Tutorial: MCP2515 Module for Automotive Projects
The Arduino CAN bus MCP2515 module is your gateway to reading automotive sensor data, communicating with vehicle ECUs,...
Read More →Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Display Size | 7" |
| Resolution | 1024x600 |
| Package Quantity | 600 pcs |
| SKU | AI0343 |
| Weight | 0.39 kg |
| Availability | In Stock |
Applications & Use Cases
The Waveshare 7 Inch Capacitive Touch LCD Display (F) 1024×600 is a versatile tft lcd displays used across a wide range of applications including embedded HMI interfaces, Raspberry Pi touchscreen projects, Arduino display projects, industrial control panels, and information kiosks.
Common use cases:
- Adding a touch display to a Raspberry Pi project
- Building a portable game console
- Creating a dashboard for sensor data
This product is ideal for embedded developers, IoT makers, and industrial engineers.
Technical Tip: Check interface type (SPI, I2C, HDMI, RGB) and driver IC compatibility with your development board. IPS panels offer better viewing angles than TN.
