This is the 9inch variant of the Waveshare 1.9inch LCD Display Module, SPI Interface, IPS, 262K Colors in TFT LCD Displays. Available at ₹1,053.74 (₹893.00 + GST) with free shipping across India.
Description:
Waveshare 1.9-inch LCD Display Module with a 170×320 Resolution. It supports SPI Interface, IPS, and 262K Colors output quality.
The built-in driver of the 1.9-inch LCD Module is ST7789V2, which is the LCD controller with 240 x RGB x 320, and the resolution of the LCD is 170 (H) RGB × 320 (V). Moreover, the internal RAM of the LCD is not fully used as it can be initialized as a portrait and horizontal screen. This LCD supports the input RGB format of 12 bits, 16 bits, and 18 bits, that is, RGB444, RGB565, and RGB666. The demo used here is RGB565, which is the RGB format we generally use. As the LCD adopts a 4-wire SPI, it is not only faster in communication but also saves more GPIO headers.
Features:
-
170×320 resolution, 262K colors, clear and colorful displaying effect
-

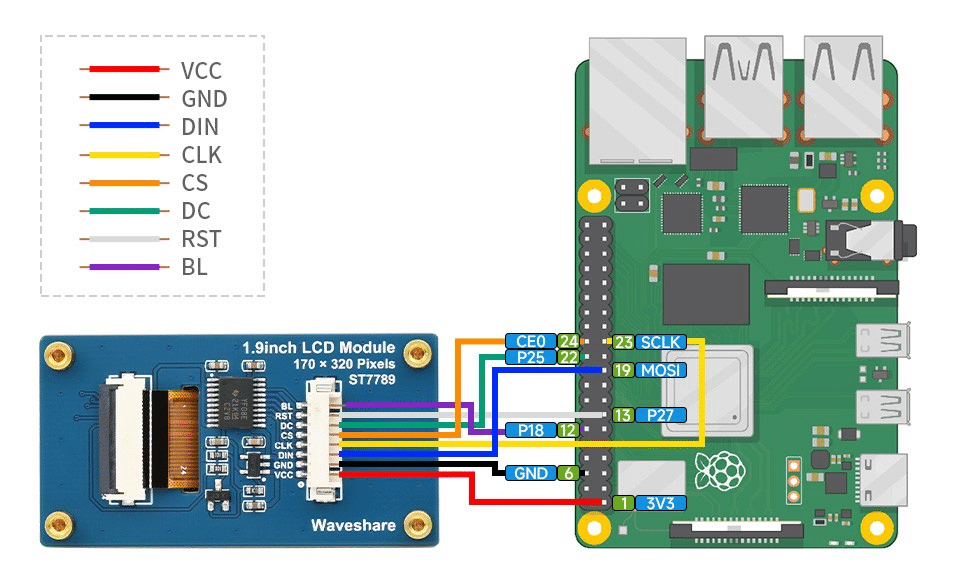

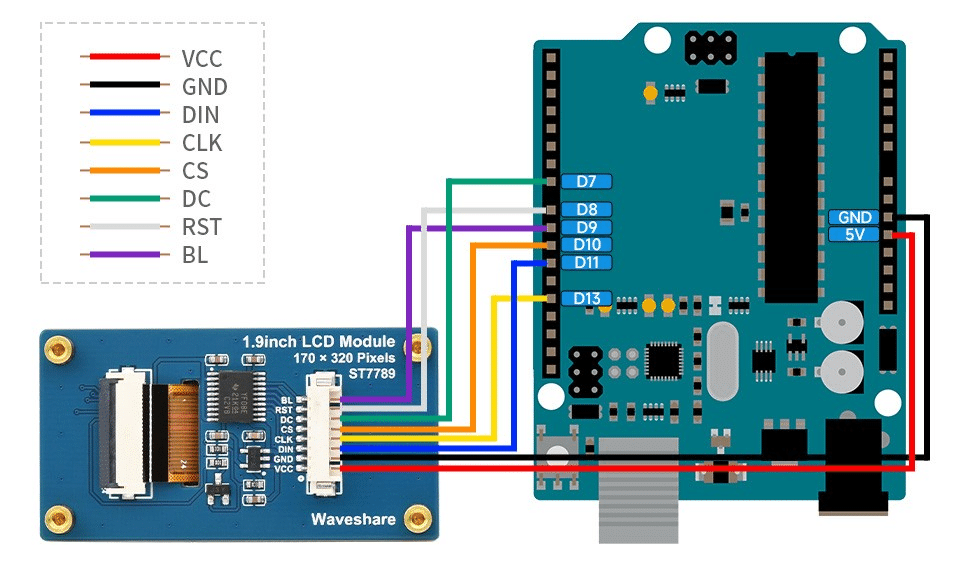

SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32
-
Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)
Specification:
| Model: | LCD Display Module |
|---|---|
| Display Size (Inch): | 1.9 |
| Display Resolution: | 170 × 320 |
| Communication Mode | 4-wire SPI |
| Display Panel | 0.1335 × 0.1335 Mm ( Ips Pixel Size) |
| Driver IC | ST7789v2 |

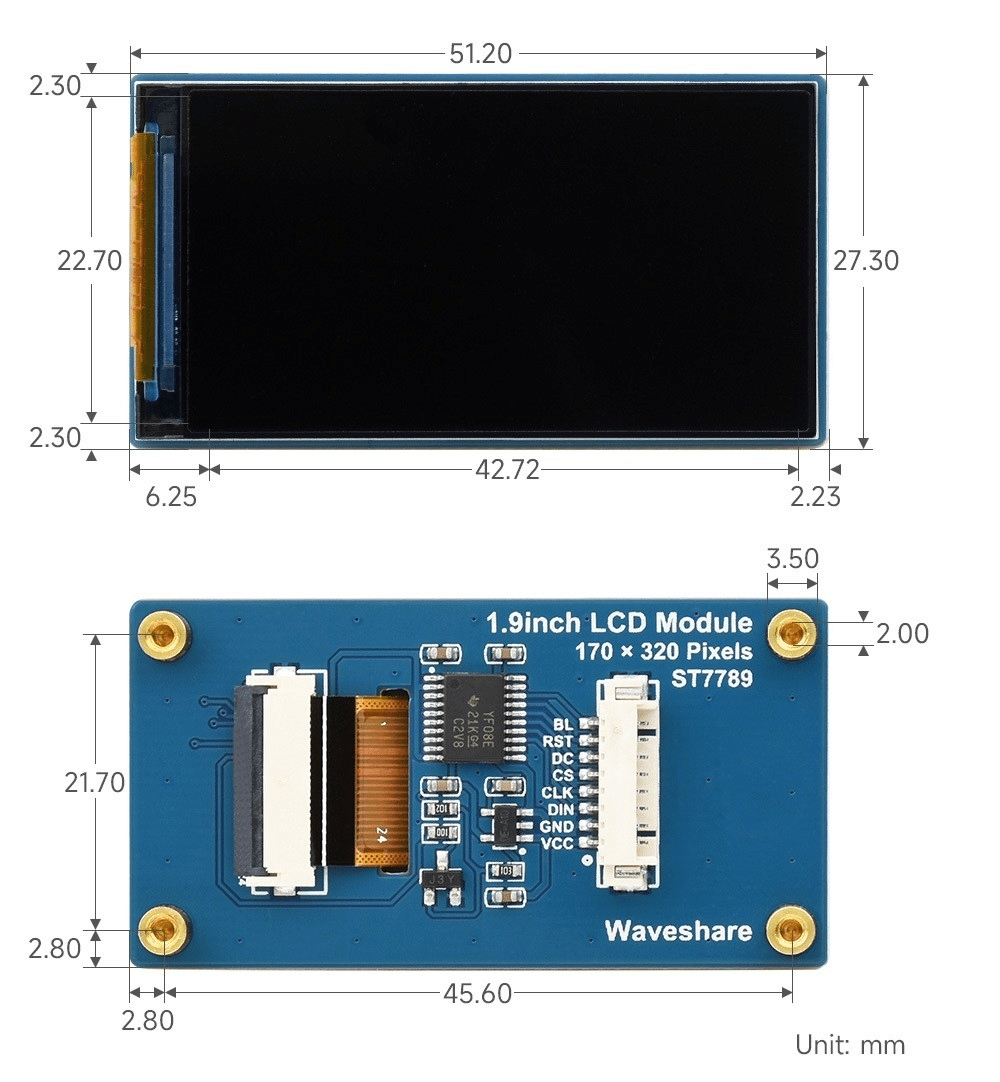

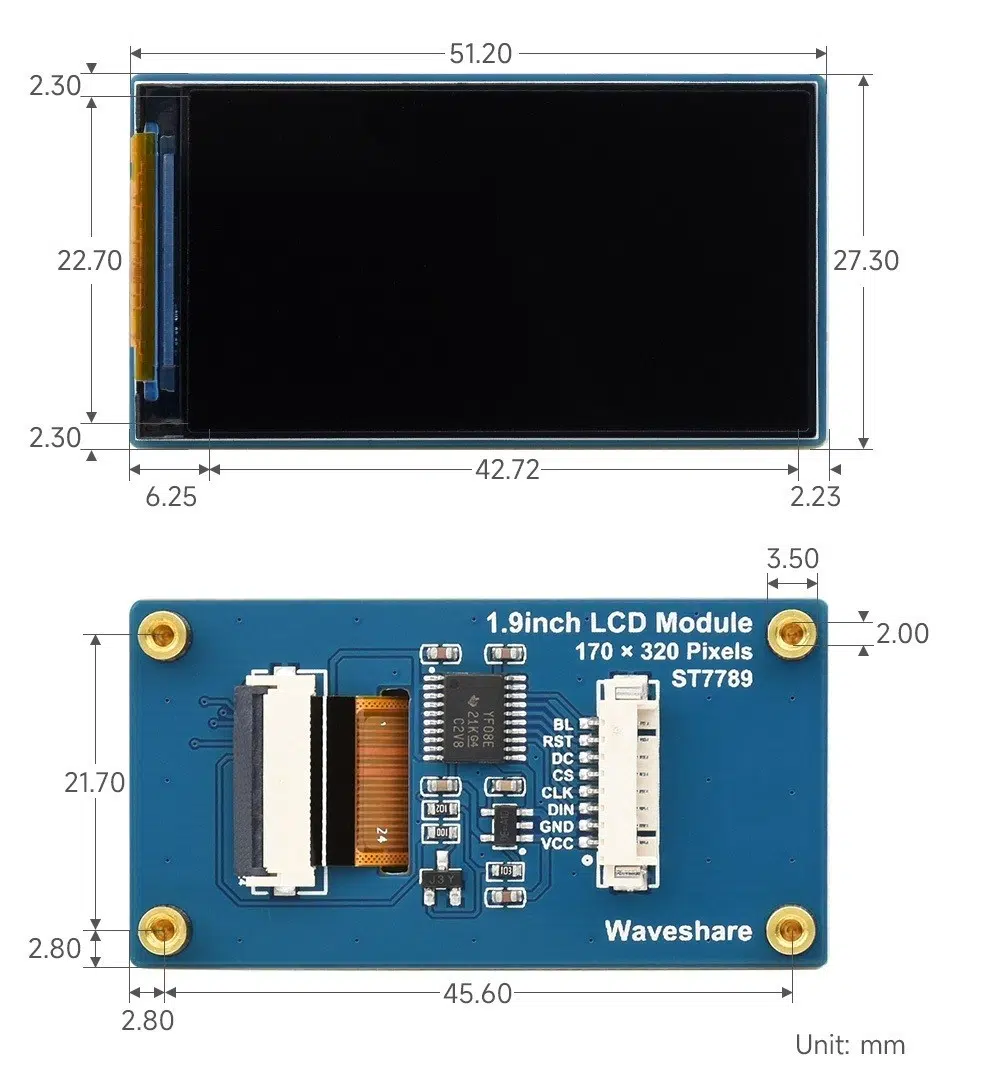

| Module Size (LxWxH) mm | 27.3 × 51.2mm |
Package Includes:
-
1 x Waveshare 1.9inch LCD Display Module.
Arduino Game Console: Build a Handheld Gaming Device
Table of ContentsIntroductionComponents and Hardware SetupWiring Diagram and ConnectionsComplete Code with ExplanationCustomization and ImprovementsTroubleshooting Common IssuesAdvanced Features and...
Read More →
State Machine Programming: Button Debounce on Arduino
Every Arduino beginner eventually runs into the same frustrating problem: your button press registers multiple times when it...
Read More →
ESP32 Google Sheets Logger: Free Cloud Data Storage
Esp32 Google Sheets Logger — this detailed tutorial covers everything from hardware selection to complete working code, designed...
Read More →Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Display Size | 1.9" |
| Interface / Protocol | SPI |
| SKU | AI7672 |
| Weight | 0.03 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Waveshare 1.9inch LCD Display Module, SPI Interface, IPS, 262K Colors is a versatile tft lcd displays used across a wide range of applications including embedded HMI interfaces, Raspberry Pi touchscreen projects, Arduino display projects, industrial control panels, and information kiosks.
Common use cases:
- Adding a touch display to a Raspberry Pi project
- Building a portable game console
- Creating a dashboard for sensor data
This product is ideal for embedded developers, IoT makers, and industrial engineers.
Technical Tip: Check interface type (SPI, I2C, HDMI, RGB) and driver IC compatibility with your development board. IPS panels offer better viewing angles than TN.
