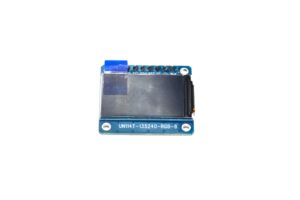

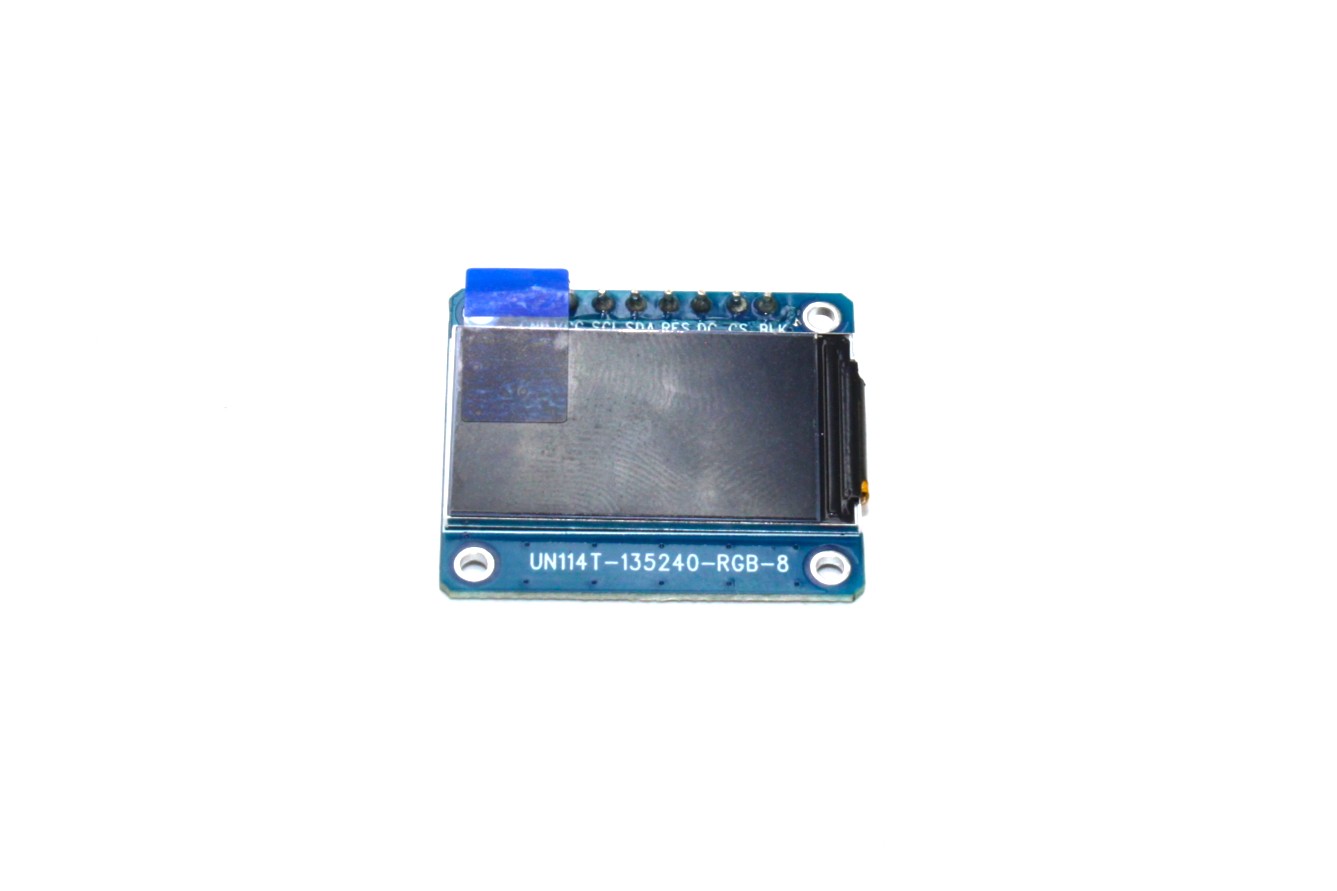

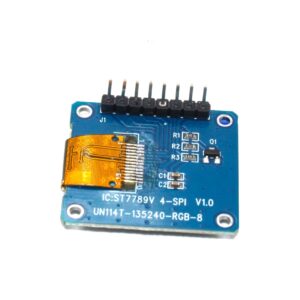

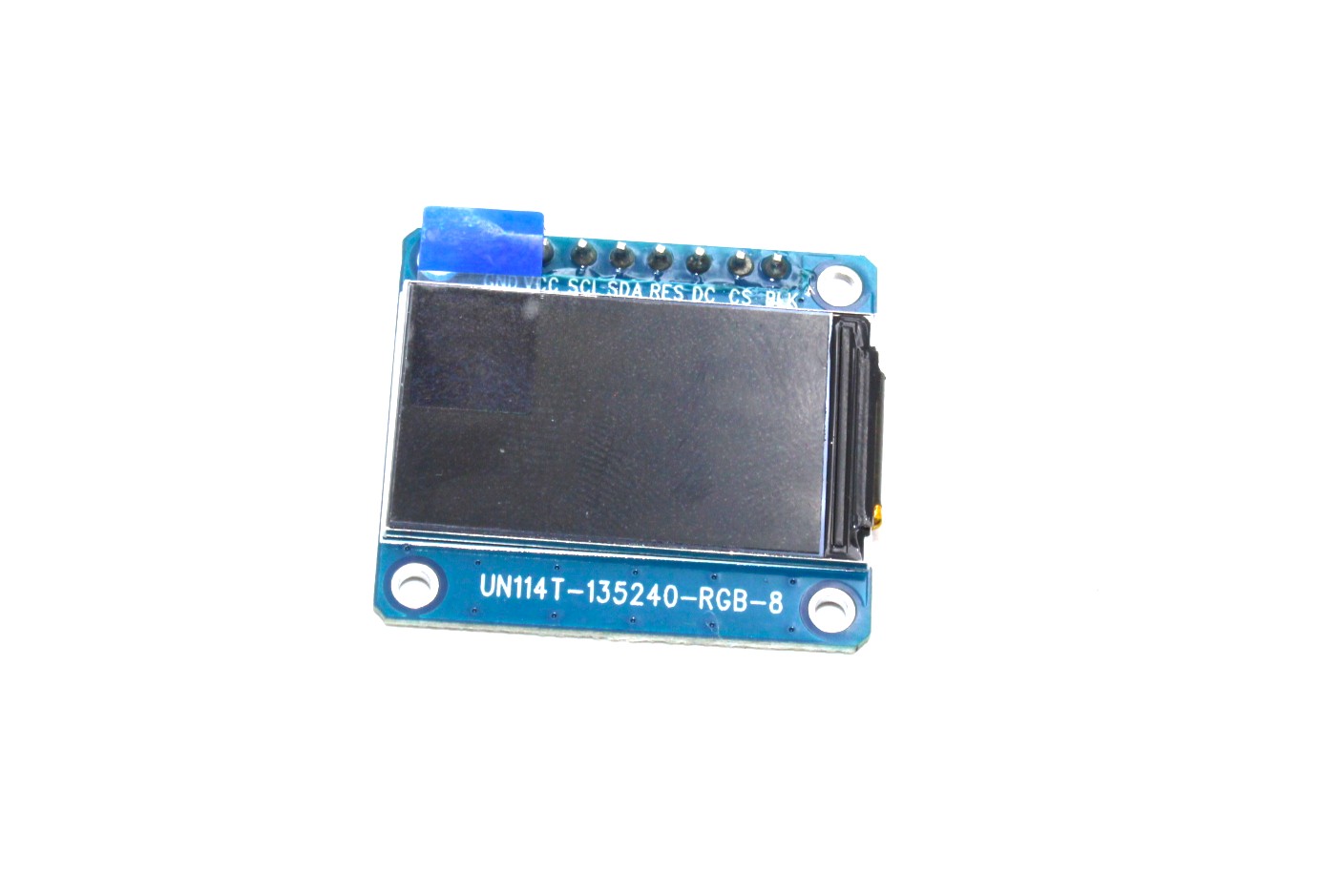

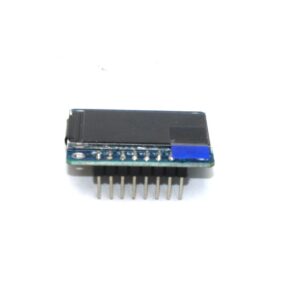

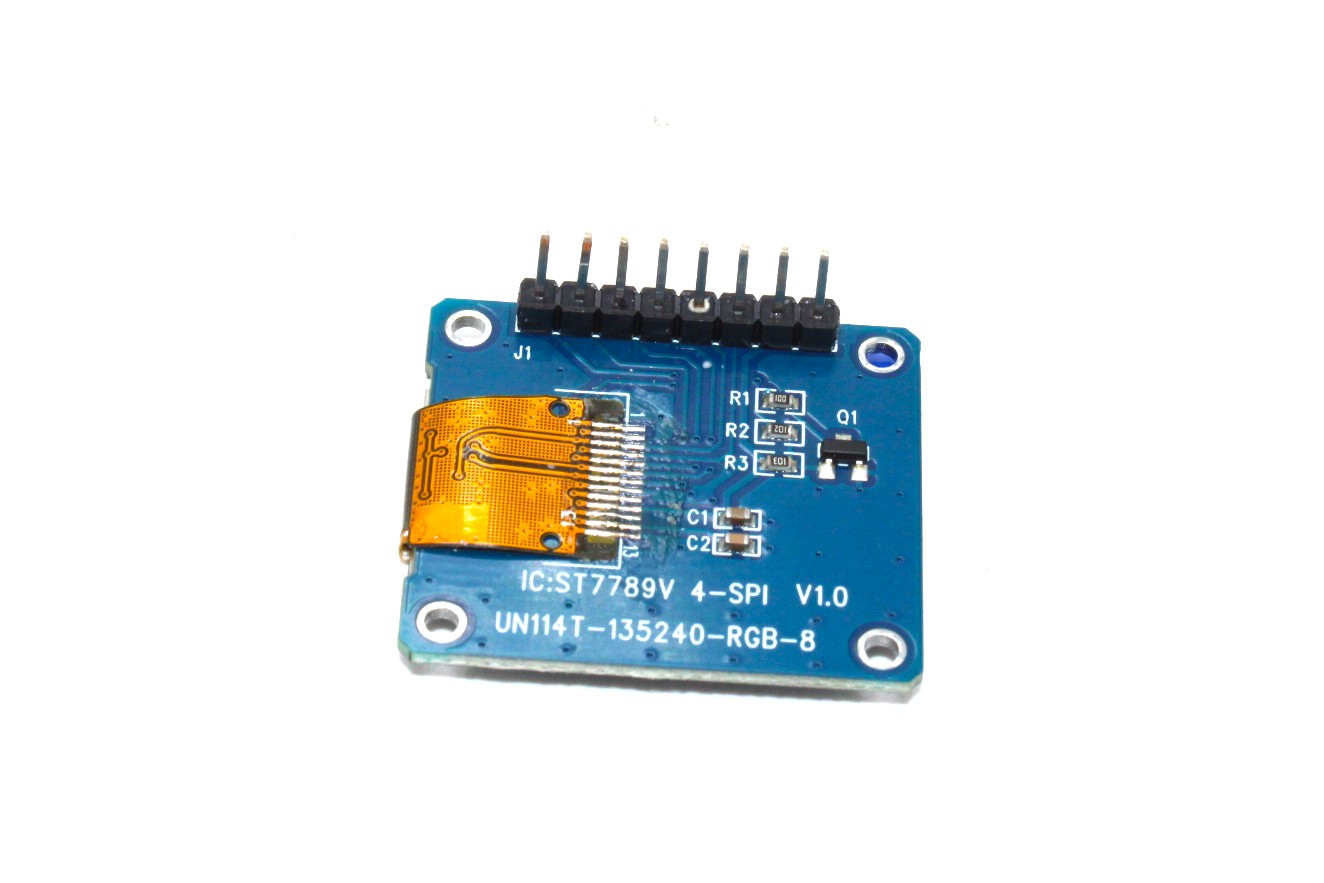

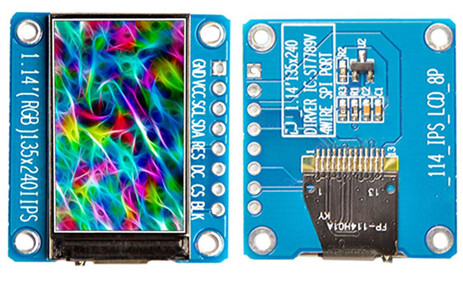

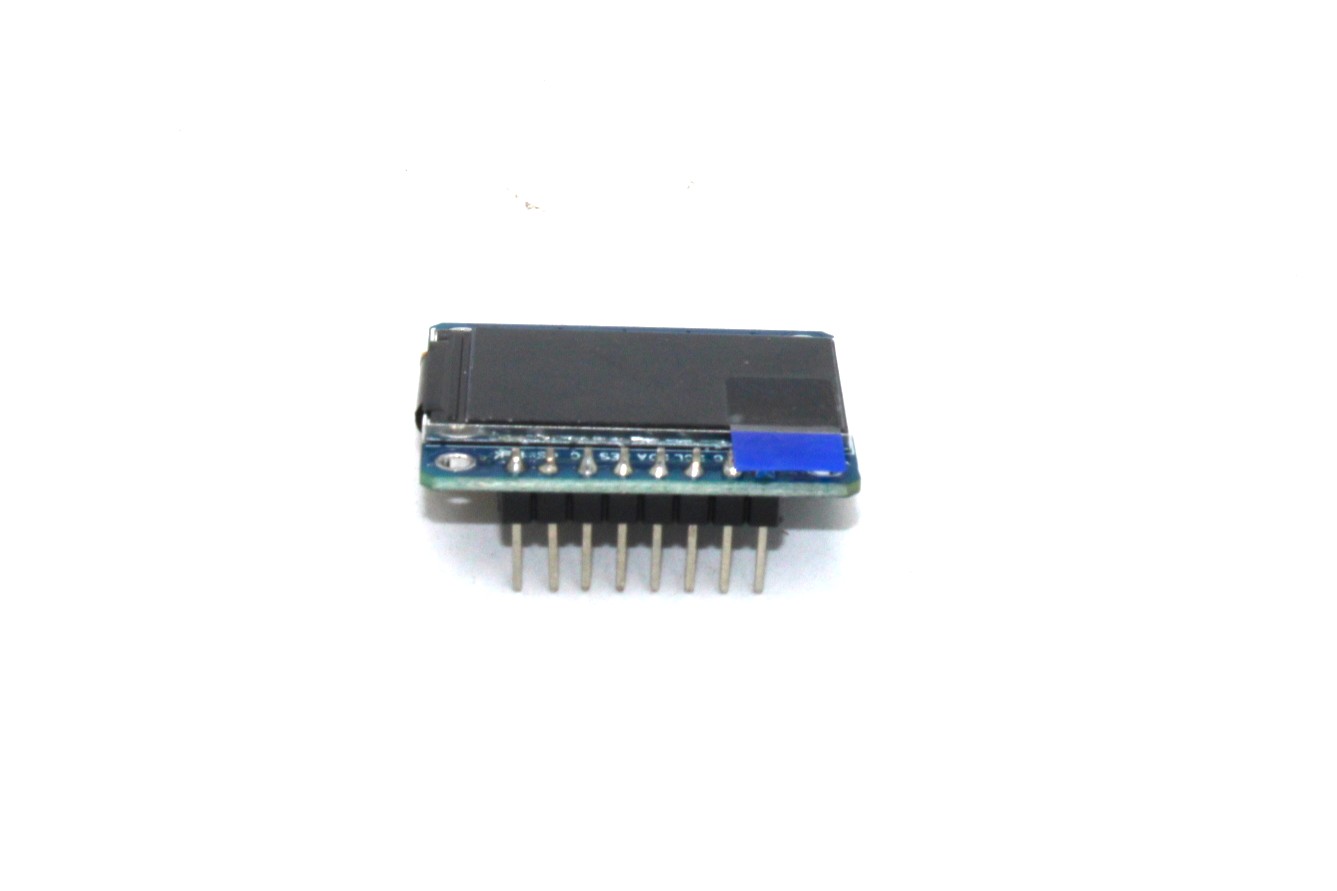

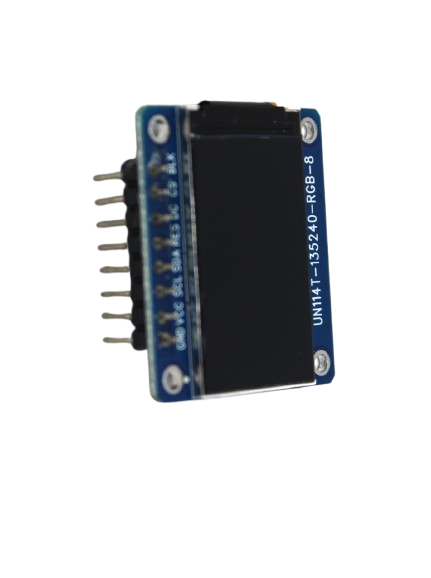

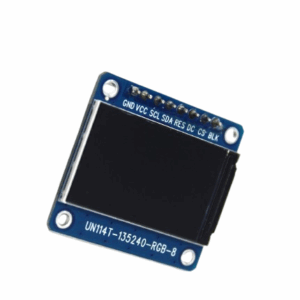

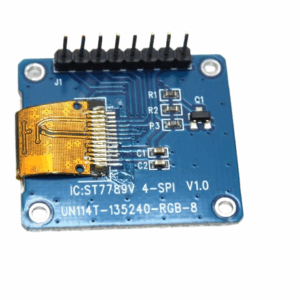

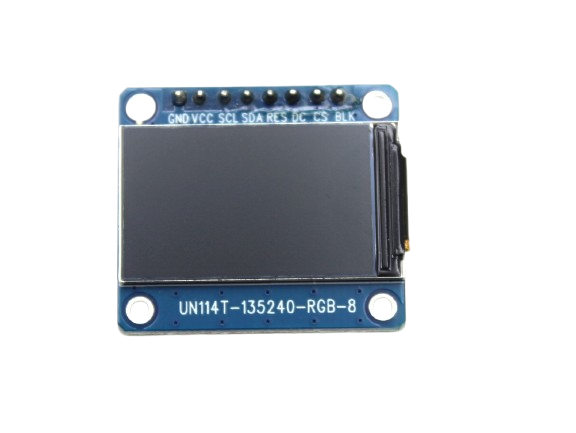

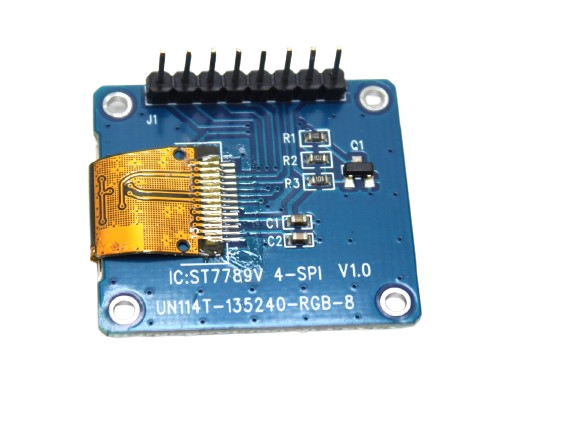

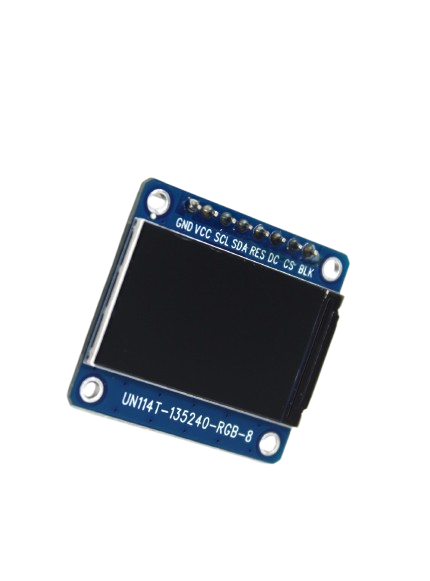

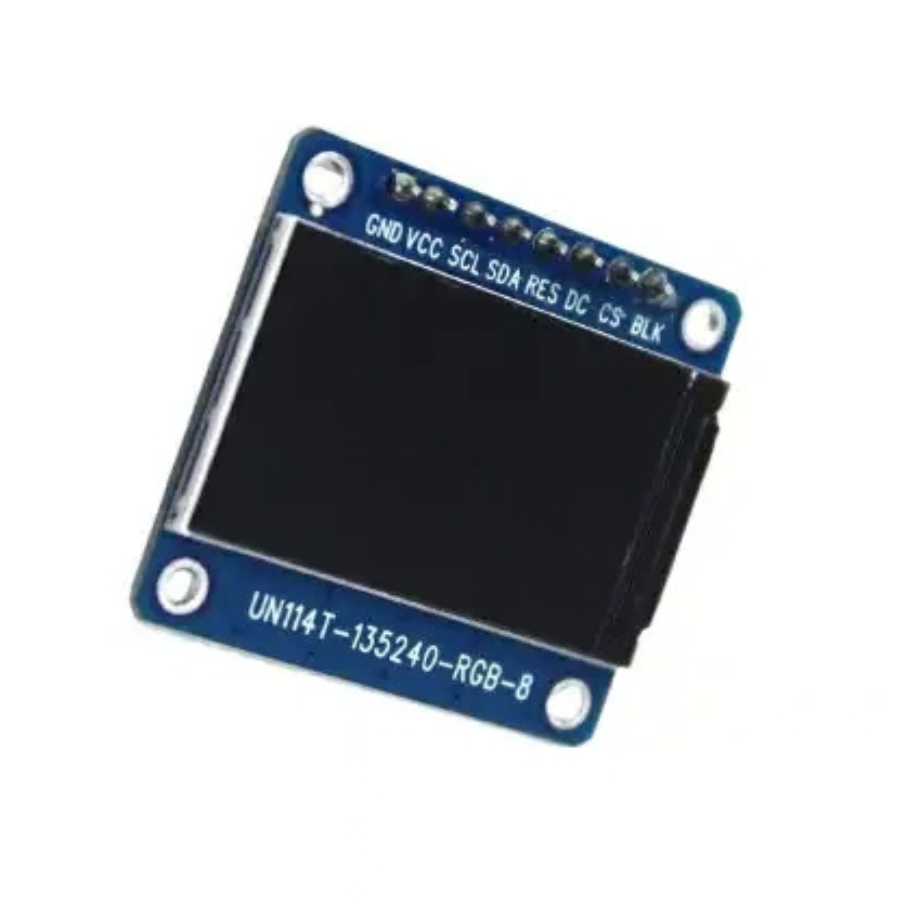

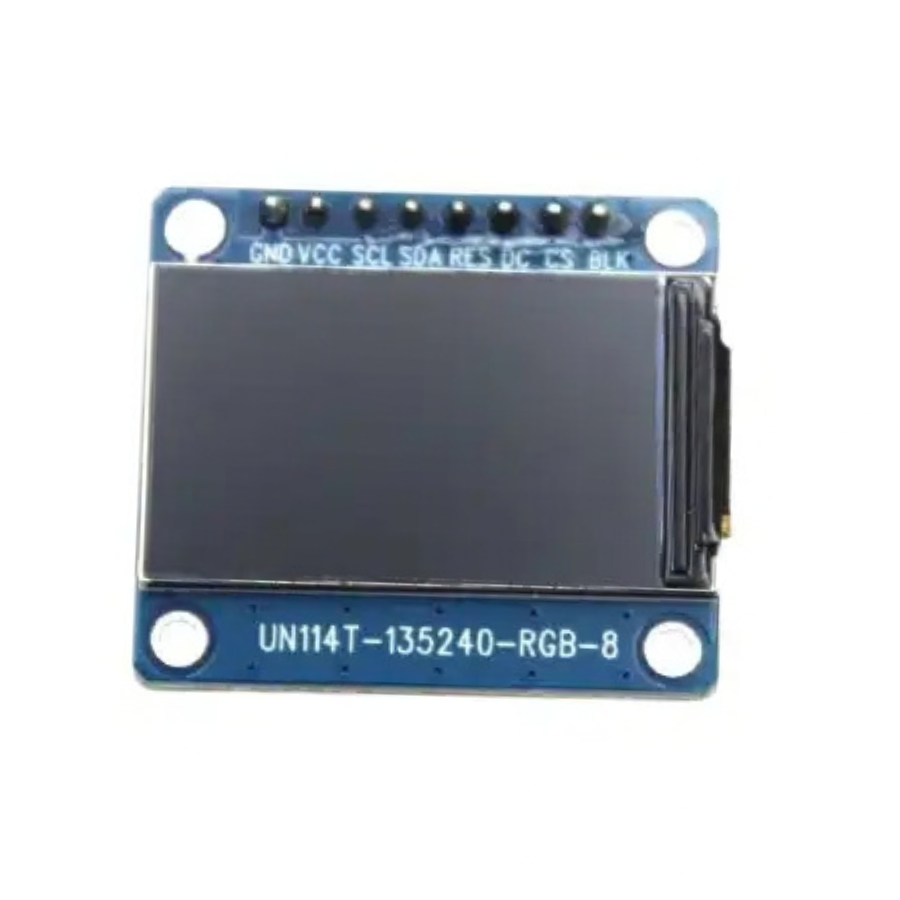

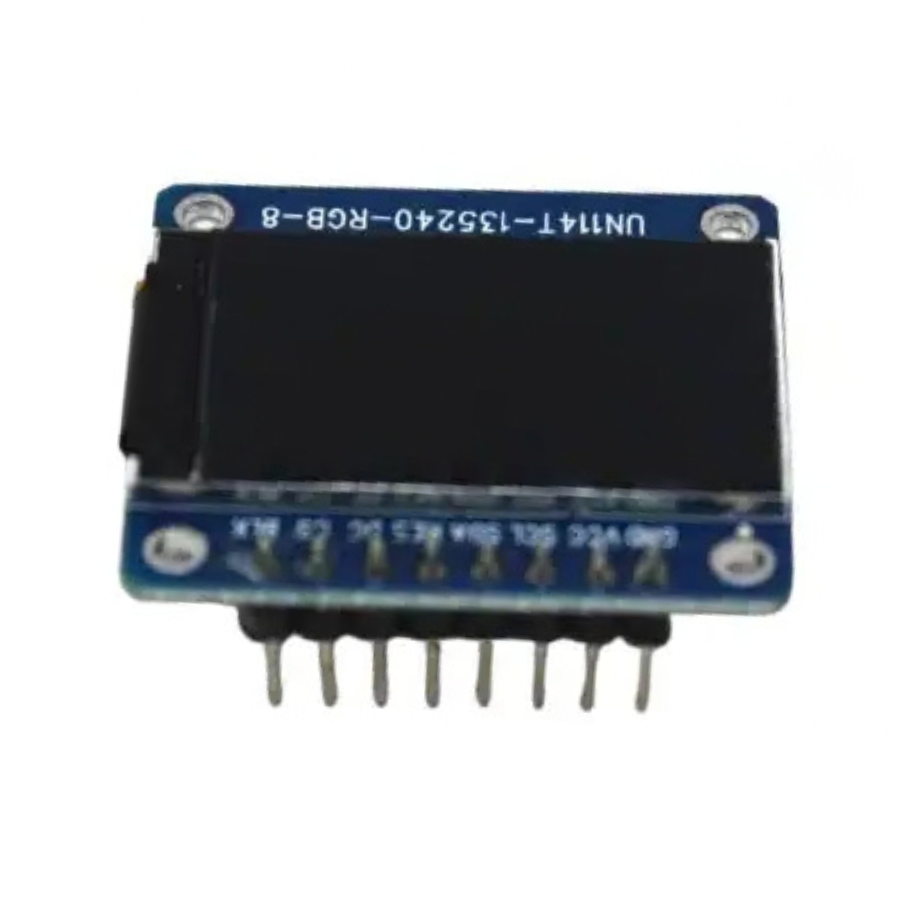

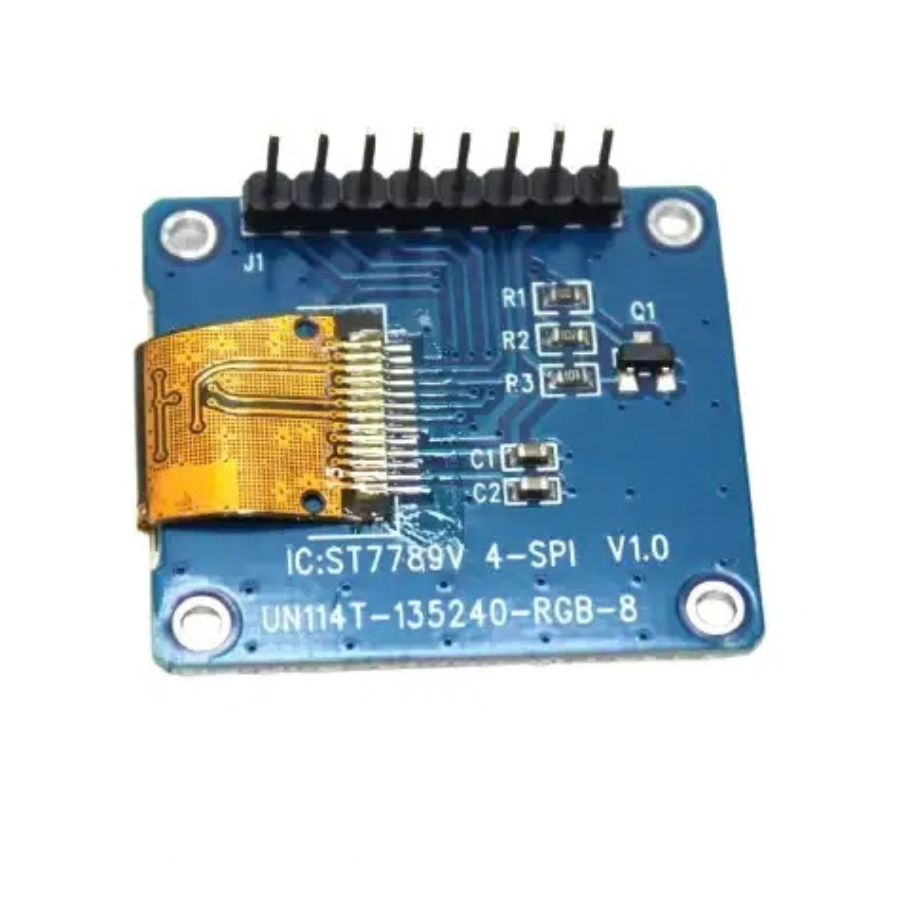

1.14 Inch 135*240 RGB TFT IPS LCD Module 8pin ST7789 Chip
1. LCD Size: 1.14 inches
2. Dot Matrix Size: 135*240 (Display direction can be adjusted, horizontal screen and vertical screen are ok)
3. LCD Color: Full Color
4. Hardware Interface: 4-Wire SPI interface
5. Driver IC: ST7789
6. Operating Temperature: -20 – 70
8. Working Power Supply: 3.3V
9. PIN NO.: 8P
10. Display Area: 14.864*24.912mm
11. Size: 28*31.4mm
12 Viewing Direction: Full viewing angle (IPS)
Package Include:
1 x 1.14 Inch 135*240 RGB TFT IPS LCD Module 8pin ST7789 Chip
Arduino Sleep Mode: Reduce Power for Battery Projects
A standard Arduino Uno running at full speed draws roughly 45–50 mA from the USB or power jack....
Read More →
Arduino Lie Detector: GSR Sensor Polygraph Project
Table of ContentsIntroductionComponents and Hardware SetupWiring Diagram and ConnectionsComplete Code with ExplanationCustomization and ImprovementsTroubleshooting Common IssuesAdvanced Features and...
Read More →
Arduino Crypto: Secure Communication with AES Encryption
As IoT devices proliferate in homes, factories, and healthcare, securing the data they transmit is no longer optional....
Read More →Technical Specifications
| Pin Count | 8-pin |
|---|---|
| SKU | AI2979 |
| Weight | 0.01 kg |
| Availability | In Stock |
Applications & Use Cases
The 1.14" Inch 135*240 RGB TFT IPS LCD Module 8pin ST7789 Chip is a versatile tft lcd displays used across a wide range of applications including embedded HMI interfaces, Raspberry Pi touchscreen projects, Arduino display projects, industrial control panels, and information kiosks.
Common use cases:
- Adding a touch display to a Raspberry Pi project
- Building a portable game console
- Creating a dashboard for sensor data
This product is ideal for embedded developers, IoT makers, and industrial engineers.
Technical Tip: Check interface type (SPI, I2C, HDMI, RGB) and driver IC compatibility with your development board. IPS panels offer better viewing angles than TN.
