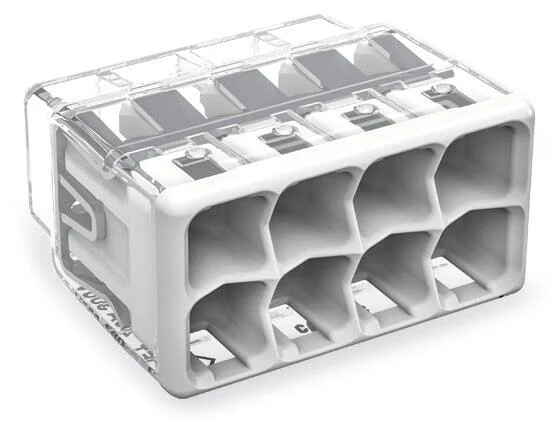

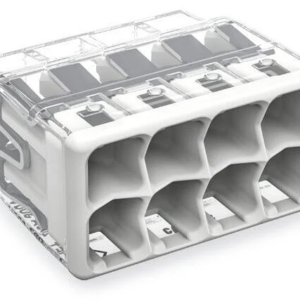

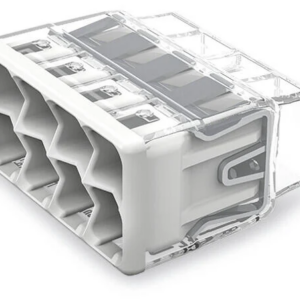

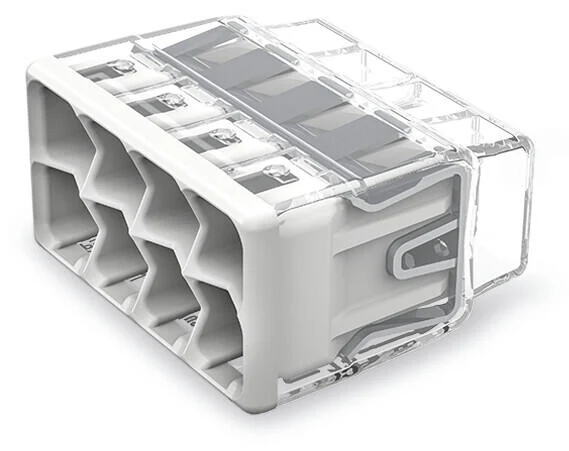

WAGO 2773-408 Connection Terminal
The WAGO 2773-408 Connection Terminal is a compact and versatile electrical wiring solution designed for junction boxes and device connection terminals. It offers quick and tool-free installation, minimizing the time and effort required for assembly.
With its 8-conductor design, this terminal enables multiple connections in one unit, allowing for efficient wiring configurations. Its compact size and sturdy construction ensure reliable performance in various electrical installations.
The transparent housing of the WAGO 2773-408 Connection Terminal allows for visual inspection, ensuring correct wiring and facilitating maintenance tasks. It is equipped with four screw terminals, compatible with ring or fork connectors, and features a plastic cover for protection.
Overall, the WAGO 2773-408 Connection Terminal provides a convenient and reliable solution for wiring tasks in junction boxes and device connection terminals, making it an essential component for electrical installations.
Features:
- Convenient wiring via extremely compact design
- Push-in termination of up to eight solid and stranded conductors
- Conductor range: 0.75 … 4 mm² “s“ and 1.5 … 4 mm² “st“
- Any combination of conductor sizes is possible
Specification:
| Attribute | Details |
|---|---|
| Nominal Voltage | 450 V |
| Rated Surge Voltage | 4 kV |
| Rated Current | 32 A |
| Connection Points | 8 |
| Total Number of Potentials | 1 |

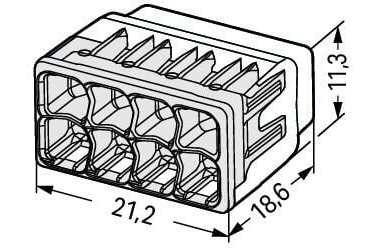

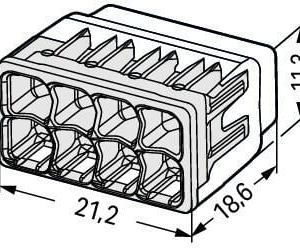

| Width | 21.2 mm / 0.835 inches |
| Height | 11.3 mm / 0.445 inches |
| Depth | 18.6 mm / 0.732 inches |
| Color | Transparent |
| Cover Color | Light gray |
| Material Group | IIIa |
| Insulation Material | Polycarbonate (PC) |
| Flammability Class per UL94 | V2 |
| Fire Load | 0.039 MJ |
| Weight | 3.4 g |
| Ambient Temperature (Operation) | +85 °C |
| Processing Temperature | -35 … +60 °C |
| Continuous Operating Temperature | -40 … +105 °C |
| Temperature Marking per EN 60998 | T85 |
PACKAGE INCLUDES
1 X WAGO 2773-408 Connection Terminal
WAGO 2773-408 Connection Terminal Overview
The WAGO 2773-408 Connection Terminal is a compact, 8-point wiring block designed for junction boxes and device connection terminals. Its tool-free spring-clamp mechanism and transparent housing enable fast, reliable conductor connections with visual inspection.
Key Features of WAGO 2773-408 Connection Terminal
- Eight connection points in a single-potential terminal block for consolidating multiple conductors
- Transparent housing allows quick visual confirmation of proper wire insertion
- Tool-free spring-clamp design reduces assembly time and requires no screws or maintenance
- Compact footprint saves space in junction boxes, control panels, and distribution boards
- Durable polycarbonate construction withstands mechanical stress and wide temperature ranges
- Genuine WAGO product with fast shipping available from Zbotic
Applications and Use Cases
- Electrical junction boxes in residential and commercial installations
- Control panels requiring neat, high-density conductor termination
- Distribution boards for lighting, heating, and power circuits
- Machine-tool and motor control wiring in industrial environments
- Field device connections in OEM assemblies and automation cabinets
- Retrofitting and expansions where quick, tool-free connections are needed
How to Use WAGO 2773-408 Connection Terminal
Strip each conductor to the recommended length, then insert it straight into the spring-clamp entry point until it seats firmly. The transparent housing lets you visually confirm proper insertion. Arrange multiple terminals side by side within your junction box or panel rail, and connect your wiring harness without the need for screws or additional tools.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
How many conductors can I connect to a single WAGO 2773-408 terminal?
The WAGO 2773-408 features eight individual connection points for one potential, allowing you to terminate up to eight separate conductors in a compact block.
Does the spring-clamp mechanism require periodic maintenance?
No. The spring-clamp design is maintenance-free, providing secure, vibration-resistant connections without the need for retightening.
How can I verify that each conductor is properly inserted?
The transparent housing offers a clear view of the conductor ends. Once inserted, you can visually confirm correct seating without disassembly.
