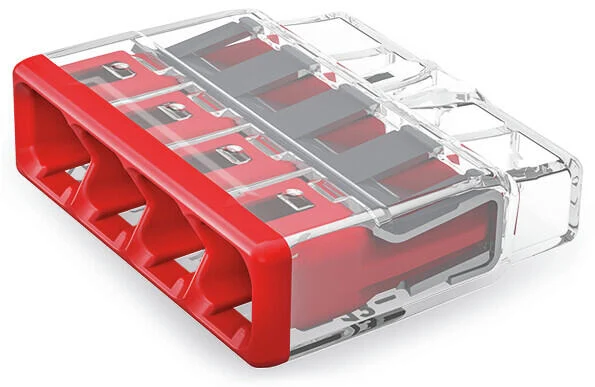

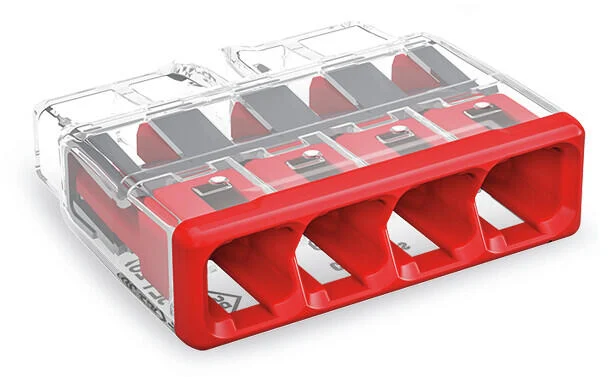

WAGO 2273-404 Connection Terminal

Looking for Wago 2273 404 Connection? WAGO 2273-404 Connection Terminal is available at Zbotic with fast shipping across India.

WAGO 2273-404 Connection Terminal

The WAGO 2273-404 Connection Terminal is a compact and efficient wiring solution designed for use in junction boxes and device connection terminals. With its push-in wire connection method, this terminal allows for quick and tool-free installation, saving time and effort during assembly.

This terminal features a 4-conductor design, making it suitable for applications requiring multiple connections. Its compact size and sturdy construction ensure reliable performance in various electrical installations.

Overall, the WAGO 2273-404 Connection Terminal provides a convenient and reliable solution for wiring tasks in junction boxes and device connection terminals, making it an essential component for electrical installations.

Features:

• Convenient wiring via extremely compact design
• Push-in termination of up to eight solid and stranded conductors.
• Conductor range: 0.75 … 4 mm² “s“and 1.5 … 4 mm² “st“
• Any combination of conductor sizes is possible.

Specification

PACKAGE INCLUDES

1 X WAGO 2273-404 Connection Terminal

WAGO 2273-404 Connection Terminal Overview

The WAGO 2273-404 Connection Terminal is a compact, single-pole terminal block offering four connection points for quick and reliable wiring. Designed for junction boxes and device connection terminals, it features a push-in spring-cage connection that allows tool-free installation of conductors up to 32 A at 450 V.

Key Features of WAGO 2273-404 Connection Terminal

• Nominal Voltage: 450 V, Rated Surge Voltage: 4 kV for safe insulation coordination
• Rated Current: 32 A per connection for industrial and building wiring
• Four Connection Points: Single potential, up to four conductors can be joined
• Push-In Technology: Quick, tool-free insertion and reliable spring-cage clamping
• Transparent Housing & Red Cover: Visual inspection of conductor seating and color-coded identification
• Compact Design: Space-saving footprint ideal for crowded junction boxes
• Fast Shipping from Zbotic: Dispatched within 24 hours across India

Applications and Use Cases

• Electrical junction box wiring for lighting and power circuits
• Device interconnections in control panels and machinery enclosures
• Temporary test rigs or prototype assemblies requiring quick connections
• Branching multiple outgoing circuits from a single supply line
• Industrial equipment hook-up where space is limited

How to Use WAGO 2273-404 Connection Terminal

Prepare conductors by stripping insulation back approximately 8–10 mm, then insert each wire straight into the push-in port until it seats firmly under the spring clamp. No tools are required for insertion. Verify proper seating through the transparent housing. To replace or reconfigure, simply withdraw the conductor by pulling it out directly.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

What wire sizes and types are compatible with the WAGO 2273-404?

The terminal accepts both solid and stranded copper conductors sized to carry up to 32 A, typically covering 0.2 mm² to 4 mm² (24 AWG to 12 AWG) depending on the application.

How can I verify a secure connection?

Thanks to the transparent housing, you can visually confirm each conductor is fully inserted and clamped under the spring cage. A secure “click” is felt upon correct seating.

Can I use the WAGO 2273-404 in standard 230 V installations?

Yes. With a nominal voltage rating of 450 V and surge resistance up to 4 kV, this terminal is fully suitable for 230 V single-phase and 400 V three-phase electrical systems.
