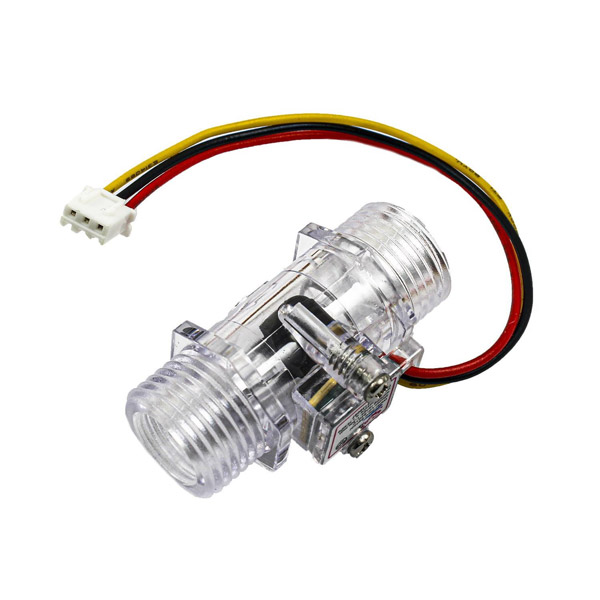

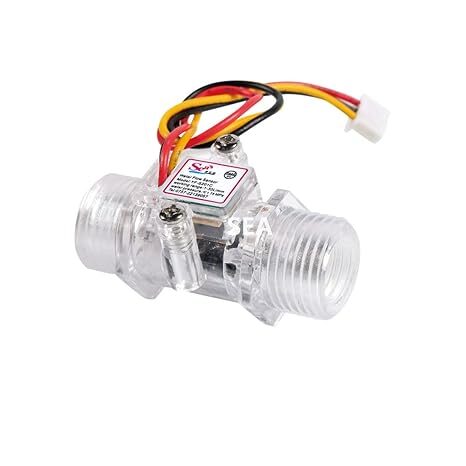

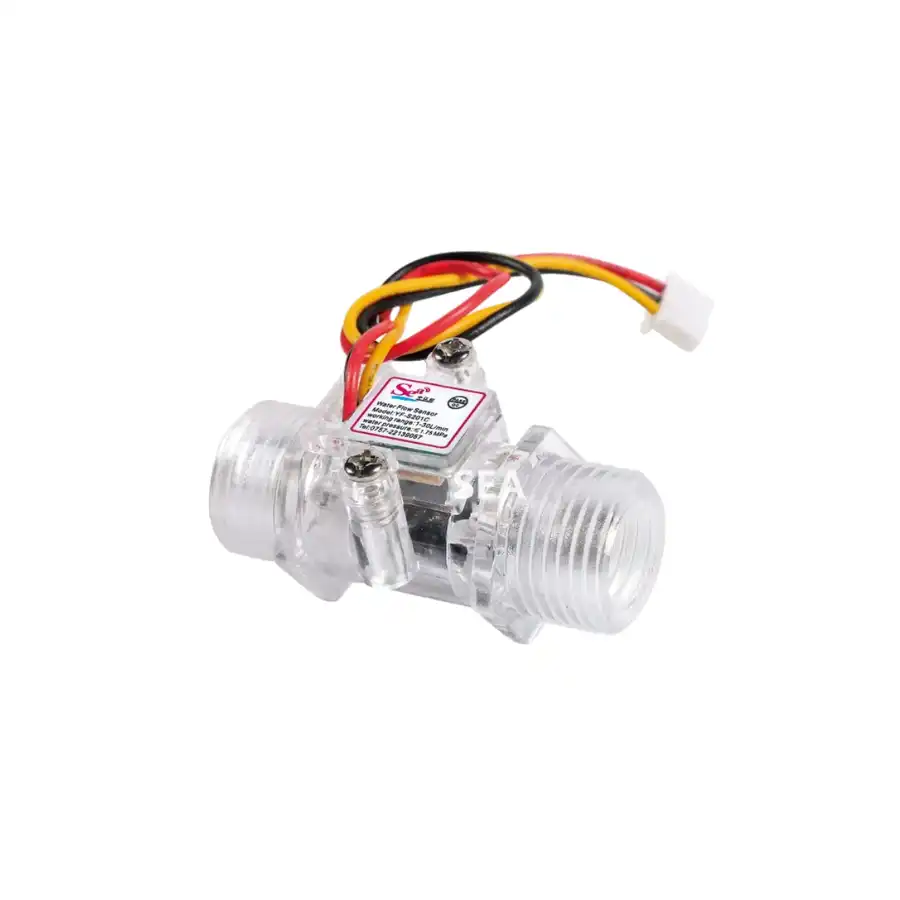

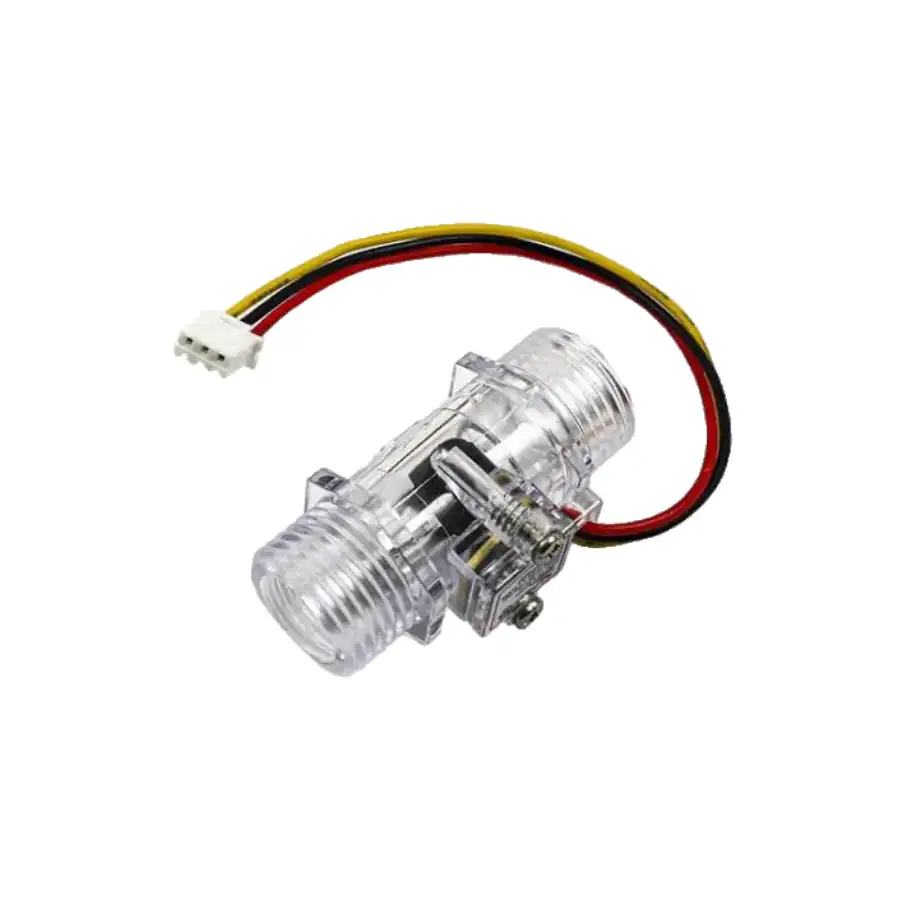

Transparent Water Flow Sensor (Sea) YF-S201C Flowmeter G1/2 1-30L/min 5-15V
• The water flow sensor is mainly composed of a plastic valve, a water flow rotor assembly and a hall sensor.
• It is equipped with a water inlet at the end of the water heater to detect the water flow rate.
• When water passes through the water flow rotor assembly, the magnetic rotor rotates and its speed changes with the flow rate.
• The hall sensor outputs the corresponding pulse signal and feeds back to the controller.
• Judge the water size and adjust it. Product appearance and convenience, small size, easy installation, and the impeller is embedded with stainless steel beads, which is wearable.
• Circuit and water isolation design, Hall elements are imported, and the valve is made of transparent material to facilitate observation of water and rotor conditions.
• All raw materials are in line with ROHS testing standards.
• Scope of application: suitable for water heaters, credit cards, automatic water vending machines, and other flow measuring devices.
Specification/Features:
• Minimum working voltage: DC4.5
• Maximum working current: 15mA (DC 5V)
• Working voltage range: DC 5-15V
• Load capacity: ≤ 10mA (DC 5V)
• Operating Temperature Range: ≤ 80 ℃
• Working humidity: 35% ~ 90% RH (no frosting state)
• Allowable pressure: below 1.75Mpa
• Temperature: -25℃~+80℃
• Storage humidity: 25% ~ 95% RH
• Frequency: F = 5 * Q(L/Min)-3
• Error: ± 2%
• Voltage: 3.5-24V DC, current not more than 10mA
• After one litre of flow, output 300 pulses.
• Output format: square wave (NPN signal)
PACKAGE INCLUDES
1 X Transparent Water Flow Sensor (Sea) YF-S201C Flowmeter G1/2 1-30L/min 5-15V
