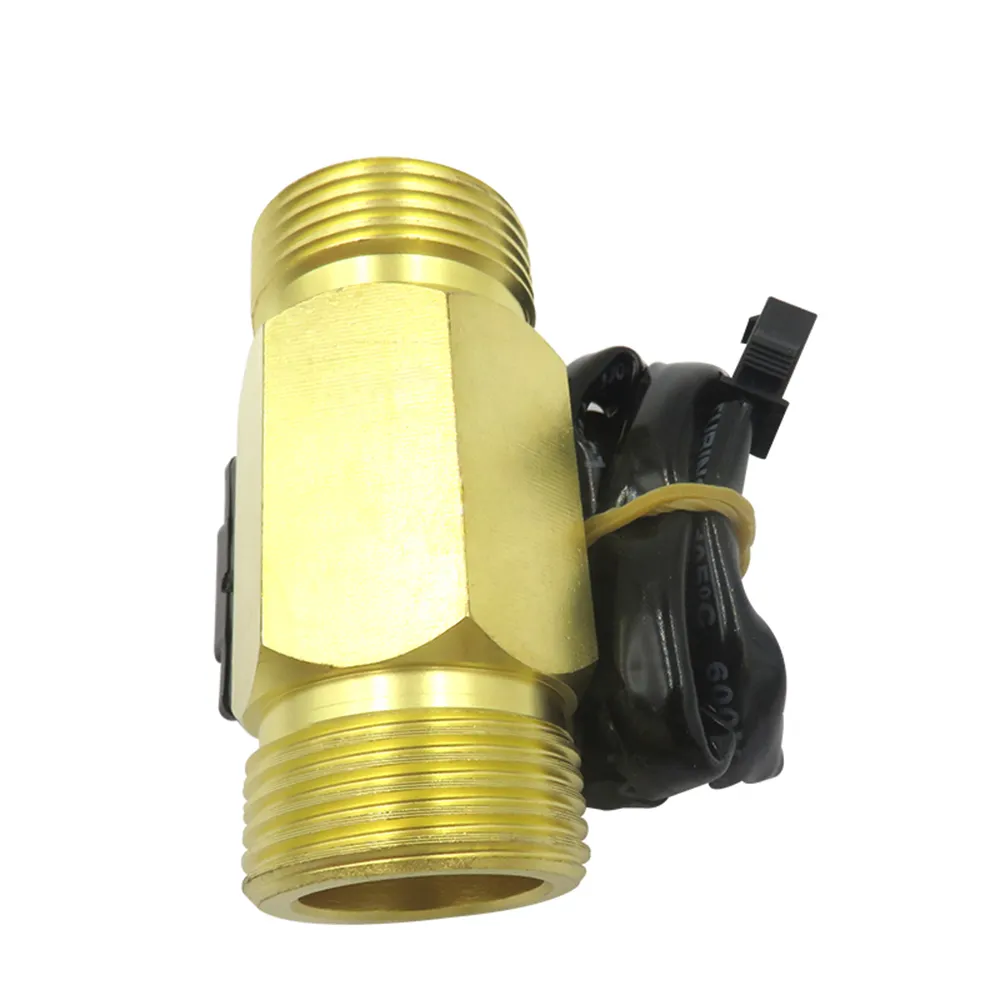

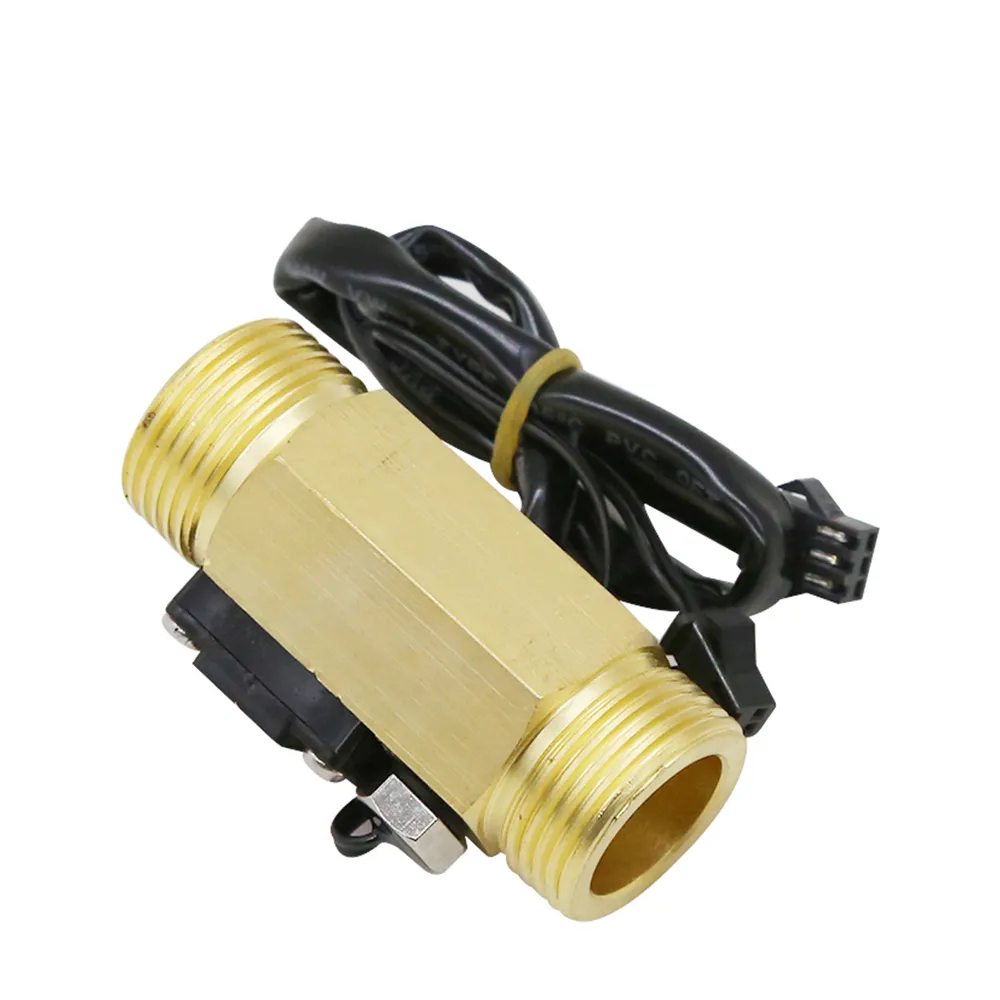

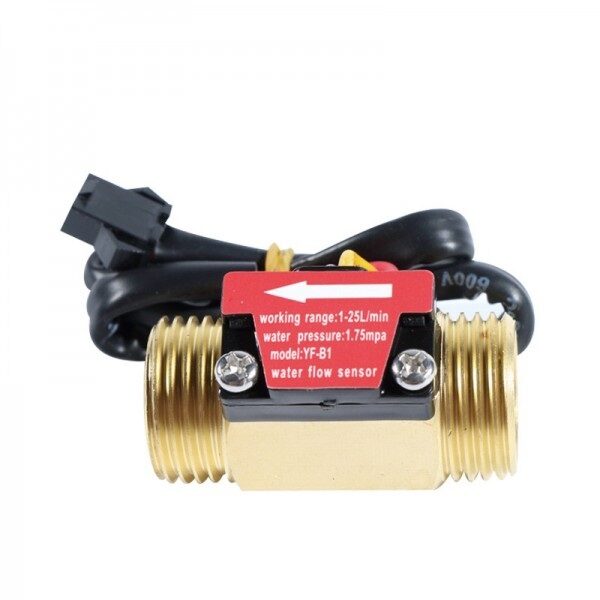

Water Flow Sensor (Sea) YF-B1 Flowmeter G1/2 1-25L/min 3.5-12V Brass
Introducing the Water Flow Sensor (Sea) YF-B1 Flowmeter G1/2, designed for precise measurement of liquid flow, particularly water. With this sensor, monitoring liquid flow becomes effortless and accurate.
The sensor outputs 11 pulses per second with a duty cycle of approximately 50% for every liter of liquid passing through it per minute. This allows for easy calculation of flow rate using the formula: Q [L/min] = fpulse[Hz]/11.
Specifications:
- Supply Voltage: 5-18V DC
- Signal Voltage: 4.7V (with 5V DC power supply)
- Connector: JST-SM 3p female
- Pulse Frequency per L/min: 11Hz*
- Duty Cycle Pulse: 50%±10%
- Measuring Range: 1-25L/min
- Accuracy: ±3%*
- Water Connection: G1/2″
- Maximum Water Pressure: 17.5bar
- Working Temperature: 1-100°C
- Suitable Liquids: Water**
- Material: Brass
- Dimensions: Refer to images
Pinout:
- Red: Vcc/plus (supply voltage)
- Black: GND/min
- Yellow: Signal
Upgrade your liquid flow monitoring system with the Water Flow Sensor (Sea) YF-B1 Flowmeter G1/2, providing reliable and accurate measurement for various applications.
Package contents:
- 1x YF-B1 Water Flow Sensor – Brass – G1/2″
