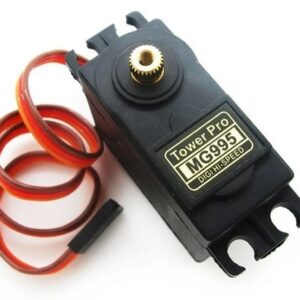

Tower Pro MG995 Plastic Gear Servo Motor (180° Rotation)
The Tower Pro MG995 High-Speed Digital Servo Motor is a versatile 180° servo motor that rotates 90° in each direction. As a digital servo, it offers faster and more precise PWM signal processing, making it ideal for applications that require quick and responsive movements. Equipped with advanced internal circuitry, it delivers excellent torque, holding power, and rapid updates in response to external forces.
The MG995 is a metal gear servo that provides impressive 10 kg/cm of torque, making it suitable for a wide range of RC models, including airplanes, helicopters, RC cars, and boats. Its high-speed performance and reliability make it a popular choice for both beginners and experienced hobbyists.
This servo motor is easy to integrate into projects since it’s compatible with standard servo code, hardware, and libraries. Whether you’re using it in a small robot, RC model, or drone, it doesn’t require a complex motor controller with feedback or a gearbox—just plug it in and start controlling movement. Additionally, the MG995 comes with a selection of arms and hardware, allowing for quick setup.
Housed in a durable plastic casing, the MG995 is water and dust resistant, making it perfect for outdoor or harsh environments, such as RC planes, boats, and monster trucks. It also features a 3-wire JR servo plug, which is compatible with Futaba connectors, ensuring broad compatibility across various RC systems.
The optimized performance and reliability of this servo have made it the favorite choice of many RC hobbyists.
Wire Description
RED – Positive
Brown – Negative
Orange – Signal
Features
The connection cable is thicker.
Equips high-quality motor.
High resolution
Accurate positioning
Fast control response
Constant torque throughout the servo travel range
Excellent holding power
Specification
| Item Type: | Tower Pro Servo Motor |
|---|---|
| Model Series: | MG Series |
| Rotation (Degree): | 180 |
| Torque Rating (kg-cm): | 10 to 12 |
| Model No. | MG995 |
| Operating Voltage (VDC): | 4.8 ~ 7.2 |
| Operating Speed @4.8V | 0.20sec/60° |
| Operating Speed @6.6V | 0.16sec/60° |
| Stall Torque @ 4.8V (Kg-Cm) | 10 |
| Stall Torque @6.6V (Kg-Cm) | 12 |
| Operating Temperature (°C) | -30 to 60 |
| Dead BandWidth (μs) | 1 |
| Gear Type | Semi-Metal |
| Servo Plug Type | JR |
| Cable Length (cm) | 30 |
| Length (mm): | 40.5 |
| Width (mm): | 20 |
| Height (mm): | 44 |
Note:
This servo draws high current while operation (up to 2 amp ~ stall), to make this servo work with Arduino or any other microcontroller, please do following connections.
Please Make Sure That Your System Has Common Ground.
Power Source Anything Battery/SMPS/Adapter.
Application
Mainly use in robotics and drones.
Package Includes
1 x Tower Pro MG995 Metal Gear Servo.

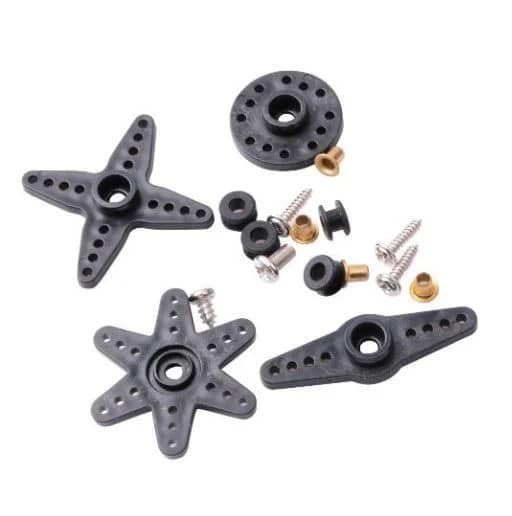

1 x Mounting Accessories Set.
