Description:

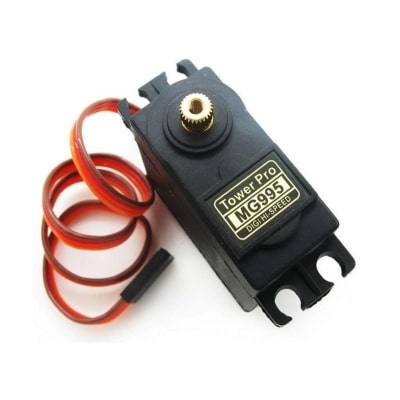

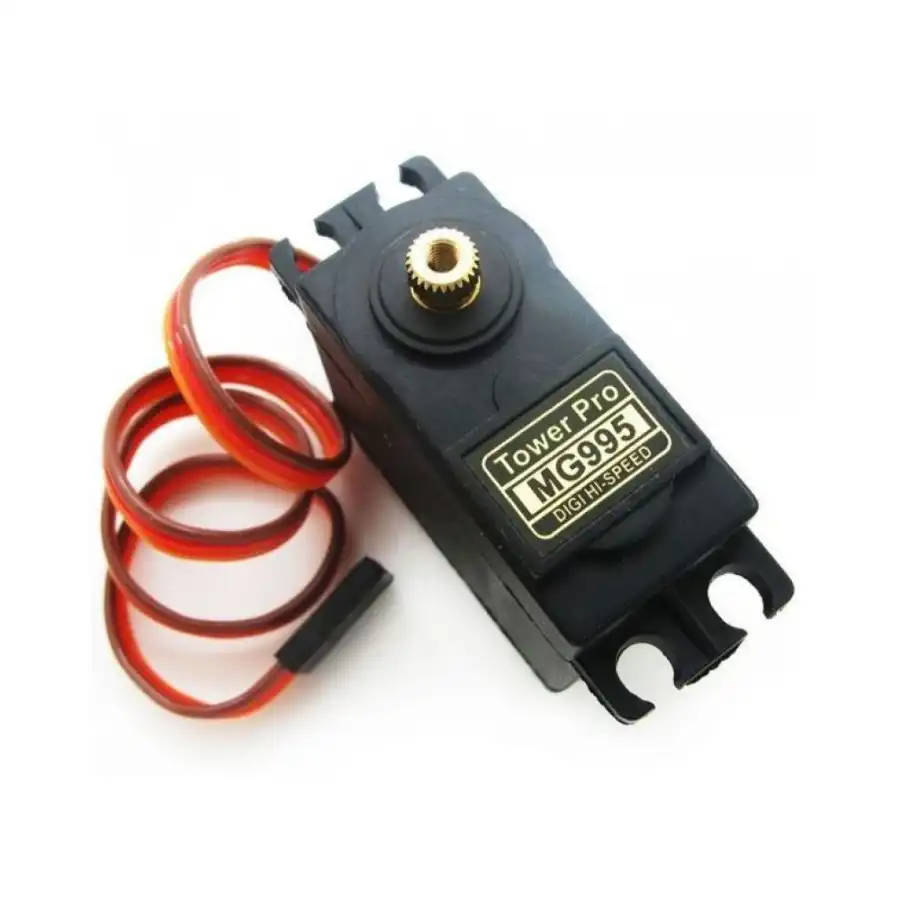

Introducing the TowerPro MG995 Metal Gear Servo Motor, engineered for high-speed rotation of approximately 180 degrees (60 degrees in each direction). Ideal for various applications, including airplanes, helicopters, RC cars, and models, this servo motor offers exceptional torque and reliability.
Wire Description:
- RED: Positive
- Brown: Negative
- Orange: Signal
Features:
- High-Speed Rotation: Capable of rotating approximately 180 degrees, offering versatility in motion control.
- High Torque: Provides a torque of 10kg/cm at 4.8V and 12kg/cm at 6V, ensuring powerful performance.
- Digital Servo: Receives and processes PWM signals rapidly and effectively for precise control.
- Advanced Circuitry: Ensures excellent torque, holding power, and rapid response to external forces.
- Sturdy Construction: Encased in a durable plastic housing, offering water and dust resistance.
- Compatibility: Equipped with a 3-wire JR servo plug, compatible with Futaba connectors for added convenience.
Specifications:
| Model | MG995 |
|---|---|
| Weight (g): | 55 |
| Operating Voltage (VDC) | 4.8 ~ 7.2 |
| Operating Speed @4.8V | 20sec/60° |
| Operating Speed @6.6V | 16sec/60° |
| Stall Torque @ 4.8V (Kg-Cm) | 10 |
| Stall Torque @6.6V (Kg-Cm) | 12 |
| Operating Temperature (°C) | -30 to 60 |
| Dead Band Width ( μs) | 1 |
| Gear Type | Metal |
| Rotational Degree | 180º |
| Servo Plug | JR |
| Cable Length (cm) | 30 |
| Length (mm): | 40.5 |
| Width (mm): | 20 |
| Height (mm): | 44 |
Package Includes:

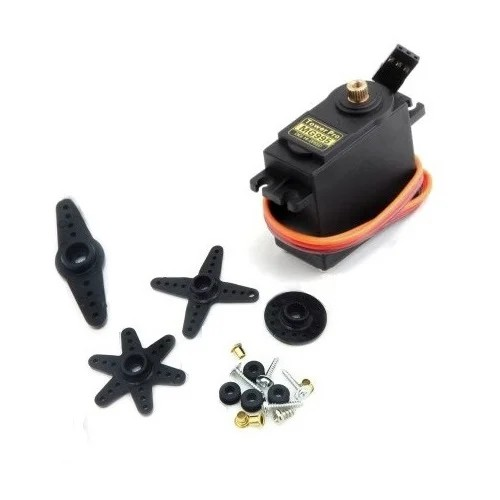

- 1 x TowerPro MG995 Metal Gear Servo Motor (180° Rotation)
Attachments:
Servo Motor Buying Guide India: Micro, Standard, and Digital
Whether you are building a robotic arm, a pan-tilt camera mount, or an automated door lock, choosing the...
Read More →
How to Run Stepper Motor Without Arduino Using EasyDriver
Most stepper motor tutorials assume you have an Arduino or microcontroller to generate the step pulses. But what...
Read More →
High Speed DC Motor: 12V 300RPM to 10000RPM Buying Guide
Whether you are building a combat robot, an electric go-kart, a drone, or an industrial conveyor system, the...
Read More →Technical Specifications
| Model | MG995 |
|---|---|
| SKU | AI0091 |
| Weight | 0.06 kg |
| Availability | Out of Stock |
Applications & Use Cases
The TowerPro MG995 Metal Gear Servo Motor (180° Rotation) is a versatile towerpro and other servo motors used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
