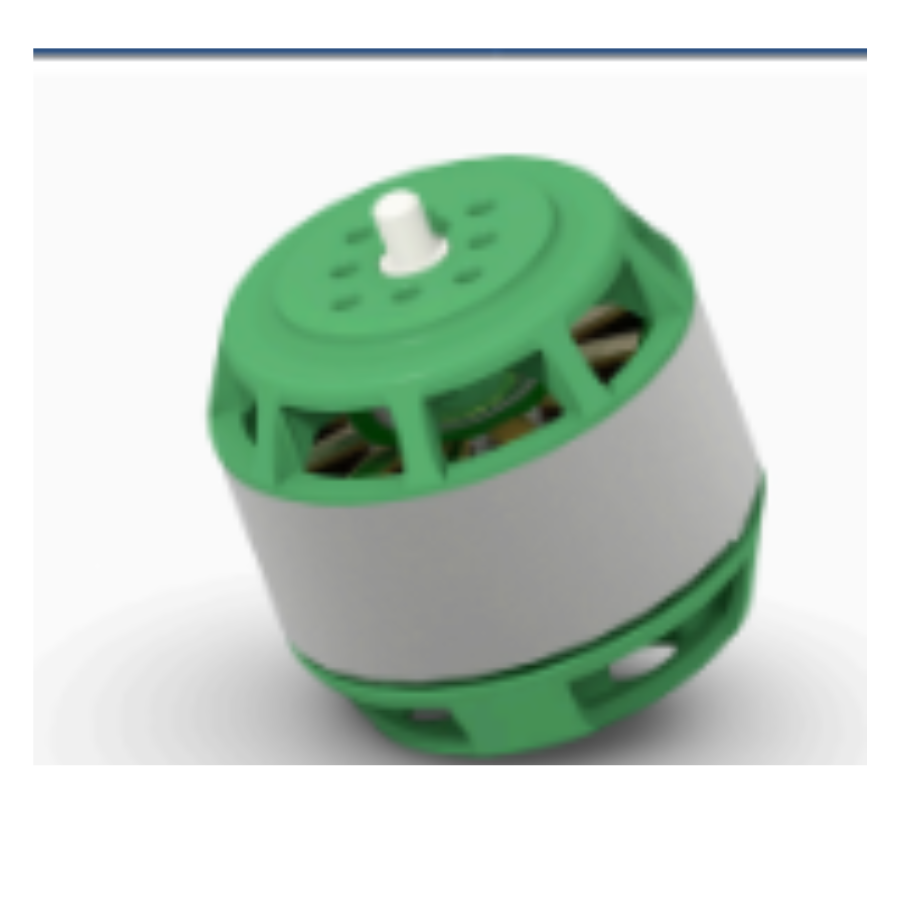

TOBITEK BWF1(3515)-Drone Motor
Description:
The TOBITEK BWF1 (3515) Drone Motor is a brushless motor designed for compatible drone and UAV propulsion systems. Its brushless construction supports smooth operation and efficient power delivery, making it suitable for drone builders and UAV integrators. Before installation, verify the motor’s KV rating, voltage range, propeller compatibility, and thrust specifications to ensure proper integration with your drone setup.
Specification:
Motor Technical Parameters :
| Specification | Details |
|---|---|
| Brand | TOBITEK |
| Model | BWF1 (3515) |
| Motor Type | Brushless DC (BLDC) |
| KV Rating | 840KV |
| Maximum Thrust | 3 kgf |
| Maximum Power | 840W |
| Peak Current | 42A |
| Recommended Battery | 6S |
| Motor Weight | 128g |
| Stator Size | Ø35 × 15mm |

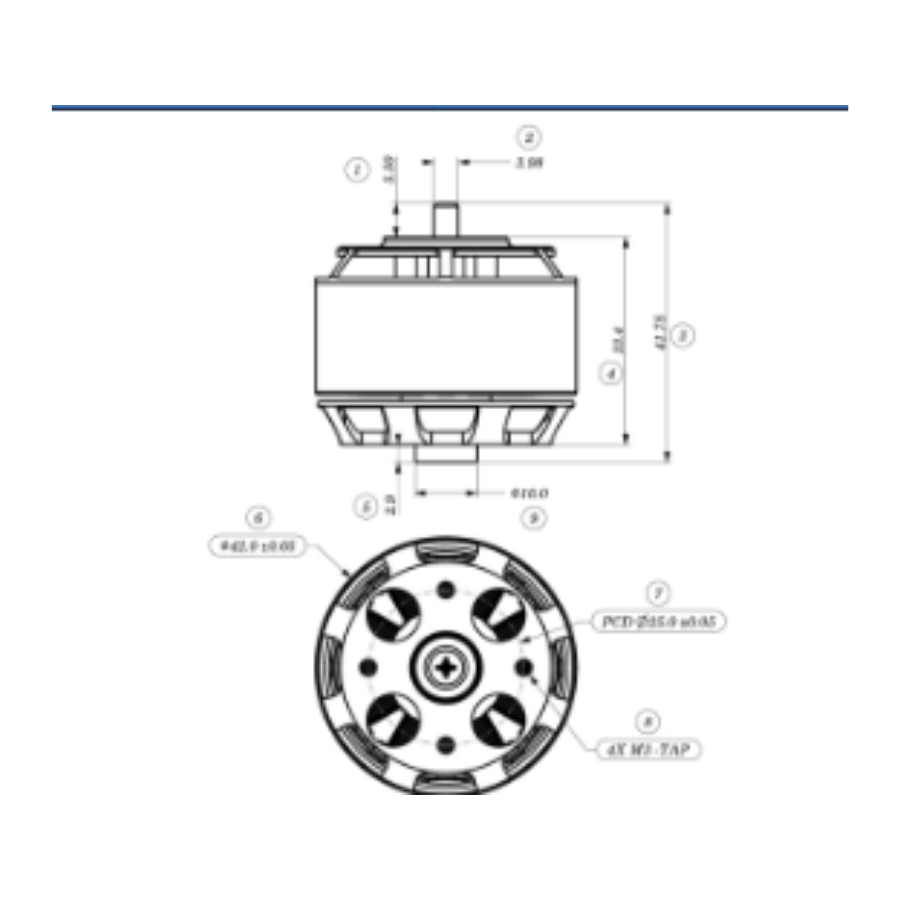

| Motor Dimensions | Ø42.00 × 41.75mm |
| Shaft Diameter | 4mm |
| Motor Configuration | 12N14P |
| Bearing Type | Imported 685ZZ |
| Lead Wire Length | 600mm |
| Coil Insulation Test Voltage | 500V |
| Copper Wire Class | 220 |
| Magnet Temperature Rating | 120°C |
Features:
- High Thrust: Provides up to 3 kgf of maximum thrust.
-
Powerful Performance: Supports a maximum power rating of 840W.
-
6S Battery Compatibility: Recommended for use with a 6S battery.
-
Durable Construction: Features imported 685ZZ bearings.
-
Temperature Resistance: Magnet temperature rating of 120°C.
-
Quality Insulation: 500V coil insulation test specification.
Package Include:
1x TOBITEK BWF1(3515)-Drone Motor
AI Vision Drone with Waveshare Camera Module
Building an AI vision drone with a Waveshare camera module opens up possibilities that were unimaginable just a...
Read More →
Hexacopter vs Quadcopter: When More Motors Mean More Value
Hexacopter vs Quadcopter: When More Motors Mean More Value The drone world is built around the quadcopter. Four...
Read More →
Cinewhoop Build: Smooth Indoor Cinema Drone Guide
Table of Contents Understanding Cinewhoop Build Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation Practical Tips...
Read More →Technical Specifications
| Brand | TOBITEK |
|---|---|
| SKU | AI5334 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The TOBITEK BWF1(3515)-Drone Motor is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
