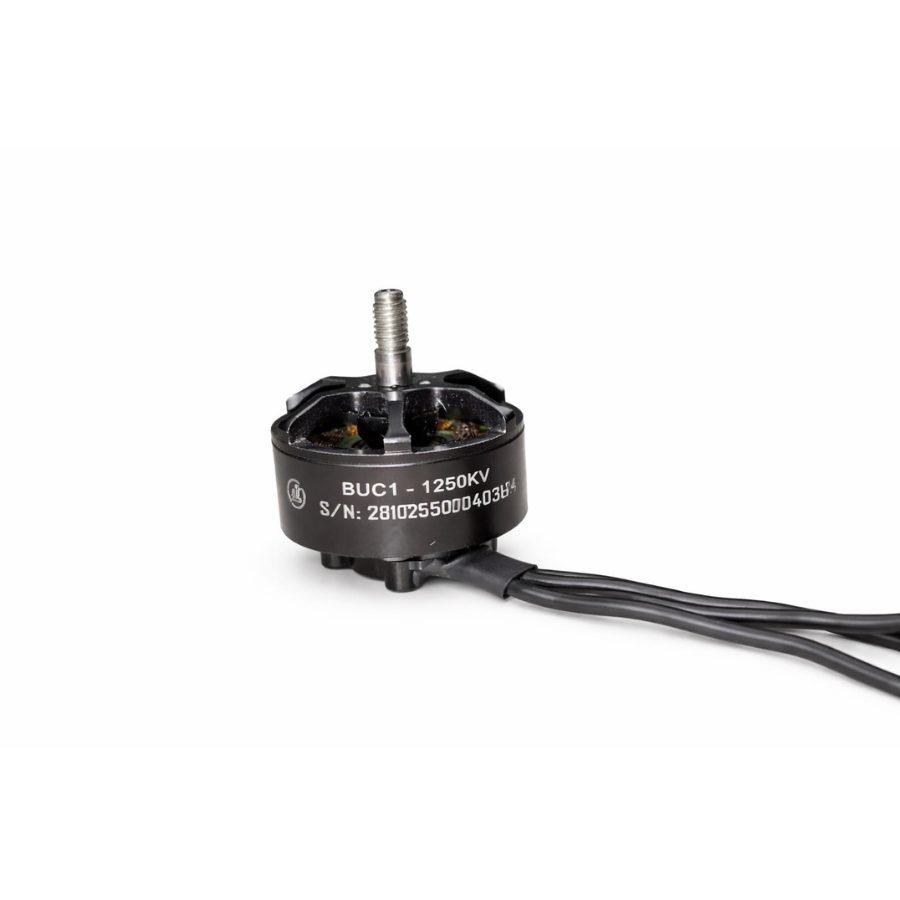

TOBITEK BUC1(2810) BLDC Motor
Description:
The TOBITEK BUC1 (2810) BLDC Motor is a brushless DC motor designed for drone and UAV propulsion systems. Its brushless construction supports smooth rotation, responsive speed control, and reliable power delivery. It can be integrated into compatible multirotor platforms with a suitable electronic speed controller (ESC), battery, and propeller.
Compact high-speed brushless motor designed for FPV drones. Provides responsive control and reliable thrust-to-weight performance.
Key Features:
- Lightweight FPV optimized motor
- Fast throttle response
- Durable construction
Applications:
- FPV Racing Drones
- Lightweight Quadcopters
Specifications:
| Category | Specification | Details |
|---|---|---|
| System | Maximum Thrust | 2 kgf |
| System | KV Rating | 1250 KV |
| System | Total Weight | 80 g |
| System | Take-off Weight | 1–1.2 kg |
| System | Voltage Range | 6S |
| Motor | Stator Size | Ø28 × 10 mm |
| Motor | Motor Size | Ø34 × 43.5 mm |
| Motor | Maximum Power | 1237 W |
| Motor | Maximum Current | 61.65 A |
| Motor | Efficiency | TBD |
| Motor | Temperature Range | TBD |
| Motor | Bearing Type | TBD |
| Motor | Magnet Material | TBD |
| ESC | Model | Reflex Drive D Series (40A, 2S–6S) |
| ESC | Voltage Range | 2S–6S |
| ESC | Continuous Current | 40 A |
| ESC | Burst Current | TBD |
| ESC | Weight | TBD |
| Propeller | Model | 8040 |
| Propeller | Weight | 9 g |
Attachments:
Pacakge Includes:
1xTOBITEK BUC1(2810) BLDC Motor
Drone Weight Optimization: Every Gram Counts in FPV
Table of Contents Understanding Drone Weight Optimization Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation Practical...
Read More →
Drone Motor KV Rating Calculator and Selection Guide
Understanding the drone motor KV rating and how to calculate the right motor for your build is fundamental...
Read More →
FPV Drone Tuning Rates and Filters: Betaflight PID Guide
Table of Contents What Is PID Control in FPV Drones? Betaflight PID Terms: P, I, D, F Explained...
Read More →Technical Specifications
| Brand | TOBITEK |
|---|---|
| SKU | AI5166 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The TOBITEK BUC1(2810) BLDC Motor is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
- Genuine TOBITEK product sourced from authorized channels
