Looking for Gr2004 Motor Geprc? GEPRC-GR2004 1750KV Motor is available at Zbotic with fast shipping across India.
GEPRC-GR2004 1750KV Motor:
The GEPRC GR2004 1750KV motor is a lightweight, high-performance brushless motor engineered for Toothpick and Long Range FPV drones. It delivers smooth, stable thrust with excellent heat dissipation and robust materials. With a compact design and dynamic balance, it’s perfect for 5-inch propellers. Built with high-grade N52H magnets and a dual bearing structure, this motor ensures durability, responsiveness, and a fluid flying experience across 2S to 6S LiPo setups.
Features:
- Optimized for Toothpick and Long Range FPV applications.
- Precision dynamic balancing with dual-bearing design.
- Lightweight build for agile flight, only 16.8g.
- Strong N52H magnets for superior magnetic force.
- Supports 5-inch propellers.
Specification
| Motor KV (RPM/V): | 1750 |
|---|---|
| Model No.: | GR2004 |
| Compatible LiPO Batteries: | 2-6S |
| Shaft Diameter (mm): | 1.5 |
| Stator Height | 4mm |
| Stator Diameter | 20mm |
| Shipping Weight | 0.7 kg |

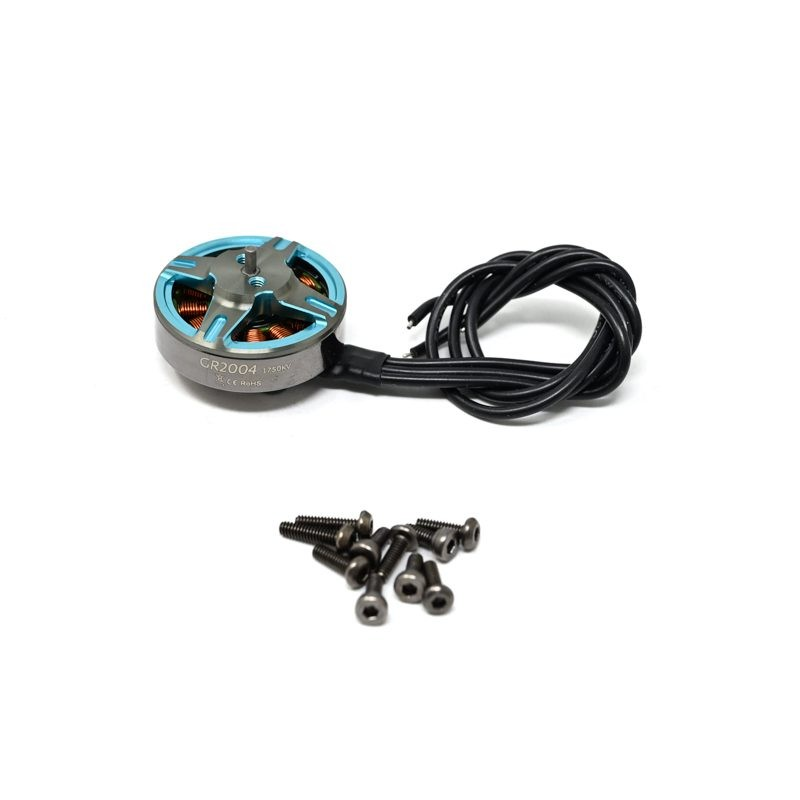

Package Includes:
- 1 x GR2004 Motor
- 4 x M2x4 Button head screws
- 4 x M2x5 Button head screws
- 4 x M2x6 Button head screws
GEPRC-GR2004 1750KV Motor Overview
The GEPRC-GR2004 1750KV Motor is a lightweight, high-performance brushless motor designed specifically for Toothpick and long-range FPV drone builds. With its compact 20×04 mm design and dynamic balancing, it delivers smooth, stable thrust while handling 2S to 6S LiPo setups.
Key Features of GEPRC-GR2004 1750KV Motor
- Optimized for Toothpick and long-range FPV applications
- 1750KV rated for responsive throttle on 2S–6S LiPo batteries
- Precision dynamic balancing with dual-bearing structure
- High-grade N52H magnets for superior power density and heat dissipation
- Ultra-lightweight build at just 16.8 g to enhance agility
- Fast shipping from Zbotic across India
Applications and Use Cases
- 2″ Toothpick freestyle drone builds requiring nimble thrust
- 5″ long-range FPV drones demanding efficient, smooth flight
- Mini racing quads seeking high power-to-weight ratio
- Endurance flights on 2S–6S setups for exploration or mapping
- DIY custom drone prototypes where compact size matters
How to Use GEPRC-GR2004 1750KV Motor
Mount the GEPRC-GR2004 motor onto your drone’s motor mounts using the supplied screws, solder or bullet-connect the three phase wires to your ESC, then secure a 5″ propeller ensuring correct rotation. Calibrate your ESC for the 1750KV rating, perform a bench test at low throttle to verify spin direction and smoothness, and adjust end points as needed before full flight.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What battery voltage range does the GEPRC-GR2004 support?
The GEPRC-GR2004 1750KV motor is rated for 2S to 6S LiPo batteries, offering flexibility for both lightweight and high-power FPV setups.
Which propeller size works best with this motor?
This motor is optimized for 5″ propellers, providing ideal thrust-to-weight performance in Toothpick and long-range FPV configurations.
How do I maintain the dual-bearing structure?
Periodically inspect bearings for debris and spin the motor without load to check for smoothness. Apply a drop of light bearing oil if you notice friction, and keep the motor housing free from moisture and dirt.
